Forces on a rocket in flight — thrust, aerodynamic (normal, axial), gravity: Question bank

Before we start, build every symbol this page leans on so nothing appears unearned.

Figure — Forces on a rocket in flight — thrust, aerodynamic (normal, axial), gravity

Intuition Why the equations of motion have exactly these terms (the picture)

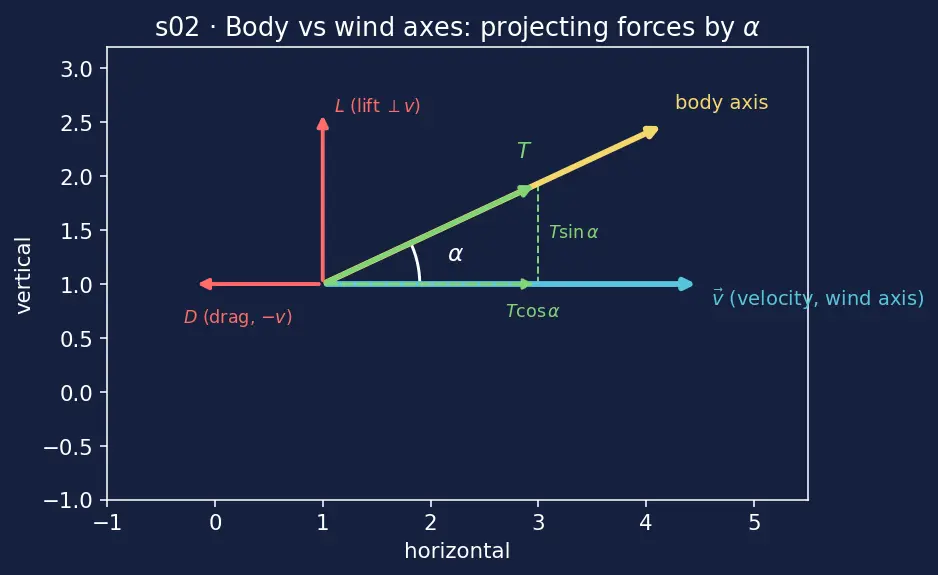

Look at figure s02, the body-vs-wind axes. The velocity direction (call it tangential) and the perpendicular direction (call it normal-to-path) are two rulers. Project every force onto them:

Thrust points along the body, tilted by $α$ from $v$ , so it projects as $T cos α$ (forward) and $T sin α$ (turning).
Drag $D$ is by definition opposite $v$ , so it sits purely on the tangential ruler as $- D$ ; lift $L$ is perpendicular to $v$ , so it sits purely on the normal ruler as $+ L$ .
Weight $m g$ points down; tilt by $γ$ gives $m g sin γ$ opposing forward motion and $m g cos γ$ bending the path.

Adding the tangential projections (which change speed) gives $m d v / d t = T cos α - D - m g sin γ$ . Adding the normal projections (which change direction, and the rate of turning of a path is $v d γ / d t$ ) gives $m v d γ / d t = T sin α + L - m g cos γ$ . Every term is just one arrow's shadow on one ruler.

True or false — justify

True or false: Thrust is exactly

\overset{m}{˙} v_{e}

at every instant of flight.

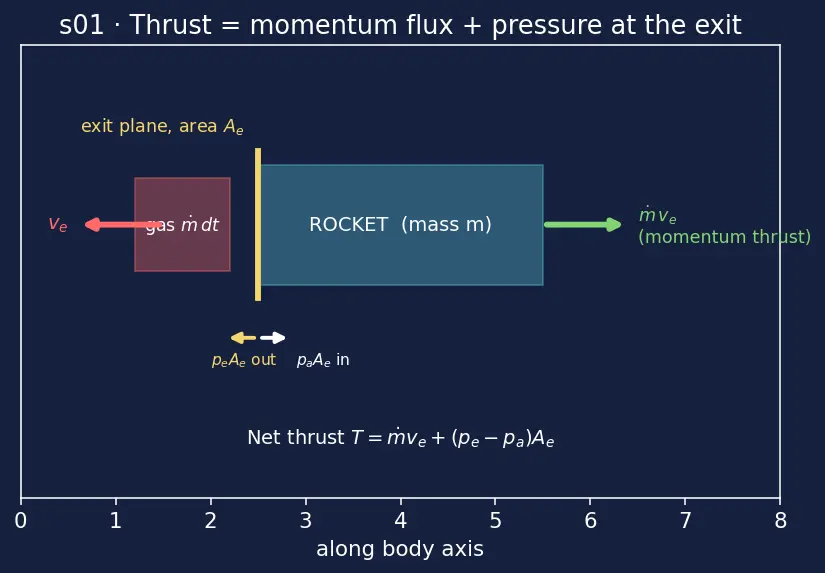

False — only if the nozzle is perfectly pressure-matched (

p_{e} = p_{a}

). In general

T = \overset{m}{˙} v_{e} + (p_{e} - p_{a}) A_{e}

; the pressure term is nonzero except at one special altitude.

True or false: A rocket engine produces more thrust in vacuum than at sea level.

True — as

p_{a} \to 0

the pressure term

(p_{e} - p_{a}) A_{e}

grows to its maximum

p_{e} A_{e}

, so the same

\overset{m}{˙} v_{e}

is topped up by the largest possible pressure bonus.

True or false: Normal force

N

equals lift

L

False in general —

N = L cos α - D sin α

. They coincide only at

α = 0

, because body axes and wind axes are then aligned.

True or false: If the angle of attack is zero, the normal force is zero.

Essentially true — at

α = 0

N = L cos 0 - D sin 0 = L

, and a symmetric rocket at

α = 0

generates no lift, so

N \approx 0

. Any residual comes from asymmetry, not the flow angle.

True or false: You may use the launch mass

m_{0}

F = ma

throughout the burn.

False — mass falls as propellant leaves, so use the instantaneous

m (t) = m_{0} - \overset{m}{˙} t

; acceleration surges near burnout precisely because

m

has shrunk.

True or false: Gravity always slows a rocket down.

False — only the along-path component

m g sin γ

slows it; the across-path component

m g cos γ

merely bends the trajectory (this is the gravity turn), and if the rocket dives, gravity even speeds it up.

True or false: The axial force

A

is always just the drag.

False —

A = D cos α + L sin α

. When the body is tilted, part of the lift also presses along the body, so

A > D

whenever

α \neq = 0

and

L > 0

True or false: Thrust and axial force point in opposite directions along the body.

True — thrust drives the nose forward along the body axis while axial force (drag-like) resists that same motion, so they subtract in the tangential equation (

T cos α - D

True or false: The

\frac{1}{2} ρ v^{2}

in aerodynamic force is a fundamental constant of nature.

False — it is dynamic pressure

q

, a convention that isolates speed and air density so the shape's whole personality can live in the coefficient

C

; the

\frac{1}{2}

is bookkeeping.

Spot the error

Error: "Since

F = ma

is exact, and

m

is the current mass, the rocket's acceleration is simply

T / m

— nothing else matters."

It ignores drag and gravity. The true along-path law is

m d v / d t = T cos α - D - m g sin γ

; only in deep vacuum with

α = 0

does

a

approach

T / m

Error: "At sea level the pressure term always adds to thrust, so

T > \overset{m}{˙} v_{e}

on the pad."

Not necessarily — if the exit is over-expanded (

p_{e} < p_{a}

), then

(p_{e} - p_{a}) A_{e} < 0

and the pressure term subtracts, giving

T < \overset{m}{˙} v_{e}

(see the parent's Example 1: 529.5 kN < 560 kN).

Error: "Lift is 'up', so all of lift becomes normal force across the body."

A tilted body splits lift between axes:

N = L cos α

keeps only the part perpendicular to the body, while

L sin α

leaks into the axial direction. Wind-axis 'up' is not body-axis 'across'.

Error: "The rocket flies where its nose points, so

α

is always zero."

The nose points along the body axis, but the rocket moves along

v

; whenever these disagree (gusts, pitch-over, gravity turn) there is a real

α \neq = 0

, which is exactly what creates normal force.

Error: "We split aerodynamics into axial and normal because it's mathematically the same as lift and drag, just renamed."

They are related by a rotation, not a rename. The reason to choose body axes is physical: fins, skin, and structural loads act along and across the body, so

A

and

N

tell you what the airframe must survive.

Error: "Thrust points along the velocity vector."

Thrust points along the body axis, not

v

. When

α \neq = 0

only

T cos α

helps forward speed while

T sin α

turns the flight path (the

+ T sin α

term in the normal equation).

Why questions

Why do we resolve aerodynamic force into axial and normal instead of lift and drag?

Because a rocket is a slender arrow and its structure feels loads along and across its own body; body axes make the forces the airframe must carry — and the pitching moments — directly visible.

Why does the same engine grow stronger as it climbs?

Ambient pressure

p_{a}

drops with altitude, so the pressure term

(p_{e} - p_{a}) A_{e}

increases; the momentum part

\overset{m}{˙} v_{e}

barely changes, so total

T

rises toward its vacuum maximum.

Why is there a

cos α

on thrust in the tangential equation but a

sin α

in the normal one?

The body axis is tilted by

α

from

v

, so projecting the along-body thrust onto the flight direction gives

T cos α

, and onto the perpendicular direction gives

T sin α

— pure vector resolution (see figure s02).

Why does force scale as

ρ v^{2}

rather than

ρ v

Force is momentum given to the air per second

\approx (mass/time) \times (velocity) \approx (ρ v S) \times v = ρ v^{2} S

; one

v

counts how much air you hit per second, the other is the speed you give it.

Why do rockets pitch over early instead of climbing straight up?

Straight up means

γ = 9 0^{\circ}

and the full weight

m g sin γ = m g

opposes motion — maximal gravity loss; tilting reduces

sin γ

and lets the horizontal speed needed for orbit build up (the gravity turn logic).

Why do we need two equations of motion, not one?

Velocity is a vector: it can change in magnitude (the

d v / d t

equation) and in direction (the

v d γ / d t

equation). One scalar law cannot describe both a speed-up and a turn at once.

Edge cases

Edge case: What is the thrust at the exact altitude where

p_{e} = p_{a}

The pressure term vanishes and

T = \overset{m}{˙} v_{e}

precisely — this pressure-matched altitude is where the nozzle is optimally expanded, the peak of thrust efficiency for that nozzle.

Edge case: What happens to the aerodynamic forces at launch, when

v = 0

Dynamic pressure

q = \frac{1}{2} ρ v^{2} = 0

, so both

A

and

N

vanish; at lift-off only thrust and gravity act, and the concept of

α

is momentarily undefined because

v

has no direction.

Edge case: What happens to aerodynamic forces as the rocket leaves the atmosphere (

ρ \to 0

q \to 0

A, N, L, D

all fade to zero; only thrust and gravity remain, and thrust reaches its vacuum value — the vehicle is now purely a variable-mass body in free space.

Edge case: A negative angle of attack (

α < 0

) — what happens to the normal force?

The flow now presses on the other side of the body, so

N

reverses sign: with

α < 0

a symmetric body gives

L < 0

, hence

N = L cos α - D sin α < 0

, pushing across the body the opposite way. The magnitude behaves the same, only the direction flips.

Edge case: A negative angle of attack (

α < 0

) — does axial force still exceed drag?

Not necessarily —

A = D cos α + L sin α

, and with

α < 0

both

sin α < 0

and (for a symmetric body)

L < 0

, so their product is positive and

A

can still rise; but the sign bookkeeping matters, so always plug in the signed

α

rather than its magnitude.

Edge case: A rocket climbing vertically at

γ = 9 0^{\circ}

— what is the across-path gravity term?

m g cos γ = m g cos 9 0^{\circ} = 0

, so gravity does no turning; the trajectory can only bend once

γ

drops below

9 0^{\circ}

, which is why an initial nudge is needed to start the turn.

Edge case: If a gust suddenly makes

α

large, what dominates the structural load?

The normal force

N = q S C_{N} (α)

grows (its coefficient

C_{N}

climbs with

α

), pressing hard across the body — this is the danger zone for stability and airframe bending near max-Q.

Edge case: At a very high Mach number, are

C_{A}

and

C_{N}

the same as at low speed?

No — the coefficients depend on Mach number too (compressibility, shock waves), so [[Drag Coefficient and Mach Number|

C_{A}

and

C_{N}

change with speed]], not just with

α

Edge case: What does

α = 0

but

γ = 0

(level flight) do to the equations?

With

α = 0

: tangential

m d v / d t = T - D

(no gravity along path since

sin 0 = 0

), and normal

m v d γ / d t = L - m g

— gravity now fully opposes lift because the path is horizontal.

Recall One-line summary of every trap

Symbols live on rulers: $A, N$ on the body, $D, L$ on the wind, $T$ along the body, $g$ toward Earth. Every mistake above is using the wrong ruler, forgetting a term ( $p$ -thrust, drag, gravity), forgetting that $m$ shrinks, or forgetting that $α$ can be nonzero and can be negative.
