Propellant properties — density, freezing point, toxicity, storability: Question bank

This bank digs into the four constraints from the parent note — density $ρ$ , freezing point $T_{f}$ , toxicity, and storability — and the places where they fight each other. Where a symbol appears, the parent note or a linked topic already defined it; if you are unsure of $Δ v$ , see the Rocket Equation, and for $I_{s p}$ see Specific Impulse.

Definition Acronyms used on this page

Before we trap you, here are the terms in plain words:

NTO — Nitrogen Tetroxide ( $N_{2} O_{4}$ ), a storable oxidizer that is liquid near room temperature.
MMH — Monomethylhydrazine, a storable, toxic fuel commonly paired with NTO as a hypergolic combo (they ignite on contact, no igniter needed).
LD₅₀ (Lethal Dose 50 %) — the dose that kills half of a group of test animals, in mg per kg of body weight. Lower = more toxic.
TLV-TWA (Threshold Limit Value – Time-Weighted Average) — the concentration a worker can safely breathe averaged over an 8-hour workday, in parts per million (ppm).
IDLH (Immediately Dangerous to Life or Health) — the concentration that causes irreversible harm or death within about 30 minutes.
MLI — Multi-Layer Insulation, the thin reflective blankets that slow heat leak into cryogenic tanks.

Two figures below make the two most abused ideas visible: why tank mass scales with volume (Figure s01) and why bigger cryo-tanks leak less per unit stored mass (Figure s02). Refer to them as you work the questions.

Figure — Propellant properties — density, freezing point, toxicity, storability

True or false — justify

Denser propellant always gives a lighter rocket.

False. Denser propellant shrinks the tank (good), but density and

I_{s p}

trade off; since

Δ v

grows with

I_{s p}

exponentially through the mass ratio, a low-

I_{s p}

dense fuel can lose overall despite lighter tanks.

Liquid hydrogen is chosen for boosters because of its high specific impulse.

False. Boosters (like the Saturn V S-IC) use dense RP-1/LOX because packaging and thrust matter at liftoff; LH₂'s huge low-density tanks hurt more than its high

I_{s p}

helps down low. High

I_{s p}

wins on upper stages instead.

A propellant that is liquid at room temperature has no freezing-point concern in space.

False. Room-temperature storable propellants can still freeze in shadowed lines and valves where an orbiting stage radiates to −150 °C; the concern is the local cold spot, not the pad temperature.

Cryogenic propellants can sit fuelled on the pad indefinitely.

False. Heat always leaks in, so cryogens continuously boil off; this forces launch-window constraints and venting, unlike storable Hypergolic Propellants.

Better insulation can reduce boil-off to zero.

False. Insulation cuts conduction but adds mass, and it cannot stop infrared radiation nor conduction through the mechanical supports (thermal bridges); some heat leak is unavoidable in space.

A lower LD₅₀ number means a safer propellant.

False. LD₅₀ is the dose that kills half the test animals, so a lower number means a smaller lethal dose — i.e. more toxic, not safer.

Hydrazine's high toxicity makes it useless for real missions.

False. Its storability (long-term stability, hypergolic ignition) is so valuable for satellites and probes that engineers accept the toxicity with strict handling procedures.

For a fixed propellant mass, tank wall mass grows roughly in proportion to tank volume.

True. From the hoop-stress balance the wall thickness

t \propto r

(Figure s01), so surface area

\propto V^{2/3}

and thickness

\propto r \propto V^{1/3}

give wall mass

\propto V^{2/3} \cdot V^{1/3} = V

; halving density doubles volume and roughly doubles tank mass.

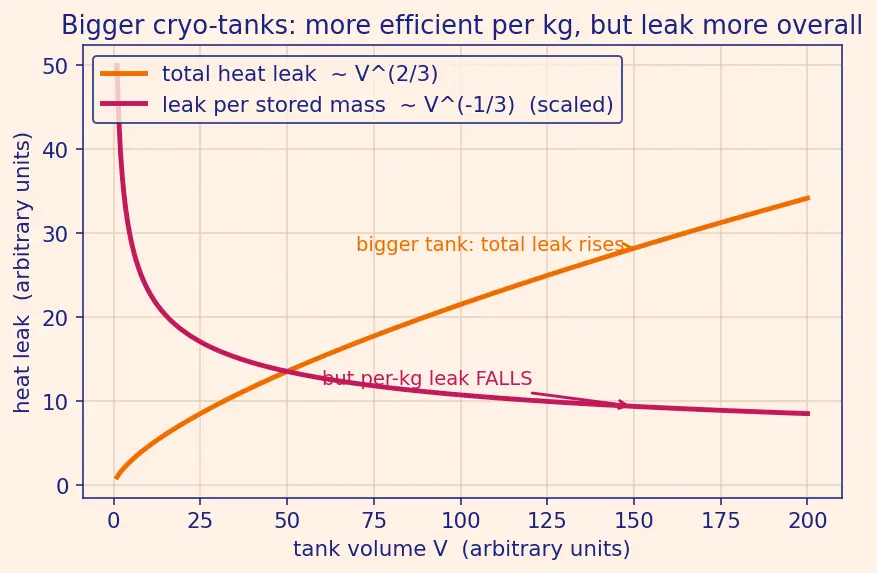

Bigger cryogenic tanks are more thermally efficient per unit of propellant stored.

True. Heat leak

\dot{Q} \propto

surface area

\propto V^{2/3}

, but stored mass

\propto V

, so leak per unit stored mass

\propto V^{2/3} / V = V^{- 1/3}

falls as the tank grows (Figure s02). Big tanks are more efficient per kg — the absolute leak still grows, which is a separate concern.

Methalox is favoured for Mars concepts purely because it has the highest

I_{s p}

False. It's a compromise: better

I_{s p}

than hypergolics, higher density and far lower boil-off than LH₂, plus cleaner handling and possible ISRU from Martian CO₂. See Methalox.

Spot the error

"NTO must be kept cryogenic like LOX because both are oxidizers."

Wrong — being an oxidizer says nothing about temperature. NTO (nitrogen tetroxide) freezes at −11 °C and boils at +21 °C, so it is storable near room temperature, unlike LOX which freezes at −219 °C.

"LH₂ has a high latent heat, so it boils off slowly."

Reversed. LH₂'s latent heat

L_{v} \approx 445 kJ/kg

is low; since boil-off rate is

\overset{m}{˙}_{boil} = \dot{Q} / L_{v}

, a small

L_{v}

gives a large boil-off (1–3 %/day even well insulated).

"To compare fuels for an upper stage, just multiply

ρ \times I_{s p}

and pick the biggest."

The

ρ I_{s p}

product is only a rough booster-oriented figure of merit; for upper stages where

Δ v

dominates you should weight

I_{s p}

far more heavily, ideally computing full

Δ v

with real tank mass.

"Since heat leak per unit stored mass falls with tank size, a huge cryo-tank has no boil-off problem."

Wrong the other way. Efficiency per kg does improve as

V^{- 1/3}

, but the absolute heat leak still grows as

V^{2/3}

, so a giant tank still boils off large amounts and needs heavy MLI — the per-kg gain doesn't make the problem vanish.

"A propellant's boiling point is what matters for a dormant space stage, not its freezing point."

Both matter. Boiling drives Boil-off Losses on the warm side; freezing blocks lines on the cold side. Ignoring either can end the mission.

"TLV-TWA and IDLH mean the same thing, just different units."

No. TLV-TWA (safe 8-hour average exposure) is a safe daily limit; IDLH (immediately dangerous to life or health) is a dangerous concentration causing irreversible harm within 30 minutes. They measure opposite ends of the hazard scale.

Why questions

Why does low propellant density ultimately worsen the rocket equation result?

Low density forces a large tank, adding structural mass

m_{structure}

; this lowers the propellant mass fraction and the mass ratio

m_{0} / m_{f}

, and

Δ v = I_{s p} g_{0} ln (m_{0} / m_{f})

shrinks with a smaller ratio.

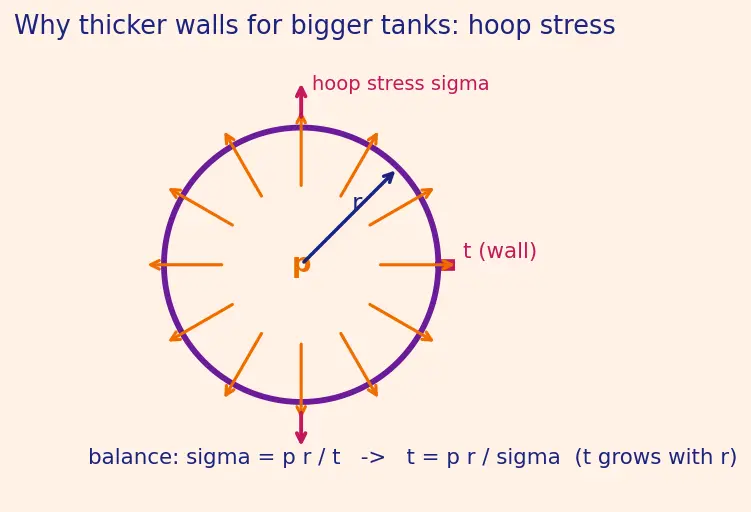

Why does the hoop-stress relation force wall thickness to grow with tank radius?

A pressurized cylinder is pulled apart along its length by pressure acting on its cross-section; balancing that force against the wall's strength gives

σ = p r / t

, so to hold a fixed stress

σ

at fixed pressure

p

the thickness must rise as

t = p r / σ \propto r

(Figure s01). Bigger tanks need proportionally thicker walls.

Why do many spacecraft accept hypergolic NTO/MMH despite its ~290 s

I_{s p}

being below LOX/RP-1's ~350 s?

Because those thrusters must fire months or years after launch; storable hypergolics don't boil away and ignite on contact without an igniter, so reliability and storability outweigh the

I_{s p}

deficit.

Why is thermal control on a 6-month Mars transfer stage so difficult with LH₂/LOX?

With no atmosphere the stage only loses heat by radiation, sunlit and shadow faces swing between +120 °C and −150 °C, and LH₂'s low

L_{v}

means steady heat leak boils away a large fraction — forcing heavy cryo-coolers or extra carried propellant.

Why does the parent note treat density and freezing point as engineering constraints rather than performance numbers?

They don't raise

I_{s p}

or thrust; instead they decide whether the propellant can be stored, flowed, and packaged at all — a mission can fail on these even with a perfect

I_{s p}

Why can a perfect vacuum around a cryogenic tank still not stop all heat leak?

Vacuum kills conduction and convection but not thermal radiation; infrared energy crosses vacuum freely, and the mechanical supports holding the tank also conduct heat as bridges.

Edge cases

What happens to storability trade-offs as mission duration goes to zero (a suborbital hop)?

Boil-off and long-term stability become nearly irrelevant, so you can freely pick a high-performance cryogen; the freezing/toxicity storability penalties only bite when the propellant must sit for a long time.

What if two candidate fuels have identical density — how do you choose?

With density tied, the tank-mass argument is neutral, so the decision shifts to

I_{s p}

, toxicity/handling cost, and boil-off; "all else equal" is exactly the case where the higher-

I_{s p}

fuel wins.

What is the limiting behaviour of tank mass as propellant density

ρ \to 0

Required volume

V = m_{prop} / ρ

diverges to infinity, so tank mass (which scales like

V

) also diverges — an infinitely sparse propellant is unusable no matter how high its

I_{s p}

What happens to a room-temperature-storable propellant flowing through a valve cold-soaked below its

T_{f}

It solidifies locally, plugging the line even though the bulk tank is warm; this degenerate cold-spot case is why storable ≠ freeze-proof everywhere.

At the boundary where boil-off exactly equals carried reserve, what does that imply for the mission?

The stage arrives with essentially no usable margin — any extra heat leak, delay, or thermal spike leaves too little propellant to complete the burn, so real designs must sit strictly inside this limit.

Recall One-line summary of the traps

Trap ::: Nearly every "obvious" propellant choice ignores a hidden trade — density fights $I_{s p}$ , storability fights performance, and low latent heat quietly drives boil-off.
