Propellant properties — density, freezing point, toxicity, storability: Visual walkthrough

The parent note told you the punchline: lower density → bigger tank → heavier structure → worse performance. But it dropped that on you as a chain of "→" arrows. This page earns every arrow with a picture, starting from what a tank even is, and ending at the one number engineers actually stare at: how much of your rocket is useful.

We build up to this single claim:

$m_{tank} \propto \frac{m _{prop}}{ρ}$

and then feed it into the Rocket Equation to see why it hurts so much.

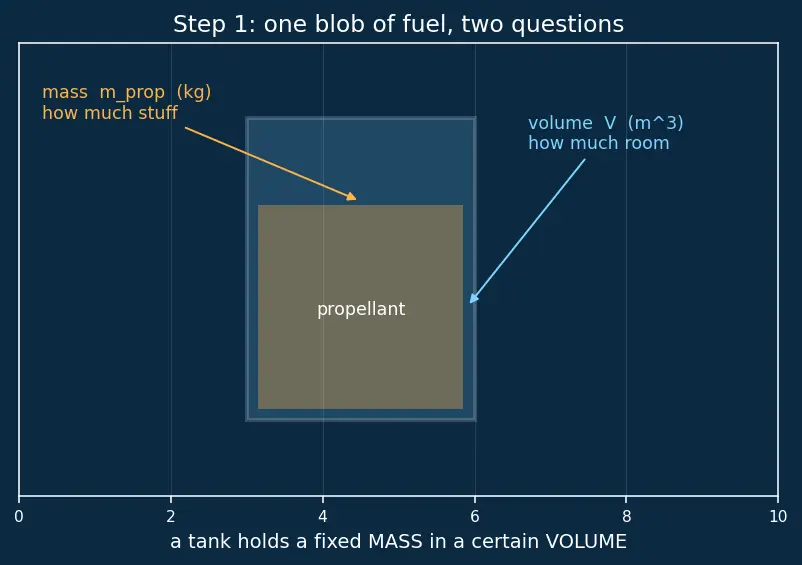

Step 1 — What is a tank, really?

Figure — Propellant properties — density, freezing point, toxicity, storability

WHAT we did: named the two things a tank cares about. WHY: performance depends on mass, but the size of the tank depends on volume — and those are linked by one property, density. PICTURE: the same blob of liquid, once labelled by weight, once by the box it fills.

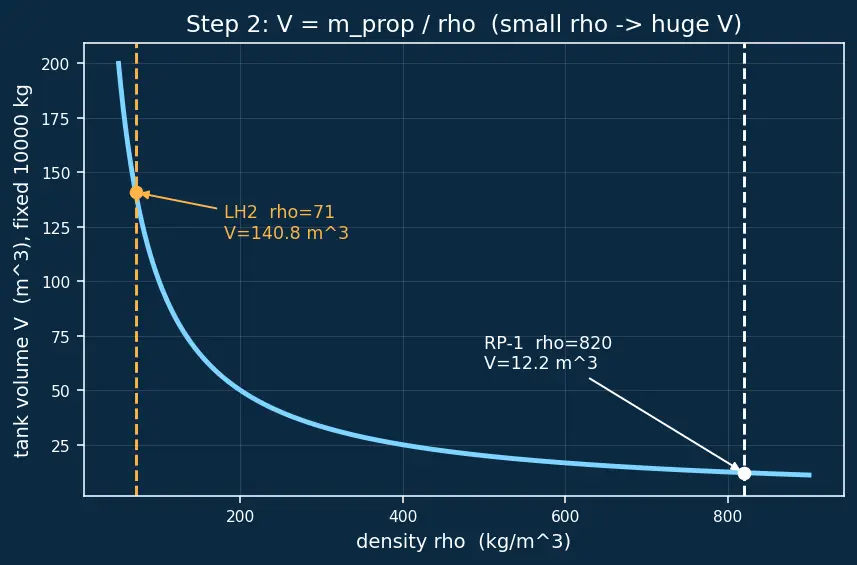

Step 2 — Density is the exchange rate between mass and volume

We are going to use this backwards. We know $m_{prop}$ (mission fixes it), we want $V$ . Rearrange:

$V = \frac{m _{prop}}{ρ}$

$m_{prop}$ on top: doubling the fuel doubles the volume — obvious.
$ρ$ on the bottom: this is the key. Small $ρ$ → dividing by a small number → huge $V$ . A sparse propellant balloons your tank.

WHY the division and not something else? Because density is defined as mass-per-volume. To go from mass back to volume we must undo the multiplication in $ρ = m / V$ , and undoing multiplication is division. That is the only tool that answers "how much room?".

Step 3 — A bigger volume forces a bigger surface

Take a sphere of radius $r$ (the picture shows it):

$V = \frac{4}{3} π r^{3} A = 4 π r^{2}$

$V$ grows with $r^{3}$ — the cube — because it fills 3D space.
$A$ grows with $r^{2}$ — the square — because a surface is 2D.

WHAT we want: express the surface $A$ using the volume $V$ , not the radius. WHY: because we chose $V$ in Step 2; $r$ is just a middle-man. Eliminate it.

From $V \propto r^{3}$ we get $r \propto V^{1/3}$ (take the cube root — the tool that undoes cubing). Substitute into $A \propto r^{2}$ :

$A \propto (V^{1/3})^{2} = V^{2/3}$

The exponent $2/3$ is the fingerprint of "2D surface wrapping a 3D volume."
It means surface area rises slower than volume — but it still rises. Bigger tank, more wall.

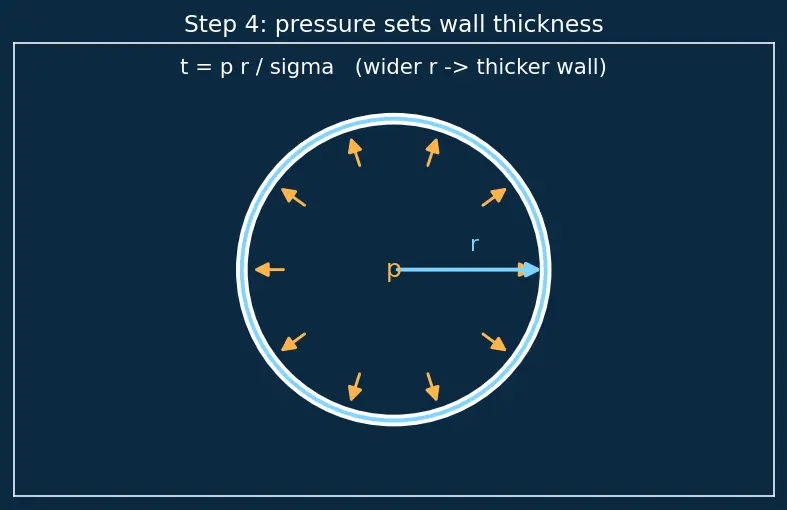

Step 4 — Wall mass = area × thickness × material density

The wall must not burst under the internal pressure. The thin-wall pressure-vessel rule:

$t = \frac{p r}{σ}$

$p$ — internal pressure pushing outward: more pressure, thicker wall.
$r$ — tank radius: a wider tank needs a thicker wall (the wall spans more, so the same pressure pulls harder — this is why big balloons pop easier).
$σ$ (sigma) — the material's yield strength, how hard you can pull before it tears: stronger metal, thinner wall.

Now assemble the wall mass:

$m_{tank} = ρ_{mat} \cdot A \cdot t$

$ρ_{mat}$ — density of the wall metal (not the fuel! keep them separate).
$A$ — from Step 3, $\propto V^{2/3}$ .
$t$ — from just above, $\propto r \propto V^{1/3}$ .

WHY multiply these three? Mass = (density of metal) × (volume of metal), and the volume of a thin skin is exactly area × thickness. That's the only combination that gives a mass.

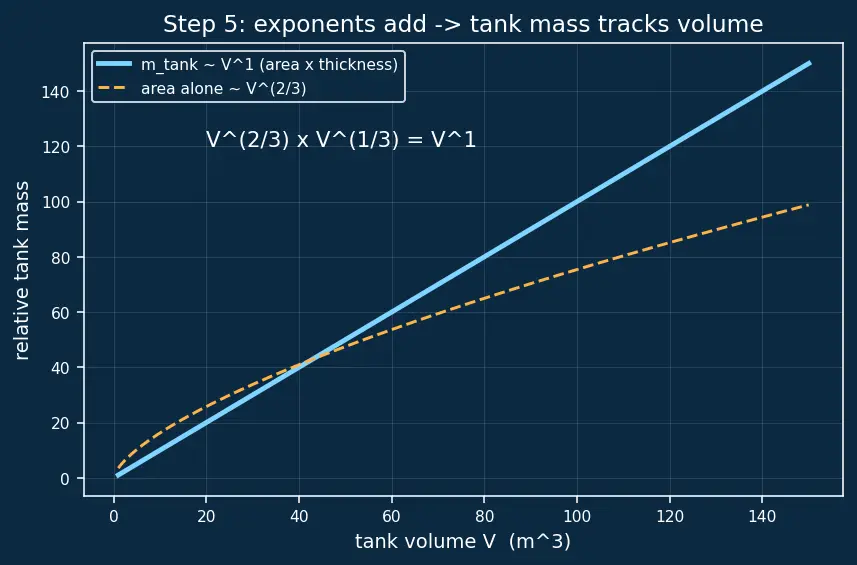

Step 5 — The exponents collapse: tank mass tracks volume

$m_{tank} \propto area V^{2/3} \cdot thickness V^{1/3} = V^{2/3 + 1/3} = V^{1}$

Adding exponents when multiplying same-base powers: $2/3 + 1/3 = 1$ .
The result $V^{1} = V$ : tank mass is directly proportional to tank volume. No hidden penalty, no hidden discount — one-to-one.

Now chain it back to density using Step 2's $V = m_{prop} / ρ$ :

$m_{tank} \propto V = \frac{m _{prop}}{ρ}$

$m_{prop}$ on top: more fuel-mass always means a heavier tank — expected.
$ρ$ on the bottom: this is the villain. Halve the density and you double the tank mass for the same fuel.

That is the parent note's arrow chain, now proven: low $ρ \to$ big $V \to$ big $A$ and $t \to$ heavy tank.

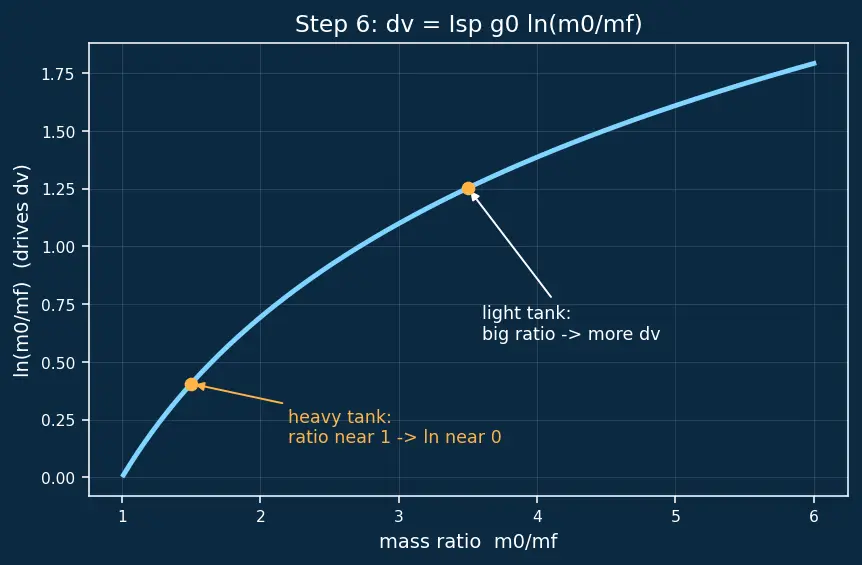

Step 6 — Why heavy tanks hurt exponentially: the rocket equation

$Δ v = I_{s p} g_{0} ln (\frac{m _{0}}{m _{f}})$

$Δ v$ — the velocity your rocket can gain, the true measure of a stage.
$I_{s p}$ — Specific Impulse, engine efficiency (seconds).
$g_{0} = 9.81 m / s^{2}$ — just a unit-fixing constant.
$m_{0}$ — mass fully fuelled (start); $m_{f}$ — mass empty (end).

WHY does a heavy tank matter here? The empty mass $m_{f}$ includes the tank. A bigger $m_{f}$ shrinks the ratio $m_{0} / m_{f}$ toward $1$ , and $ln (1) = 0$ . As the mass ratio slides toward 1, $Δ v$ collapses. The logarithm punishes structural mass steeply near the bottom of its range.

So a low-density propellant loses twice: first the raw tank-mass penalty (Step 5), then that penalty shrinks the mass ratio inside a logarithm.

The one-picture summary

One low-density propellant, followed all the way down: it fills a fat tank, the fat tank grows a big heavy skin, the heavy skin bloats the empty mass, and the empty mass strangles $Δ v$ through the logarithm.

Recall Feynman retelling — say it like you'd tell a friend

Imagine two thermoses of the same weight of fuel. One fuel is fluffy (hydrogen), one is dense (kerosene). The fluffy one needs a giant thermos. A giant thermos has a lot of wall, and — here's the sneaky bit — its wall has to be thicker too, because a wide wall gets tugged harder by the pressure inside. So the giant tank isn't just bigger, it's disproportionately heavier: its mass tracks the volume one-for-one, and volume is just fuel-mass divided by density. Then you carry that extra empty weight everywhere, and the rocket equation — because it uses a logarithm — makes a little extra dead weight cost you a lot of speed. That's the whole story: fluffy fuel, fat tank, heavy skin, choked mass ratio, lost $Δ v$ .

Recall Quick checks

Why does dividing by density blow up the tank volume? ::: Because $V = m / ρ$ ; a small $ρ$ in the denominator makes $V$ large. Why does tank mass scale as $V^{1}$ and not $V^{2/3}$ ? ::: Area scales as $V^{2/3}$ but required thickness scales as $V^{1/3}$ ; multiplying gives $V^{2/3 + 1/3} = V$ . Why does a wider tank need a thicker wall? ::: Thin-wall stress $t = p r / σ$ grows with radius $r$ ; bigger $r$ means more thickness for the same pressure. Why does heavy structure hurt $Δ v$ so much? ::: It raises the empty mass $m_{f}$ , shrinking $m_{0} / m_{f}$ toward 1 inside a logarithm, and $ln$ collapses toward 0 there.
