Foundations — Propellant properties — density, freezing point, toxicity, storability

How to read this page

The parent note throws a lot of letters at you: $\rho$, $V$, $T_f$, $\dot{Q}$, $L_v$, $\Delta v$, LD₅₀, and more. Below, each symbol gets three things: what it means in plain words, the picture it stands for, and why the topic can't work without it. They are ordered so each one leans only on the ones before it.

1. Mass $m$ — "how much stuff"

The picture: imagine a pile of marbles on a scale. More marbles → bigger number on the scale. That number is $m$. It does not change if you squeeze the marbles into a smaller box — mass is about how many marbles, not how much room they take.

Why the topic needs it: a rocket must carry a certain mass of fuel to reach its target. The rocket equation (below) cares about mass, not volume. So mass is our starting currency.

2. Volume $V$ — "how much room"

The picture: a box that is 1 metre long, 1 metre wide, 1 metre tall holds $1{\text{m}}^3$. Fill it with water and you have one cubic metre of water — a lot (1000 kg of it!).

Why the topic needs it: fuel has to fit inside a tank. The tank's size is a volume. Bigger volume → bigger, heavier tank walls. So volume is the enemy of a light rocket.

The two boxes above hold the same mass of fuel, but the red one on the right is bulkier because its fuel is "fluffier" (less packed). That relationship — mass vs room — is exactly what the next symbol captures.

3. Density $\rho$ — "how packed"

The Greek letter $\rho$ (say "rho", it looks like a lowercase p with a tail) is the symbol every propellant engineer starts with.

Why divide mass by volume, and not something else? Because we want a fair comparison. A truckload of feathers and a marble both have some mass and some volume — but dividing one by the other tells you which material is packed tighter, regardless of how much you have. That ratio is the honest measure of "denseness".

The picture: two identical bottles. Fill one with kerosene, one with liquid hydrogen. Weigh them. The kerosene bottle is ~11× heavier — kerosene has ~11× the density. Same room, more mass = denser.

4. Radius $r$ and area $A$ — the tank's size

The parent note derives why bigger tanks weigh more. That starts with two geometry symbols.

The picture: think of a balloon. $r$ is how far across it is, $A$ is how much rubber covers it.

Two scaling facts you must trust (they drive the whole tank argument):

• A ball's volume grows like $V\propto r^3$ (triple the radius → 27× the room).
• Its surface grows only like $A\propto r^2$ (triple the radius → 9× the skin).

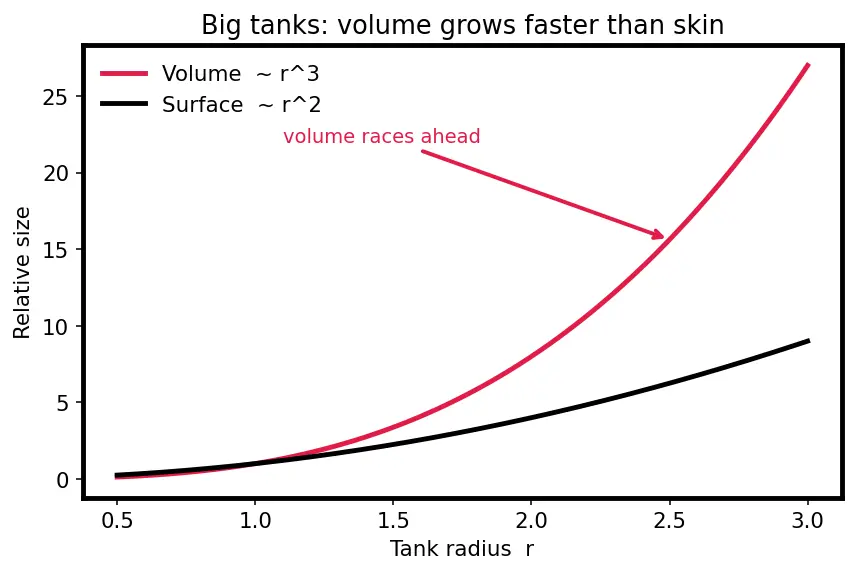

Look at the red curves: volume shoots up faster than surface. This is why big tanks are efficient for volume but their heat-leaking skin lags behind — a fact that returns in the boil-off section below.

Why the topic needs these: the tank's surface $A$ is the metal you must pay for (mass) and the skin heat leaks through (boil-off). But how thick that metal must be needs two more symbols first — pressure and strength — so we introduce them next, then build the wall-thickness formula.

5. Pressure $p$ and strength $\sigma$ — why walls have a thickness

The picture: blow up a balloon. The air pushes out ($p$); the rubber resists ($\sigma$). If $p$ wins, it pops. A thicker wall spreads the push out so it survives.

Why the topic needs it: they are the bridge from "how big is the tank" to "how heavy is the tank", which is the whole point of caring about density. We use them next to fix the wall thickness.

6. Wall thickness $t$ — putting $p$, $r$, $\sigma$ together

Now that $p$, $r$, and $\sigma$ are all defined, we can write how thick a tank wall must be.

The picture: imagine slicing each tank in half. On the cylinder, one straight cut exposes just two edges of metal resisting the burst; on the sphere, any cut exposes a full ring, so the load is shared better.

Why the topic needs it: wall thickness times surface area times material density gives the tank's mass. Combined with §4's scaling, this is exactly why lower density → bigger tank → heavier structure.

7. Temperature $T$, freezing point $T_f$, and boiling point $T_b$ — the liquid range

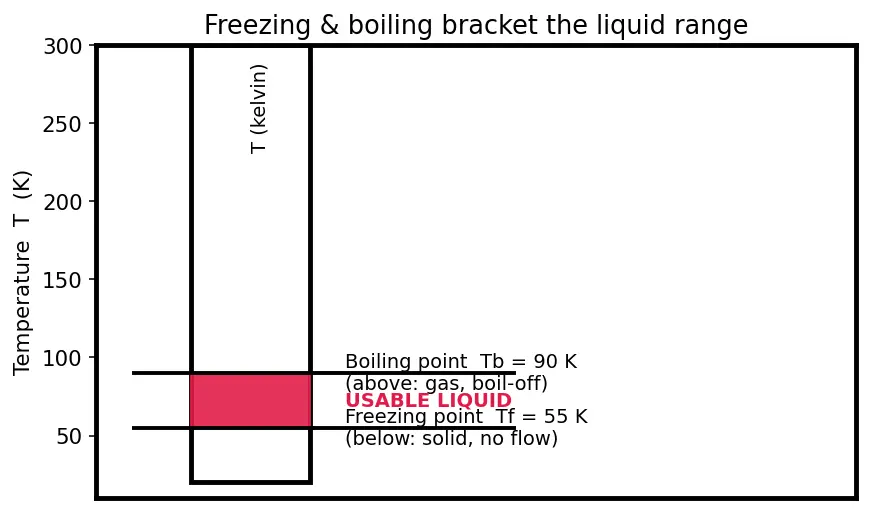

The picture: a thermometer. Below $T_f$ the fuel is a solid brick that no pump can move; between $T_f$ and $T_b$ it flows like water (usable!); above $T_b$ it boils into gas and escapes.

The red band marks the usable liquid range — above $T_f$, below $T_b$. A propellant that spends the mission inside this band is storable; one that must be forced there with refrigeration is cryogenic. This single picture is the difference between Cryogenic Propellants and storable ones.

Why the topic needs it: if $T$ drops below $T_f$ in a fuel line the engine can't start; if $T$ rises above $T_b$ the fuel boils away. Both edges of the liquid range are hard mission constraints.

8. Heat flow $\dot{Q}$ and the "dot" notation

The parent note suddenly writes $\dot{Q}$ with a dot on top. That dot is a piece of notation worth pausing on.

Why this notation and not just "heat"? Because a tank doesn't care about total heat someday — it cares how fast heat leaks in right now, because that sets how fast fuel boils away right now. The dot converts a static amount into a running rate.

What $\Delta$ means: the Greek capital delta $\Delta$ means "the difference in". $\Delta T$ = (outside temperature) − (fuel temperature). Big difference → more heat wants to leak in.

The picture: a cold drink in summer. Thicker foam ($d$ big) → slower warming. Bigger surface ($A$ big) → faster warming. Hotter room ($\Delta T$ big) → faster warming. The formula is just that intuition made exact.

9. Latent heat $L_v$ and boil-off ${\dot{m}}_{\text{boil}}$

The picture: a pot of water at a rolling boil stays at 100 °C no matter how long you heat it — the extra energy isn't raising temperature, it's ripping molecules into steam. That "hidden" energy is $L_v$.

Why the topic needs it: low $L_v$ (like liquid hydrogen's) means each kilogram escapes cheaply → high Boil-off Losses. This is why hydrogen tanks vent fuel every day.

10. Effective exhaust and the rocket equation symbols

The mistake callouts lean on the rocket equation. You need its symbols even here.

Why $\ln$ and not plain multiplication? Because burning fuel both pushes the rocket and lightens it, and the benefit compounds. The natural log is exactly the function that captures compounding effects — it turns a ratio of masses into a speed. That is why a small gain in $I_{sp}$ (from higher-performance, lower-density fuel) can beat a big gain in density: $I_{sp}$ sits outside the log, multiplying everything. Full treatment lives in Rocket Equation.

11. Toxicity symbols — LD₅₀, TLV-TWA, IDLH

These aren't equations, they're thresholds, but they're notation you must decode.

The picture: think of a dimmer switch of danger. LD₅₀ measures a swallowed/absorbed dose; TLV-TWA and IDLH measure what's floating in the air you breathe. Together they tell handlers of Hypergolic Propellants like hydrazine exactly how careful to be.

Why "lower is worse" for two of them: if it takes only a tiny dose (small LD₅₀) or a tiny airborne trace (small TLV) to hurt you, the chemical is more dangerous. The counter-intuitive direction is the whole reason this callout exists.

Prerequisite map

Read it top to bottom: raw measures (mass, volume, temperature) combine into engineering quantities (density, tank mass, boil-off, delta-v), which all feed the four trade-offs of the parent topic.

Equipment checklist

Cover the right side and answer each before moving on:
