The parent note Film cooling gave you two formulas. This page stress-tests them against every situation a real chamber (or an exam) can throw at you: the normal case, the two extremes (η = 0 and η = 1 ), the "film already dead" case, weird inputs (zero coolant, huge coolant), a real word problem, and an exam twist that hides one variable. If you can walk all of these, nothing about film cooling can surprise you.
Before we start, the two tools we keep re-using, restated in plain words so no symbol is unearned:
Definition Protected length
x p r o t
The distance from the injection slot up to which the film still meets the design floor η min — that is, the largest x for which η ( x ) ≥ η min . Setting η ( x p r o t ) = η min in the decay law and unwrapping the exponential with a ln :
x p r o t = h g m ˙ c c p ln η min 1
In words: it is the width of the shaded orange band on the middle panel of the figure. Beyond x p r o t the film has fallen below the floor and a fresh slot must take over. Coverage fraction is simply this length divided by chamber length, f = x p r o t / L .
Definition Two ways to read the same effectiveness
The blend formula can be inverted to read η off the temperatures. Start from the blend and solve for η :
T a w = ( 1 − η ) T h o t + η T coo l = T h o t − η ( T h o t − T coo l )
Move T h o t across and divide by ( T h o t − T coo l ) :
η = T h o t − T coo l T h o t − T a w
In words: η is how far the wall has been pulled down from the hot gas, as a fraction of the whole hot-to-cool gap . This is the exact same equation as the blend — just rearranged — so anything true of one is true of the other. We use this inverted form in Ex 8.
Every film-cooling problem is one of these cells. The examples below are tagged with the cell they cover.
Cell
What makes it special
Example
A. Normal blend
0 < η < 1 , find T a w
Ex 1
B. Extreme η = 1
fresh film at the slot (x = 0 )
Ex 2
C. Extreme η = 0
film fully spent, x → ∞
Ex 2
D. Decay at a station
plug into the exponential
Ex 3
E. Degenerate m ˙ c → 0
no coolant — limiting behaviour
Ex 4
F. Degenerate m ˙ c → ∞
flooding the wall — limiting behaviour
Ex 4
G. Coverage / slot count
word problem: how many slots?
Ex 5
H. Inverse / hidden variable
exam twist: solve for x or m ˙ c
Ex 6
I. Threshold sensitivity
change η min , see super-linear cost
Ex 7
J. Sign / sanity trap
T coo l > T h o t ? η > 1 ? spot the impossible
Ex 8

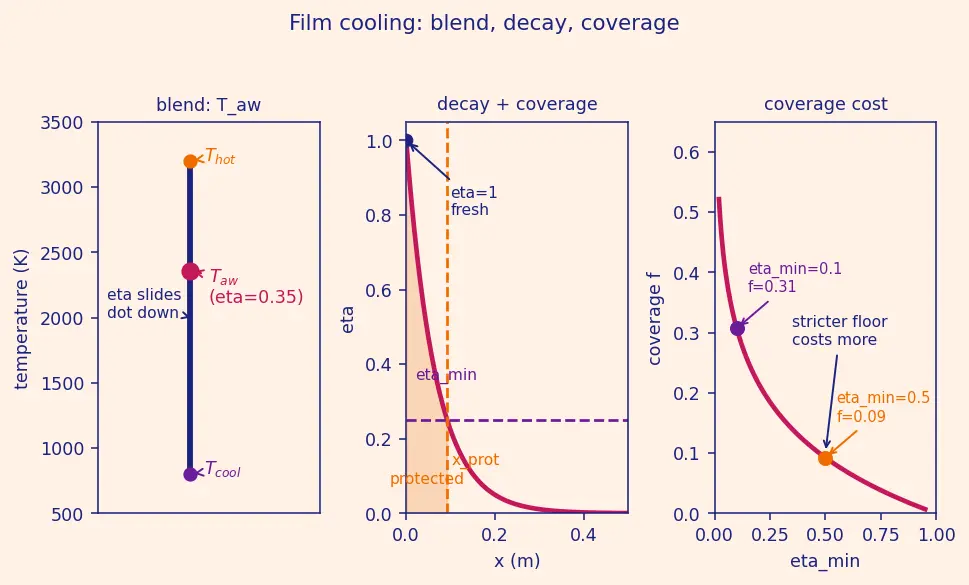

Before any numbers, look at the master figure. It shows all three ideas visually at once, and each worked example points back to a piece of it.
Left panel (the blend): a vertical thermometer from T coo l (bottom) to T h o t (top). The magenta dot is T a w ; as η slides from 0 to 1, that dot slides from the hot top down to the cool bottom. This is Ex 1 and Ex 2 — the wall temperature is just where the dot sits.
Middle panel (the decay): the magenta curve η ( x ) = e − h g x / ( m ˙ c c p ) starting at 1 and sagging toward 0. The violet dashed line is the floor η min ; where the curve crosses it (orange line) is x p r o t ; the shaded orange area is the protected stretch. This is Ex 3–6.
Right panel (coverage cost): coverage f plotted against the floor η min . Notice it plunges as you demand a stricter floor — the log curvature. This is Ex 7.
Worked example Example 1 — Cell A: normal blend, find the wall temperature
T h o t = 3200 K, T coo l = 800 K, and at some station η = 0.35 . Find T a w .
Forecast: guess — will the wall be closer to 800 or 3200? (Only 35% protected, so lean hot.)
Write the blend. T a w = ( 1 − η ) T h o t + η T coo l .
Why this step? η is defined as "fraction of the way from hot toward cool", so it must appear as the weight on the cool stream — this is the magenta dot on the left panel of the figure.
Plug in. T a w = ( 0.65 ) ( 3200 ) + ( 0.35 ) ( 800 ) = 2080 + 280 = 2360 K.
Why this step? Weights 0.65 and 0.35 sum to 1 — a true weighted average, never outside [ 800 , 3200 ] . On the thermometer the dot sits 35% of the way down from the top.
Verify: 2360 lies between 800 and 3200 ✓, and it is on the hot side of the midpoint (2000 ), matching our forecast since η < 0.5 . Units: all Kelvin ✓.
Worked example Example 2 — Cells B & C: the two extremes at once
Same T h o t = 3200 K, T coo l = 800 K. Find T a w when (B) η = 1 and (C) η = 0 .
Forecast: the coldest and hottest walls the film can possibly give.
Case B, η = 1 : T a w = ( 0 ) ( 3200 ) + ( 1 ) ( 800 ) = 800 K.
Why this step? η = 1 is a perfect film — the wall "sees" only coolant. Full weight on T coo l ; on the figure's left panel the dot sits at the very bottom.
Case C, η = 0 : T a w = ( 1 ) ( 3200 ) + ( 0 ) ( 800 ) = 3200 K.
Why this step? η = 0 means the film is gone; the wall feels the full hot gas — the dot sits at the very top.
Verify: These are exactly the endpoints of the interval [ T coo l , T h o t ] . Any valid answer for any η ∈ [ 0 , 1 ] must land between these two — a permanent bracket for every other example. ✓
Worked example Example 3 — Cell D: effectiveness at a downstream station
h g = 1200 W/m 2 K , m ˙ c = 0.06 kg/(m⋅s) , c p = 2000 J/kgK , station x = 0.20 m. Find η , then T a w using T h o t = 3200 K, T coo l = 800 K.
Forecast: the exponent will be a small-ish number, so guess η somewhere around a half?
Form the dimensionless group. m ˙ c c p h g x = 0.06 × 2000 1200 × 0.20 = 120 240 = 2.0 .
Why this step? This exponent is the only thing η depends on — big group ⇒ dead film, small group ⇒ fresh film. On the middle panel of the figure it is how far right along the sagging curve you have travelled.
Exponentiate. η = e − 2.0 = 0.135 .
Why this step? The decay law says effectiveness falls off like e − ( group ) ; a group of 2 already drops us to ~14% — read the curve's height at that station.
Blend the temperature. T a w = ( 1 − 0.135 ) ( 3200 ) + ( 0.135 ) ( 800 ) = 2768 + 108 = 2876 K.
Why this step? Convert the abstract η into the physical quantity an engineer cares about — the metal temperature (back to the left panel's dot, now near the top).
Verify: Group is dimensionless: ( kg/m⋅s ) ( J/kgK ) ( W/m 2 K ) ( m ) = W/m⋅K W/m⋅K = 1 ✓ (since J/s = W ). η = 0.135 ∈ [ 0 , 1 ] ✓. T a w = 2876 sits between 800 and 3200 ✓.
Worked example Example 4 — Cells E & F: degenerate coolant flow
Keep h g = 1200 , c p = 2000 , x = 0.20 m. Ask: what happens to η as (E) m ˙ c → 0 and (F) m ˙ c → ∞ ?
Forecast: no coolant vs. drowning the wall — you already know the physics, now watch the formula agree.
Case E, m ˙ c → 0 : exponent m ˙ c c p h g x → + ∞ , so η = e − ∞ → 0 .
Why this step? With no cold "stuff" injected, hot gas instantly wins — the wall sees full flame. Formula gives T a w → T h o t = 3200 K. On the middle panel the curve collapses to the floor immediately. Sane.
Case F, m ˙ c → ∞ : exponent → 0 , so η = e 0 = 1 .
Why this step? An infinite curtain of coolant never gets eaten — perfect protection at every x . Formula gives T a w → T coo l = 800 K. The middle-panel curve becomes a flat line at 1. Sane.
Middle check, m ˙ c = 0.06 : we already got η = 0.135 in Ex 3, which lies between the two limits 0 and 1.
Why this step? Confirms the function is monotone: more coolant ⇒ higher η , no reversals.
Verify: Both limits reproduce the endpoints from Ex 2 (T coo l and T h o t ). The physical picture ("no towel" vs "infinite towel") matches the math exactly. ✓
Worked example Example 5 — Cell G: word problem — how many injection slots?
A chamber is L = 0.90 m long. One slot delivers m ˙ c = 0.05 kg/(m⋅s) , c p = 2000 , and the gas side has h g = 1500 W/m 2 K . The design rule: nowhere may η drop below η min = 0.25 . How many slots do you need?
Forecast: guess the number of slots before computing — 2? 5? 10?
Protected length of one slot. Use the boxed definition of x p r o t from the top of the page: x p r o t = h g m ˙ c c p ln η min 1 = 1500 0.05 × 2000 ln 0.25 1 = 1500 100 ln 4 .
Why this step? x p r o t is exactly the length over which one slot keeps η ≥ η min ; beyond it the film has fallen below the floor (the orange line on the middle panel) and a fresh slot must take over.
Evaluate. 1500 100 = 0.06667 ; ln 4 = 1.3863 ; x p r o t = 0.06667 × 1.3863 = 0.09242 m.
Why this step? Turn the symbolic length into metres so we can compare to L ; this is the width of the shaded orange band.
Count slots. slots = ⌈ L / x p r o t ⌉ = ⌈ 0.90/0.09242 ⌉ = ⌈ 9.74 ⌉ = 10 .
Why this step? Each slot buys x p r o t of protected wall; we need to cover the whole 0.90 m, so we round up . (The ceiling ⌈ y ⌉ just means "round y up to the next whole number" — e.g. ⌈ 9.74 ⌉ = 10 — because you cannot install a fractional slot and cannot leave a bare strip.)
Verify: Coverage fraction of one slot f = x p r o t / L = 0.09242/0.90 = 0.1027 (~10%). Ten slots give 10 × 0.1027 = 1.027 ≥ 1 ✓ — just enough. Nine slots would give 0.924 < 1 , leaving a hot gap, so 10 is right. ✓
Worked example Example 6 — Cell H: exam twist, solve for the hidden coolant flow
Design requirement: a single slot must keep η ≥ 0.30 over the first x = 0.15 m, with h g = 1500 , c p = 2000 . What minimum m ˙ c do you need?
Forecast: we're running the decay law backwards — do you expect m ˙ c around 0.05 or 0.5?
Set effectiveness to the floor at the target station. exp ( − m ˙ c c p h g x ) = 0.30 .
Why this step? The worst spot is the far edge x = 0.15 ; if η = 0.30 exactly there, everything upstream is safer. On the middle panel, we are forcing the curve to pass through the point ( 0.15 , 0.30 ) .
Take ln of both sides. − m ˙ c c p h g x = ln 0.30 = − 1.204 , so m ˙ c c p h g x = 1.204 .
Why this step? ln is the exact inverse of exp — it "unwraps" the exponent so we can isolate m ˙ c .
Solve for m ˙ c . m ˙ c = c p × 1.204 h g x = 2000 × 1.204 1500 × 0.15 = 2408 225 = 0.0934 kg/(m⋅s) .
Why this step? Algebraic rearrangement isolates the unknown we were asked for.
Verify: Feed m ˙ c = 0.0934 back into the forward law: exponent = 0.0934 × 2000 1500 × 0.15 = 186.8 225 = 1.204 , and e − 1.204 = 0.300 ✓ — matches the requirement exactly.
Worked example Example 7 — Cell I: threshold sensitivity (super-linear cost)
With h g = 1500 , c p = 2000 , m ˙ c = 0.05 , L = 0.50 m, compare the coverage fraction for η min = 0.10 versus a stricter η min = 0.50 .
Forecast: demanding a higher minimum effectiveness — does coverage go up or down, and by how much?
Loose floor η min = 0.10 . f = h g L m ˙ c c p ln 0.10 1 = 750 100 ln 10 = 0.1333 × 2.3026 = 0.3070 (~31%).
Why this step? A low bar is easy to clear, so the film "counts as protecting" for longer — the leftmost, tall part of the right panel curve.
Strict floor η min = 0.50 . f = 750 100 ln 0.50 1 = 0.1333 × 0.6931 = 0.0924 (~9%).
Why this step? Insisting on half-strength protection everywhere shrinks the qualifying region dramatically — the right panel curve has plunged.
Compare. Ratio = 0.3070/0.0924 = 3.32 : raising the floor from 0.10 to 0.50 cut coverage by a factor >3.
Why this step? Because coverage rides on ln ( 1/ η min ) , and ln 10/ ln 2 = 3.32 — the log makes strict thresholds punishingly expensive.
Verify: 750 100 = 0.13 3 ✓; both f values lie in [ 0 , 1 ] ✓; the ratio ln 10/ ln 2 = 3.322 matches the coverage ratio ✓. This is the "diminishing returns / super-linear cost" behaviour: pushing the floor up costs coolant far faster than linearly.
Worked example Example 8 — Cell J: the sign / sanity trap (two red flags + the
T coo l > T h o t edge case)
An intern reports: "I measured T h o t = 2800 K, T coo l = 1000 K, and computed η = 1.4 , giving a wall at T a w = 280 K." Find both red flags, then explain the related edge case where T coo l > T h o t .
Forecast: two red flags are hiding in the intern's numbers — find them before reading on.
Red flag #1 — η is outside [ 0 , 1 ] . Use the inverted form derived above, η = T h o t − T coo l T h o t − T a w , which is a fraction of the way from hot to cool, so it is physically bounded to [ 0 , 1 ] . η = 1.4 > 1 means "the wall is cooler than the coolant" — impossible for a film that can only blend the two streams, never refrigerate below the coldest one.
Why this step? Any η > 1 or η < 0 is an instant "stop, you made an error" signal. (This inverted formula is just the blend rearranged — see the definition callout near the top.)
Red flag #2 — T a w falls outside the [ T coo l , T h o t ] bracket. Check the blend the intern's η implies: T a w = ( 1 − 1.4 ) ( 2800 ) + ( 1.4 ) ( 1000 ) = ( − 0.4 ) ( 2800 ) + 1400 = − 1120 + 1400 = 280 K. But the bracket rule from Ex 2 says a real wall must satisfy T coo l ≤ T a w ≤ T h o t , i.e. 1000 ≤ T a w ≤ 2800 . The value 280 K sits below T coo l = 1000 K.
Why this step? The negative weight ( 1 − η ) = − 0.4 pushed the "average" below both inputs — a weighted average with a negative weight is not an average at all. On the left panel of the figure the dot would fall clean off the bottom of the thermometer. This is the second independent way the same error shows up: flag #1 is in η , flag #2 is in T a w , and both point to the same bad data.
The related edge case — T coo l > T h o t . Suppose instead the "coolant" is hotter than the core gas, say T coo l = 2000 K while T h o t = 1500 K. Then the denominator T h o t − T coo l = 1500 − 2000 = − 500 is negative , so the definition of η flips sign meaning: "cooling" now heats the wall. The blend still works — e.g. η = 0.35 gives T a w = ( 0.65 ) ( 1500 ) + ( 0.35 ) ( 2000 ) = 975 + 700 = 1675 K — but notice 1675 K is now between 1500 and 2000 , i.e. the bracket has simply reordered to [ T h o t , T coo l ] . The film raises the wall temperature; it is no longer coolant.
Why this step? It exposes the hidden assumption behind every earlier example — T coo l < T h o t . Break it and the physics inverts: your "film" becomes a heater, so always confirm the injected stream is genuinely colder than the core gas before calling η an "effectiveness".
Verify: Flag #1: η = 1.4 ∈ / [ 0 , 1 ] ✓ impossible. Flag #2: T a w = 280 K < T coo l = 1000 K, outside [ 1000 , 2800 ] ✓ impossible. Edge case: with T coo l = 2000 > T h o t = 1500 and η = 0.35 , T a w = 1675 K lies inside the reordered bracket [ 1500 , 2000 ] ✓ — a consistent (but non-cooling) blend. Any physical film requires T coo l < T h o t and η ∈ [ 0 , 1 ] ; violate either and one of the two brackets breaks.
Recall Which matrix cell does each trap belong to?
"Wall colder than the coolant" ::: Cell J — impossible, η left [ 0 , 1 ] and T a w left its bracket.
"No coolant injected" ::: Cell E — m ˙ c → 0 , η → 0 , T a w → T h o t .
"How many slots for a full chamber?" ::: Cell G — round L / x p r o t up (ceiling).
"Solve for the coolant flow given a target η " ::: Cell H — invert with ln .
"Coolant hotter than the core gas" ::: Cell J edge case — denominator flips sign, film becomes a heater.
Recall Quick numeric checks
Ex1 T a w ? ::: 2360 K
Ex3 η ? ::: e − 2 = 0.135
Ex5 slot count? ::: 10 slots (x p r o t = 0.0924 m)
Ex6 minimum m ˙ c ? ::: 0.0934 kg/(m·s)
Ex7 coverage ratio? ::: 3.32× (that is ln 10/ ln 2 )
Ex8 edge-case T a w (T coo l = 2000 , T h o t = 1500 , η = 0.35 )? ::: 1675 K
"BRACKET first." Before trusting any T a w , check it lies between T coo l and T h o t ; before trusting any η , check it lies in [ 0 , 1 ] . Every Cell-J disaster fails one of these two brackets.
Parent: Film cooling — effectiveness, coverage fraction (index 3.3.29) — formulas derived there, exercised here.
Convective heat transfer coefficient — supplies h g , the decay driver in Ex 3–6.
Stanton number — the dimensionless group h g x / ( m ˙ c c p ) is a Stanton-length parameter.
Adiabatic wall temperature & recovery factor — defines T h o t and T a w used in every blend.
Boundary layer & entrainment — the physics behind the exponential decay.
Combustion chamber thermal design — where slot-counting (Ex 5) feeds the real layout.
