Foundations — Film cooling — effectiveness, coverage fraction

This page defines every symbol the parent film-cooling note uses, in an order where each new symbol only leans on ones already built. Read top to bottom; nothing is assumed.

0. The stage: what we are even looking at

Before any letter, picture the scene. A rocket combustion chamber is a metal tube. Inside it, burning propellant makes a river of ferociously hot gas rushing along the axis. We inject a thin ribbon of cooler gas hugging the wall. That ribbon is the film.

Look at the figure: the hot core gas (orange) flows down the middle, the coolant film (teal) clings to the wall, and $x$ is the distance measured downstream from where we inject the film. Every symbol below lives somewhere on this picture.

1. Temperature symbols — the three players

Everything starts with three temperatures. A temperature is just "how hot," measured in kelvin (K) — the same size step as a Celsius degree but starting from absolute zero, so there are no negatives to trip over.

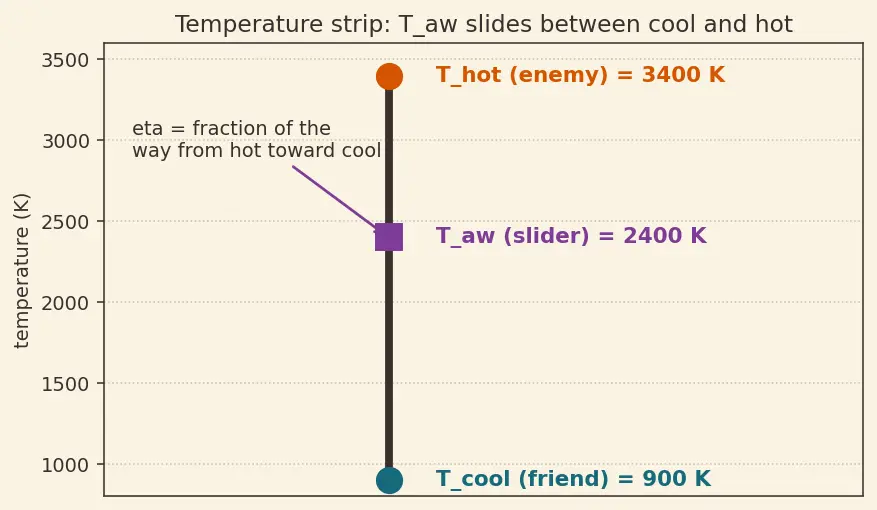

Picture: put them on a thermometer strip.

Cool sits at the bottom, hot at the top, and $T_{aw}$ is a slider that lives between them. The whole topic is about where on this strip the slider sits and how it drifts toward hot as you go downstream.

Why "adiabatic"? Adiabatic means "no heat is allowed to leak away through the wall." We pretend the wall is a perfect insulator so the temperature we compute depends only on the gas-side film physics, not on whatever cooling is happening behind the wall. That keeps the film's effect clean and separate — the real conducting wall is handled by Regenerative cooling. The full story of why $T_{hot}$ is a "recovery" temperature (moving gas heats a wall a bit more than its static temperature) lives in Adiabatic wall temperature & recovery factor.

2. The Greek letter $\eta$ (eta) — effectiveness

$\eta$ is the Greek letter "eta," and it just names a number. Here it means: how far along the strip, from hot toward cool, did the film drag the wall?

Picture it on the strip: if $T_{aw}$ sits right on cool, the top gap equals the bottom gap and $\eta =1$ (perfect blanket). If $T_{aw}$ sits right on hot, the top gap is zero and $\eta =0$ (blanket gone). Any in-between slider gives a fraction between 0 and 1.

Why divide? Dividing the "achieved cooling" by the "maximum possible cooling" strips away the actual temperature values and leaves a pure score from 0 to 1. That score means the same thing in any rocket, hot or cold — that is why it is worth a symbol.

3. The letter $x$ and the length $L$ — where along the wall

Picture: on the stage figure (s01), $x$ is the horizontal ruler starting at the slot. The film is freshest at $x=0$ and increasingly worn out as $x$ grows.

Why we need $x$: effectiveness is not one number — it changes as the film travels. To talk about "how good the blanket is here" we must name here, and that is $x$. And to ask "what fraction of the wall is covered" we need the total ruler length $L$ to compare against.

4. Mass flow ${\dot{m}}_c$ and specific heat $c_p$ — the film's "coldness budget"

Now we quantify how much cool stuff we injected.

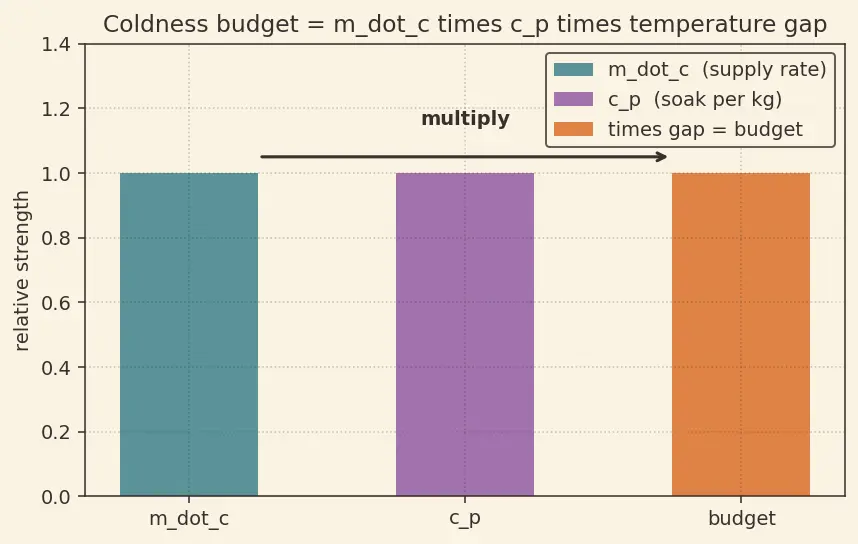

Picture: think of ${\dot{m}}_c$ as the thickness/supply rate of the wet towel, and $c_p$ as how much heat each kilogram of towel can soak up before warming. Multiply them and you get the towel's total heat-absorbing muscle.

The product ${\dot{m}}_c{c}_p(T_{hot}-T_{cool})$ is the film's coldness budget — the total cooling power streaming in per unit width. A bigger budget means the film survives longer downstream. That is exactly why these two symbols must appear in the decay law.

5. The coefficient $h_g$ — how fast hot gas attacks the film

Picture: $h_g$ is the appetite of the hot gas — how greedily it eats into the cool film per degree of temperature gap. Bigger $h_g$ = faster the towel dries out.

Why this tool and not just "heat"? Heat flow depends on the temperature difference, which itself keeps changing as the film warms. By pulling out $h_g$ as the "heat per degree per area," we can write the loss as (appetite) × (current gap) — a clean rule that we can turn into a differential equation. This $h_g$ is exactly the Convective heat transfer coefficient, often obtained from the Bartz equation. When you package $h_g$ with the flow it becomes the dimensionless Stanton number.

6. The exponential $e^{-(\dots )}$ and the logarithm $\ln$ — the shape of decay

The parent's key result is $\eta (x)=e^{-h_{g}x/({\dot{m}}_c{c}_p)}$. Two new tools appear: $e$ and $\ln$. We must earn them.

Why an exponential? The film loses coolness at a rate proportional to how much coolness it still has. Whenever "the rate of losing something is proportional to how much you have," the answer is always an exponential decay — that is the exponential's defining job. Half as much coolness left ⇒ half the loss rate. This self-similar fading is precisely $e^{-(\text{something})}$.

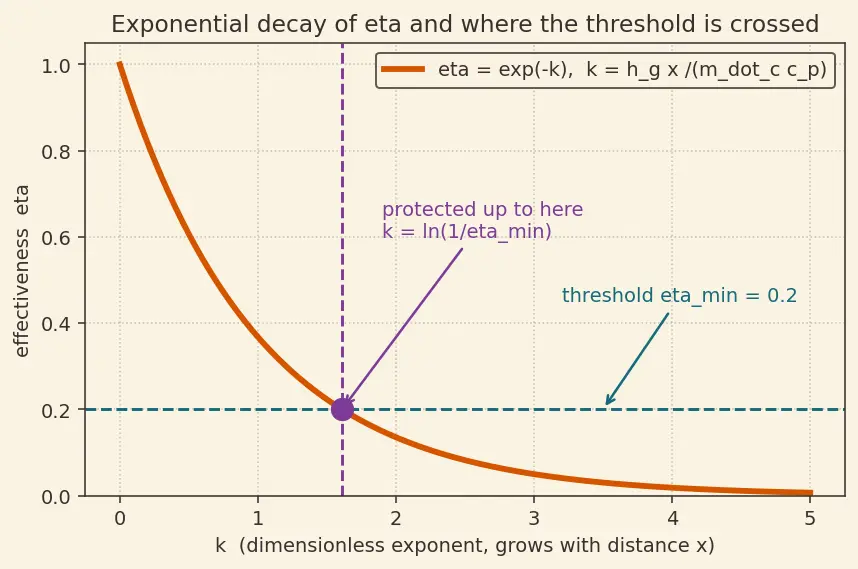

Look at the curve: it drops fast at first (fresh film, big gap, greedy gas) and then flattens (little coolness left to lose). That flattening tail is why chasing the last bit of protection is expensive.

Why a logarithm ($\ln$) shows up in coverage? The logarithm is the exact undo button of the exponential: if $e^{-k}={\eta }_{min}$, then $k=\ln (1/{\eta }_{min})$. To find where the effectiveness drops to a chosen threshold ${\eta }_{min}$, we must invert the exponential — and inverting an exponential is what $\ln$ does, by definition. So the $\ln$ in the coverage formula is not a trick; it is the mathematical mirror of the exponential decay.

7. Putting the symbols together

Now every letter in the parent's boxed formulas is defined. Read them again and they should be transparent:

The group $\frac{h_{g}x}{{\dot{m}}_c{c}_p}$ is dimensionless — the units cancel — which is a comforting sign we built the symbols correctly. The mechanism of how the film mixes with hot gas is Boundary layer & entrainment; the whole design sits inside Combustion chamber thermal design.
