Intuition What this page is
The parent note gave you the master formula. Here we stress-test it against every kind of question an exam or a test stand can throw at you — forward calculation, backward calculation, limiting values, degenerate inputs, and a real-world trap. If you meet a case here, you have already survived it.
Before touching numbers, let us name every symbol on this page so nothing is used blind:
Definition The symbols we will use (physical meaning of each)
c ∗ — characteristic velocity (m/s): a quality score for the chamber + propellant alone.
p 0 — chamber (stagnation) pressure (Pa): the pressure built up inside the combustion chamber before the gas escapes.
A t — throat area (m²): the cross-section of the narrowest point of the nozzle, where the flow chokes.
m ˙ — mass flow rate (kg/s): how many kilograms of propellant leave per second.
M — molecular weight of the exhaust (kg/mol): the mass of one mole of gas; small = light, zippy molecules.
γ — specific heat ratio (dimensionless): how "springy" the gas is; ~1.1–1.67 for combustion gases.
R u — universal gas constant = 8.314 J/mol⋅K : the same for every gas.
T 0 — chamber (flame) temperature (K): how hot the burned gas is.
Γ — Vandenkerckhove function (dimensionless): a bundle of all the γ -dependence.
C F — thrust coefficient (dimensionless): the nozzle's amplification of chamber performance.
c e — effective exhaust velocity (m/s): the real average speed of the exhaust jet, given by c e = c ∗ C F (chamber quality × nozzle amplification).
I s p — specific impulse (s): thrust per unit weight-flow of propellant; a fuel-economy score, I s p g 0 = c e .
Now recall the two faces of the same quantity:
Every problem this topic can pose sits in one of these cells. The examples below each carry a (Cell …) tag so you can see the whole grid is covered.
Cell
Case class
What's given → what's asked
Which form
A
Forward (chemistry)
T 0 , M , γ → c ∗
theoretical
B
Measured (test stand)
p 0 , A t , m ˙ → c ∗
measured
C
Backward for m ˙
c ∗ , p 0 , A t → m ˙
measured, inverted
D
Backward for T 0
c ∗ , M , γ → T 0
theoretical, inverted
E
Efficiency / two-form clash
measured vs theoretical → η c ∗
both
F
Limiting γ
γ → 1 and γ large → Γ behaviour
Γ alone
G
Degenerate input
m ˙ → 0 , A t → 0 , T 0 → 0
sanity of formula
H
Real-world word problem
mixture ratio shift → c ∗ trade
theoretical, ratio
I
Exam twist (chain to I s p )
c ∗ , C F → c e , I s p
link forms
We now walk every cell.
Worked example Kerosene/LOX chamber
Given T 0 = 3500 K (flame temperature), M = 22 g/mol = 0.022 kg/mol (molecular weight), γ = 1.22 (specific heat ratio), R u = 8.314 J/mol⋅K (universal gas constant). Find c ∗ .
Forecast: heavier gas than H 2 / O 2 (22 vs 16) → expect c ∗ lower than the parent's 2143 m/s. Guess ~1800 m/s.
Step 1 — Compute Γ . Γ = 1.22 ( 2.22 2 ) 0.44 2.22 = 1.1045 × ( 0.9009 ) 5.045 .
Why this step? Γ packages all the γ -dependence; compute it once, reuse it. ( 0.9009 ) 5.045 ≈ 0.5905 , so Γ ≈ 0.6522 .
Step 2 — Compute the "hot & light" term. R u T 0 / M = 8.314 × 3500/0.022 = 1.3227 × 1 0 6 = 1150.1 m/s .
Why this step? This square-root term is the raw energy content per unit mass; Γ only scales it.
Step 3 — Divide. c ∗ = 1150.1/0.6522 ≈ 1763 m/s .
Why this step? c ∗ = Γ 1 R u T 0 / M — the right face of our master formula.
Verify: Ratio to the parent's H 2 / O 2 value: 1763/2143 = 0.82 . The only big change was M up from 16→22, i.e. 16/22 = 0.853 ; the small T 0 drop (3500/3600 = 0.986 ) and Γ shift explain the rest. Units: J/kg = m 2 / s 2 = m/s. ✓
c ∗ off gauges
A firing shows p 0 = 6.5 MPa (chamber pressure), throat diameter d t = 50 mm (so throat area A t follows), m ˙ = 18 kg/s (mass flow). Find c ∗ .
Forecast: big throat, high pressure — chamber looks healthy. Guess ~700 m/s (this is the measured face; it can be far below theoretical if combustion is poor).
Step 1 — Throat area. A t = 4 π d t 2 = 4 π ( 0.050 ) 2 = 1.9635 × 1 0 − 3 m 2 .
Why this step? The definition needs area , not diameter; a round throat gives 4 π d 2 .
Step 2 — Apply the left face. c ∗ = m ˙ p 0 A t = 18 6.5 × 1 0 6 × 1.9635 × 1 0 − 3 .
Why this step? No nozzle data needed — this is exactly why c ∗ was defined this way (see Choked Flow and the Throat : the throat is where the flow chokes and m ˙ locks in).
Step 3 — Arithmetic. Numerator = 12763 N ; c ∗ = 12763/18 ≈ 709 m/s .
Why this step? Just the final divide.
Verify: Units: kg/s Pa ⋅ m 2 = kg/s N = kg/s kg⋅m/s 2 = m/s. ✓ (This low value would flag a diagnostic — heavy products or bad mixing.)
Worked example Size the propellant feed
You want c ∗ = 1750 m/s at p 0 = 5 MPa (chamber pressure) through a throat of diameter 30 mm . What mass flow m ˙ does the chamber demand?
Forecast: rearranging c ∗ = p 0 A t / m ˙ gives m ˙ = p 0 A t / c ∗ . Higher c ∗ (good propellant) → less mass flow for the same push. Guess a few kg/s.
Step 1 — Throat area. A t = 4 π ( 0.030 ) 2 = 7.069 × 1 0 − 4 m 2 .
Why this step? Same geometry rule as Example 2.
Step 2 — Invert the definition. m ˙ = c ∗ p 0 A t = 1750 5 × 1 0 6 × 7.069 × 1 0 − 4 .
Why this step? c ∗ is a ratio ; solving for any one of its three variables is pure algebra.
Step 3 — Arithmetic. Numerator = 3534.3 N ; m ˙ = 3534.3/1750 ≈ 2.02 kg/s .
Verify: Plug back: c ∗ = 5 × 1 0 6 × 7.069 × 1 0 − 4 /2.02 = 1750 m/s. ✓ Units: m/s Pa⋅m 2 = m/s N = kg/s. ✓
T 0 from measured c ∗
A monopropellant gives measured c ∗ = 1200 m/s , with M = 0.020 kg/mol (molecular weight), γ = 1.25 (specific heat ratio). Estimate the chamber temperature T 0 (assume perfect combustion, so measured = theoretical).
Forecast: c ∗ ∝ T 0 so T 0 ∝ ( c ∗ ) 2 — squaring a ~1200 m/s value hints at a few thousand K.
Step 1 — Γ . Γ = 1.25 ( 2.25 2 ) 0.5 2.25 = 1.1180 × ( 0.8889 ) 4.5 = 1.1180 × 0.6288 = 0.7030 .
Why this step? We need Γ before we can isolate T 0 ; it depends only on γ .
Step 2 — Rearrange for T 0 . From c ∗ = Γ 1 R u T 0 / M , square both sides:
T 0 = R u ( c ∗ Γ ) 2 M .
Why this step? The square-root is the only obstacle; squaring undoes it and lets us solve linearly for T 0 .
Step 3 — Plug in. c ∗ Γ = 1200 × 0.7030 = 843.6 ; squared = 7.117 × 1 0 5 ; times M / R u : T 0 = 8.314 7.117 × 1 0 5 × 0.020 ≈ 1712 K .
Verify: Forward-check with T 0 = 1712 : 8.314 × 1712/0.020 = 7.117 × 1 0 5 = 843.6 ; divide by Γ = 0.7030 → 1200 m/s. ✓ (See Adiabatic Flame Temperature — this is how a stand estimate cross-checks the thermochemistry.)
Worked example Grade the chamber
Theory predicts c t h ∗ = 1763 m/s (Example 1's engine). The stand measures c m e a s ∗ = 1640 m/s . Find η c ∗ and interpret.
Forecast: measured is always ≤ theoretical (losses only subtract). Guess ~93 %.
Step 1 — Ratio. η c ∗ = c t h ∗ c m e a s ∗ = 1763 1640 .
Why this step? Efficiency is defined as measured-over-ideal; it strips out the nozzle entirely because both are chamber quantities.
Step 2 — Compute. η c ∗ = 0.9302 ≈ 93.0 % .
Why this step? Direct division.
Verify: 0.9302 × 1763 = 1640 m/s ✓. Interpretation: the 7 % deficit means combustion released only ~0.9 3 2 = 86 % of ideal energy (since c ∗ ∝ T 0 , efficiency in T 0 is η 2 ) — a real diagnostic the nozzle cannot mask.
Here the geometry of the function matters, so we look at a picture.

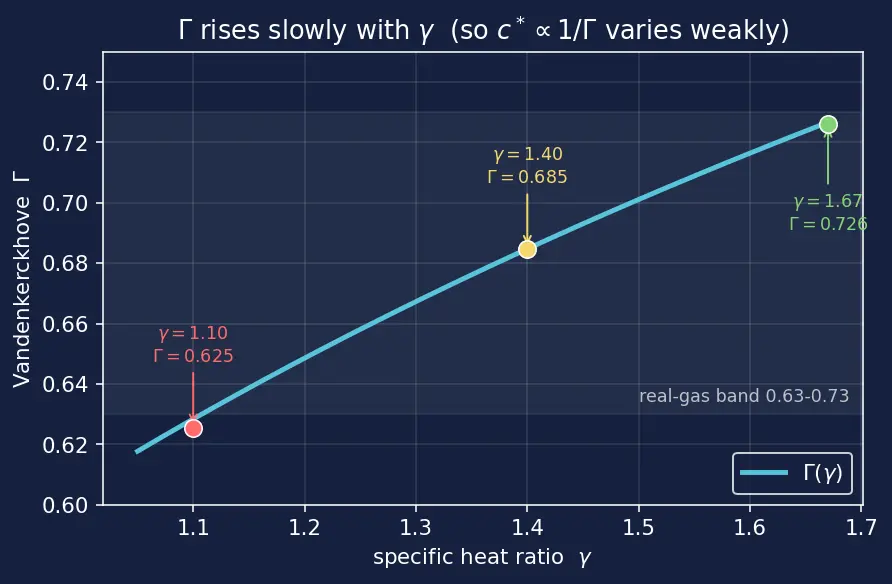

Figure 1 — Γ versus γ . The horizontal axis is the specific heat ratio γ (1.05 to 1.67); the vertical axis is the Vandenkerckhove function Γ . The blue curve is Γ ( γ ) , rising gently from about 0.62 to 0.73. Three labelled dots sit on the curve — red at γ = 1.10 , Γ = 0.6255 ; yellow at γ = 1.40 , Γ = 0.6847 ; green at γ = 1.67 , Γ = 0.7262 . A faint white horizontal band marks the real-gas range Γ ≈ 0.63 –0.73 , and the curve stays inside it across the whole plot — the visual proof that γ affects c ∗ ∝ 1/Γ only weakly.
Intuition How to read the figure above
Follow the blue curve left to right: as γ grows, Γ climbs but never leaves the narrow white band. Because c ∗ ∝ 1/Γ , that tight band means γ is the weakest lever on c ∗ — the coloured dots are the three cases we now compute.
Worked example What happens to
Γ as γ → 1 and γ grows?
Evaluate Γ at γ = 1.10 , 1.40 , 1.67 and describe the trend.
Forecast: the figure shows Γ rising gently with γ . Real gases sit in a narrow band Γ ≈ 0.63 –0.73 .
Step 1 — γ = 1.10 (red dot). Γ = 1.10 ( 2.10 2 ) 0.20 2.10 = 1.0488 × ( 0.95238 ) 10.5 = 1.0488 × 0.5964 = 0.6255 .
Why this step? The exponent 2 ( γ − 1 ) γ + 1 blows up as γ → 1 (denominator → 0 ), so we must evaluate carefully rather than "take a limit in your head."
Step 2 — γ = 1.40 (yellow dot, air). Γ = 1.40 ( 2.40 2 ) 0.80 2.40 = 1.1832 × ( 0.83333 ) 3 = 1.1832 × 0.5787 = 0.6847 .
Why this step? γ = 1.40 is the everyday value for diatomic air; checking it anchors the curve at a value most readers already know, and confirms Γ has climbed from the γ = 1.10 result.
Step 3 — γ = 1.67 (green dot, monatomic, e.g. He). Γ = 1.67 ( 2.67 2 ) 1.34 2.67 = 1.2923 × ( 0.74906 ) 1.9925 = 1.2923 × 0.5619 = 0.7262 .
Why these three? They bracket every real combustion gas. The trend: Γ increases with γ , but slowly — the whole span is 0.63→0.73.
Verify: Because c ∗ ∝ 1/Γ , a larger γ (larger Γ ) gives a smaller c ∗ for the same T 0 / M . The parent note said "γ enters weakly" — the figure and these three numbers prove the band is tight. ✓ (See Vandenkerckhove Function Γ and Isentropic Flow Relations .)
Worked example What do the edge cases say?
Discuss m ˙ → 0 , A t → 0 , and T 0 → 0 using the two forms.
Forecast: dividing by zero should either blow up or give a physically-meaningful "nothing".
Step 1 — m ˙ → 0 at fixed p 0 , A t . c ∗ = p 0 A t / m ˙ → + ∞ .
Why this step? Physically impossible with real combustion — it says "infinite quality from a whisper of mass," a warning that you cannot hold p 0 up while starving the flow. A real chamber's p 0 collapses if m ˙ → 0 , so the ratio stays finite. Lesson: the three variables are not independent .
Step 2 — A t → 0 . For fixed m ˙ , choking requires the pressure to climb without bound; c ∗ = p 0 A t / m ˙ stays finite because p 0 ∝ 1/ A t . The formula is scale-invariant in throat size.
Why this step? Confirms c ∗ is a material property, not a geometry property — shrinking the hole doesn't change propellant quality.
Step 3 — T 0 → 0 . Theoretical form: c ∗ = Γ 1 R u T 0 / M → 0 .
Why this step? Cold gas has no thermal energy to push with — c ∗ correctly vanishes. Sanity confirmed.
Verify: All three limits are consistent between the two faces once you remember the physical coupling p 0 ( T 0 , m ˙ ) . No contradiction. ✓
Worked example Should we run fuel-rich?
An H 2 / O 2 engine at stoichiometric burns to T 0 = 3600 K , M = 18 g/mol (pure H 2 O ). Running fuel-rich drops T 0 to 3300 K but lowers M to 14 g/mol (excess H 2 ). Take γ = 1.22 (so Γ = 0.6522 from Example 1's γ ) for both. Which gives higher c ∗ ?
Forecast: the parent note claims fuel-rich wins because 1/ M beats the T 0 loss. Let's confirm with numbers.
Step 1 — Stoichiometric c ∗ . 8.314 × 3600/0.018 = 1.6628 × 1 0 6 = 1289.5 ; c ∗ = 1289.5/0.6522 = 1977 m/s .
Why this step? Baseline case, right face of the formula.
Step 2 — Fuel-rich c ∗ . 8.314 × 3300/0.014 = 1.9597 × 1 0 6 = 1399.9 ; c ∗ = 1399.9/0.6522 = 2147 m/s .
Why this step? Same formula, new T 0 , M .
Step 3 — Compare. Fuel-rich is higher: 2147 > 1977 , a + 8.6 % gain.
Why this step? The ratio test: c s t o i c h ∗ c r i c h ∗ = 3600/18 3300/14 = 200 235.7 = 1.179 = 1.086 — exactly the + 8.6 % , and Γ cancels.
Verify: 1.179 = 1.0857 ; 1977 × 1.0857 = 2146.5 ≈ 2147 ✓. Conclusion: run fuel-rich — the molecular-weight lever beats the temperature penalty, precisely as Propellant Selection and Molecular Weight predicts.
Definition Specific impulse
I s p (needed for this example)
I s p (seconds) is the fuel-economy score of a rocket: how many seconds one unit-weight of propellant can produce one unit of thrust. It links to the effective exhaust velocity c e (the real average speed of the exhaust jet) by I s p g 0 = c e , where g 0 = 9.81 m/s 2 is standard gravity. And c e itself splits as c e = c ∗ C F — chamber quality times nozzle amplification.
Worked example From chamber grade to delivered performance
A chamber has c ∗ = 1763 m/s (Example 1). The nozzle delivers C F = 1.65 (thrust coefficient). Take g 0 = 9.81 m/s 2 . Find the effective exhaust velocity c e and specific impulse I s p .
Forecast: parent says c e = c ∗ C F and c e ≈ 1.5 –1.9 × c ∗ . With C F = 1.65 expect c e ≈ 2900 m/s and I s p ≈ 300 s.
Step 1 — Effective exhaust velocity. c e = c ∗ C F = 1763 × 1.65 = 2909 m/s .
Why this step? The clean split: chamber (c ∗ ) times nozzle (Thrust Coefficient CF ). This is the whole reason c ∗ was invented.
Step 2 — Specific impulse. I s p = c e / g 0 = 2909/9.81 = 296.5 s .
Why this step? I s p g 0 = c e is the definition (see Specific Impulse Isp ); dividing by g 0 converts velocity to seconds.
Verify: 296.5 × 9.81 = 2909 ✓; and c e / c ∗ = 2909/1763 = 1.65 = C F ✓. Units: m/s ÷ (m/s²) = s ✓. All three links consistent.
Recall Self-test: match each to a matrix cell
Which cell asks you to invert for m ˙ ? ::: Cell C (Example 3).
Which cell shows c ∗ → 0 makes physical sense? ::: Cell G, the T 0 → 0 limit (Example 7).
Which cell proves fuel-rich wins numerically? ::: Cell H (Example 8).
Which cell links c ∗ to I s p ? ::: Cell I (Example 9).
In which cell does Γ cancel out of the answer? ::: Cell H — a ratio of two c ∗ at equal γ .
