Characteristic velocity c - and its relation to flame temperature, MW: Question bank

Before we start, we define every symbol this bank uses, in plain words and with units. Nothing appears in a trap that isn't earned here first.

Two pictures that anchor the whole bank

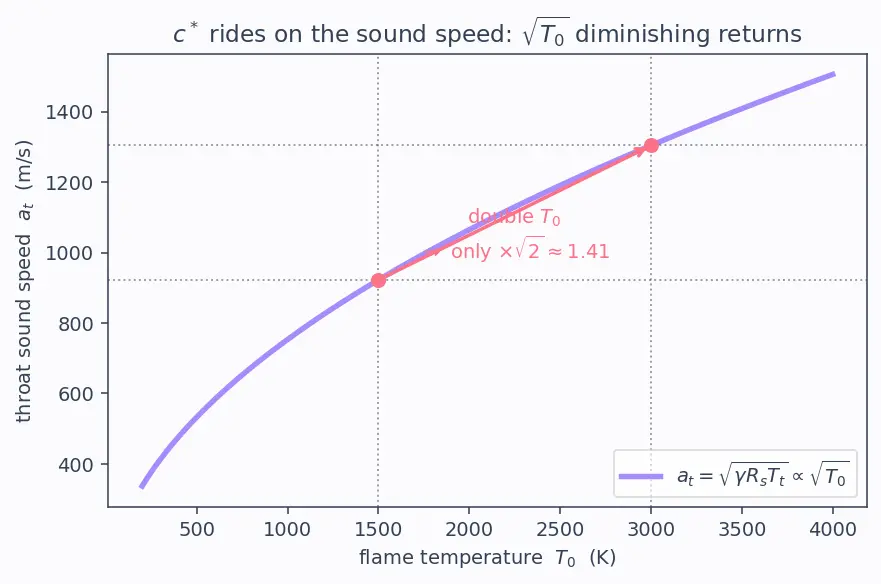

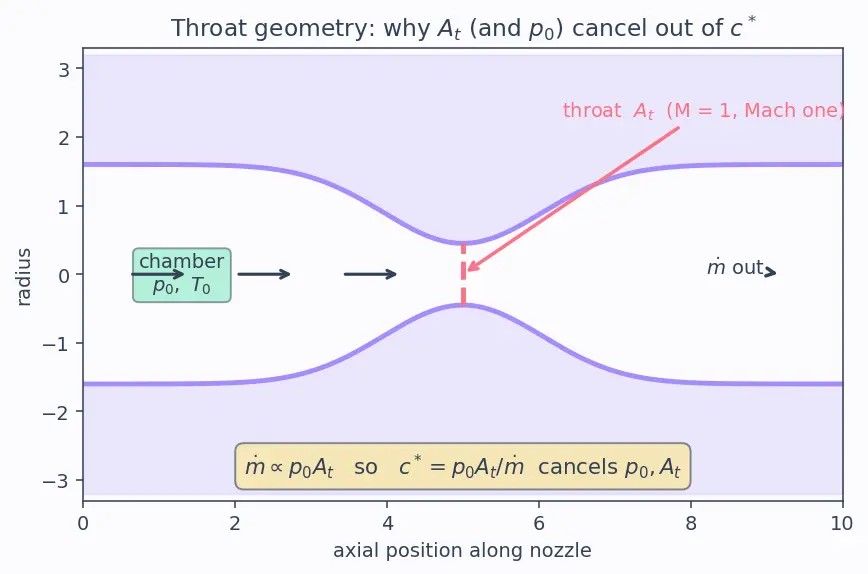

The first figure shows why $A_{t}$ cancels — how the throat geometry and the mass-flow formula conspire — and the second shows where the sound speed comes from that makes $c^{*}$ tick.

Figure — Characteristic velocity c - and its relation to flame temperature, MW

Spot the error

"Use

R_{u} = 8.314

directly in

γ R_{u} T_{0}

to get the sound speed."

Wrong constant. Sound speed needs the specific gas constant

R_{s} = R_{u} / M

(per kg), not the universal

R_{u}

(per mole). Using

R_{u}

throws away the crucial

1/ M

dependence.

c^{*} = p_{0} A_{t} / \overset{m}{˙}

, so to boost

c^{*}

just crank the chamber pressure

p_{0}

Wrong. Raising

p_{0}

(by feeding more propellant) raises

\overset{m}{˙}

proportionally, since

\overset{m}{˙} \propto p_{0} A_{t}

; the ratio

p_{0} A_{t} / \overset{m}{˙}

is set by chemistry (

T_{0} / M

), not by how hard you push.

"Stoichiometric

H_{2} / O_{2}

gives the highest

c^{*}

because it burns hottest."

Wrong. Fuel-rich mixtures win: the excess

H_{2}

drops the mean

M

far more than it lowers

T_{0}

, and

c^{*} \propto T_{0} / M

rewards the

M

drop — see Propellant Selection and Molecular Weight.

"Since

c^{*}

ignores the nozzle, it also ignores the throat area."

Wrong.

c^{*}

ignores the diverging nozzle downstream of the throat, but the throat itself is where choking sets

\overset{m}{˙}

;

A_{t}

is central to both the definition and the derivation.

"The isentropic ratio

T_{t} / T_{0} = 2/ (γ + 1)

was derived for the exit plane."

Wrong. It is the general isentropic relation

T_{0} / T = 1 + \frac{γ - 1}{2} M^{2}

(with

M

the Mach number) evaluated at

M = 1

— i.e. at the throat, not the exit. See Isentropic Flow Relations.

"Because

Γ \approx 0.64

is nearly constant,

γ

has no effect on

c^{*}

Overstated.

γ

does enter through

Γ

, just weakly —

Γ

ranges roughly

0.63

–

0.66

. Calling it "no effect" hides a real few-percent shift.

"A low measured

c^{*}

means the nozzle is badly shaped."

Wrong.

c^{*}

is nozzle-independent by construction; a low value points to poor combustion, heat loss, or heavy products inside the chamber. Nozzle problems show up in

C_{F}

, not

c^{*}

Why questions

Why does

c^{*}

depend on

T_{0}

and not

T_{0}

directly?

Because

c^{*}

is built from the throat sound speed

a_{t} = γ R_{s} T_{t}

, and sound speed scales as

T

; the square root is inherited straight from the physics of sound.

Why divide the whole thing by

Γ

instead of absorbing it into the temperature term?

Γ

collects all the

γ

-only geometry of choked isentropic flow into one clean number, leaving

R_{u} T_{0} / M

as the pure "hot & light" energy factor. Separation of concerns makes the physics readable.

Why is

c^{*}

a better chamber diagnostic than raw thrust?

Thrust mixes chamber quality and nozzle performance (

F \sim c^{*} C_{F} \overset{m}{˙}

c^{*}

strips out the nozzle, so a bad number can only mean a chamber problem — a cleaner signal.

Why measure

c^{*}

from

p_{0}, A_{t}, \overset{m}{˙}

rather than from

T_{0}

and

M

On a test stand you can read pressure, geometry, and flow directly, but

T_{0}

(flame temperature) and true exhaust

M

are hard to measure inside a fireball. The definition uses only what a gauge can see.

Why does the same

η_{c^{*}} < 1

appear whether the loss is heat leakage or incomplete burning?

Both lower the actual chamber energy, hence the actual

p_{0}

for a given

\overset{m}{˙}

, hence the measured

c^{*}

η_{c^{*}}

is a lumped chamber-health score; it flags a problem but doesn't name which one.

Why can't a longer, fancier nozzle rescue a low

c^{*}

A nozzle only multiplies chamber output by

C_{F}

c_{e} = c^{*} C_{F}

. If

c^{*}

is small because the chamber is weak, the best nozzle just scales a small number — see Specific Impulse Isp.

Edge cases

What happens to

c^{*}

γ \to 1

(very complex, many-atom molecules)?

The exponent

\frac{γ + 1}{2 ( γ - 1 )}

blows up because its denominator

γ - 1 \to 0

, but the base

\frac{2}{γ + 1} \to 1

at the same time, and a number just under

1

raised to a huge power stays finite — the two effects fight to a draw. That is why

Γ = γ (\frac{2}{γ + 1})^{\dots}

settles near

0.65

and

c^{*}

stays governed by

T_{0} / M

If combustion fails and the gas stays cold (

T_{0}

near ambient), what does

c^{*}

do?

c^{*} \propto T_{0}

collapses toward a small value — the chamber makes almost no pressure per unit flow. This is exactly the "poor combustion" signature a low measured

c^{*}

reports.

Suppose the flow is not choked (throat below Mach 1) — is

c^{*}

still meaningful?

The derived formula fails, because it assumed

v_{t} = a_{t}

. Un-choked operation (very low chamber-to-ambient pressure ratio) means the throat velocity is unknown and

c^{*}

loses its clean interpretation.

What if

\overset{m}{˙} \to 0

while

p_{0}

stays finite?

The definition

c^{*} = p_{0} A_{t} / \overset{m}{˙}

diverges. Physically this can't persist: choked flow ties

\overset{m}{˙}

p_{0}

(

\overset{m}{˙} \propto p_{0} A_{t}

), so a finite

p_{0}

forces a matching

\overset{m}{˙}

— you can't independently drive

\overset{m}{˙}

to zero.

An engine burns a heavy metallic propellant so

M

is large — what does that predict?

c^{*} \propto 1/ M

pushes

c^{*}

down, so heavy exhaust inherently caps chamber merit even if the flame is hot. Metallized propellants trade

c^{*}

for density — a deliberate compromise.

At the limit of perfect mixing and no heat loss, what is

η_{c^{*}}

, and is it reachable?

It approaches

1

but never quite reaches it in real hardware; small boundary-layer heat loss and finite-rate chemistry always shave off a percent or two. Values of

0.93

–

0.98

are the practical "excellent" range.

Recall One-line summary of every trap here

$c^{*}$ is chamber-only, scales as $T_{0} / M$ (square root, so gentle), uses the specific gas constant $R_{s} = R_{u} / M$ , needs choked flow ( $M = 1$ ), is not a real speed, and gets multiplied by $C_{F}$ only when you add the nozzle.

Connections

Thrust Coefficient CF — the nozzle half that $c^{*}$ deliberately excludes.
Specific Impulse Isp — where $c^{*}$ and $C_{F}$ recombine.
Choked Flow and the Throat — the $M = 1$ assumption several traps hinge on.
Isentropic Flow Relations — source of the throat/chamber ratios (and the ideal-gas fine print).
Vandenkerckhove Function Γ — why $γ$ enters only weakly.
Adiabatic Flame Temperature — sets $T_{0}$ , one of the two levers.
Propellant Selection and Molecular Weight — the fuel-rich $H_{2} / O_{2}$ trap.
