Foundations — Characteristic velocity c - and its relation to flame temperature, MW

This page assumes you know nothing. We build every letter, one at a time, so that when you return to the parent note every symbol is already an old friend.

The picture we keep coming back to

Before any algebra, look at the machine we are describing.

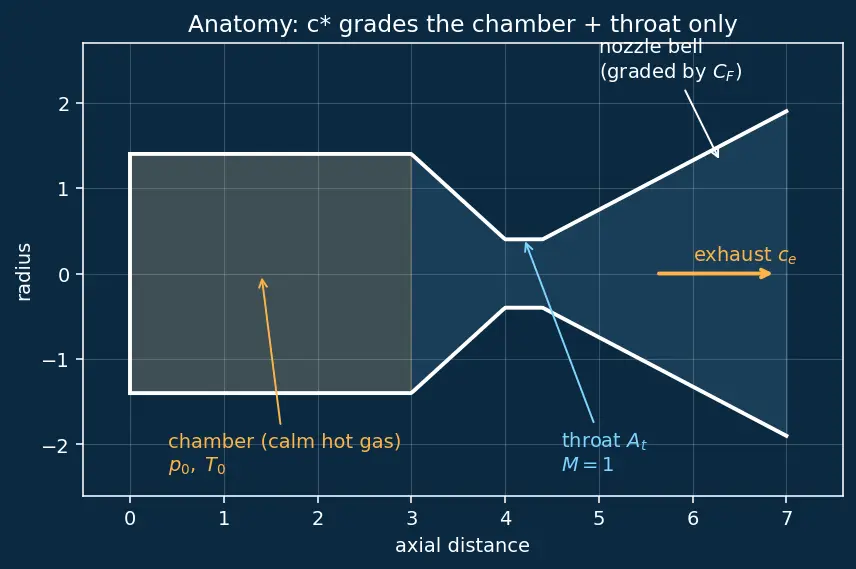

A rocket chamber is a fat pipe closed at one end. Propellant burns inside, making a huge cloud of hot gas. The gas can only leave through a narrow waist — the throat — before the pipe flares out into the bell-shaped nozzle. $c^{\ast }$ grades only the fat part and the waist. The flaring bell is a separate story (that is $C_F$, see Thrust Coefficient CF).

Keep this drawing in your head. Every symbol below is a label on some part of it.

Building the symbols, one at a time

1. Pressure $p$ — how hard the gas pushes on the walls

Picture: millions of tiny gas molecules constantly bouncing off the chamber wall. Each bounce is a tiny shove. Add up all the shoves on one square metre — that total shove is the pressure.

Why the topic needs it: the whole point of a rocket chamber is to build up pressure so gas will rush out. $c^{\ast }$ literally starts with a pressure in its numerator.

2. Stagnation (chamber) pressure $p_0$ — the pressure where the gas sits still

Picture: in figure s01, the fat left region is nearly still gas. That calm, high-pressure zone is where we read $p_0$. As gas speeds up toward the throat it trades some pressure for speed, so pressure at the throat is lower than $p_0$ — an important idea we use later.

Why the topic needs it: $p_0$ is the "quality" that combustion produces. A hotter, better burn builds a higher $p_0$. It is the first of the three things you can measure on a test stand.

3. Throat and throat area $A_t$ — the narrowest hole

Picture: slice the waist of the pipe straight across — you get a small circle. Its area is $A_t$.

Why the topic needs it: the throat is the bottleneck that controls how much gas escapes. Its area is the second measurable quantity in $c^{\ast }=p_0{A}_t/\dot{m}$.

4. Mass flow rate $\dot{m}$ — kilograms leaving per second

Picture: stand at the throat with a stopwatch and a scale. In one second, weigh all the gas that flew past. That weight (in kg) is $\dot{m}$.

Why the topic needs it: $\dot{m}$ is the third measurable quantity. Together $p_0$, $A_t$, $\dot{m}$ give you $c^{\ast }$ with no knowledge of the nozzle — that isolation is the reason $c^{\ast }$ exists.

5. The characteristic velocity $c^{\ast }$ itself — the number all this builds toward

Picture: in figure s01, $c^{\ast }$ is a scorecard hovering over the fat chamber + waist. A high score means the burn built lots of pressure per kilogram of escaping gas.

Why the topic needs it: this is the star of the whole topic. Everything before it (symbols 1–4) are its ingredients; everything after it (symbols 6–15) explains why the score depends on temperature and molecular weight.

6. Density $\rho$ — how tightly packed the gas is

Picture: a box of gas. Count the kilograms inside, divide by the box's volume in cubic metres. Denser gas = more molecules per box.

Why the topic needs it: the amount of gas flowing out depends on how packed it is. The mass-flow derivation begins with $\dot{m}={\rho }_t{A}_t{v}_t$ — density × hole × speed.

7. Continuity — the "nothing vanishes" bookkeeping

Picture: think of people filing through a doorway. The number per second = how densely packed they are × doorway width × how fast they walk. Same logic, gas instead of people.

Why the topic needs it: this is Step 1 of the parent's derivation. Every rocket flow calculation starts here.

8. Temperature $T$ and flame temperature $T_0$ — how energetic the molecules are

Picture: hotter gas = molecules zooming and bouncing faster. In figure s01, the fat chamber is glowing hot at temperature $T_0$.

Why the topic needs it: hot gas is fast gas. $c^{\ast }$ grows with $\sqrt{T_0}$ — the "hot" in "hot and light wins." See Adiabatic Flame Temperature for where the number $T_0$ comes from.

9. Molecular weight $\mathcal{M}$ — how heavy each molecule is

Picture: put one "mole" (a fixed huge count, $6.022\times 10^{23}$) of molecules on a scale. Heavy molecules (big $\mathcal{M}$) weigh more; light molecules (small $\mathcal{M}$) weigh less.

Why the topic needs it: for the same energy, lighter molecules move faster (think ping-pong ball vs bowling ball hit with the same shove). $c^{\ast }$ grows with $\sqrt{1/\mathcal{M}}$ — the "light" in "hot and light wins." See Propellant Selection and Molecular Weight.

10. The gas constants $R_u$ and $R_s$ — turning energy into speed

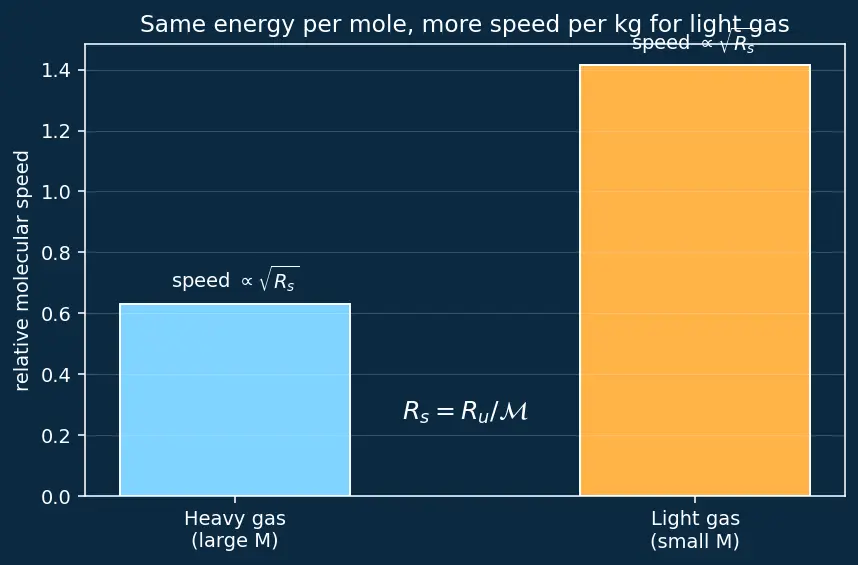

Picture: figure s02 shows the same energy budget shared out. Per mole it's fixed ($R_u$). Per kilogram it depends on how heavy your molecules are — light gas gets more speed per kilogram.

Why the topic needs it: the final boxed form $c^{\ast }=\frac{1}{\Gamma }\sqrt{R_u{T}_0/\mathcal{M}}$ hides an $R_s$ inside — it keeps $R_u$ only because $\mathcal{M}$ divides it right there.

11. Speed of sound $a$ — how fast a push travels through the gas

Picture: clap your hands; the "bump" of compressed air races outward at speed $a$. In hot light gas that bump travels faster because the molecules relay it quicker.

Why the topic needs it: at the throat the gas moves exactly at its own speed of sound. That fact fixes the throat speed and is the heart of the whole derivation.

12. Mach number $M$ and choked flow — the "M = 1" gate

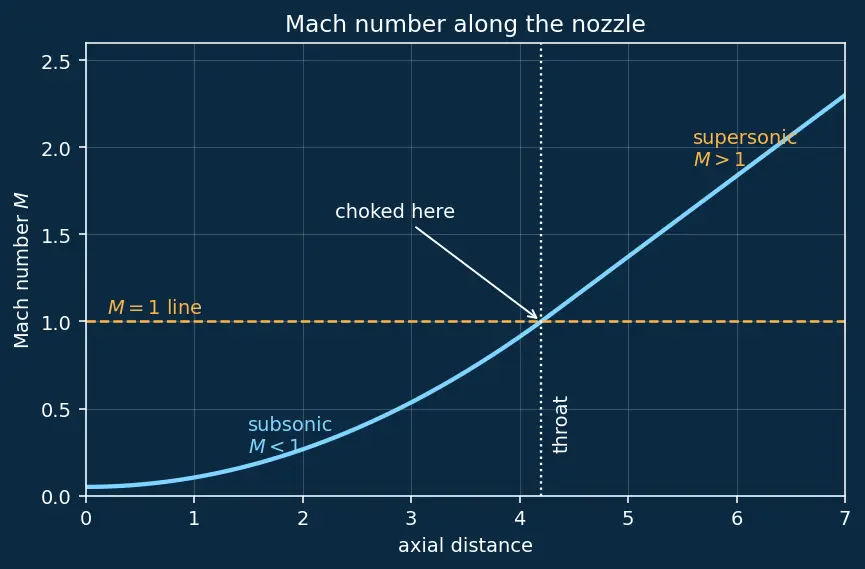

Picture: figure s03 — gas accelerates from nearly still ($M\approx 0$) in the chamber, hits exactly $M=1$ at the narrow waist, then goes supersonic ($M>1$) in the flaring bell.

Why the topic needs it: this is Step 2 of the parent's derivation, $v_t=a_t=\sqrt{\gamma R_s{T}_t}$. See Choked Flow and the Throat.

13. The heat-capacity ratio $\gamma$ — the gas's "springiness"

Picture: think of the gas as a spring. $\gamma$ measures how "bouncy" that spring is — how quickly pressure changes when you compress or expand the gas.

Why the topic needs it: $\gamma$ appears in the speed of sound and in the isentropic ratios below. It enters $c^{\ast }$ only weakly, bundled inside $\Gamma$.

14. Isentropic flow — smooth, no-loss flow

Picture: as gas rushes toward the throat it speeds up, and to pay for that speed it cools and thins out — pressure and density drop by exactly the factors above.

Why the topic needs it: these ratios (Step 3) convert the throat conditions we cannot easily measure into the chamber conditions $p_0,T_0$ that we can. See Isentropic Flow Relations.

15. The Vandenkerckhove function $\Gamma$ — the tidy bundle of $\gamma$

Picture: think of $\Gamma$ as a single dial that summarises "how the gas's springiness affects flow." It barely moves, which is why $\gamma$ has only a weak effect on $c^{\ast }$.

Why the topic needs it: only now — with $\Gamma$ defined — may we write the clean final form $c^{\ast }=\frac{1}{\Gamma }\sqrt{R_u{T}_0/\mathcal{M}}$, separating the springy-$\gamma$ part from the hot-and-light part. See Vandenkerckhove Function Γ.

16. Exhaust velocity $c_e$, $C_F$ and $I_{sp}$ — what $c^{\ast }$ is NOT

Picture: figure s01 again — $c^{\ast }$ = the fat chamber + waist, $C_F$ = the flaring bell, and multiplying them gives the real exhaust speed $c_e$.

Why the topic needs it: so you never confuse $c^{\ast }$ (a chamber figure of merit, not a real speed) with the exhaust speed. See Specific Impulse Isp and Thrust Coefficient CF.

How the foundations feed the topic

Equipment checklist

Test yourself — you should be able to answer each before reading the parent note.
