Mass flow rate ṁ and its relation to throat area: Question bank

First, the symbols these traps use

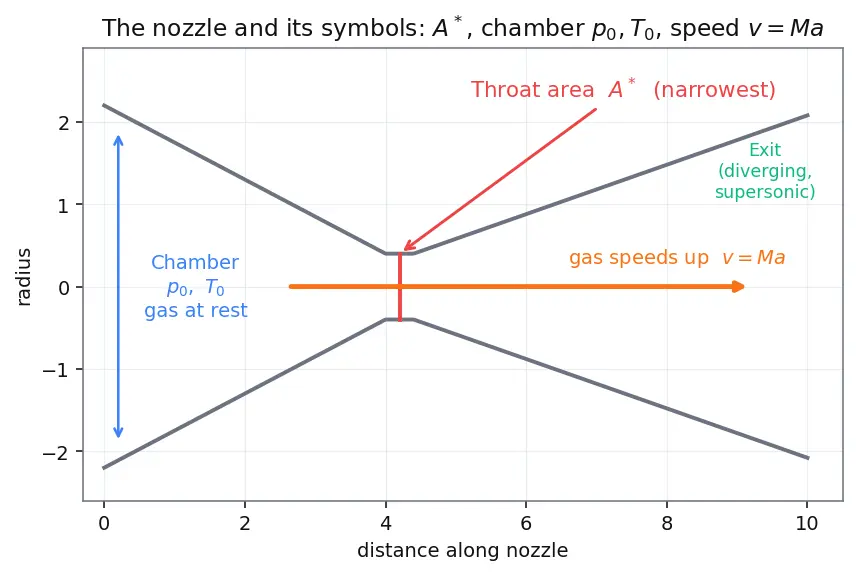

Before any trap can be fair, you must own every letter it fires at you. Look at the picture: a nozzle narrowing to a pinch, then flaring out.

Figure — Mass flow rate ṁ and its relation to throat area

Definition The five characters in every question

== $A^{*}$ == — the throat area, the cross-sectional area (in $m^{2}$ ) at the narrowest point of the nozzle (the star $^{*}$ always means "at the sonic throat"). It is the width of the pinch in the figure.
== $a$ (speed of sound)== — how fast a tiny pressure ripple travels through the gas: $a = γ R T$ in $m/s$ . It is the top speed at which "news" (a pressure change) can move through the gas.
== $M$ (Mach number)== — a pure ratio, $M = \frac{v}{a}$ = gas speed divided by the local sound speed. $M = 1$ means the gas moves exactly as fast as its own sound. It is a dial, not a speed.
== $R$ (specific gas constant)== — $R = R / M_{molar}$ , the universal gas constant divided by the propellant's molar mass, in $J/(kg\cdotK)$ . It converts temperature into "push per kilogram."
$p_{0}, T_{0}$ — stagnation (chamber) pressure and temperature: the values where the gas is (nearly) at rest inside the combustion chamber, before the nozzle speeds it up.

Intuition Why

$γ / (R T_{0})$ and the choking coefficient appear — the story behind the formula Start from $\overset{m}{˙} = ρ A v$ and feed in three facts:

Speed: at the throat the gas hits $M = 1$ , so $v = a = γ R T$ — the $γ$ and the $R T$ are just the sound-speed formula.
Density: from the ideal gas law $ρ = p / (R T)$ — that is where the other $1/ R$ and $1/ T$ come from. Multiply $ρ \cdot v$ and the $R$ and $T$ combine into the $γ / (R T)$ shape.
Chamber-to-throat drop: to reach $M = 1$ the gas must cool and depressurise from chamber values by a fixed amount (set only by $γ$ ). Writing $p, T$ at the throat in terms of $p_{0}, T_{0}$ produces exactly the factor $(\frac{2}{γ + 1})^{\frac{γ + 1}{2 ( γ - 1 )}}$ — the choking coefficient. It is nothing but "how much the gas has already spent getting up to sound speed."

So the boxed formula is not magic: $\overset{m}{˙} = A^{*} p_{0} \frac{γ}{R T _{0}} (\frac{2}{γ + 1})^{\frac{γ + 1}{2 ( γ - 1 )}}$ is just $ρ A v$ with $v$ = sound speed and $ρ$ = throat density, both re-expressed in chamber terms.

The picture below shows why $M = 1$ is the traffic jam: below sonic, pressure ripples still race upstream; at sonic they get stuck at the throat.

The two engines of every trap:

Definition: $\overset{m}{˙} = ρ A v$ (density × area × speed).
Choked result: $\overset{m}{˙} = A^{*} p_{0} \frac{γ}{R T _{0}} (\frac{2}{γ + 1})^{\frac{γ + 1}{2 ( γ - 1 )}}$ , valid only when the throat is sonic ( $M = 1$ ).

True or false — justify

Doubling the throat area doubles the choked mass flow.

True. In the boxed formula

\overset{m}{˙} \propto A^{*}

linearly, and nothing else in the formula depends on

A^{*}

, so twice the door gives twice the kg/s.

Doubling the chamber pressure

p_{0}

doubles the choked mass flow.

True.

\overset{m}{˙} \propto p_{0}

linearly — higher

p_{0}

means denser gas at the throat, and density enters

ρ A v

directly while the sonic speed set by

T_{0}

is unchanged.

Doubling the chamber temperature

T_{0}

doubles the choked mass flow.

False.

\overset{m}{˙} \propto 1/ T_{0}

, so doubling

T_{0}

lowers

\overset{m}{˙}

by a factor

1/ 2 \approx 0.71

— hotter gas is less dense faster than it is faster.

Once the throat is choked, opening the exhaust to hard vacuum increases

\overset{m}{˙}

False. At

M = 1

pressure signals cannot travel upstream past the throat, so the chamber never "hears" the lower back-pressure;

\overset{m}{˙}

is frozen by

p_{0}, T_{0}, A^{*}, γ

alone.

The same numerical

\overset{m}{˙}

crosses the chamber, the throat, and the exit plane.

True. Steady flow + conservation of mass (continuity) forces

ρ A v

to be identical at every station; only

ρ

A

v

individually change.

At the throat the gas is moving at its fastest point in the whole nozzle.

False. The throat is sonic (

M = 1

); downstream in the diverging section the flow goes supersonic and faster. Maximum mass flux per area is at the throat, not maximum speed.

If the flow is NOT choked, the choked-flow boxed formula still gives the right

\overset{m}{˙}

False. The boxed formula was derived by setting

M = 1

; for subsonic (un-choked) throats you must use the general

\overset{m}{˙} (M)

expression with the actual local Mach number, and

\overset{m}{˙}

then does depend on back-pressure.

A wider nozzle exit (bigger exit area) increases

\overset{m}{˙}

for a choked engine.

False.

\overset{m}{˙}

is fixed at the throat by

A^{*}

; the diverging exit only changes exit velocity and pressure, not how many kg/s pass. Exit area affects thrust, not throughput.

Spot the error

\overset{m}{˙} = ρ A v

, and speed of sound rises with

T_{0}

, so hotter chambers must flow more mass."

The error is ignoring density. Both

ρ

(falls as

1/ T

at fixed

p

) and

v = a \propto T

change; the product goes as

1/ T_{0}

, so

\overset{m}{˙}

decreases.

"Since a bigger pressure difference drives more flow, dropping the exit pressure below

p_{0} /2

keeps raising

\overset{m}{˙}

True only until the throat chokes. Beyond the critical pressure ratio the throat is sonic and

\overset{m}{˙}

plateaus — further drops in exit pressure do nothing to

\overset{m}{˙}

"I'll plug the throat static pressure

p

and temperature

T

into the boxed formula."

The boxed formula is written in stagnation (chamber) values

p_{0}, T_{0}

; the Mach-number correction is already baked in. Feeding static values double-counts that correction and gives a wrong number.

\overset{m}{˙} = ρ A v

means if I halve

A

and double

v

\overset{m}{˙}

is unchanged — always."

Only if

ρ

stays fixed, which it does not in a compressible nozzle. Squeezing area changes density and speed together via the isentropic relations, so you cannot treat

ρ

as constant.

"Choking happens because friction blocks the flow at the narrow point."

Wrong mechanism. Choking is not friction; it is that pressure information travels at the sound speed

a

, so at

M = 1

downstream signals can no longer propagate upstream to increase the flow.

"Mach number

M

is a speed, so

M = 1

means

1 m/s

M

is a ratio:

M = v / a

, speed divided by the local speed of sound

a

M = 1

means the gas moves exactly at the local sound speed, which can be hundreds of m/s.

Why questions

Why does mass flow freeze exactly at

M = 1

and not at some other Mach number?

Because pressure disturbances travel at the sound speed

a

; at

M = 1

the flow moves as fast as its own signals, so no "please send more gas" message can travel upstream against it — the throat stops responding to downstream changes.

Why is the throat the choke point rather than the chamber or the exit?

The throat has the minimum area

A^{*}

, so for a fixed

\overset{m}{˙}

the mass flux

ρ v = \overset{m}{˙} / A

is largest there; that flux peaks at

M = 1

, so the minimum-area station is where sonic conditions are first reached.

Why does

\overset{m}{˙}

scale linearly with

A^{*}

but only as

1/ T_{0}

with temperature?

Area multiplies

ρ A v

directly with no side effects, so it is linear. Temperature enters twice — through density (

\propto 1/ T

) and sound speed

a

(

\propto T

) — whose combination is

1/ T

Why do we use stagnation (chamber) conditions

p_{0}, T_{0}

in the final formula instead of throat values?

They are the quantities an engineer actually controls and measures in the chamber, and they are constant along the isentropic flow, giving a single clean formula independent of the local station.

Why does heating the chamber still help the rocket even though it lowers

\overset{m}{˙}

Heat raises the exit velocity

v_{e}

(through

a \propto T

and the expansion), and thrust

\approx \overset{m}{˙} v_{e}

benefits from the velocity gain more than it loses from the small mass-flow drop. See Thrust Equation and Effective Exhaust Velocity.

Why is the "choking coefficient"

(\frac{2}{γ + 1})^{\frac{γ + 1}{2 ( γ - 1 )}}

a fixed number for a given propellant?

It depends only on

γ

, the ratio of specific heats, which is a property of the gas mixture; once the propellant is chosen, that factor is locked in regardless of

p_{0}

T_{0}

, or

A^{*}

Why can two nozzles with the same throat area push very different thrusts yet the same

\overset{m}{˙}

\overset{m}{˙}

is fixed at the throat, but thrust also depends on exit velocity and exit pressure, which the diverging section (area ratio) controls — see Nozzle Area Ratio and Expansion.

Edge cases

What is

\overset{m}{˙}

if the throat area

A^{*} \to 0

\overset{m}{˙} \to 0

: no area, no gas passes. A pinched-shut throat, however high the pressure, transmits zero kilograms per second.

What happens to

\overset{m}{˙}

as chamber pressure

p_{0} \to 0

\overset{m}{˙} \to 0

linearly; with no pressure there is nothing pushing gas through, and density at the throat collapses to zero.

What does the formula say as chamber temperature

T_{0} \to 0

, and is it physical?

Since

\overset{m}{˙} \propto 1/ T_{0}

, the formula blows up (

\overset{m}{˙} \to \infty

) as

T_{0} \to 0

; but that limit is unphysical — a real gas near

0 K

liquefies and the ideal-gas, sonic-throat assumptions collapse, so the formula simply no longer applies there.

If the back-pressure equals the chamber pressure (

p_{exit} = p_{0}

), what is

\overset{m}{˙}

Zero — with no pressure difference there is no flow at all, the throat is not even subsonic-flowing, and the choked formula does not apply.

What if the back-pressure exceeds chamber pressure (

p_{exit} > p_{0}

The pressure gradient reverses, so gas would tend to flow backwards into the chamber; the forward-flow model and its

\overset{m}{˙}

formula are invalid, and a real engine would ingest exhaust rather than expel it.

Below the critical pressure ratio (throat still subsonic), does

\overset{m}{˙}

depend on back-pressure?

Yes — in the un-choked regime lowering the back-pressure genuinely increases

\overset{m}{˙}

, because signals can travel upstream and the flow speeds up in response.

As the propellant's

γ \to 1

(very complex, many-atom molecule), what happens to the choking coefficient?

The exponent

\frac{γ + 1}{2 ( γ - 1 )}

blows up, but the base

\frac{2}{γ + 1} \to 1

; the limit is finite (

\to e^{- 1/2} \approx 0.607

), so

\overset{m}{˙}

stays well-behaved.

If the flow were somehow supersonic at the throat, is that a valid steady choked state?

No — for a converging-diverging nozzle the sonic point sits precisely at the minimum area; supersonic-at-throat is not a stable steady solution, the throat pins

M = 1

Does the choked

\overset{m}{˙}

change if the rocket flies from sea level to vacuum?

No — external (ambient) pressure is downstream of the choked throat, so

\overset{m}{˙}

is unchanged in flight even though thrust and exit conditions do change with altitude.

Recall One-line self-test before you move on

Cover the reveals and re-answer three items you got slowest. If your reason still wanders, re-read the parent's Step 4 (why $M = 1$ maximises flux) and the two "hotter chamber" mistakes.

Prerequisite links for the traps above: Choked Flow and Sonic Conditions, Isentropic Flow Relations, Specific Impulse, Tsiolkovsky Rocket Equation.
