Foundations — Mass flow rate ṁ and its relation to throat area

Before you can read the parent note, you must be able to see every letter it uses. This page builds each one from nothing — plain words, a picture, and the reason the topic can't live without it. Read top to bottom; each idea uses only ideas above it.

1 — Area $A$: the size of a doorway

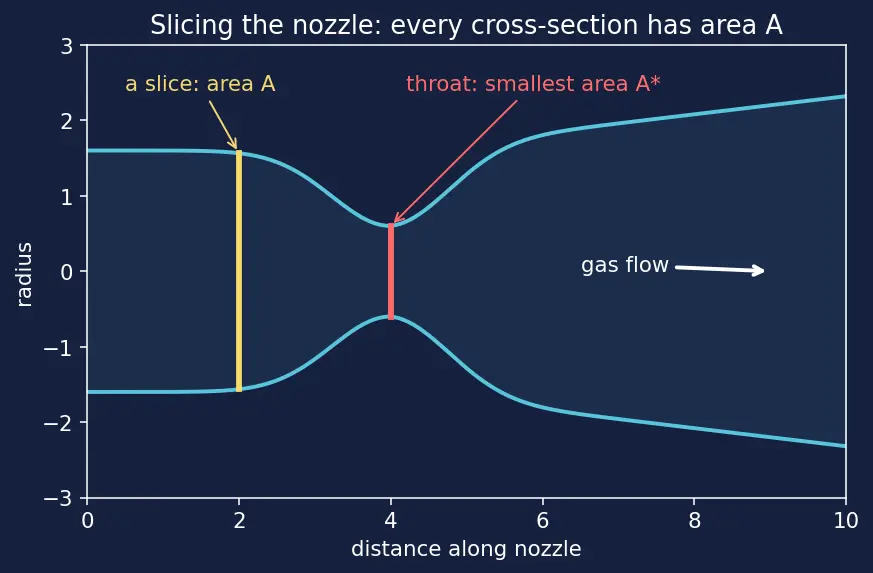

Picture it. Slice straight across the nozzle like cutting a carrot. The flat face you expose is the cross-section; its size is $A$. A wide slice = big $A$ (easy to pass lots of gas), a narrow slice = small $A$.

Why the topic needs it. Every "stuff-per-second" count multiplies by the doorway size. The narrowest doorway of all gets its own symbol, $A^{\ast }$ (read "A-star") — the throat area. Hold on to the difference: $A$ is any slice, $A^{\ast }$ is the smallest slice.

2 — Velocity $v$: how fast the gas travels

Picture it. Paint one puff of gas red. In one second it moves forward a distance $v$ (in metres). Faster gas = a longer red streak per second.

Why the topic needs it. Speed tells you how far the gas gets each second — and combined with the doorway size, how much volume sweeps past.

3 — Density $\rho$: how tightly packed the gas is

Picture it. Take a $1\text{ m}\times 1\text{ m}\times 1\text{ m}$ box. Count the kilograms of gas inside it. That number is $\rho$. Squeeze the same gas smaller → more kg per box → bigger $\rho$.

4 — Building $\dot{m}=\rho Av$ from a picture

Why the dot? Physicists put a dot over a letter to mean "how fast this thing changes with time." So $\dot{m}$ literally reads "how fast mass passes by."

Build it visually. In one second, the gas behind the slice sweeps forward by $v$ metres. That carved-out chunk is a cylinder:

• length $=v$ (from §2),
• face area $=A$ (from §1),
• so volume $=Av$,
• and mass $=\rho \times Av$ (from §3).

5 — Ideal gas: $p=\rho RT$

The topic swaps $\rho$ and $v$ for things an engineer actually sets — pressure and temperature. To do that swap it needs two "translator" facts about gas.

Picture it. Hotter ($T$ up) or more crowded ($\rho$ up) molecules hit the walls harder → higher $p$. The equation just says: push = packing × hotness × (a constant for the gas).

Why the topic needs it. It lets you replace the hard-to-measure $\rho$ with the easy-to-measure $p$ and $T$: rearrange to $\rho =p/(RT)$.

6 — Speed of sound $a$: the traffic-signal speed

Picture it. Clap in a room. The "news" of that clap spreads at speed $a$. Inside a nozzle, every pressure change (like "the exit got wider") is such news travelling at $a$.

Why the topic needs it — the whole point. Information about downstream pressure can only crawl upstream at speed $a$. If the gas itself is already moving upstream-ward slower than $a$, news gets through. But once the gas moves at $a$, the news can never fight its way back — the throat stops "hearing" the outside. That frozen state is choking.

7 — Mach number $M$: speed measured in "sounds"

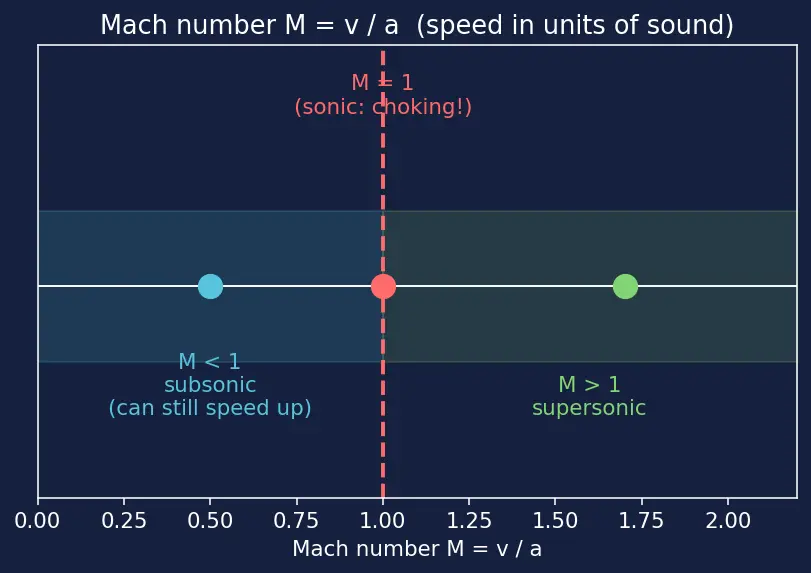

Picture it. $M=0.5$ → moving at half the speed of sound. $M=1$ → exactly at sound speed (sonic). $M>1$ → faster than sound (supersonic).

Why the topic needs it. The magic moment is $M=1$ at the throat. Mach number is the single dial that says how close you are to choking. Below $1$: flow can still speed up. At exactly $1$: locked.

8 — $\gamma$ and "isentropic": how the gas cools as it speeds up

Picture it. As gas rushes down the nozzle it trades hotness for speed — like a rollercoaster car trading height for velocity, with no energy wasted to friction. $\gamma$ sets the "exchange rate" of that trade. See Isentropic Flow Relations for the full trade table.

Why the topic needs it. This assumption lets us relate chamber conditions to throat conditions with clean formulas instead of messy experiments.

9 — Stagnation values $p_0$, $T_0$: the chamber at rest

Picture it. Deep in the chamber the gas is barely moving ($v\approx 0$), so all its energy is stored as heat and pressure: that's $T_0$, $p_0$. As it accelerates down the nozzle, some heat becomes motion, so the local $T$ and $p$ drop below $T_0$, $p_0$.

Why the topic needs it. $p_0$ and $T_0$ are what the engineer actually controls (how much fuel, how big the tank pressure). The final choked-flow formula is written entirely in these, so it predicts $\dot{m}$ from things you can set.

How it all feeds the topic

Read it as: the three raw ingredients ($A$, $v$, $\rho$) build $\dot{m}$; the gas law plus sound speed plus $\gamma$ let you rewrite $\dot{m}$ in controllable chamber terms; setting $M=1$ locks it into the choked-flow result. Onward, this connects to Thrust Equation and Effective Exhaust Velocity, Nozzle Area Ratio and Expansion, Specific Impulse and Tsiolkovsky Rocket Equation.

Equipment checklist

Cover the right side and test yourself — you're ready when all reveal correctly.
