Mass ratio m₀ - m_f — why it's so critical: Worked examples

Everything here rests on the parent: the mass-ratio note, and on the Tsiolkovsky Rocket Equation. We reuse its three symbols only:

Recall The three symbols we will never re-derive here

$R = m_{0} / m_{f}$ (mass ratio, wet over dry). $u$ = exhaust speed relative to the rocket ( $u = I_{s p} g_{0}$ , see Specific Impulse Isp). $Δ v = u ln R$ (the Tsiolkovsky Rocket Equation).

The scenario matrix

Before any numbers, let's list every distinct kind of problem this one equation can pose. Each row is a "cell" — a scenario class with its own trap. The worked examples below each carry a tag like (Cell A) so you can see the whole grid is covered.

Cell	What's given	What's asked	The trap / edge to watch
A	$u$ , $R$	find $Δ v$	forward direction, easy — the "warm-up"
B	$u$ , $Δ v$	find $R$	must invert with $e^{(\cdot)}$
C	$u$ , $Δ v$ , $m_{f}$	find fuel $m_{p}$	$m_{f}$ fixed, so $m_{0} = R m_{f}$ , then subtract
D	$u$ , $m_{0}$ , $m_{f}$	find $Δ v$	plug raw masses into $ln (m_{0} / m_{f})$
E	degenerate: $R = 1$ (no fuel) or $R \to \infty$	$Δ v$ ?	limiting behaviour — what does $ln$ do at the ends
F	two stages	total $Δ v$	$Δ v$ adds, $R$ multiplies — Multistage Rockets
G	word problem (real mission)	required $R$ + feasibility	convert mission Delta-v Budget to fuel, then judge
H	exam twist: change $u$ by a factor	how does $R$ respond	$R$ is exponential in $1/ u$ — non-linear

Read the matrix once. Notice cells E, F, H are the ones people skip — and the ones exams love. We give each its own example.

Cell A — forward: given $R$ , find $Δ v$

Cell B — inverse: given $Δ v$ , find $R$

Cell C — solve for fuel mass

Worked example A satellite bus has dry mass

$m_{f} = 200 kg$ . Its thruster has $u = 2.5 km/s$ and the mission needs $Δ v = 1.5 km/s$ . How much propellant $m_{p}$ must it carry? Forecast: small $Δ v$ (well under $u$ ), so guess: is the fuel less than the dry mass or more?

Find the mass ratio (Cell B move). $R = e^{Δ v / u} = e^{1.5/2.5} = e^{0.6} = 1.8221.$ Why this step? We can't get fuel until we know how much bigger wet is than dry — that's $R$ .
Recover the wet mass. $m_{f}$ is fixed (you can't change the hardware), so $m_{0} = R m_{f} = 1.8221 \times 200 = 364.42 kg .$ Why this step? $R = m_{0} / m_{f}$ rearranges to $m_{0} = R m_{f}$ ; the dry mass is the anchor here.
Fuel is the difference. $m_{p} = m_{0} - m_{f} = 364.42 - 200 = 164.42 kg .$ Why this step? Propellant = everything you started with minus what's left.

Verify: propellant fraction $ζ = m_{p} / m_{0} = 164.42/364.42 = 0.451$ , and the formula $ζ = 1 - 1/ R = 1 - 1/1.8221 = 0.451$ . ✓ Fuel ( $164$ kg) is less than dry mass ( $200$ kg) — matches the small- $Δ v$ forecast.

Cell D — raw masses straight in

Cell E — the degenerate & limiting cases

This is the cell people forget. What happens at the ends of the range of $R$ ? Remember $R \geq 1$ always (you can't have negative fuel).

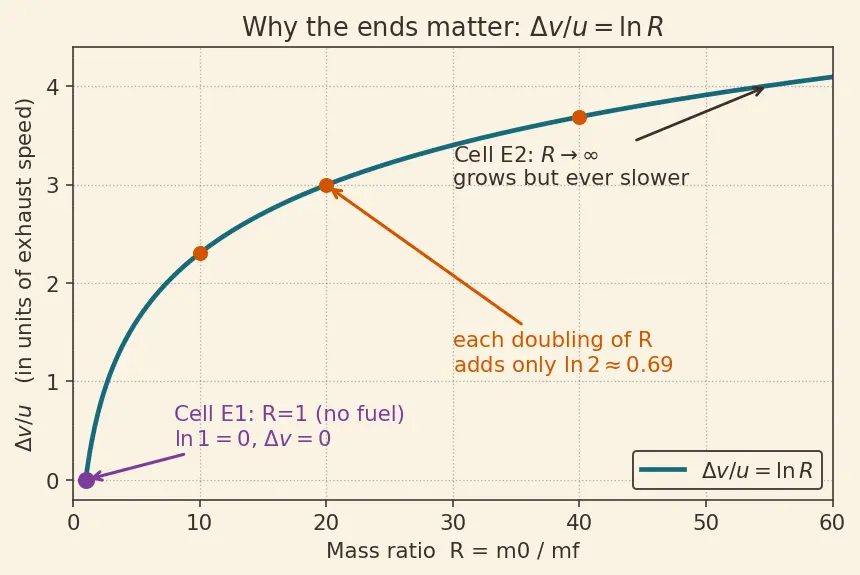

Figure — Mass ratio m₀ - m_f — why it's so critical

Cell F — two stages (Δv adds, R multiplies)

Worked example A two-stage rocket.

Stage 1: $R_{1} = 4$ , $u_{1} = 3 km/s$ . Stage 2: $R_{2} = 5$ , $u_{2} = 4 km/s$ . Find total $Δ v$ . Forecast: would you add the ratios ( $4 + 5$ ) or multiply them ( $4 \times 5$ )? Guess which quantity adds.

Δv of each stage separately. $Δ v_{1} = u_{1} ln R_{1} = 3 ln 4 = 4.1589 km/s,$ $Δ v_{2} = u_{2} ln R_{2} = 4 ln 5 = 6.4378 km/s .$ Why this step? Each stage is its own rocket equation; after stage 1 drops away, stage 2 starts fresh with its own $u$ and $R$ .
Total Δv adds. Velocity changes are simple additions along the same line of motion: $Δ v_{tot} = Δ v_{1} + Δ v_{2} = 4.1589 + 6.4378 = 10.597 km/s .$ Why this step? You keep the speed you already have and pile more on top — nothing resets your velocity.

Verify: the log turns the product of ratios into a sum: if $u$ were equal, $u ln (R_{1} R_{2}) = u (ln R_{1} + ln R_{2})$ . So $R$ multiplies ( $4 \times 5 = 20$ effective) while $Δ v$ adds — exactly the forecast test. ✓ Total $10.6 km/s$ clears the LEO budget where one stage (Cell G) could not.

Cell G — real-world mission + feasibility

Worked example Mission to escape Earth needs

$Δ v \approx 11.2 km/s$ (from the Delta-v Budget). Your best single engine gives $u = 3.5 km/s$ . Real tanks force $m_{f} \geq 0.08 m_{0}$ (structure is $\geq 8%$ ). Is single-stage escape possible? Forecast: required $R$ will be large — will it exceed the structural ceiling of $R = 1/0.08 = 12.5$ ?

Required mass ratio (Cell B). $R_{req} = e^{Δ v / u} = e^{11.2/3.5} = e^{3.2} = 24.533.$ Why this step? Turn the mission's speed demand into a fuel-fraction demand.
Structural ceiling. If $m_{f} \geq 0.08 m_{0}$ , then $R = m_{0} / m_{f} \leq 1/0.08 = 12.5$ . Why this step? Real hardware sets a maximum achievable $R$ ; you can't wish tanks lighter.
Compare. $R_{req} = 24.5 > R_{max} = 12.5$ . Impossible with one stage. Why this step? The demand outruns what any single structure can hold — this is the exponential wall in action.

Verify: the best one stage can do is $Δ v_{m a x} = u ln R_{m a x} = 3.5 ln (12.5) = 3.5 \times 2.5257 = 8.84 km/s < 11.2$ . Short by $2.36 km/s$ ⇒ you must stage (see Cell F) or raise $u$ (Cell H). ✓

Cell H — the exam twist: scale $u$ , watch $R$

Active recall

Recall In Cell E, why is

$Δ v = 0$ when $R = 1$ ? $R = 1$ means wet mass = dry mass = zero propellant; $ln 1 = 0$ , so $Δ v = u \cdot 0 = 0$ . No fuel thrown, no momentum swapped.

Recall Across stages, which quantity adds and which multiplies?

$Δ v$ adds ( $Δ v_{1} + Δ v_{2}$ ); the mass ratios multiply ( $R_{1} R_{2}$ ). The log links them: $ln (R_{1} R_{2}) = ln R_{1} + ln R_{2}$ .

Recall Doubling

$u$ at fixed $Δ v$ changes required $R$ by what factor (Cell H, $Δ v = 8$ , $u : 2 \to 4$ )? By $e^{2} \approx 7.39$ — an exponential drop, not a halving.

Connections

Tsiolkovsky Rocket Equation — every cell is one use of it.
Specific Impulse Isp — Cell H is why bigger $u$ matters exponentially.
Multistage Rockets — Cells F and G show why staging is forced.
Delta-v Budget — Cell G converts a mission budget into required $R$ .
Conservation of Momentum — the origin of the equation the cells apply.
Exhaust Velocity and Thrust — where $u$ physically comes from.
