Mass ratio m₀ - m_f — why it's so critical: Visual walkthrough

Step 1 — Meet the rocket, and name every symbol

WHAT. Picture a rocket floating in deep space — no ground, no air, no gravity pulling on it. Right now it has a total mass we call $m$ (the whole thing: metal shell + payload + all the unburnt fuel still inside), and it drifts to the right at some speed $v$ .

WHY. Before we can talk about change, we must fix a starting snapshot and give plain names to what we measure. Every later symbol is born here:

PICTURE. The rocket is one solid arrow moving right; the label $m$ sits on its body, $v$ is the arrow of its motion, and the engine bell at the back is where exhaust will come out.

Figure — Mass ratio m₀ - m_f — why it's so critical

Step 2 — Throw one small ball of exhaust

WHAT. In the tiny time $d t$ , the engine fires and spits out a small blob of burnt gas. Call the mass of that blob $d m_{e j}$ (the "ej" means ejected). The rocket, now lighter, is left with mass $m + d m$ and a slightly faster speed $v + d v$ .

WHY. A rocket has no road to push against. The only way it can speed up is to hurl mass backward — Newton's third law returns the favour as a forward shove. So the whole story is: throw mass back, get pushed forward. We must track that one thrown blob carefully.

PICTURE. The single arrow of Step 1 splits into two: a slightly smaller rocket arrow racing right, and a small blob arrow flying left out the back.

Step 3 — How fast does the thrown ball actually move?

WHAT. The engine throws the blob at speed $u$ relative to the rocket. But we, standing among the stars, see the rocket already moving right at $v$ . So the blob's speed against the stars is $v - u$ : the rocket's own speed, minus the backward kick $u$ .

WHY. Momentum — the quantity we are about to conserve — must be measured in one single frame (the stars). We cannot mix "relative to rocket" and "relative to stars" in the same equation. So we translate the engine's relative speed $u$ into a star-frame speed $v - u$ .

PICTURE. A speed number line: the rocket sits at $v$ ; step $u$ to the left along the line to land on $v - u$ , the blob's true star-frame speed.

Step 4 — Nothing pushes from outside, so momentum is conserved

WHAT. Momentum is just $mass \times velocity$ — a number measuring "how much motion" something carries. With no gravity and no air, no outside force acts on the rocket-plus-blob system, so the total momentum just before the throw equals the total just after.

WHY. This is the single physical law the whole equation rests on — see Conservation of Momentum. "No outside push" is why we insisted on deep space in Step 1: it makes the total momentum a fixed, unchanging number.

PICTURE. A balance scale: on the left pan, one big momentum block $m v$ ; on the right pan, two blocks (rocket + blob) that together must weigh exactly the same.

Step 5 — Multiply out, then throw away the crumbs

WHAT. Expand the brackets and cancel everything that cancels.

WHY. Buried in the algebra is one clean relation between $d v$ and $d m$ . We just have to sweep away the clutter to find it.

PICTURE. The messy expanded line with the cancelling pairs struck through in colour, and the lonely crumb $d m d v$ crossed out, leaving the tidy survivor $m d v + u d m = 0$ glowing at the bottom.

Step 6 — Rearrange into "one push equals one bit of speed"

WHAT. Solve the survivor for $d v$ : $m d v = - u d m ⟹ d v = - u \frac{d m}{m} .$

WHY. This is the heart of everything. It says: the little speed gain $d v$ equals $u$ times the fractional mass thrown away $d m / m$ .

PICTURE. Two side-by-side rockets throw the same-size blob. The light rocket (small $m$ ) jumps far; the heavy rocket (big $m$ ) barely nudges — the same $d m$ , very different $d v$ , because $d v$ depends on $d m / m$ .

Step 7 — Add up every throw: the logarithm is born

WHAT. One throw gave a sliver $d v$ . The full journey is thousands of throws, from the full mass $m_{0}$ down to the empty mass $m_{f}$ . To total them we integrate — the smooth way to add infinitely many infinitely small pieces.

WHY. We want the whole speed gain $Δ v$ , not one sliver. Adding all the $d v$ 's means adding all the $- u d m / m$ 's as $m$ slides from $m_{0}$ to $m_{f}$ .

This is the Tsiolkovsky Rocket Equation, and $u = I_{s p} g_{0}$ ties it to Specific Impulse Isp.

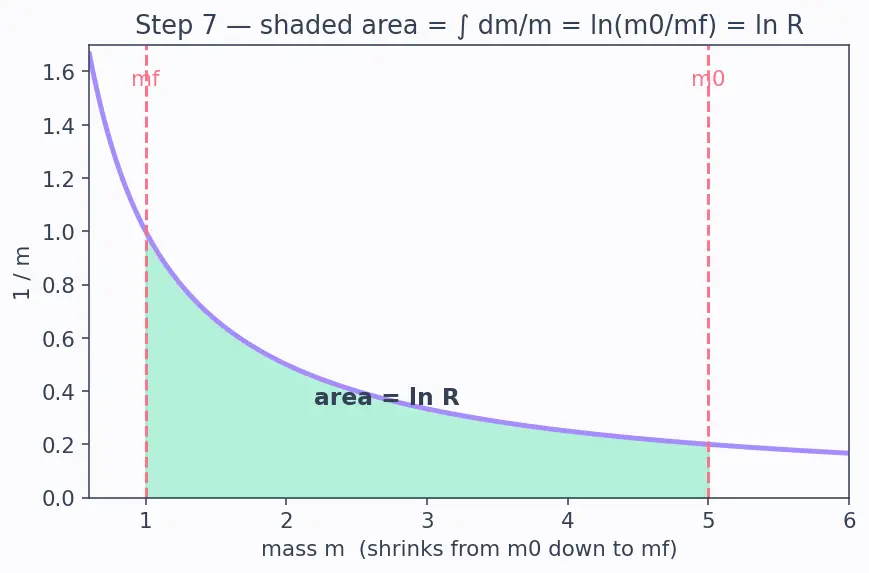

PICTURE. The area under the curve $1/ m$ from $m_{f}$ to $m_{0}$ , shaded — that shaded area is $ln R$ . A wider fuel span piles up area only slowly, showing the log's flattening.

Step 8 — Edge and degenerate cases (never leave the reader stranded)

WHAT & WHY. A formula you can't stress-test is a formula you don't trust. Let's push $R$ to its extremes.

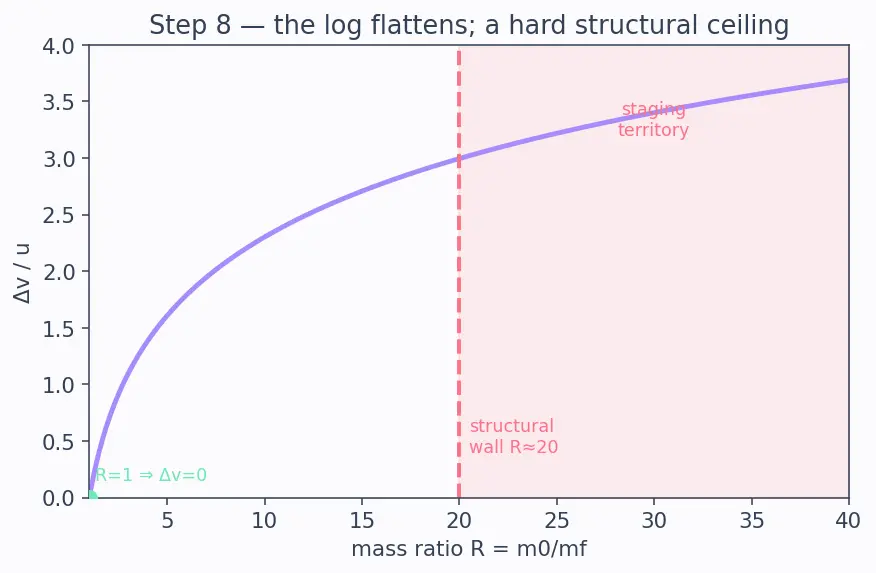

PICTURE. The curve $Δ v = u ln R$ plotted: it passes through the origin-shifted point $(R = 1, Δ v = 0)$ , climbs steeply at first, then flattens mercilessly. A dashed red wall at $R = 20$ marks the structural limit; beyond it lies "staging territory."

The one-picture summary

Everything above, compressed: a single blob thrown at relative speed $u$ (Steps 1–3) → momentum conserved (Step 4) → tidy law $d v = - u d m / m$ (Steps 5–6) → summed over all throws into $Δ v = u ln R$ (Step 7) → limited by structure (Step 8).

Recall Feynman retelling — the whole walkthrough in plain words

You're on a skateboard in empty space holding a pile of balls (that's your fuel). You throw one ball backward as hard as you can, and you scoot forward a tiny bit. How big is that scoot? It's the throwing-speed times the fraction of your total weight you just threw away. That's why the first ball off a light board zooms you forward, but a ball off a heavy board barely moves you — same ball, but it had to shove all the other balls along too.

Now throw ball after ball after ball. To add up all those little scoots, mathematicians use something called a logarithm — it's just the honest bookkeeper for "a sum of shrinking fractional gains." When the dust settles, your total speed gain equals your throwing-speed times the log of how heavy you started divided by how light you ended.

The sting in the tail: because it's a logarithm, to go twice as fast you don't need twice the balls — you need many, many times more. And you can never empty the board completely, because the skateboard itself weighs something. That last fact is why real rockets are stacked in stages and why space is so brutally hard to reach.

Active recall

Recall Where in the derivation does the mass ratio first appear as a ratio?

Step 7: $ln m_{0} - ln m_{f} = ln (m_{0} / m_{f}) = ln R$ . The subtraction of two logs collapses into the log of the mass ratio.

Recall Which single physical law is the whole derivation built on?

Conservation of momentum in deep space (no external force), applied to rocket + exhaust together (Step 4).

Recall Why does

$ln$ appear rather than, say, a square root? Because $d v = - u d m / m$ , and the running sum of $1/ m$ is by definition the natural logarithm. It's the unique function whose accumulation rate is $1/ m$ (Step 7).

Recall What does

$R = 1$ give, and does it make physical sense? $Δ v = u ln 1 = 0$ . Burning no fuel gives no speed change — perfectly sensible (Step 8).

Connections

Tsiolkovsky Rocket Equation — the boxed result of Step 7.
Conservation of Momentum — the law used in Step 4.
Specific Impulse Isp — supplies $u = I_{s p} g_{0}$ .
Exhaust Velocity and Thrust — the source of $u$ ; Step 8 shows $u = 0$ means no thrust.
Multistage Rockets — the fix for the structural ceiling in Step 8.
Delta-v Budget — converts mission needs into required $R$ .
