Mass ratio m₀ - m_f — why it's so critical: Foundations

Before you can read $Δ v = u ln (m_{0} / m_{f})$ and feel why it's brutal, you need to own every letter in it. This page assumes you know nothing beyond arithmetic and what a fraction is. We build up one rung at a time.

1. Mass — the "how much stuff" number $m$

The picture: imagine a bathtub full of water on a cart. The mass is everything — the tub, the cart, and the water inside.

Why the topic needs it: a rocket's mass is not fixed — it shrinks as fuel burns. That shrinking is the whole story, so we must name the "how much stuff" number before we can watch it change.

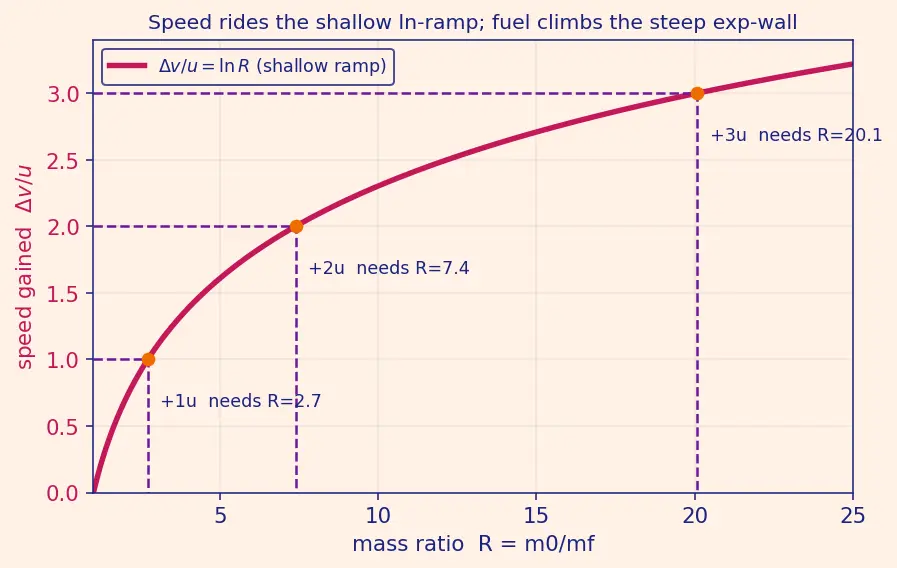

Figure — Mass ratio m₀ - m_f — why it's so critical

2. Two special masses: wet $m_{0}$ and dry $m_{f}$

The subscript (the little number below $m$ ) just labels which moment in time we mean.

The picture: a fuel tank with a level gauge. At the start the gauge is FULL — that's $m_{0}$ . At the end it reads EMPTY — that's $m_{f}$ . The difference between the two gauge readings is the fuel that left.

3. Propellant mass $m_{p}$ — the stuff you actually throw

The picture: on the fuel-gauge picture above, $m_{p}$ is the height of the shaded fuel column — the part that drains away. It is exactly the gap between the FULL line and the EMPTY line.

Why the topic needs it: "propellant" is the mass the rocket sacrifices to move. The parent page's title, $m_{0} - m_{f}$ , is this quantity. Naming it lets us ask "what fraction of the rocket was throw-away fuel?"

4. Ratio and fraction — dividing one number by another

Two of our tools are just division, but they answer different questions.

Why two names? $R$ is a number bigger than 1 that plugs straight into the rocket formula. $ζ$ is a percentage-style fraction between 0 and 1 that tells an engineer "what share is fuel". Same information, two convenient shapes.

5. Velocity $v$ and velocity change $Δ v$

The picture: a speedometer needle. It starts at $0$ and sweeps up to some final speed. $Δ v$ is the size of that sweep — the whole point of building a rocket.

Why the topic needs it: the mass ratio matters only because it buys velocity change. $Δ v$ is the prize; $R$ is the price.

6. Exhaust speed $u$ — how fast you throw the gas

The picture: stand on the rocket and watch the flame shoot past you. The speed you see is $u$ . If the rocket is racing across the sky, a ground observer sees the gas moving differently, but the engine only ever controls the relative speed $u$ .

Why the topic needs it: $u$ is the multiplier in front of the logarithm — throw gas faster and every kilogram of fuel buys more speed. It is the other lever besides mass ratio.

7. The logarithm $ln$ and the exponential $e^{x}$ — the "brutal" pair

These two are the reason the whole topic exists. They are opposite questions.

The picture: think of a ramp that gets shallower and shallower as you walk right (that's $ln$ ) versus a wall that gets steeper and steeper as you climb (that's $e^{x}$ ). To gain a little more height on the shallow ramp, you must walk a huge distance right.

Recall Why do we use

$ln$ (natural log) and not any other log? Because the derivation integrates $d m / m$ , and $\int \frac{1}{m} d m = ln m$ exactly — the natural log is the unique function whose slope is $1/ m$ . No other base falls out cleanly.

8. Momentum $p = m v$ — the conserved quantity underneath it all

The picture: you on a frictionless skateboard throw a heavy ball forward. The ball gains forward momentum; you recoil backward with exactly equal-and-opposite momentum. Sum stays zero.

Why the topic needs it: a rocket is that skateboarder throwing gas instead of a ball. The rocket's forward gain equals the exhaust's backward momentum — this bookkeeping is exactly what produces $d v = - u d m / m$ , and integrating that gives the logarithm.

Prerequisite map

Equipment checklist

Can you say, in plain words, what

m

measures?

How much stuff (kg) an object is made of — a rocket's

m

shrinks as fuel burns.

What is the difference between

m_{0}

and

m_{f}

m_{0}

= full "wet" start mass;

m_{f}

= empty "dry" end mass; the difference is burnt fuel.

Write the propellant mass in symbols.

m_{p} = m_{0} - m_{f}

What does the mass ratio

R

tell you, and is it bigger or smaller than 1?

How many times heavier the rocket was at start vs end; always

R > 1

Convert

R

into propellant fraction

ζ

ζ = 1 - 1/ R = m_{p} / m_{0}

What does

Δ

mean, and so what is

Δ v

"The change in";

Δ v

= the speed the rocket gains.

In which frame is exhaust speed

u

measured?

Relative to the rocket itself (

u = v_{e x} = I_{s p} g_{0}

What question does

ln (y)

answer?

e

to what power gives

y

?" — it undoes

e^{x}

Why does the log make speed cheap-looking but fuel expensive?

Speed rides the shallow ramp

ln R

; fuel climbs the steep wall

R = e^{Δ v / u}

State conservation of momentum in one line.

With no external force, total

m v

before = total

m v

after.

Connections

Parent: Mass ratio, why it's critical — this page feeds directly into it.
Tsiolkovsky Rocket Equation — the formula every symbol here assembles into.
Conservation of Momentum — first principle behind the derivation.
Specific Impulse Isp — where $u = I_{s p} g_{0}$ comes from.
Exhaust Velocity and Thrust — the physical source of $u$ .
Delta-v Budget — how a required $Δ v$ turns into a required $R$ .
Multistage Rockets — the engineering escape from the exponential wall.
