Visual walkthrough — Pauli exclusion principle

We are chasing one single result: $\text{two identical fermions in the same state}\Rightarrow \Psi =0.$ Everything below earns each symbol before using it.

Step 1 — What a "wavefunction of two particles" even means

WHAT: $\psi (1,2)$ is a single value that carries the full description of both particles at once. The label "1" packs together everything about particle 1 (its position and its spin); "2" packs everything about particle 2.

WHY a single joint object: two particles can be correlated — where one is can depend on where the other is. A pair of separate one-particle functions can't express that. We need one function of both.

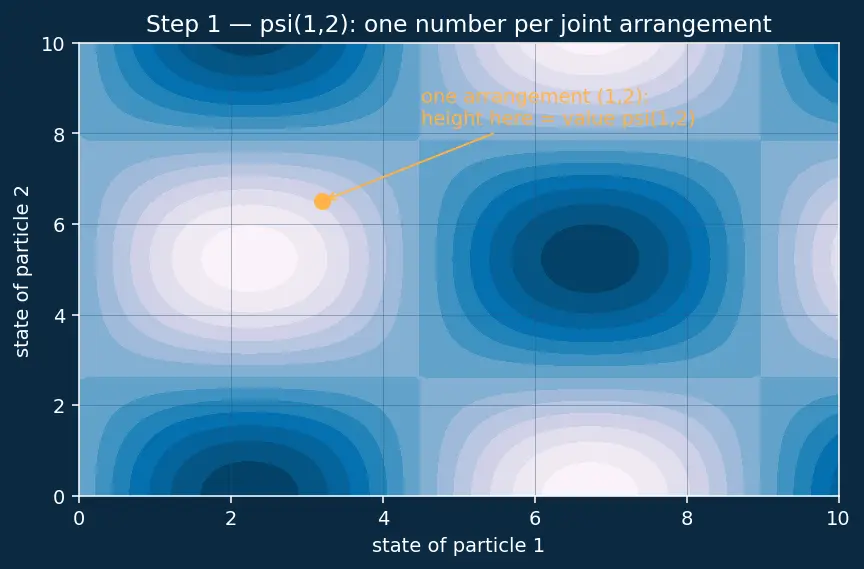

PICTURE: Below, the horizontal axis is "state of particle 1", the vertical axis is "state of particle 2". Every point on the grid is one arrangement; the colour/height there is the value $\psi (1,2)$.

Step 2 — The only thing we measure is $|\psi {|}^2$

WHAT: $|\psi (1,2){|}^2$ tells us the odds of finding the pair in arrangement $(1,2)$.

WHY squaring: experiments only ever detect probabilities, and a probability can't be negative. The bars $|\cdots |$ and the square guarantee a non-negative number. Crucially, the sign of $\psi$ is invisible to any measurement — remember this, it is the hinge of the whole argument.

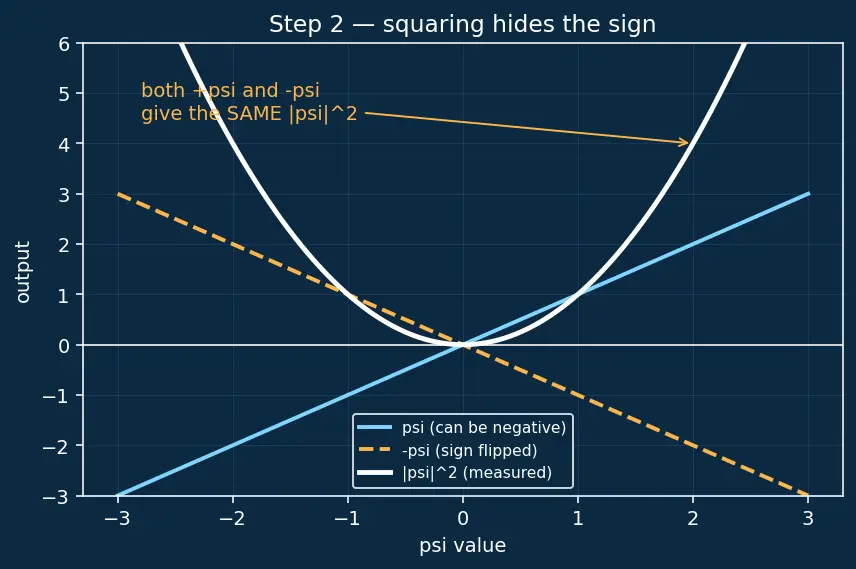

PICTURE: the same landscape as Step 1, but folded so everything sits above zero. Two different $\psi$ that differ only by a minus sign map to the identical $|\psi {|}^2$ surface.

Step 3 — Swapping two identical particles changes nothing measurable

WHAT: swapping means feeding the arrangement in the other order: compare $\psi (1,2)$ with $\psi (2,1)$. Because no measurement can tell them apart: $\underset{\text{odds, original order}}{\underbrace{|\psi (1,2){|}^2}}=\underset{\text{odds, swapped order}}{\underbrace{|\psi (2,1){|}^2}}$

WHY this equation: it is the mathematical spelling of "indistinguishable". The left side is the probability before swapping; the right side after. They must match.

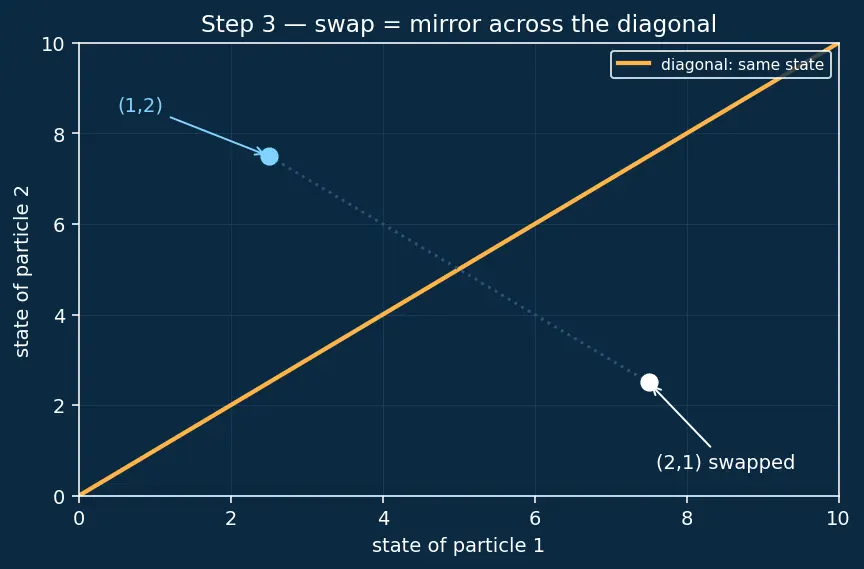

PICTURE: on the grid, "swapping" is reflecting across the diagonal line where state-of-1 equals state-of-2. The picture demands the heights $|\psi {|}^2$ be mirror-symmetric across that diagonal.

Look at the amber diagonal — that line is where both particles are in the same state. It becomes the crime scene in Step 6.

Step 4 — Equal squares force a $\pm$ sign

WHAT: from Step 3, $|\psi (1,2){|}^2=|\psi (2,1){|}^2$. Two numbers with equal squares must be equal or exact negatives: $\psi (2,1)=+\psi (1,2)\text{or}\psi (2,1)=-\psi (1,2)$

Here:

• $\psi (2,1)$ = the wavefunction read in swapped order,
• $\psi (1,2)$ = original order,
• the $\pm$ = the only two possibilities left after squaring hides the sign.

WHY only these two: if $x^2=y^2$ then $x=\pm y$ — pure algebra, no physics needed. Squaring lost exactly one bit of information: the sign. That lost bit splits the universe in two.

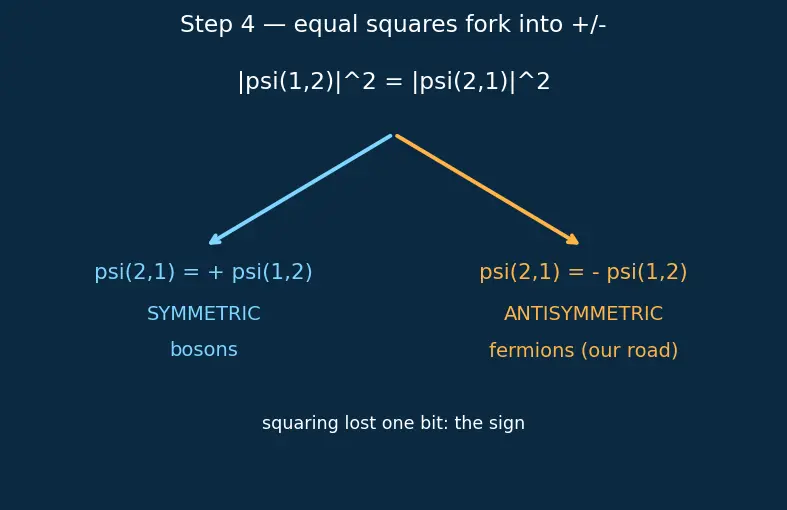

PICTURE: one fork, two branches — the amber $(-)$ branch is the fermion road we now follow.

Step 5 — Building an antisymmetric two-fermion state

We want the minus-sign branch. Let ${\psi }_a$ and ${\psi }_b$ be two single-particle states — think of them as two distinct "addresses" (Quantum numbers sets) an electron could occupy.

A first naive guess, ${\psi }_a(1){\psi }_b(2)$ (particle 1 in state $a$, particle 2 in state $b$), fails the swap test — swapping gives ${\psi }_a(2){\psi }_b(1)$, a different function, not its negative. So we subtract the swapped version:

$\Psi (1,2)=\frac{1}{\sqrt{2}}[\underset{\begin{array}{c}\text{1 in state }a\\ \text{2 in state }b\end{array}}{\underbrace{{\psi }_a(1){\psi }_b(2)}}-\underset{\begin{array}{c}\text{1 in state }b\\ \text{2 in state }a\end{array}}{\underbrace{{\psi }_b(1){\psi }_a(2)}}]$

Term by term:

• ${\psi }_a(1){\psi }_b(2)$ — particle 1 wears address $a$, particle 2 wears address $b$.
• ${\psi }_b(1){\psi }_a(2)$ — the swapped assignment.
• the minus between them is what injects the antisymmetry.
• $\frac{1}{\sqrt{2}}$ — a normalisation bookkeeping factor so total probability stays 1; it never affects whether $\Psi$ is zero.

WHY this exact form: subtracting the swap is the simplest recipe that flips sign under exchange. Check it: $\Psi (2,1)=\frac{1}{\sqrt{2}}[{\psi }_a(2){\psi }_b(1)-{\psi }_b(2){\psi }_a(1)]=-\Psi (1,2)✓$ The two terms just trade places and the whole thing picks up a minus — antisymmetric, as required.

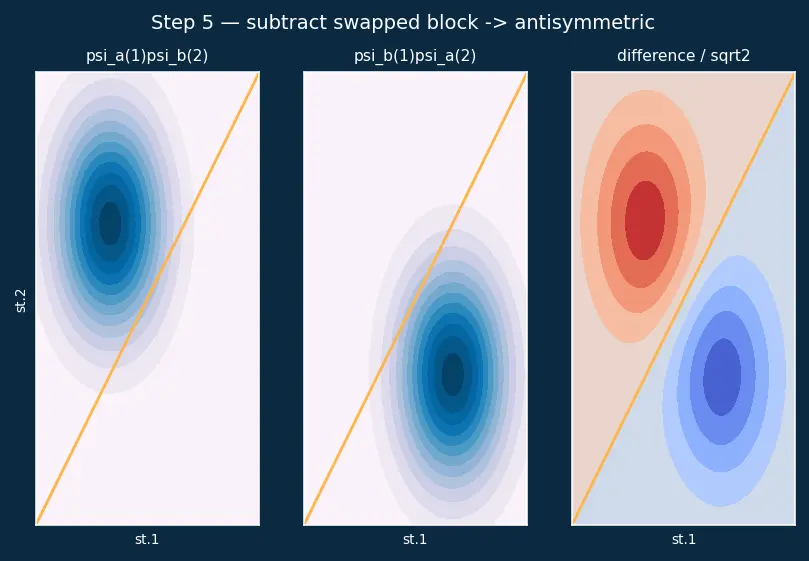

PICTURE: two "ingredient" landscapes and their signed subtraction, producing a surface that is negative-mirror across the diagonal.

Step 6 — The exclusion: force both fermions into the same state

WHAT: we asked both electrons to live at the same address. The two terms became identical, and identical-minus-identical is zero, everywhere.

WHY it matters: by Step 2, probability is $|\Psi {|}^2=0^2=0$. Zero everywhere means this arrangement never happens. That is the Pauli exclusion principle — not decreed, but derived. No force pushed the electrons apart; the wavefunction simply annihilated itself.

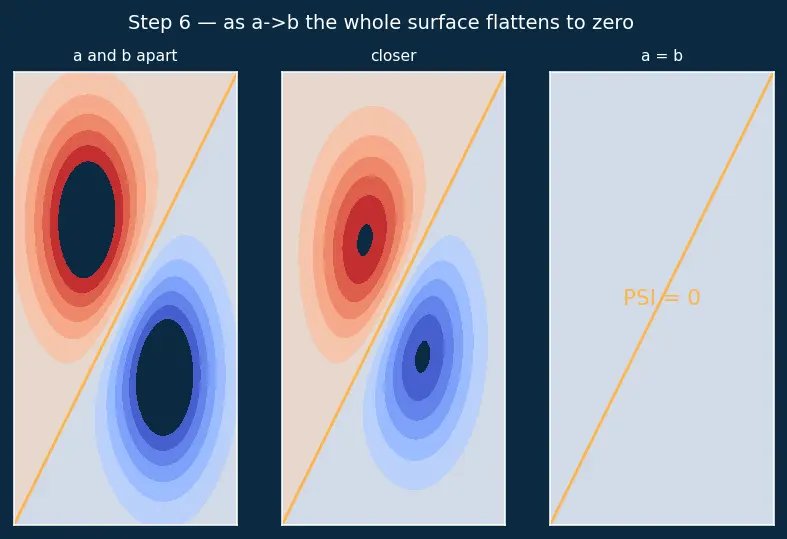

PICTURE: watch the antisymmetric surface as we slide state $b$ toward state $a$. The whole landscape flattens onto the floor — the amber diagonal was always pinned at zero, and now the entire sheet joins it.

Step 7 — Edge case: what the BOSON branch does at $a=b$

We must cover the other fork so no reader wonders "does this trick kill bosons too?"

WHAT: on the $+$ branch we add instead of subtract: ${\Psi }_{\text{boson}}(1,2)=\frac{1}{\sqrt{2}}[{\psi }_a(1){\psi }_b(2)+{\psi }_b(1){\psi }_a(2)]$ Set $a=b$: ${\Psi }_{\text{boson}}=\frac{1}{\sqrt{2}}[{\psi }_a(1){\psi }_a(2)+{\psi }_a(1){\psi }_a(2)]=\frac{2}{\sqrt{2}}{\psi }_a(1){\psi }_a(2)\ne 0$

WHY show it: it proves the vanishing was not a generic feature of quantum mechanics — it came specifically from the minus sign. Bosons get a doubled, thoroughly non-zero amplitude, so they happily pile into one state (lasers, the Bose-Einstein condensate).

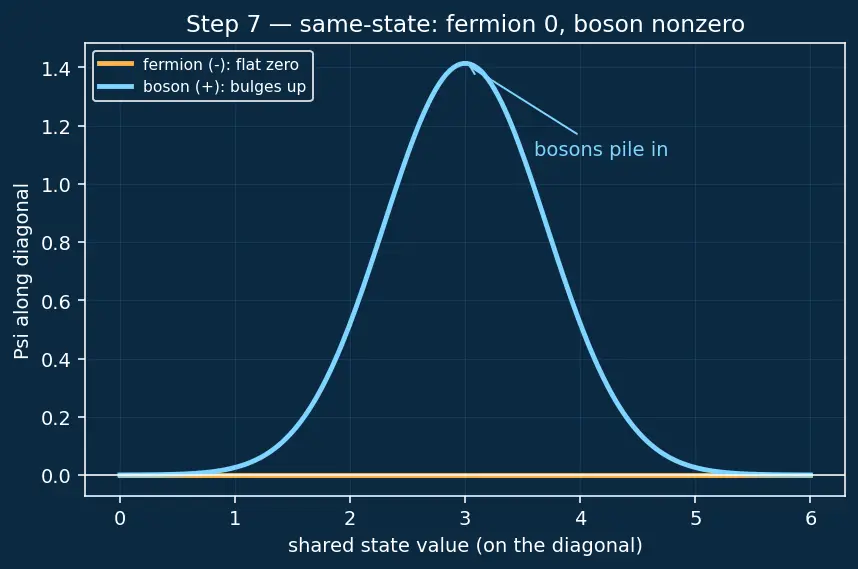

PICTURE: side-by-side, the fermion diagonal flat at zero versus the boson diagonal bulging upward.

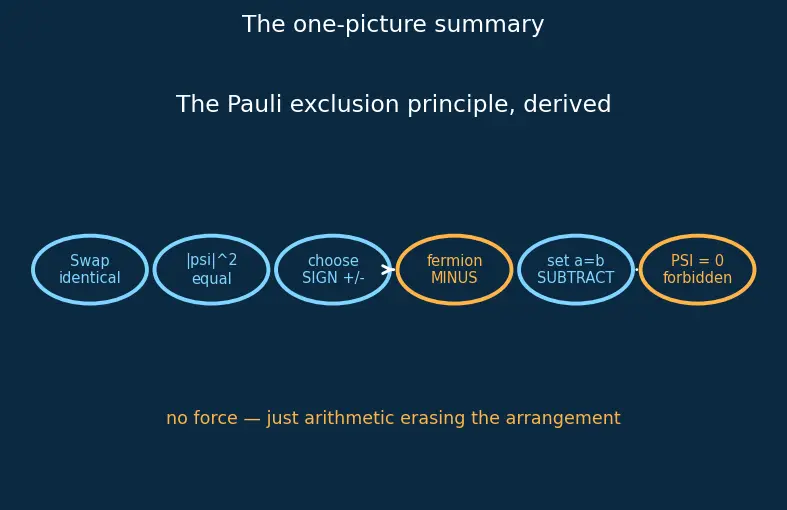

The one-picture summary

One journey: indistinguishability ⇒ equal squares ⇒ a $\pm$ fork ⇒ the fermion minus ⇒ setting states equal ⇒ zero.
