Visual walkthrough — Vorticity — ω = ∇ × v, circulation Γ

This page rebuilds the parent result Vorticity ω = ∇ × v, circulation Γ from absolute zero, one picture at a time. We will not use a single symbol until we have drawn it. By the end you will see why $\mathbf{\omega }=\nabla \times \mathbf{v}=2\mathbf{\Omega }$ and why circulation equals the vorticity trapped inside a loop.

---

Step 1 — What is a "velocity field"?

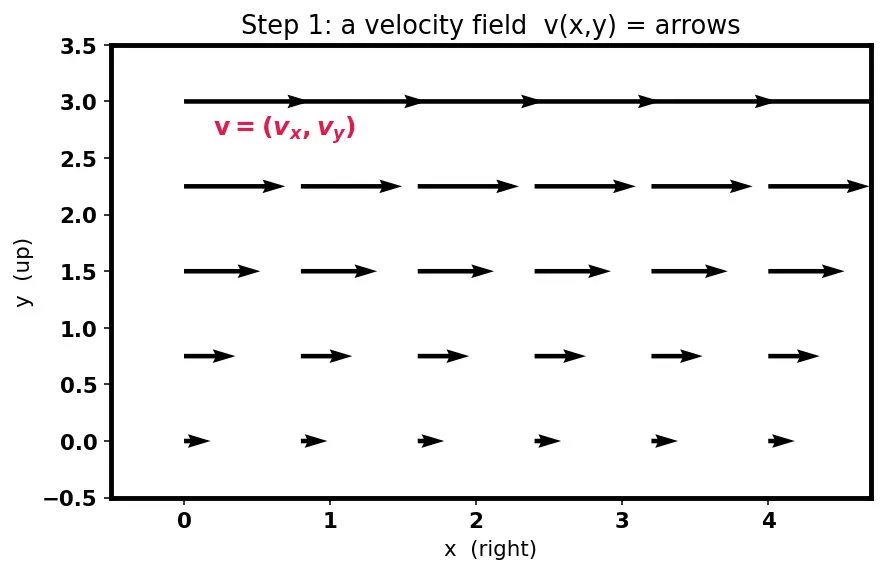

WHAT. Forget spinning for a moment. Picture a grid of dots covering a patch of river. On each dot we paint an arrow: longer arrow = faster water, arrow direction = which way the water heads.

WHY. Everything we build — spin, swirl, circulation — is read off these arrows. If we don't agree on what the arrows mean, nothing later makes sense.

PICTURE. Below, the black arrows are the field. Notice: the water can move in straight lines and still twist a floating object. That surprise is the whole point of this page — hold onto it.

• $x,y$ ::: the two directions we measure position along (right, and up).
• $\mathbf{v}(x,y)=(v_x,v_y)$ ::: the arrow at point $(x,y)$; $v_x$ is how fast it goes right, $v_y$ how fast it goes up.

---

Step 2 — The paddle-wheel: what we actually want to measure

WHAT. We replace the vague word "swirl" with a concrete machine. Two thin rigid arms: one pointing along $x$, one along $y$, joined at the middle, free to rotate.

WHY. A number needs a measurement recipe. "Rotation rate of the little cross" is measurable and unambiguous — unlike "does the flow look swirly," which fools everyone (see the free vortex later).

PICTURE. The red cross is the paddle-wheel. Each arm's tip sits in slightly different water than the center, so each tip gets dragged. That tip-drag is what turns the arm.

• $\mathbf{\Omega }$ ::: the (angular velocity) we want — how many radians per second the cross turns, positive = counter-clockwise (CCW).

---

Step 3 — Turn one arm: the $x$-arm

WHAT. Look at the arm lying along $x$. Its tip is a small step $\Delta x$ to the right of the pin. What tilts this arm is a vertical velocity difference between tip and pin — because a vertical drag on a horizontal arm swings it up or down.

WHY. A horizontal push on a horizontal arm just slides it, it cannot rotate it. Only the up/down velocity change matters, and how it changes as we move in $x$. That quantity is written:

$\underset{\text{rate the }upward\text{ speed grows as you step right}}{\underbrace{\frac{\partial v_y}{\partial x}}}$

PICTURE. The red arm; its tip feels extra upward velocity, so the arm rotates CCW at rate $+\frac{\partial v_y}{\partial x}$.

• $\partial v_y/\partial x$ ::: change in the upward velocity $v_y$ as you move a little in the $x$ direction.
• The $+$ sign ::: upward-growing-to-the-right tilts the horizontal arm counter-clockwise.

---

Step 4 — Turn the other arm: the $y$-arm, and the crucial minus sign

WHAT. Now the arm along $y$: its tip is a step $\Delta y$ above the pin. What tilts it is a horizontal velocity difference, and how that changes as we step in $y$: $\frac{\partial v_x}{\partial y}$.

WHY. Same logic as Step 3, rotated 90°. But rotating the picture flips the sign of "which way is CCW." A vertical arm turns CCW at rate $-\frac{\partial v_x}{\partial y}$.

PICTURE. The red vertical arm; extra rightward velocity at its top pushes the top right, i.e. clockwise — hence the leading minus.

• $\partial v_x/\partial y$ ::: change in the rightward velocity $v_x$ as you move up in $y$.
• The $-$ sign ::: rightward-growing-upward turns the vertical arm clockwise, the opposite of CCW.

---

Step 5 — Average the two arms: shear cancels, spin survives

WHAT. The paddle-wheel is one rigid object, so its actual spin is the average of what each arm "wants":

${\Omega }_z=\frac{1}{2}\left(\underset{x\text{-arm, Step 3}}{\underbrace{\frac{\partial v_y}{\partial x}}}-\underset{y\text{-arm, Step 4}}{\underbrace{\frac{\partial v_x}{\partial y}}}\right)$

WHY. Averaging kills the anti-symmetric shear part (which stretches the cross into a diamond but doesn't spin it) and keeps the symmetric rotation both arms agree on.

PICTURE. Left: pure spin — both red arms swing CCW, they reinforce. Right: pure shear — arms swing opposite, average is zero even though the cross deforms.

• ${\Omega }_z$ ::: the true spin-rate of the cross about the $z$-axis (out of the page).
• $\frac{1}{2}$ ::: because we averaged two arms.

---

Step 6 — Name the combination: this IS the curl

WHAT. We simply give the bracket a name. Compare with Step 5:

$\boxed{\mathbf{\omega }=\nabla \times \mathbf{v}=2\mathbf{\Omega }}$

WHY. History (and vector calculus, see Curl and Divergence (vector calculus)) named the curl before fluids. It turns out the curl of the velocity field is exactly twice the paddle-wheel's spin. The factor 2 is not a fudge — it is the $\frac{1}{2}$ from Step 5 moved to the other side.

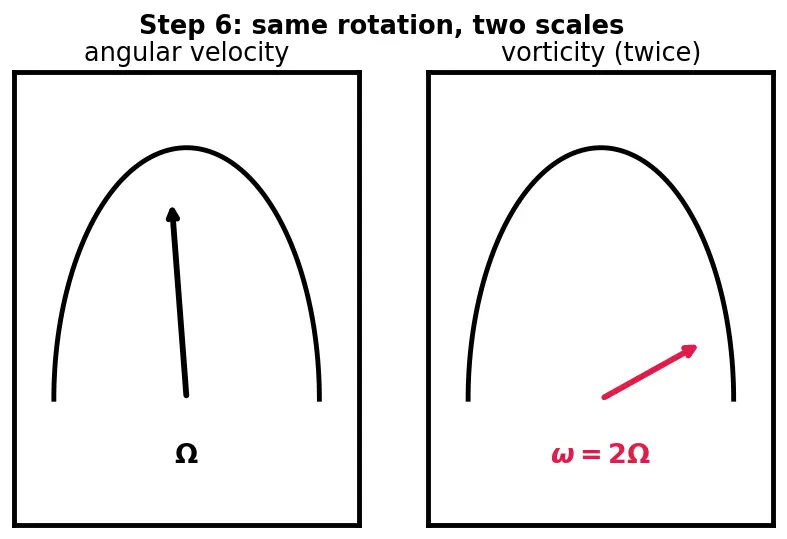

PICTURE. A single dial: on the left the paddle-wheel spins at $\Omega$, on the right the vorticity gauge reads $2\Omega$ — same rotation, two scales.

• $\nabla \times \mathbf{v}$ ::: the curl operator applied to the velocity field — a machine that outputs local spin.
• factor $2$ ::: vorticity is measured on a scale twice as large as angular velocity.

---

Step 7 — From a point to a loop: circulation

WHAT. $d\mathbf{l}$ is a tiny step-arrow along the loop. $\mathbf{v}\cdot d\mathbf{l}$ is "how much of the water's arrow points the same way as my step" (the dot product, which multiplies the aligned parts of two arrows). $\oint$ means "sum all the way around and back to start."

WHY. Step 6 gave spin at a point. But experiments (lift, drains) care about swirl around a whole region. Circulation is that global number.

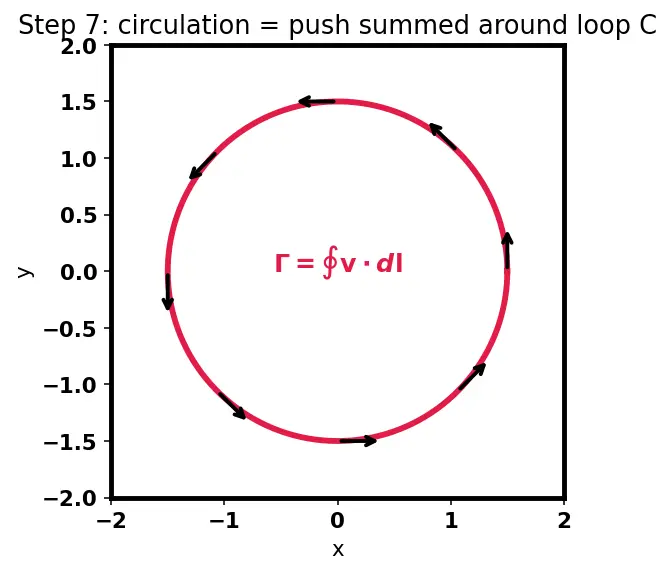

PICTURE. The red loop; at each point the black flow arrow is projected onto the step direction. Aligned = positive push, opposed = negative.

• ${\oint }_C$ ::: integral around the closed curve $C$, returning to start.
• $\mathbf{v}\cdot d\mathbf{l}$ ::: the part of the flow along the walking direction, times the step length.

---

Step 8 — Stitch the loops: Stokes' theorem

WHAT. For one tiny square of area $dA=dxdy$, summing $\mathbf{v}\cdot d\mathbf{l}$ over its four sides (Taylor-expanding opposite sides) gives exactly:

$d\Gamma =\left(\frac{\partial v_y}{\partial x}-\frac{\partial v_x}{\partial y}\right)dxdy={\omega }_{z}dA$

Add all squares; interiors cancel; the boundary remains:

$\boxed{\Gamma ={\oint }_C\mathbf{v}\cdot d\mathbf{l}={\iint }_S\mathbf{\omega }\cdot d\mathbf{A}}$

WHY. This is the promised bridge: circulation around the edge = total vorticity trapped inside. Local spins, summed, equal global swirl.

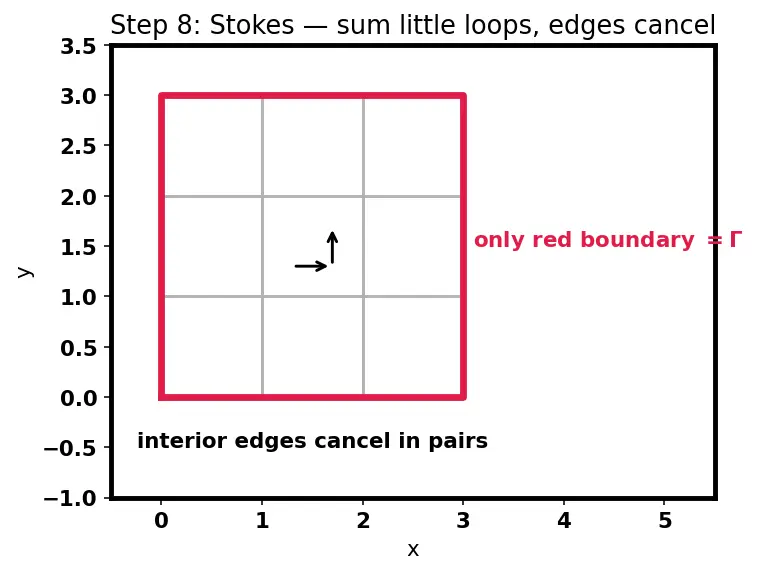

PICTURE. A grid of little CCW squares; shared arrows cancel (grey), red survivors trace the outer loop.

• $d\mathbf{A}$ ::: area element pointing out of the page (right-hand rule with the CCW loop).
• ${\iint }_S$ ::: sum over the whole enclosed surface $S$.

---

Step 9 — The edge cases you must never trip on

WHAT / WHY / PICTURE (all three below):

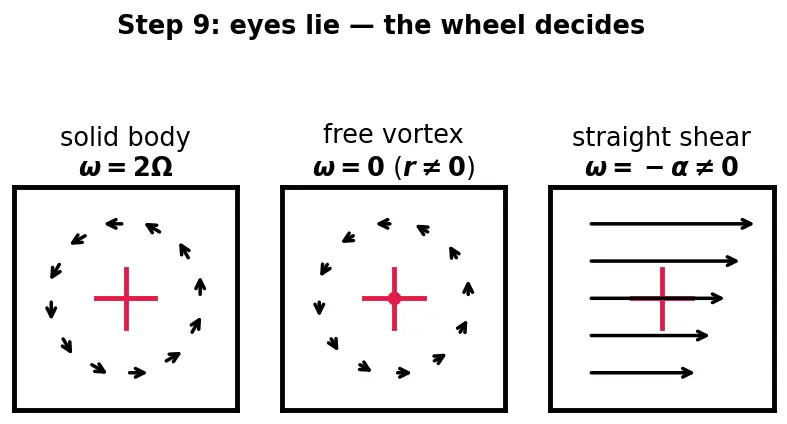

1. Solid-body $\mathbf{v}=\Omega (-y,x,0)$. Both arms swing CCW → ${\omega }_z=\Omega -(-\Omega )=2\Omega$. Rotational, as expected.
2. Free vortex $v_{\theta }=k/r$. Water clearly circles, yet the outer arm moves slower than the inner arm by just enough to cancel the wheel's spin → ${\omega }_z=0$ for $r\ne 0$ (all vorticity hides at the singular center). This is irrotational flow — the famous trap.
3. Straight shear $\mathbf{v}=(\alpha y,0,0)$. Streamlines are dead straight, yet ${\omega }_z=0-\alpha =-\alpha \ne 0$. Rotational despite no curving path.

• Circling path $\ne$ spin (free vortex), straight path $\ne$ no spin (shear). Only the wheel decides.

---

The one-picture summary

This single figure compresses all nine steps: two arms → average → curl → $2\Omega$ → tile into loops → Stokes → circulation, with the three edge-case verdicts pinned on the side.

Recall Feynman retelling of the whole walkthrough

We dropped a tiny plus-sign toy (the paddle-wheel) into moving water. One arm points right, one points up. The right-pointing arm gets twisted whenever the upward speed of water changes as you slide right — that's $\partial v_y/\partial x$, and it twists the arm counter-clockwise. The up-pointing arm gets twisted by rightward speed changing as you go up — that's $\partial v_x/\partial y$, and because of how "counter-clockwise" flips when you rotate the picture, it twists the other way, giving a minus. The toy is one solid object, so it spins at the average of the two arms — that's where the one-half comes from: $\Omega =\frac{1}{2}(\partial v_y/\partial x-\partial v_x/\partial y)$. Mathematicians already had a name for the un-halved bracket: the curl, and here it's called vorticity, so vorticity is twice the spin. Then we stopped looking at one point and walked all the way around a loop, adding up how much water pushed us along — that total is circulation. If you chop the inside into tiny squares, every inside wall gets walked twice in opposite directions and cancels, so the total push around the edge equals all the tiny spins added up inside: that's Stokes' theorem, $\Gamma =\iint \omega dA$. Finally, the trap: water going in circles (free vortex) can have zero spin, and water in straight lines (shear) can have lots of spin. Never trust your eyes — trust the toy windmill's pin.

---
