Stokes' theorem — statement, curl-circulation connection

WHAT is Stokes' Theorem?

LHS: circulation of $\mathbf{F}$ around the boundary $C$ .
RHS: flux of the curl $\nabla\times\mathbf{F}$ through the surface $S$ .

WHY is it true? (derivation from first principles)

Step 1 — Define curl as circulation per area. Take a tiny rectangle of area $\Delta A$ with unit normal $\hat{\mathbf n}$ . The circulation around its edge is, to first order, $\oint_{\partial(\text{patch})}\mathbf F\cdot d\mathbf r \approx (\nabla\times\mathbf F)\cdot\hat{\mathbf n}\;\Delta A.$

Why this step? Expand $\mathbf F$ in a Taylor series around the patch center. Only the antisymmetric (rotational) part of the gradient survives the loop; that antisymmetric part is the curl. Let's prove this for a flat $xy$ -patch.

Step 2 — Prove it for a small $xy$ -rectangle. Take a rectangle $[x_0,x_0+\Delta x]\times[y_0,y_0+\Delta y]$ , $\hat{\mathbf n}=\hat{\mathbf k}$ , field $\mathbf F=(P,Q,R)$ . Walk counter-clockwise: $\oint \mathbf F\cdot d\mathbf r = \underbrace{\int P\,dx\big|_{\text{bottom}}}_{y=y_0} + \int Q\,dy\big|_{\text{right}} + \underbrace{\int P\,dx\big|_{\text{top}}}_{y=y_0+\Delta y} + \int Q\,dy\big|_{\text{left}}.$ Pair the $P$ terms (bottom minus top) and the $Q$ terms (right minus left): $\approx \Big[-\frac{\partial P}{\partial y} + \frac{\partial Q}{\partial x}\Big]\Delta x\,\Delta y = (\nabla\times\mathbf F)_z\,\Delta A.$

Why this step? The bottom and top integrals are over the same $x$ -range but at $y_0$ vs $y_0+\Delta y$ ; their difference is exactly $-\partial P/\partial y\,\Delta y$ times $\Delta x$ . This is precisely Green's theorem for one patch — Stokes is its 3D upgrade.

Step 3 — Sum and take the limit. $\oint_C \mathbf F\cdot d\mathbf r = \sum_{\text{patches}}\oint_{\partial\text{patch}}\mathbf F\cdot d\mathbf r \approx \sum (\nabla\times\mathbf F)\cdot\hat{\mathbf n}\,\Delta A \;\xrightarrow{\Delta A\to 0}\; \iint_S (\nabla\times\mathbf F)\cdot d\mathbf S.$ Done.

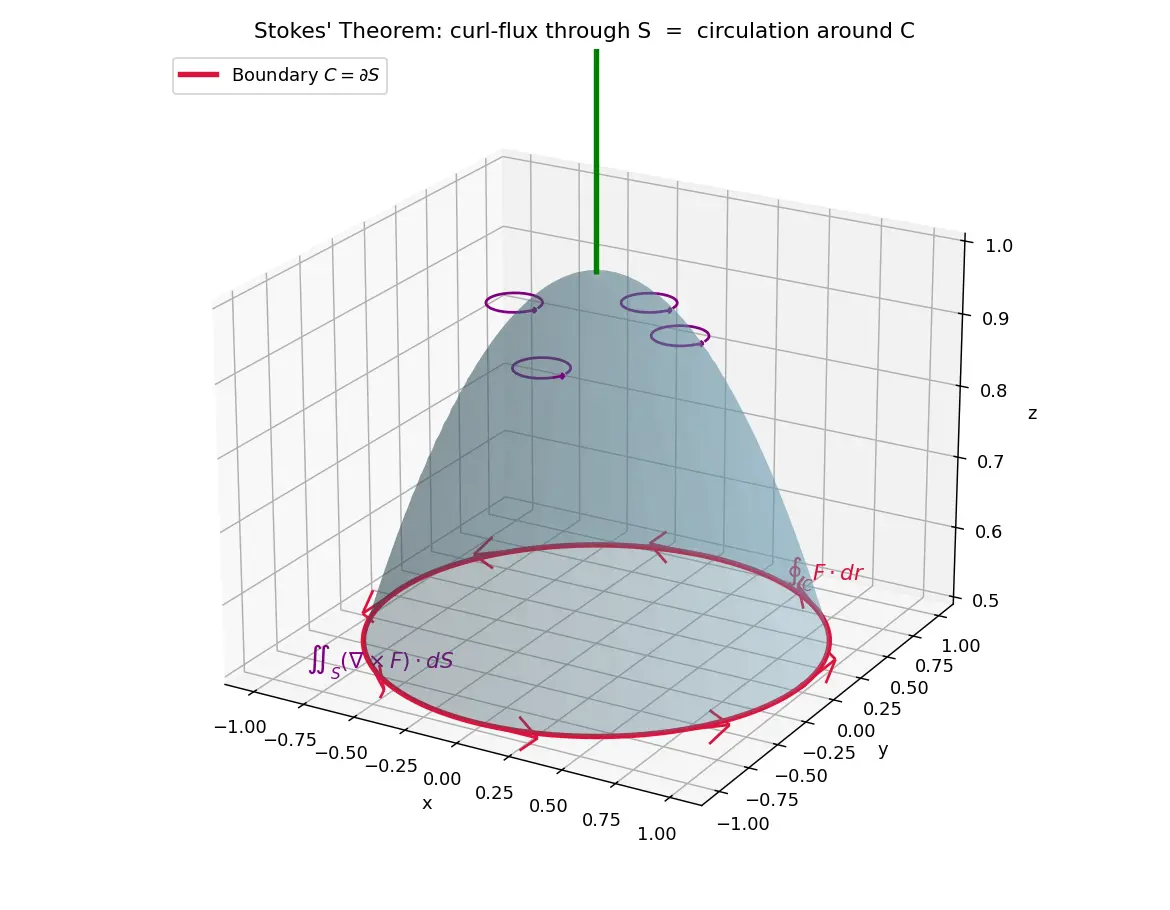

Figure — Stokes' theorem — statement, curl-circulation connection

HOW to use it — worked examples

Worked example Example 1 — A field with constant curl

$\mathbf F = (-y, x, 0)$ . Find $\oint_C \mathbf F\cdot d\mathbf r$ for $C$ = unit circle in the $xy$ -plane, oriented CCW.

Curl: $\nabla\times\mathbf F = (0,0,\partial_x(x)-\partial_y(-y)) = (0,0,2)$ . Why? Only the $z$ -component is nonzero; $P=-y,Q=x \Rightarrow Q_x - P_y = 1-(-1)=2$ .

Surface: disk $S$ in $xy$ -plane, $\hat{\mathbf n}=\hat{\mathbf k}$ , area $=\pi$ . $\iint_S(\nabla\times\mathbf F)\cdot d\mathbf S = \iint_S 2\,dA = 2\pi.$ Why this step? $(0,0,2)\cdot(0,0,1)=2$ , constant, so the flux is $2\times\text{Area}=2\pi$ .

Check directly: parametrize $C$ : $\mathbf r=(\cos t,\sin t,0)$ , $d\mathbf r=(-\sin t,\cos t,0)dt$ . $\mathbf F\cdot d\mathbf r=(\sin^2 t+\cos^2 t)dt=dt$ , integrate $0\to2\pi$ gives $2\pi$ . ✓

Worked example Example 2 — Replace a hard surface by an easy one

$\mathbf F=(z^2, x^2, y^2)$ , $C$ = boundary of the triangle with vertices $(1,0,0),(0,1,0),(0,0,1)$ , oriented so $\hat{\mathbf n}$ points away from origin.

Curl: $\nabla\times\mathbf F = (\partial_y y^2-\partial_z x^2,\ \partial_z z^2-\partial_x y^2,\ \partial_x x^2-\partial_y z^2) = (2y,\,2z,\,2x)$ .

Surface: the flat triangle on plane $x+y+z=1$ . Normal $\hat{\mathbf n}=\tfrac{1}{\sqrt3}(1,1,1)$ , and $d\mathbf S = (1,1,1)\,dA_{xy}$ (graph $z=1-x-y$ ). $(\nabla\times\mathbf F)\cdot(1,1,1) = 2y+2z+2x = 2(x+y+z)=2(1)=2.$ Why this step? On the plane $x+y+z=1$ the integrand collapses to a constant! Projected region: triangle $x\ge0,y\ge0,x+y\le1$ , area $\tfrac12$ . $\oint_C\mathbf F\cdot d\mathbf r = \iint 2\,dA_{xy} = 2\cdot\tfrac12 = 1.$

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine a shallow tray of water with a wire loop dropped flat inside it. You stir the water with lots of tiny spinning whirlpools everywhere. Stokes' theorem says: if you add up how much all the little whirlpools spin inside the loop, you get exactly how fast the water flows around the edge of the loop. The reason is neat — where two whirlpools touch, one pushes water one way and the other pushes it back, so they cancel. Only the spinning at the very edge has nobody to cancel with. That leftover spinning is the flow around the rim!

Active-recall flashcards

Stokes' theorem equation

\oint_{C}\mathbf F\cdot d\mathbf r = \iint_S (\nabla\times\mathbf F)\cdot d\mathbf S

What does the LHS of Stokes represent physically?

Circulation of

\mathbf F

around the boundary curve

C

What does the RHS represent physically?

Flux of the curl

\nabla\times\mathbf F

through the surface

S

Curl measures ___ per unit area

Circulation (it's circulation density).

How are

C

and

\hat{\mathbf n}

related?

Right-hand rule: thumb along

\hat{\mathbf n}

, fingers give

C

's direction (surface on your left).

Stokes reduces to which 2D theorem for a flat

xy

-surface?

Green's theorem.

Why do interior patch boundaries cancel in the derivation?

Shared edges are traversed once in each direction, so their contributions are opposite and cancel.

Curl of

(-y,x,0)

(0,0,2)

\nabla\times\mathbf F=\mathbf 0

S

, what is the circulation?

Zero (field is locally conservative / irrotational).

Can two different surfaces with the same boundary give different curl-flux?

No — the flux depends only on the shared boundary

C

Curl determinant formula

\nabla\times\mathbf F=\det[\hat i,\hat j,\hat k;\ \partial_x,\partial_y,\partial_z;\ P,Q,R]

Does Stokes require

\mathbf F

conservative?

No, only

C^1

(continuous partials).

Connections

Green's Theorem — the flat 2D special case of Stokes.
Divergence Theorem (Gauss) — the sibling: flux through closed surface = volume integral of divergence.
Curl of a Vector Field — the integrand; circulation density.
Line Integrals of Vector Fields — the LHS object.
Surface Integrals & Flux — the RHS object.
Conservative Fields & Potential Functions — the $\nabla\times\mathbf F=0$ corollary.
Orientation & the Right-Hand Rule — sign bookkeeping.
Maxwell's Equations — Faraday's & Ampère's laws are physical Stokes statements.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Stokes' theorem ka core idea bahut simple hai: agar surface $S$ ke andar har jagah thoda-thoda "ghoomna" (curl) ho raha hai, to in saare chhote rotations ko jod do — answer milta hai us surface ke edge ke around ka total circulation (line integral). Formula: $\oint_C \mathbf F\cdot d\mathbf r = \iint_S (\nabla\times\mathbf F)\cdot d\mathbf S$ . LHS hai rim ke around bahaav, RHS hai skin ke andar ka total swirl.

Yeh kaam kaise karta hai? Surface ko chhote-chhote patches mein kaato. Har patch ki apni chhoti loop hai, sab same direction mein. Jab do patches ek edge share karte hain, woh edge dono mein opposite direction mein traverse hota hai — to cancel ho jaata hai. Sirf bahar wala boundary $C$ bachta hai. Isliye andar ka total spin = rim ka flow. Curl ka matlab hi hai "circulation per unit area", to ise area pe integrate karo, global circulation mil jaata hai.

Practical fayda: agar surface integral tough lag raha hai, to same boundary wali easy surface choose kar lo (hemisphere ki jagah flat disk) — answer same aayega, kyunki RHS sirf boundary pe depend karta hai. Bas ek cheez dhyan rakhna: orientation. Right-hand rule lagao — thumb $\hat{\mathbf n}$ ki taraf, fingers $C$ ki direction batayenge. Galat orientation ka matlab sign galat. Aur yaad rakho, Stokes ke liye field conservative hone ki zaroorat nahi — koi bhi $C^1$ field chalega.

Yeh theorem physics mein super important hai: Faraday's law aur Ampère's law dono actually Stokes' theorem ke physical roop hain. Green's theorem ise samajhne ka 2D version hai — bilkul wahi cancellation logic.
