Line integrals — scalar and vector, work done

1. Setting up: parametrising the curve

WHY parametrise? A curve is intrinsically 1-dimensional — you only need one number ( $t$ ) to say where you are on it. Once we have $t$ , every integral over $C$ collapses into an ordinary single integral in $t$ , which we already know how to do.

2. Scalar line integral — deriving $\int_C f\,ds$ from scratch

HOW we turn $ds$ into something computable. Move from $t$ to $t+\Delta t$ . The displacement is $\Delta \mathbf{r} \approx \mathbf{r}'(t)\,\Delta t.$ The length of that tiny step is $\Delta s = |\Delta\mathbf{r}| \approx |\mathbf{r}'(t)|\,\Delta t.$

Key fact (WHY it's robust): the result does not depend on direction or speed of parametrisation, because $ds$ is an unsigned length. Reverse the curve and you get the same answer. Setting $f=1$ gives the arc length $L=\int_C ds$ .

3. Vector line integral & work — deriving $\int_C \mathbf{F}\cdot d\mathbf{r}$

Over a tiny step, work done $\approx \mathbf{F}\cdot\Delta\mathbf{r} \approx \mathbf{F}\cdot\mathbf{r}'(t)\,\Delta t.$ Summing and taking the limit:

Two ways to read the same object — connecting scalar and vector: $\int_C \mathbf{F}\cdot d\mathbf{r} = \int_C (\mathbf{F}\cdot\mathbf{T})\,ds,\qquad \mathbf{T}=\frac{\mathbf{r}'(t)}{|\mathbf{r}'(t)|}.$ Why? $d\mathbf{r}=\mathbf{r}'\,dt = \mathbf{T}\,|\mathbf{r}'|\,dt = \mathbf{T}\,ds$ . So a vector line integral is the scalar integral of the tangential component of $\mathbf{F}$ .

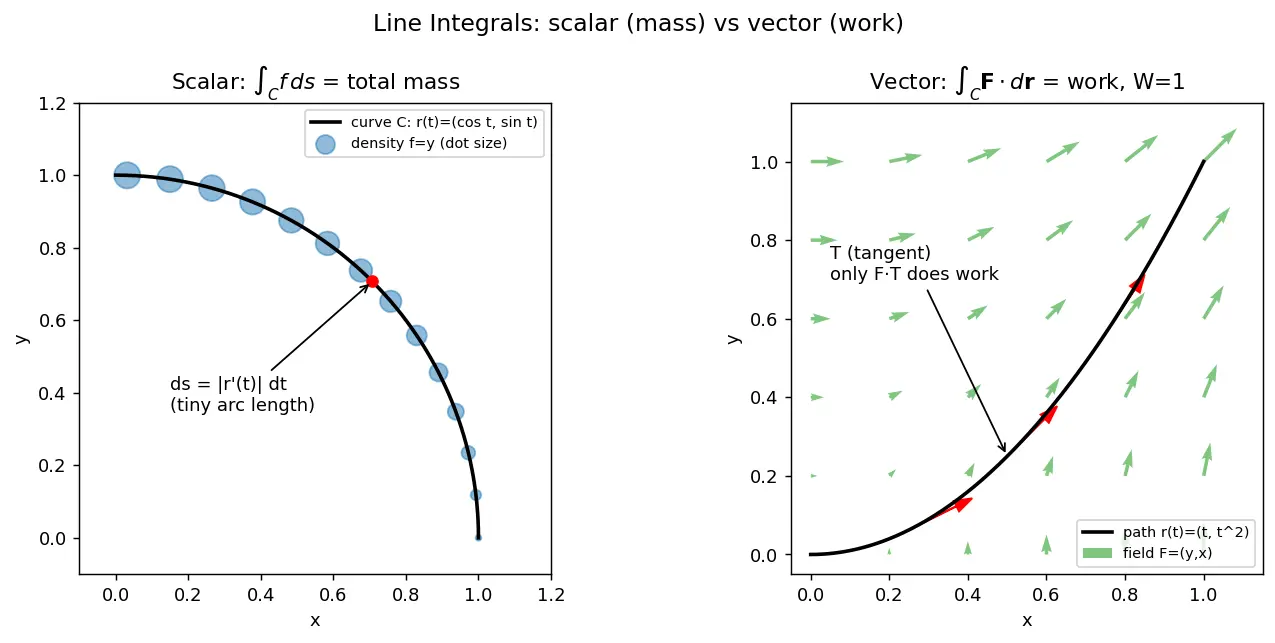

Figure — Line integrals — scalar and vector, work done

4. Common mistakes (Steel-manned)

5. Active recall

Recall Quick self-test (cover the answers)

What factor converts $dt$ into $ds$ ? → $|\mathbf{r}'(t)|$ .
Which line integral changes sign when you reverse the curve? → The vector one.
What does $\int_C \mathbf{F}\cdot d\mathbf{r}$ physically represent? → Work done by $\mathbf{F}$ .
Express $\int_C\mathbf{F}\cdot d\mathbf{r}$ as a scalar integral. → $\int_C (\mathbf{F}\cdot\mathbf{T})\,ds$ .

Recall Feynman: explain to a 12-year-old

Imagine an ant walking along a bent wire. Scalar line integral: at every spot the wire has a "heaviness". Add up heaviness times the tiny bit of wire the ant covers — you get the total weight. Vector line integral: now there's a wind blowing. We only care about the part of the wind pushing the ant forward. Add up "forward-push × tiny step" all along the trip — that's how much help (or fight) the wind gave the ant. Walk the wire backwards and the wind's help becomes a hindrance — so this one cares about direction, the weight one doesn't.

6. Connections

Arc length — special case $\int_C 1\,ds$ .
Gradient and conservative fields — when $\mathbf{F}=\nabla\phi$ , work is path-independent.
Fundamental Theorem for Line Integrals — endpoints only.
Green's Theorem — turns a closed-curve vector line integral into a double integral.
Dot product — engine of "component along the path".
Parametric curves — the prerequisite description of $C$ .

Scalar line integral formula

\int_C f\,ds=\int_a^b f(\mathbf{r}(t))\,|\mathbf{r}'(t)|\,dt

Vector line integral / work formula

W=\int_C \mathbf{F}\cdot d\mathbf{r}=\int_a^b \mathbf{F}(\mathbf{r}(t))\cdot\mathbf{r}'(t)\,dt

What is

ds

in terms of

t

ds=|\mathbf{r}'(t)|\,dt

What is

d\mathbf{r}

in terms of

t

d\mathbf{r}=\mathbf{r}'(t)\,dt

Relation linking the two integral types

\int_C\mathbf{F}\cdot d\mathbf{r}=\int_C(\mathbf{F}\cdot\mathbf{T})\,ds

with

\mathbf{T}=\mathbf{r}'/|\mathbf{r}'|

Which integral is orientation-independent?

The scalar line integral

\int_C f\,ds

Which integral flips sign on reversing the curve?

The vector line integral (work)

Physical meaning of

\int_C\mathbf{F}\cdot d\mathbf{r}

Work done by force field

\mathbf{F}

along

C

2D component form of work integral

\int_C P\,dx+Q\,dy

Work when

\mathbf{F}=\nabla\phi

\phi(\text{end})-\phi(\text{start})

(path-independent)

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, line integral ka matlab simple hai: hum integration ek seedhi line par nahi, balki ek curve ke upar kar rahe hain. Curve ko hum ek parameter $t$ se describe karte hain — $\mathbf{r}(t)=(x(t),y(t))$ . Jaise-jaise $t$ badhta hai, point curve par chalta hai. Yahi parametrisation har line integral ko ek normal single integral mein badal deti hai.

Do type hote hain. Scalar line integral $\int_C f\,ds$ — socho ek tedha taar (wire) hai jiska har point par alag weight hai, $f$ uski density hai. Total mass nikalne ke liye chhote-chhote arc length $ds$ se weight multiply karke add karo. Yahan crucial baat: $ds=|\mathbf{r}'(t)|\,dt$ , yaani speed wala factor zaroor lagana hai — yeh sabse common galti hai jo students bhool jaate hain.

Vector line integral $\int_C\mathbf{F}\cdot d\mathbf{r}$ — yeh work done hota hai. Agar $\mathbf{F}$ ek force field hai aur hum ek bead ko curve par drag kar rahe hain, to sirf force ka wo part kaam karta hai jo motion ki direction mein hai (isliye dot product). Side-wise push ka kaam zero. Formula: $\int_a^b\mathbf{F}(\mathbf{r}(t))\cdot\mathbf{r}'(t)\,dt$ .

Sabse important difference yaad rakho: scalar integral direction-independent hai (ulta chalo, same answer), lekin vector/work integral direction ulti karne par sign flip kar jaata hai — kyunki force ke against drag karne se work negative ho jaata hai. Aur agar $\mathbf{F}=\nabla\phi$ (conservative), to work sirf start aur end points par depend karta hai, beech ka rasta matter nahi karta. Yeh aage Green's theorem aur Fundamental Theorem of line integrals ki base hai.
