Vector fields — definition, visualization

What is a vector field?

WHAT it really is: input is a point, output is an arrow rooted at that point. The components $P,Q,R$ tell you the arrow's coordinates.

WHY same dimension? Because the arrow has to "live" in the same space as the point (an arrow in the plane at a plane-point). A function $\mathbb{R}^2 \to \mathbb{R}^3$ is also valid mathematically, but the geometric "arrow attached at the point" picture only works cleanly when input and output dimensions match.

How to read / draw one (visualization)

The three things every arrow encodes:

Base point — where in space.
Direction — $\dfrac{\mathbf{F}}{|\mathbf{F}|}$ .
Magnitude — $|\mathbf{F}| = \sqrt{P^2+Q^2}$ (arrow length or color).

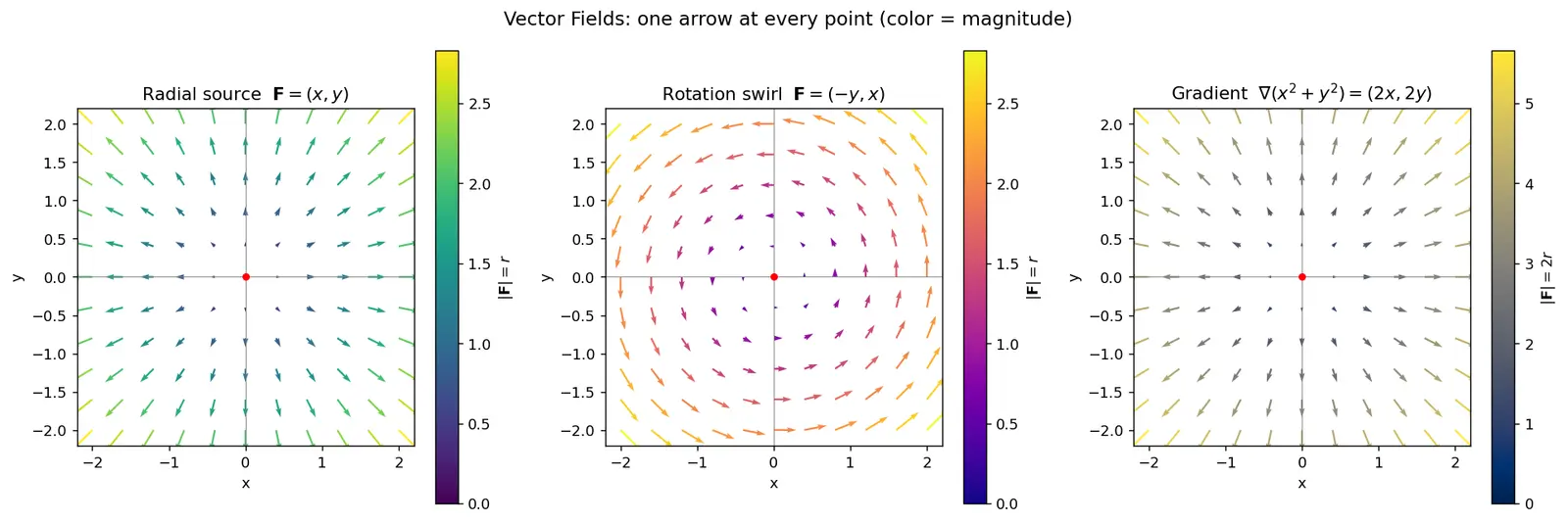

Figure — Vector fields — definition, visualization

Worked examples

Special fields worth knowing

Formula Inverse-square field (gravity / electrostatics)

$\mathbf{F}(\mathbf{r}) = c\,\frac{\mathbf{r}}{|\mathbf{r}|^{3}}, \qquad \mathbf{r}=(x,y,z)$ WHY this form? $\dfrac{\mathbf{r}}{|\mathbf{r}|}$ is the unit direction (outward), and dividing by $|\mathbf{r}|^2$ gives magnitude $\propto 1/r^2$ . Multiplying: $\dfrac{\mathbf{r}}{|\mathbf{r}|}\cdot\dfrac{1}{|\mathbf{r}|^2}=\dfrac{\mathbf{r}}{|\mathbf{r}|^3}$ . Check magnitude: $|\mathbf{F}| = |c|\dfrac{|\mathbf{r}|}{|\mathbf{r}|^3} = \dfrac{|c|}{r^2}$ . ✅ Newton's gravity ( $c<0$ , points inward) and Coulomb's law have exactly this structure.

Flashcards

What is a vector field (formal)?

A function

\mathbf{F}:D\subseteq\mathbb{R}^n\to\mathbb{R}^n

assigning a vector to each point of

D

In 2D, what are

P

and

Q

\mathbf{F}=P\mathbf{i}+Q\mathbf{j}

The scalar component functions

P(x,y)

and

Q(x,y)

Why does the output dimension match the input dimension?

So the arrow lives in the same space as its base point (geometric "arrow attached at point" picture).

What three things does a single drawn arrow encode?

Base point (location), direction

\mathbf{F}/|\mathbf{F}|

, and magnitude

|\mathbf{F}|

(length/color).

Describe

\mathbf{F}(x,y)=(x,y)

Radial outward field; arrows point away from origin, length

=r

(a source).

Describe

\mathbf{F}(x,y)=(-y,x)

Rotation field; arrows tangent to circles, counter-clockwise swirl.

How do you show

(-y,x)

is purely rotational?

\mathbf{F}\cdot(x,y)=-yx+xy=0

, so it's perpendicular to the radius ⇒ tangent to circles.

What is a gradient (conservative) field?

A field equal to

\nabla f

for some scalar function

f

Compute

\nabla(x^2+y^2)

(2x,2y)

Form of the inverse-square field?

\mathbf{F}=c\,\mathbf{r}/|\mathbf{r}|^3

, magnitude

|c|/r^2

Recall Feynman: explain to a 12-year-old

Imagine a giant invisible map. At every single spot on the map there's a tiny arrow drawn. The arrow tells you which way you'd get pushed if you stood there and how hard. Stand near a fan and the arrow pushes you away; stand in a whirlpool and the arrow spins you in a circle. A vector field is just the whole map full of these "push arrows" — one arrow for every spot. To draw it, you go to many spots, ask "which way and how hard?", and sketch that little arrow.

Connections

Gradient and Directional Derivatives — gradient fields come from scalar functions.
Divergence and Curl — measure spreading vs. swirling of a field.
Line Integrals — integrate a field along a path (work done).
Conservative Fields and Potential Functions — when is $\mathbf{F}=\nabla f$ ?
Flux and the Divergence Theorem — flow of a field through surfaces.
Parametric Curves and Velocity — velocity is a vector field along the curve.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ek normal function har point ko ek number deta hai. Lekin ek vector field har point ko ek arrow (teer) deta hai — yaani direction aur magnitude dono. Soch lo har jagah ek chhota sa fan laga hai jo batata hai ki agar tum wahan khade ho to kis taraf aur kitni zor se push hoge. Hawa ka map, paani ka flow, gravity ka force — ye sab vector fields hi hain. Mathematically: $\mathbf{F}:\mathbb{R}^n\to\mathbb{R}^n$ , input ek point, output ek vector, dono same dimension mein.

Visualize karne ke liye, ek grid pe bahut saare points lo, har point pe $\mathbf{F}(x,y)$ calculate karo, aur wahin se ek arrow draw karo. Arrow ki length magnitude $|\mathbf{F}|=\sqrt{P^2+Q^2}$ batati hai, aur arrow ki direction $\mathbf{F}/|\mathbf{F}|$ hoti hai. Jab arrows clutter karein to sab ko same length rakhte hain aur magnitude ko color se dikhate hain.

Teen famous fields yaad rakho (mnemonic: RaRoG) — Radial $(x,y)$ jisme arrows origin se bahar phoot-te hain (source, jaise blast); Rotation $(-y,x)$ jisme arrows circle mein ghoomte hain (whirlpool) — yeh test karo $\mathbf{F}\cdot(x,y)=0$ matlab radius ke perpendicular, isliye tangent; aur Gradient $\nabla f$ jisme arrows uphill (steepest increase) point karte hain. Jaise $f=x^2+y^2$ ka gradient $(2x,2y)$ hota hai — bilkul radial jaisa.

Yeh chapter ka foundation hai. Aage line integrals (kaam/work), divergence-curl (kitna spread/swirl), aur conservative fields — sab isi "arrow at every point" idea pe build hote hain. Toh definition, visualization aur teen archetypes pakka kar lo, baaki sab easy lagega.
