Foundations — Vector fields — definition, visualization

This page assumes nothing. We build every symbol the parent parent note throws at you, one brick at a time, each brick resting on the one before it.

1. A point — the "where"

Picture: look at figure s01. The black dot sits at $(3,2)$ — three across, two up.

Why the topic needs it: a vector field's input is a point. Before we can ask "what arrow lives here?" we need a rock-solid way to say here. The symbol $x$ means the horizontal coordinate; $y$ the vertical. That is all.

2. $\mathbb{R}$ and ${\mathbb{R}}^n$ — the space we live in

Picture: $\mathbb{R}$ is one line, ${\mathbb{R}}^2$ is a sheet of paper, ${\mathbb{R}}^3$ is the room you're sitting in.

Why the topic needs it: the parent writes $\mathbf{F}:D\subseteq {\mathbb{R}}^n\to {\mathbb{R}}^n$. Now you can read the scenery: the field lives in $n$-dimensional space. The symbol $\subseteq$ (read "is a subset of / is contained in") just says our region $D$ is some patch of that space — maybe all of it, maybe a disk.

3. A vector — the "which way and how hard"

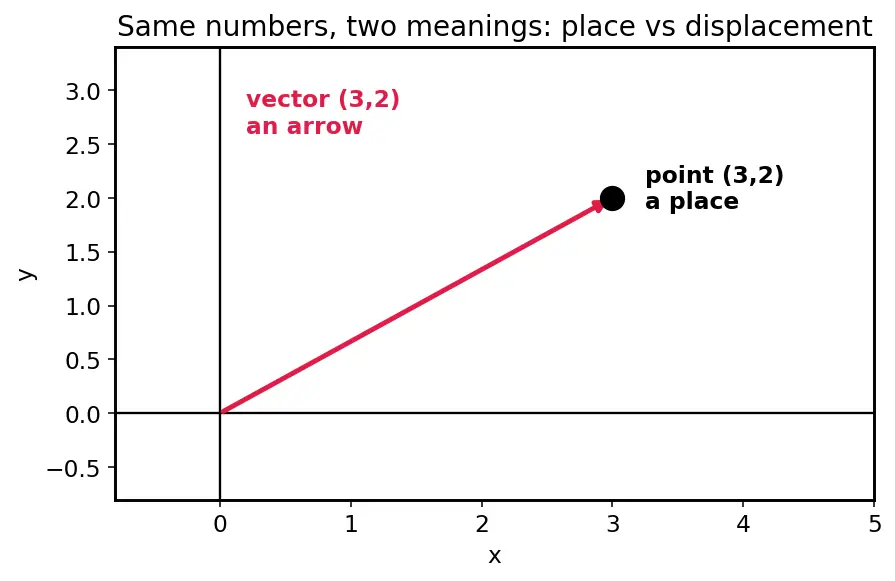

Picture: figure s02 shows the same pair $(3,2)$ twice — once as a point (dot), once as an arrow (rooted at the origin). Same numbers, different meaning.

Why the topic needs it: the output of a vector field is a vector — the arrow at each point.

4. Components $P,Q,R$ — the arrow's ingredients

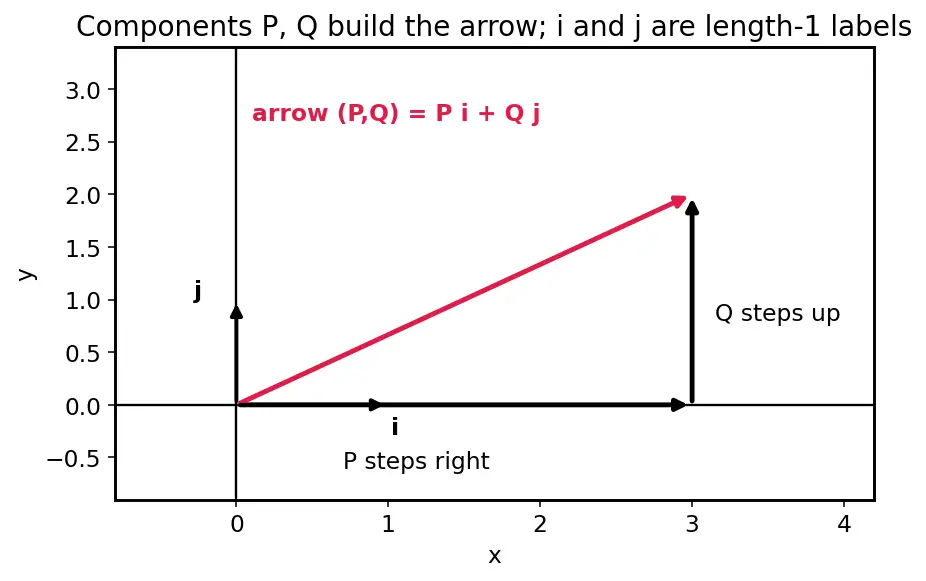

Picture: an arrow is built by first stepping $P$ right, then $Q$ up — the arrow is the diagonal shortcut (figure s03).

Why the topic needs it: the parent writes $\mathbf{F}(x,y)=(P(x,y),Q(x,y))$. This says: feed in a point, and two little machines $P$ and $Q$ each spit out a number; glue them into an arrow. In the radial field $\mathbf{F}=(x,y)$, the machine $P$ just returns $x$ and $Q$ returns $y$.

5. The unit vectors $\mathbf{i},\mathbf{j},\mathbf{k}$

Picture: figure s03 — three tiny black arrows, one per axis direction, each length $1$.

Why the topic needs it: $P\mathbf{i}+Q\mathbf{j}$ is just another way to write $(P,Q)$. It reads "$P$ steps in the right-direction plus $Q$ steps in the up-direction." Both notations mean the identical arrow — the parent uses them interchangeably.

6. Magnitude $|\mathbf{F}|$ and the square root

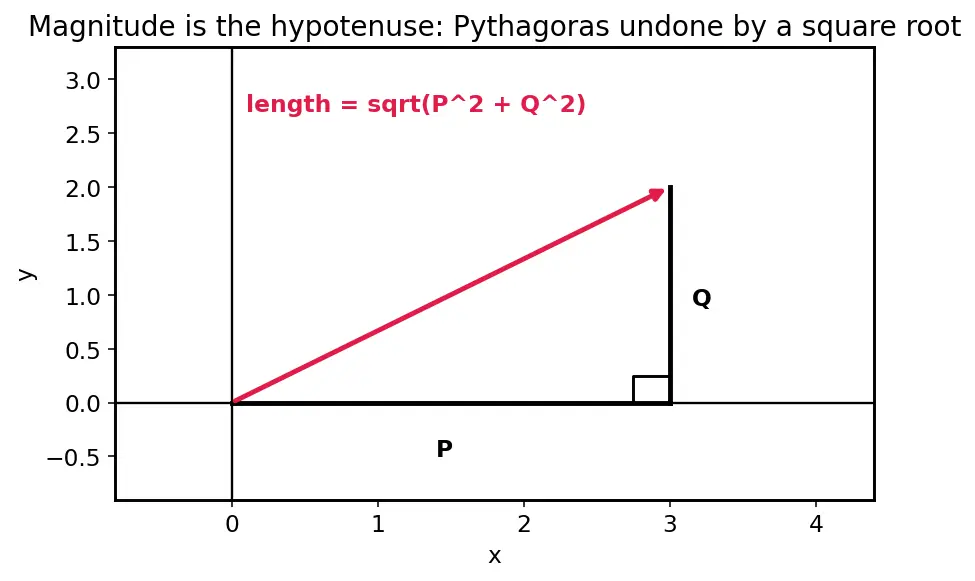

Picture: figure s04 — the right triangle with legs $P$ and $Q$ (black) and the arrow as its red hypotenuse.

Why the topic needs it: magnitude is one of the three things every drawn arrow encodes (length or color). x​ never spits out a negative — a length can't be negative, which is exactly right.

7. Direction $\frac{\mathbf{F}}{|\mathbf{F}|}$ — normalizing

Why the topic needs it: when drawing fields we often make all arrows the same length so they don't overlap; $\frac{\mathbf{F}}{|\mathbf{F}|}$ is how we get that uniform length while preserving direction. The magnitude then rides along as color instead.

8. The dot product $\mathbf{a}\cdot \mathbf{b}$ — the perpendicularity detector

Why the topic needs it: the parent proves the rotation field $(-y,x)$ is pure swirl by showing $\mathbf{F}\cdot (x,y)=0$ — the arrow is perpendicular to the line from the origin, hence tangent to the circle. That whole argument is unreadable until $\cdot$ is defined.

9. Partial derivative $\frac{\partial f}{\partial x}$ and the gradient $\nabla f$

Why the topic needs it: the parent's Example 4 builds the field $\nabla f=(2x,2y)$ from $f=x^2+y^2$. Since $\nabla f$ is itself a pair of numbers depending on the point, it is a vector field. Full detail lives in Gradient and Directional Derivatives — here you only need to recognize the symbol.

10. The field itself: $\mathbf{F}:D\to {\mathbb{R}}^n$

Now every piece of the parent's headline definition is earned:

Prerequisite map

Equipment checklist

Test yourself — cover the right side, answer, reveal.

Connections

• Parent: Vector fields — everything here feeds that definition.
• Gradient and Directional Derivatives — where $\nabla f$ and partial derivatives are built properly.
• Divergence and Curl — next uses of the component functions $P,Q,R$.
• Parametric Curves and Velocity — vectors as velocity along a path.
