Before we start, three words that appear everywhere below, in plain language:

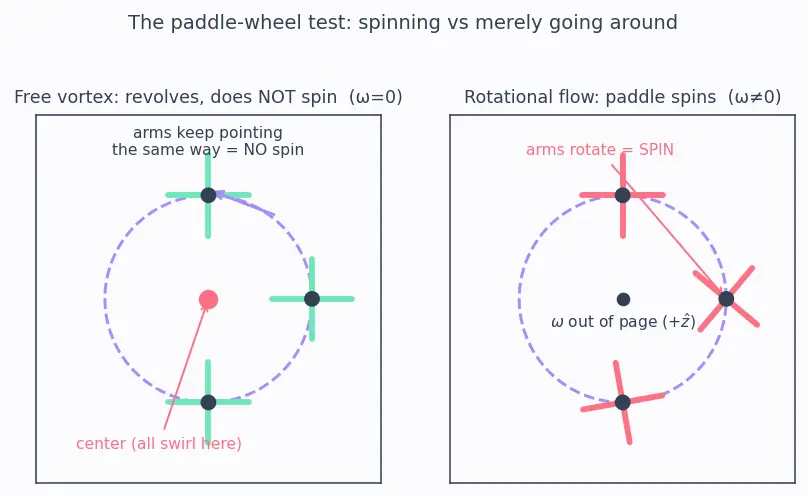

The next picture shows the single visual you should keep in your head for the whole page — the paddle-wheel test that separates spinning from merely going around.

Figure — Vorticity — ω = ∇ × v, circulation Γ

Two flow families come up again and again below. Fix their definitions and coordinates once, here, so no symbol is a mystery later:

Figure — Vorticity — ω = ∇ × v, circulation Γ

True or false — justify

A curved streamline always means the flow has vorticity there.
False. Curving describes the path; vorticity describes whether a fluid element spins on its own axis. The free vortex has circular paths yet zero vorticity for .
Straight streamlines guarantee zero vorticity.
False. Simple shear (constant shear rate ) has perfectly straight, parallel streamlines but vorticity ; the shear tilts a fluid element's diagonal, so it rotates.
If circulation is zero around one loop, the vorticity is zero everywhere inside it.
False. Stokes only forces the net flux ; equal amounts of positive and negative vorticity can cancel. To conclude you need on every loop, and the region must be simply connected (no holes).
Vorticity and angular velocity are the same quantity.
False. They point the same way but ; vorticity is twice the angular velocity, because it averages the rotation of two perpendicular arms and each contributes .
Vorticity is a vector, and circulation is a scalar.

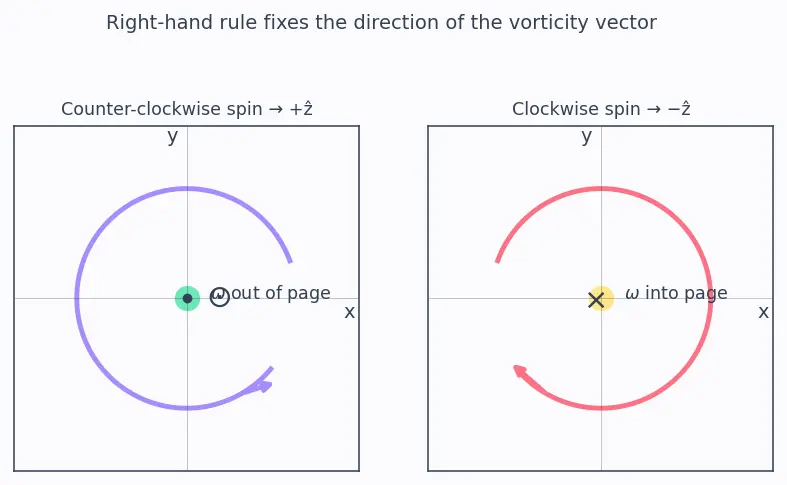

True. is a vector field (units s⁻¹) whose direction is set by the right-hand rule; is a single number for a given loop (units m²/s).
A flow can circulate around a point yet be irrotational everywhere except that point.
True. The free vortex does exactly this: irrotational for , with all vorticity crammed into the singular center, yet around any enclosing loop.
If a fluid element is not deforming, the flow must be irrotational.
False. Solid-body rotation carries elements around rigidly without deforming them, yet it is maximally rotational with .
Circulation depends on which way you walk around the loop.
True. Reversing orientation flips every , so changes sign. The magnitude is the same; the sign tracks whether you circulate with or against the swirl (right-hand rule).
In a free vortex, the circulation grows with the loop's radius.
False. It's independent of radius: . The speed drops as exactly fast enough to keep the total swirl constant.
Two flows with the same streamline shape must have the same vorticity.
False. Streamlines show direction, not speed. A free vortex and a solid-body rotation both have circular streamlines but opposite vorticity behaviour (zero vs. ); speed along the streamline decides.

Spot the error

"Streamlines bend to the left, so a paddle-wheel dropped there spins counter-clockwise."
The error is equating path curvature with spin. Whether the paddle-wheel spins depends on the velocity gradient across it (do opposite arms feel different speeds?), not on how the streamline curves.
", therefore no vortex is enclosed."
Wrong: measures net enclosed vorticity flux. Two counter-rotating vortices inside can give even though vortices are clearly present. Net zero ≠ nothing there.
"For solid-body rotation , the vorticity is ."
Missing the factor 2. . Forgetting it halves any circulation you compute afterward.
"Bernoulli's constant is the same everywhere in this vortex flow, so I can compare any two points."
Bernoulli's constant is only guaranteed equal across streamlines when the flow is irrotational. In rotational flow it can differ between streamlines — see Bernoulli's Equation and Irrotational Flow and Velocity Potential.
"The paddle-wheel in a free vortex is going around the center, so it has vorticity."
It revolves (orbits the center) but does not spin on its own pin — the faster inner side and slower outer side torque it oppositely and cancel. Revolving is not spinning; vorticity is zero.
"Circulation has the same units as velocity, since it's an integral of velocity."
No — it's velocity integrated over a length: (m/s)·m = m²/s, not m/s. The line element carries an extra length dimension.
"Since vorticity involves derivatives of velocity, doubling the whole velocity field doubles the vorticity."
This one is actually correct in reasoning: is linear, so scaling by a constant scales (and ) by the same constant. No error — the trap is second-guessing a valid linearity.

Why questions

Why do we multiply angular velocity by 2 to get vorticity, instead of just using ?
Because curl averages the rotation of two perpendicular material arms and each arm rotates at rate ; their sum is , and this factor makes come out exactly as the curl.
Why does averaging the two perpendicular arms remove shear but keep rotation?
A pure rotation turns both arms the same way (they add), while a pure shear turns them oppositely (they cancel on averaging). So the average isolates the genuine rotation, discarding the deformation.
Why does Stokes' theorem let us swap a loop integral for an area integral?
Because every interior edge of a subdivided region is traversed twice in opposite directions and cancels; only the outer boundary survives, so summing tiny circulations equals the boundary circulation. See Stokes' Theorem.
Why is the free vortex the classic "surprise" example?
Because intuition says circling flow must be swirly, yet its vorticity is zero everywhere except the center — it shows path curvature and element spin are genuinely different things.
Why does the free vortex's circulation not depend on which loop we pick (as long as it encloses the center)?
All the vorticity is a delta-like spike at ; any loop around it captures the same total flux, so regardless of size or shape.
Why do we need the domain to be simply connected before concluding a flow is irrotational from ?
A hole (like the vortex core) lets a loop encircle hidden vorticity you can't shrink away; only if every loop can contract to a point without leaving the fluid does everywhere follow. See Irrotational Flow and Velocity Potential.
Why is vorticity useful for computing lift on a wing?
Lift depends on the total bound circulation via ; vorticity concentrated around the airfoil sets that . See Lift and the Kutta–Joukowski Theorem.
Why does Kelvin's theorem care about vorticity at all?
It states circulation around a material loop is conserved in ideal flow, which means vorticity is "frozen" into and carried by the fluid — you can't create or destroy net swirl without viscosity or forces. See Kelvin's Circulation Theorem.

Edge cases

What is the vorticity of a fluid at rest ( everywhere)?
Zero — the curl of a zero field is zero, and no paddle-wheel spins. Trivially irrotational.
What happens to the free vortex's vorticity exactly at ?
It is singular (infinite/undefined) — all the swirl is concentrated at the center as a point vortex, which is why the flow is irrotational everywhere except there.
If the circulation loop shrinks to zero area, what does approach?
It approaches zero for any smooth flow, since ; the ratio approaches the local vorticity , which is how vorticity is the "circulation per unit area."
Can vorticity be nonzero while circulation around some particular loop is zero?
Yes — choose a loop enclosing equal positive and negative vorticity so the fluxes cancel; the local is nonzero even though that loop's .
Is uniform flow (constant everywhere) rotational?
No — all velocity derivatives vanish, so . A paddle-wheel just translates without spinning; straight parallel equal-speed streamlines carry no vorticity.
What distinguishes uniform flow from simple shear, since both have straight streamlines?
In uniform flow every particle moves at the same speed (no gradient, ); in shear the speed varies across the flow with rate , so opposite arms of an element feel different speeds and it rotates ().
For solid-body rotation, does circulation grow with loop radius?
Yes — grows as , because vorticity is spread uniformly over the whole area, unlike the free vortex where it sits only at the center.
Does a non-simply-connected region (fluid with a hole) let a flow be irrotational yet have nonzero circulation?
Yes — the free vortex punctured at is irrotational everywhere in the fluid, yet loops around the hole have , precisely because the loop cannot contract past the hole.
Recall One-line summary of every trap here

Path ≠ spin; net flux ≠ pointwise zero; (never forget the 2); need on all loops in a simply connected domain for irrotationality; the free vortex is the exception that proves all of it.
