Visual walkthrough — Drag — pressure (form) drag, skin friction drag

We will build both drag sources and then package them into one clean equation. Follow the pictures; the text just points at them.

---

Step 1 — What "pushing" even means: a molecule changes its momentum

The "amount of motion" a thing carries is called momentum: mass times velocity, written $m\vec{v}$. Here $m$ is how much stuff (kilograms) and $\vec{v}$ is how fast and which way (the little arrow on top means "it has a direction").

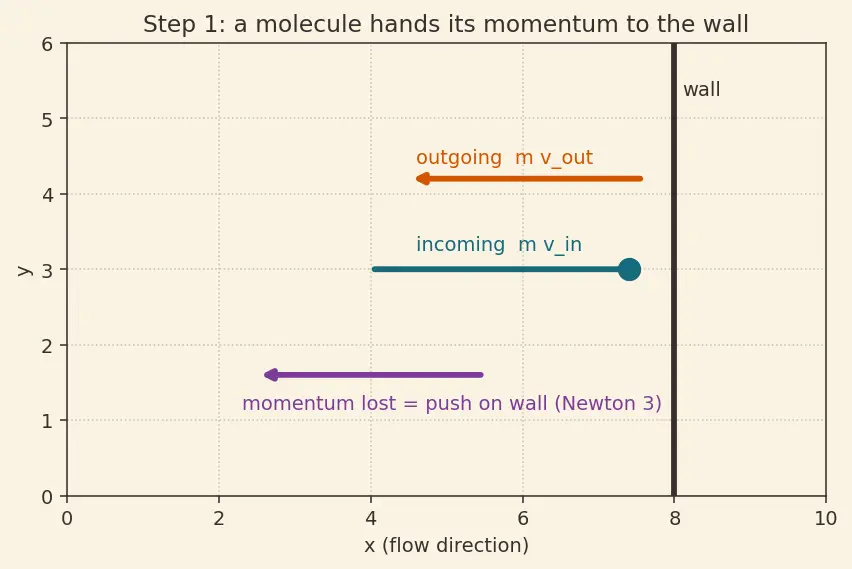

PICTURE: the molecule comes in (teal arrow), leaves with less rightward motion (orange arrow). The difference of those two arrows (plum) is the momentum the wall stole — and by Newton's third law the wall feels that same push back.

---

Step 2 — Two, and only two, ways the fluid can touch you

Any push at all is just a mix of these two. There is no third option — that's a fact of geometry, not physics.

To name the two directions we plant two little arrows on the patch:

• $\hat{n}$ ("n-hat") — the normal, a unit-length arrow pointing straight out of the surface. The hat $\hat{}$ means "length exactly 1, we only care about its direction."
• $\hat{t}$ ("t-hat") — the tangent, a unit arrow lying flat along the surface.

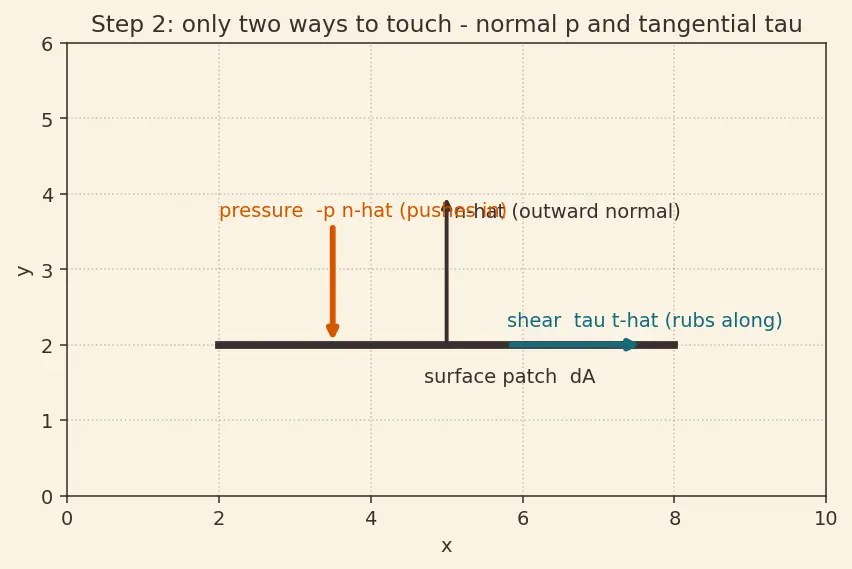

PICTURE: one surface patch, the inward pressure arrow (orange) along $-\hat{n}$, the rubbing shear arrow (teal) along $\hat{t}$.

---

Step 3 — Drag is only the part that points backward

To pick out "how much of an arrow points along the flow," we use the dot product. Name the flow direction $\hat{x}$ (unit arrow pointing where the fluid streams). For any arrow $\vec{a}$, the quantity $\vec{a}\cdot \hat{x}$ answers one question: "how long is $\vec{a}$'s shadow cast onto the flow direction?"

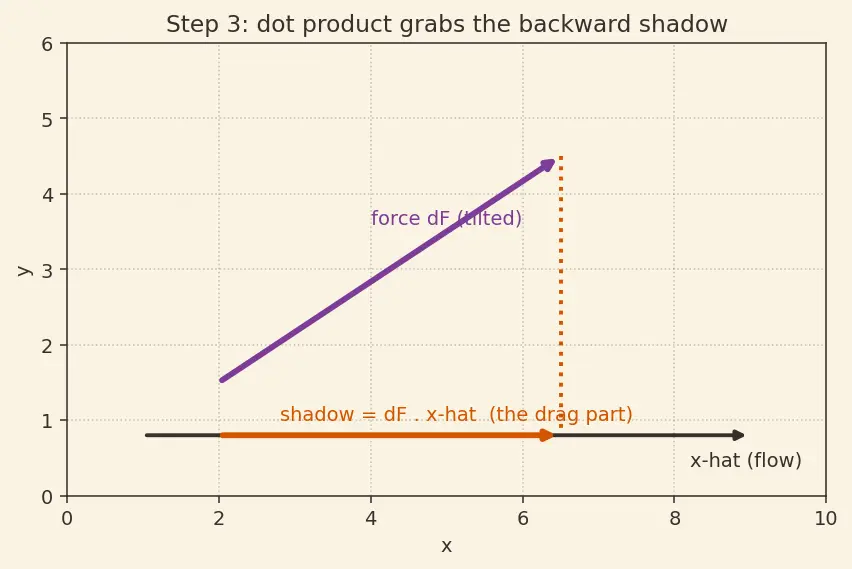

PICTURE: a tilted force arrow and its shadow (dotted) dropped onto the horizontal flow axis $\hat{x}$.

So the drag contributed by one patch is $d\vec{F}\cdot \hat{x}$, and the total drag adds every patch up. The little circle-on-integral $\oint$ just means "sum over the whole closed surface of the body."

---

Step 4 — Skin friction: the no-slip rub inside the boundary layer

Neighbouring layers slide past each other, and viscosity (Viscosity & Newton's Law of Viscosity) is the fluid's reluctance to be sheared — molecular "stickiness." That reluctance is the rub.

Let $y$ be the distance measured straight out from the wall, and $u(y)$ the flow speed at that height. How steeply speed rises with height is the slope $\frac{du}{dy}$ — read "how much $u$ changes per tiny step in $y$." A steep slope means layers are being sheared hard.

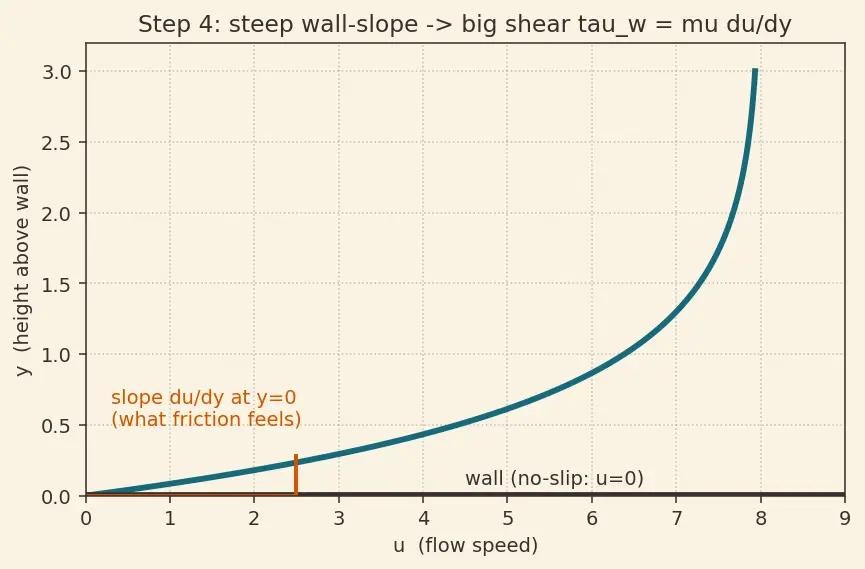

PICTURE: velocity profile $u(y)$ rising from $0$ at the wall; the slope-triangle at $y=0$ marked; steep slope → big rub.

---

Step 5 — Form drag: the wake that breaks the front–back symmetry

Real viscosity ruins the symmetry: the boundary layer runs out of energy climbing against rising pressure at the rear and separates (Flow Separation & Wakes), leaving a churning low-pressure wake behind. Now the front is high pressure, the back is low pressure — they no longer cancel.

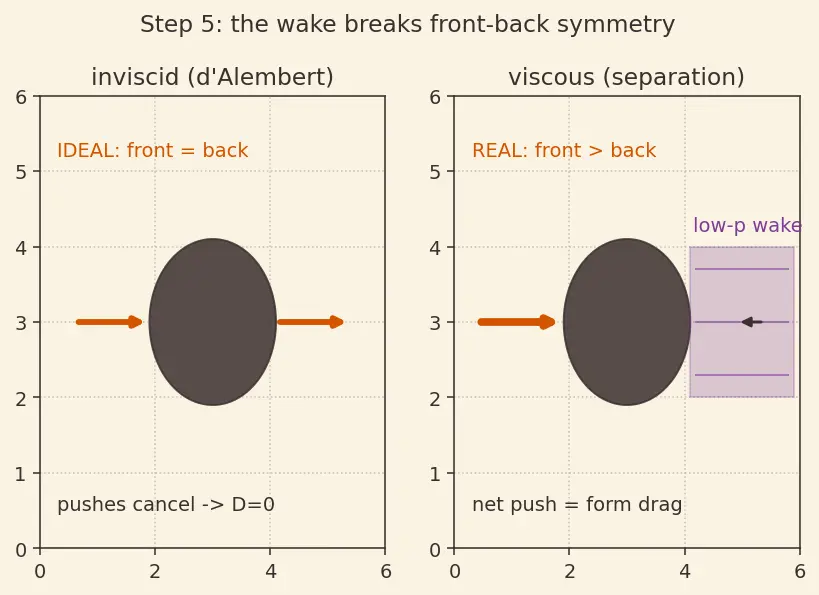

PICTURE: two panels. Left — ideal symmetric pressure (arrows cancel). Right — real flow separates, big plum wake, strong front arrows, weak back arrows → net rearward push.

---

Step 6 — Packaging: why the answer must look like $\frac{1}{2}\rho v^{2}A{C}_D$

Follow the momentum bookkeeping (Step 1) at the scale of the whole body:

• In a time $t$, the body sweeps a tube of fluid of length $vt$ and cross-section $A$ (its frontal area).
• Mass of fluid dealt with per second $=\rho \times (\text{volume/second})=\rho (vA)$.
• Each kilogram of that fluid has its speed changed by an amount $\sim v$.
• Force = momentum handed over per second $=(\rho vA)\times v=\rho v^{2}A$.

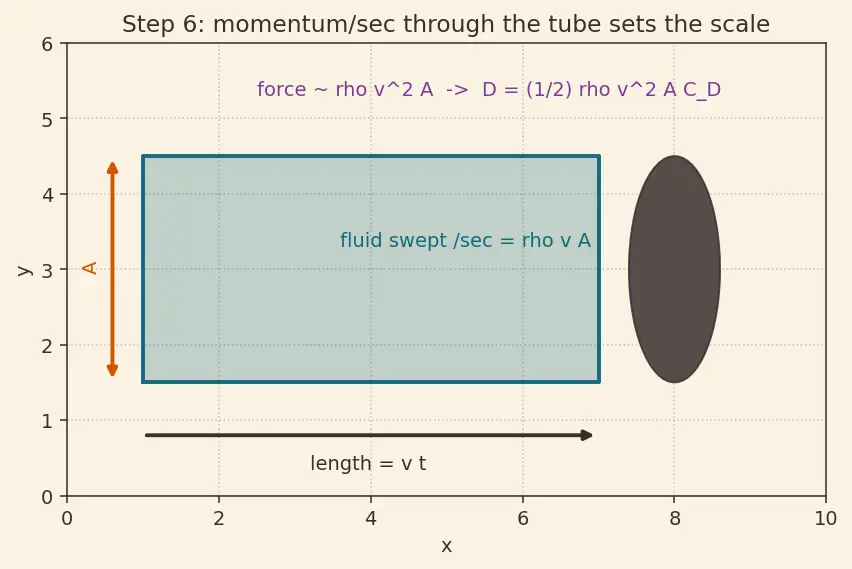

PICTURE: the swept fluid tube of length $vt$ and area $A$; annotation showing force $\sim \rho v^{2}A$, scale $\frac{1}{2}\rho v^2$, and the shape knob $C_D$.

---

The one-picture summary

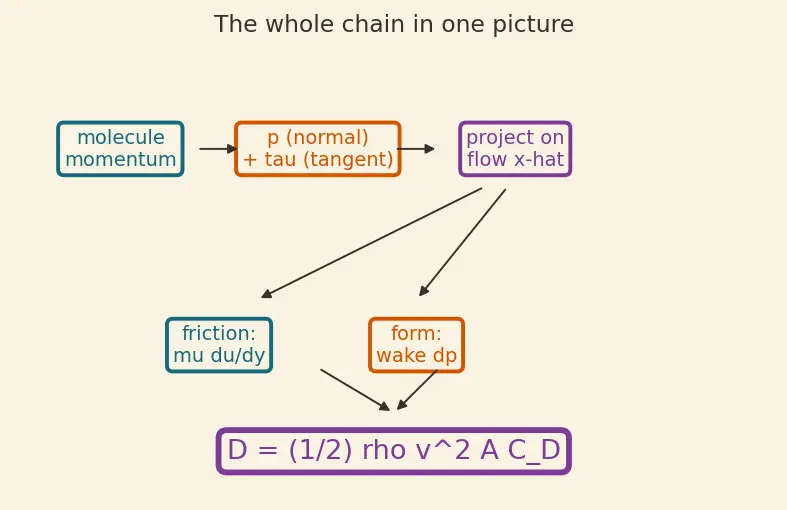

The single figure above threads the whole chain: molecule → two stresses → project onto flow → (friction slope $+$ wake asymmetry) → package into $\frac{1}{2}\rho v^{2}A{C}_D$.

Recall Feynman retelling — the walkthrough in plain words

A little water ball smacks into you and bounces off slower — it lost some "go," and you took it (Step 1). The water can only touch you two ways: shove straight in (pressure) or rub sideways (friction) — there's no third way (Step 2). We only count the part of that shove that points backward, because that's what slows you; the "shadow onto the flow direction" trick (the dot product) grabs exactly that part (Step 3). The sideways rub comes from the water sticking to your skin and speeding up just above it — the steeper that speed-up, the harder the rub (Step 4). The forward-back shove comes from water piling up in front while a swirly empty pocket forms behind — front pushes hard, back barely pushes, so you get shoved backward (Step 5). Finally we notice the force always scales like density times speed-squared times your frontal size, so we write that down and hide the shape secrets in one measured number $C_D$ (Step 6). That's the box: $D=\frac{1}{2}\rho v^{2}A{C}_D$.
