WHAT is an equipotential surface?

HOW to derive: E⃗⊥\vec E \perp equipotential (from scratch)

We start from the most fundamental relation between field and potential.

Step 1 — Work–potential link. For a small displacement dl⃗d\vec l, the work per unit charge is dV=−E⃗⋅dl⃗.dV = -\vec E \cdot d\vec l. Why this step? This is the definition of potential difference: VV drops as you move along the field, so the minus sign tracks "potential falls in the direction of E⃗\vec E."

Step 2 — Restrict dl⃗d\vec l to lie inside the surface. On an equipotential, VV doesn't change, so dV=0dV = 0 for any in-surface step: 0=−E⃗⋅dl⃗(tangent).0 = -\vec E \cdot d\vec l_{\text{(tangent)}}. Why this step? We deliberately pick displacements that stay on the surface, because those are exactly the moves that keep VV constant.

Step 3 — Interpret the dot product. E⃗⋅dl⃗(tangent)=0for every tangent dl⃗.\vec E \cdot d\vec l_{\text{(tangent)}} = 0 \quad\text{for every tangent } d\vec l. A dot product is zero (with both vectors nonzero) only when they are perpendicular. Since dl⃗d\vec l can point in any tangent direction, E⃗\vec E must be perpendicular to all of them — i.e. perpendicular to the surface itself.   E⃗⊥equipotential surface  \boxed{\;\vec E \perp \text{equipotential surface}\;} Why this step? "Perpendicular to every in-surface direction" is the very definition of "normal to the surface."

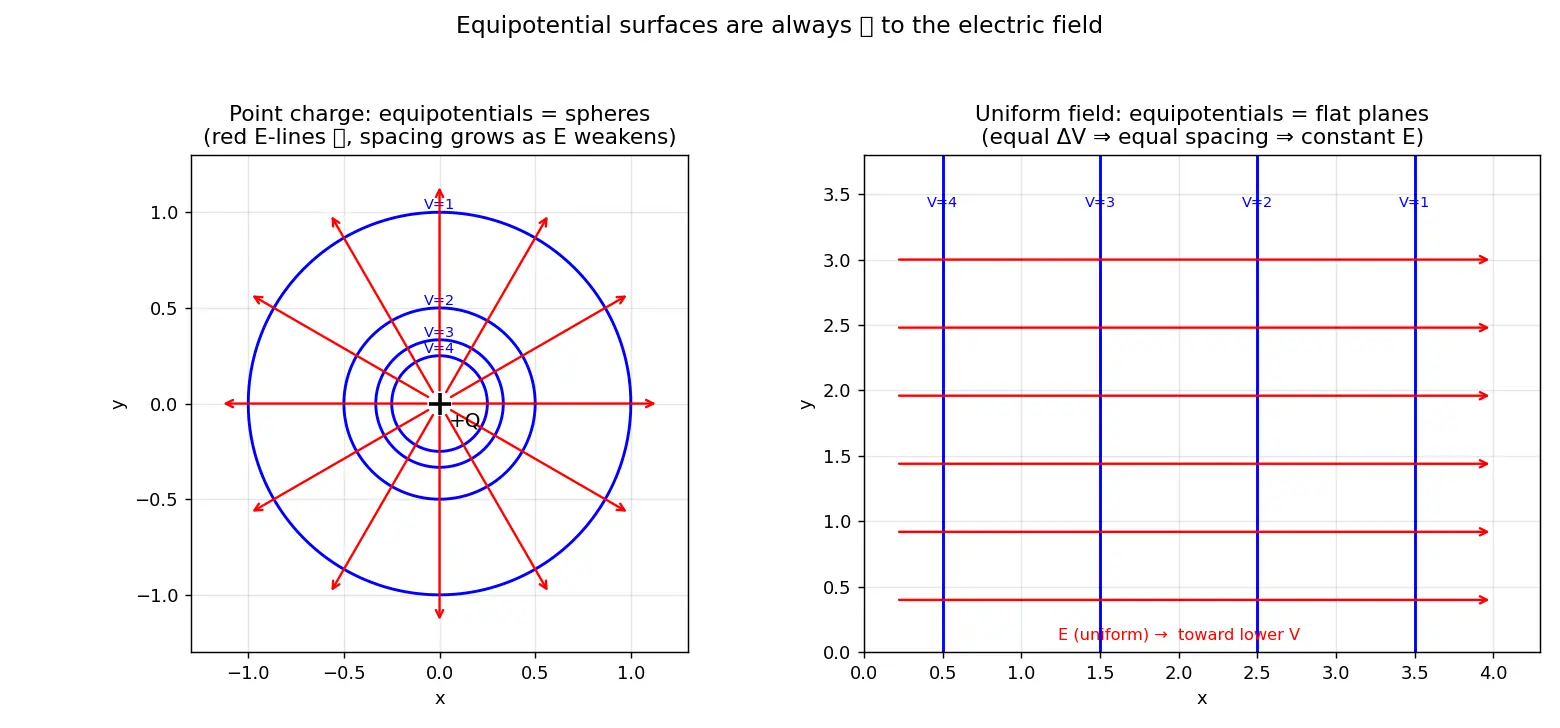

Figure — Equipotential surfaces — perpendicular to field

Worked examples

Common mistakes (steel-manned)

Recall Feynman: explain it to a 12-year-old

Imagine a hill. The height of the ground is like the voltage. Lines that trace "all points at the same height" are the curvy contour lines on a hiking map — those are the equipotentials. A ball always rolls straight down the steepest way, which is exactly at right angles to those equal-height lines. That steepest-downhill arrow is the electric field. So the field and the equal-height lines always cross like a ++ sign. And where the contour lines crowd together (a cliff), the slope is steep — that's a strong field.

Flashcards

What is an equipotential surface?
A surface on which the electric potential VV is the same at every point.
Why is no work done moving a charge along an equipotential?
Because W=q(VA−VB)W=q(V_A-V_B) and VA=VBV_A=V_B on the surface, so W=0W=0 for any path.
What is the angle between E⃗\vec E and an equipotential surface?
90∘90^\circ — the field is always perpendicular (normal) to it.
Derive why E⃗⊥\vec E\perp equipotential.
For tangent step dl⃗d\vec l, dV=−E⃗⋅dl⃗=0dV=-\vec E\cdot d\vec l=0; nonzero dot product zero for all tangent directions ⇒ E⃗\vec E is normal to the surface.
Relation between field and potential (vector form)?
E⃗=−∇V\vec E=-\nabla V; the gradient is perpendicular to constant-VV surfaces and points to higher VV, so E⃗\vec E points to lower VV.
Magnitude of field from equipotential spacing?
E=−dVdnE=-\dfrac{dV}{dn}; closely spaced equipotentials (per equal ΔV\Delta V) mean a stronger field.
Shape of equipotentials for a point charge?
Concentric spheres centred on the charge.
Shape of equipotentials in a uniform field?
Flat planes perpendicular to E⃗\vec E, equally spaced for equal ΔV\Delta V.
Why is a conductor's surface an equipotential?
Inside E⃗=0\vec E=0 so VV is constant throughout; hence the surface too is equipotential and E⃗\vec E just outside is perpendicular to it.
Can two equipotentials of different VV cross?
No — the crossing point would have two potential values simultaneously, which is impossible.
In which direction does E⃗\vec E point relative to potential?
From higher potential toward lower potential (downhill in VV).

Connections

  • Electric Potential — the scalar field VV whose constant-value sets are these surfaces.
  • Electric Field Lines — always cross equipotentials at 90∘90^\circ.
  • Gradient and Directional Derivative — E⃗=−∇V\vec E=-\nabla V; gradients are normal to level sets.
  • Conductors in Electrostatic Equilibrium — whole conductor is one equipotential.
  • Parallel Plate Capacitor — uniform field ⇒ evenly spaced planar equipotentials.
  • Work and Conservative Forces — path-independence underlies the zero-work property.

Concept Map

no work moving along

implies

leaves only

restrict to tangent

dot product zero

generalise 3D

gradient normal to constant V

points toward

spacing gives strength

close spacing means

Equipotential surface V constant

W_AB = q times V_A minus V_B = 0

No in-surface E component

E perpendicular to surface

dV = minus E dot dl

dV = 0 on surface

E = minus grad V

decreasing V

E = minus dV over dn

large E

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, equipotential surface ka matlab hai aisi surface jiske har point par potential VV same hota hai. Sabse important baat — electric field E⃗\vec E hamesha is surface ke perpendicular (90∘90^\circ) hota hai. Kyun? Socho agar field ka thoda sa component surface ke along hota, to wo charge ko surface ke andar push karta aur kaam (work) karta. Lekin same potential ke do points ke beech work hamesha zero hota hai (W=q(VA−VB)=0W=q(V_A-V_B)=0). To along-component zero hi hona chahiye, sirf perpendicular part bachta hai.

Derivation ek line mein: chhota step dl⃗d\vec l surface ke andar lo, to dV=−E⃗⋅dl⃗=0dV=-\vec E\cdot d\vec l=0. Dot product zero tabhi jab dono vectors perpendicular ho. Isliye E⃗\vec E surface ke normal direction mein point karta hai. General form: E⃗=−∇V\vec E=-\nabla V, aur gradient hamesha constant-VV surfaces ke perpendicular hota hai, higher potential ki taraf — to field lower potential ki taraf jaata hai (downhill).

Picture ke liye map ka contour line wala example yaad rakho. Voltage ko height samjho. Equal-height lines = equipotentials, aur ball jis steepest direction mein ludhakta hai wo field. Steepest path hamesha contour lines ke perpendicular hota hai. Jahan lines paas-paas hain (equal ΔV\Delta V par), wahan field strong — E=−dV/dnE=-dV/dn.

Exam tips: point charge ke liye equipotential spheres hote hain, uniform field (capacitor plates) ke liye flat planes equally spaced. Conductor ke andar field zero, to pura conductor ek equipotential, aur uski surface par field perpendicular nikalta hai. Yaad rakho: "E cuts V at 90, downhill all the time." Aur do alag-alag VV wali surfaces kabhi cross nahi karti.
