Equipotential surfaces — perpendicular to field: Foundations

Before you can read the parent note, you need to already own a small toolbox of ideas. Below, each tool gets three things: plain words, the picture, and why the topic needs it. They are ordered so each one leans only on the ones above it.

1. A point in space and its coordinates $(x, y, z)$

Picture. Three arrows meeting at a corner; a dot floating in the room described by "3 steps right, 2 forward, 1 up."

Why the topic needs it. The parent writes $V (x, y, z)$ — potential at a location. You cannot talk about "same value at every point of a surface" until "point" and "surface" are numbers.

2. A vector $E$ — an arrow with size and direction

Figure — Equipotential surfaces — perpendicular to field

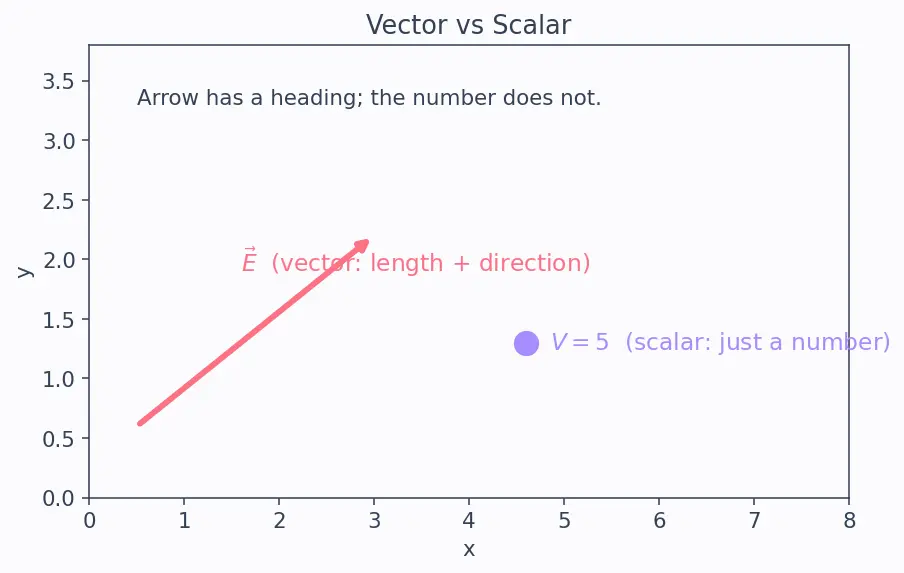

Picture. Look at the figure: the coral arrow $E$ has both a length and a heading. The lavender number $V = 5$ next to a dot has no arrow — it's just a value, like a temperature.

Why the topic needs it. The electric field $E$ is a vector (it points somewhere), while the potential $V$ is a scalar (just a height). Half the whole topic is the relationship between this arrow and that number.

3. The dot product $A \cdot B$ — "how much do two arrows agree?"

Why $cos$ and not something else? Because we want a gauge of alignment. When two arrows point the same way, $θ = 0^{\circ}$ and $cos 0^{\circ} = 1$ (full agreement). When they are perpendicular, $θ = 9 0^{\circ}$ and $cos 9 0^{\circ} = 0$ (zero agreement). When they oppose, $θ = 18 0^{\circ}$ and $cos 18 0^{\circ} = - 1$ . Cosine is exactly the function that slides smoothly from $+ 1 \to 0 \to - 1$ as arrows rotate apart — no other everyday function does that so cleanly.

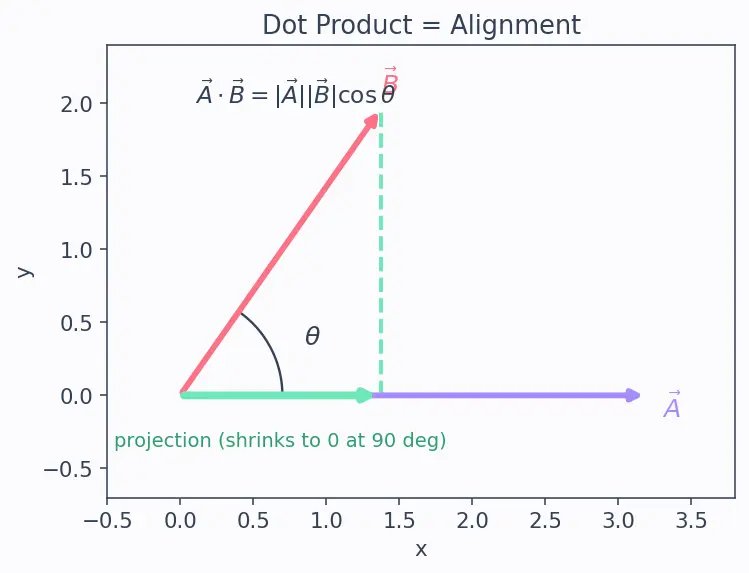

The killer consequence (used in the parent's Step 3): $A \cdot B = 0 (with both nonzero) ⟺ A ⊥ B .$ A zero dot product is the algebraic word for "perpendicular." Read the figure: only when the arrows form a right angle does the shadow (projection) shrink to nothing.

Why the topic needs it. Step 1 of the derivation is $d V = - E \cdot d l$ . Setting $d V = 0$ forces $E \cdot d l = 0$ , and the sentence above turns that into " $E$ is perpendicular." No dot product, no proof.

4. Electric potential $V$ — "electrical height"

Picture. A hilly terrain. Each spot has a height; that height is $V$ .

Why the topic needs it. "Equipotential" literally means "equal- $V$ ." It's the star of the show. See Electric Potential for how $V$ is built.

5. Work $W$ and "conservative" force — path doesn't matter

Picture. A ball rolling from hilltop $A$ to valley $B$ : the energy it gains depends only on the drop in height, not on whether it took the winding or the straight trail.

Why the topic needs it. If $A$ and $B$ are on the same equipotential, $V_{A} = V_{B}$ , so $W_{A B} = 0$ — the parent's headline "no work along the surface." See Work and Conservative Forces.

Recall Check yourself

If $V_{A} = V_{B} = 12 V$ and $q = 3 C$ , what is $W_{A B}$ ? Answer ::: $W = q (V_{A} - V_{B}) = 3 (12 - 12) = 0 J$ — zero, whatever the path.

6. The differential $d$ — "an infinitesimally tiny step"

Picture. Zoom into a curved contour line until the little patch under your magnifying glass looks perfectly flat — that flat patch is where $d l$ lives.

Why the topic needs it. The relation $d V = - E \cdot d l$ is local — it only holds for tiny steps, because $E$ can differ from place to place. The "tiny" is what lets us treat the surface as flat and talk about the perpendicular direction there.

7. Tangent vs. normal — "along the surface" vs. "straight out of it"

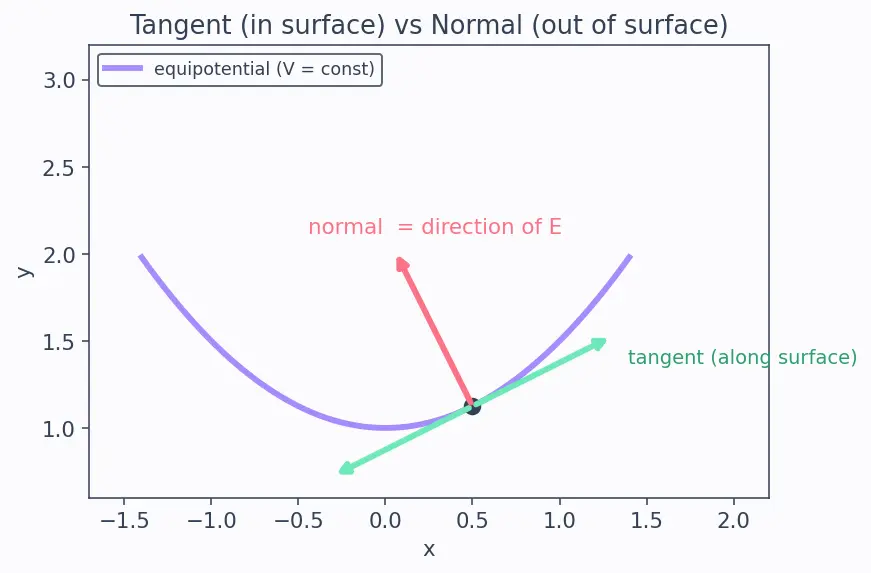

Picture. In the figure, the mint arrows are tangent (they hug the curve); the coral arrow is the normal (it stabs straight out). The field will turn out to be the coral one.

Why the topic needs it. The whole proof splits $E$ into "tangent part" (must be zero) and "normal part" (survives). " $E ⊥$ surface" means " $E$ is purely normal."

8. The gradient $\nabla V$ — "the steepest-uphill arrow"

Picture. Standing on a hillside, $\nabla V$ is the arrow pointing straight up the steepest way. And that steepest-up direction is always perpendicular to the contour line you're standing on — because along the contour the height doesn't change at all.

Why the topic needs it. The deeper statement $E = - \nabla V$ says the field is the steepest-downhill arrow (minus sign flips uphill to downhill). Since $\nabla V ⊥$ contours, so is $E$ . See Gradient and Directional Derivative.

How these feed the topic

Equipment checklist

Can you explain the difference between a scalar and a vector, with an example of each?

Scalar = just a number (

V

, temperature); vector = arrow with size and direction (

E

What single number does the dot product return, and when is it zero?

∣ A ∣∣ B ∣ cos θ

; it is zero (both nonzero) exactly when the vectors are perpendicular.

Why is

cos

the right function inside the dot product?

It slides from

+ 1

(aligned) to

0

(perpendicular) to

- 1

(opposite) as the angle grows — a perfect alignment gauge.

What is the electric potential

V

, picture-wise?

Electrical "altitude" — a number attached to every point, like height on a landscape map.

Why does moving a charge along an equipotential do zero work?

W = q (V_{A} - V_{B})

depends only on endpoints, and on one equipotential

V_{A} = V_{B}

, so

W = 0

What does the little

d

d l

and

d V

mean?

An infinitesimally small step/change — small enough that the surface looks flat there.

What is the difference between a tangent and a normal direction?

Tangent lies flat within the surface; normal points straight out at

9 0^{\circ}

to every tangent.

What does the gradient

\nabla V

point toward, and how does it relate to contours?

Toward steepest increase of

V

, always perpendicular to the constant-

V

contour.

Why does

E = - \nabla V

automatically give

E ⊥

equipotential?

Because

\nabla V

is perpendicular to constant-

V

surfaces and

E

is just its (flipped) copy.

Connections

Parent topic (Hinglish) — the note these foundations unlock.
Electric Potential — where the scalar $V$ comes from.
Electric Field Lines — the vector $E$ drawn as continuous lines.
Gradient and Directional Derivative — the maths of $\nabla V$ .
Work and Conservative Forces — why $W$ depends only on endpoints.
Conductors in Electrostatic Equilibrium — the killer application of these ideas.
Parallel Plate Capacitor — the uniform-field example.
