Equipotential surfaces — perpendicular to field: Visual walkthrough

Step 0 — The two words we must own first

Before a single arrow, we need two ideas dead-clear. Everything hangs on them.

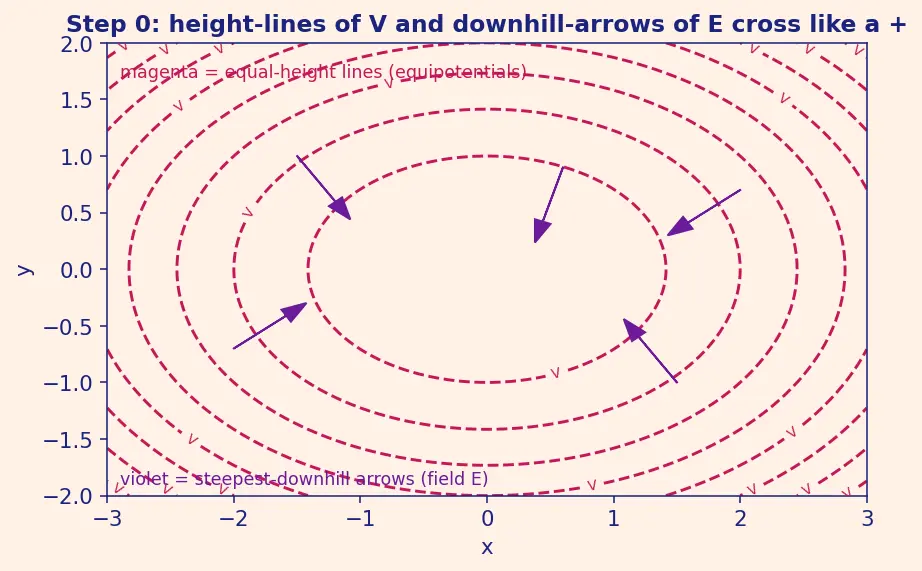

Our whole task is to discover the angle between the height-lines of $V$ and the downhill-arrows of $E$ . Look at the map below — we are about to prove those two families of lines cross like a $+$ sign.

Figure — Equipotential surfaces — perpendicular to field

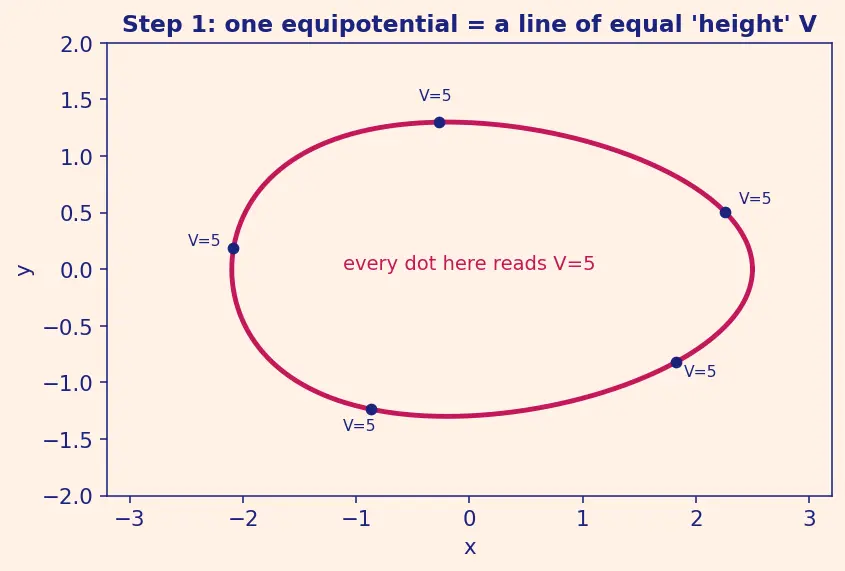

Step 1 — Draw an equipotential: a line of equal height

WHAT. Pick a value, say $V = 5 V$ . Colour in every point where the potential equals exactly $5$ . That coloured set is one equipotential surface (in 2D pictures it looks like a curve; in 3D it is a sheet).

WHY. We want to study the relationship between $E$ and this specific object, so we have to make it visible first. On a map this is a contour line — "walk along me and your altitude never changes."

PICTURE. In the figure, the magenta curve is the $V = 5$ equipotential. Every dot on it carries the same tag: $V = 5$ . Step off it in any direction and the number changes.

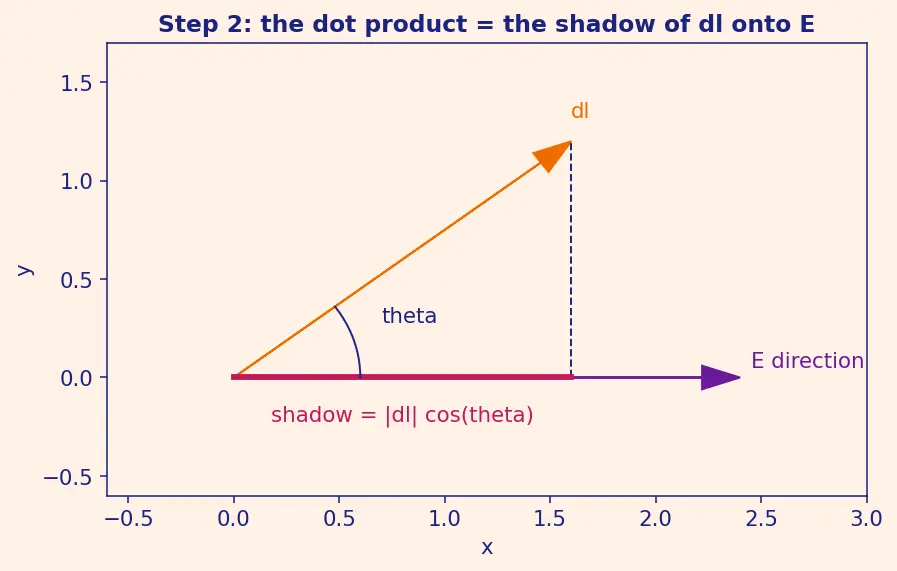

Step 2 — The projection gadget: the dot product

Before we can even write "how much your step lines up with the field," we need the tool that measures alignment. We build it now, so no symbol arrives undefined.

WHAT. Take any two arrows — here the field arrow $E$ (length $E = ∥ E ∥$ ) and a step arrow $d l$ (length $∥ d l ∥$ ) — meeting at angle $θ$ . Their dot product, written with a raised dot " $\cdot$ ", is defined to be the single number $E \cdot d l = = E, length of field arrow ∥ E ∥ length of the step ∥ d l ∥ how aligned they are cos θ .$ The left side combines two arrows; the right side is three plain numbers — two lengths and one cosine. The bars $∥ ∥$ are what turn each arrow into its length.

WHY THIS TOOL, not another? We are about to ask one precise question over and over: "how much of my step points in the field's direction?" That is exactly a projection, and the dot product is the projection machine. We use $cos θ$ (not $sin$ , not raw lengths) because $cos$ is the fraction of one arrow that lies along the other — $1$ when aligned, $0$ when perpendicular, negative when opposed.

PICTURE. The dashed line drops $d l$ straight onto the $E$ direction; the shadow it casts has length $∥ d l ∥ cos θ$ . That shadow is the dot product divided by $∥ E ∥$ — the "amount of the step that lies along $E$ ."

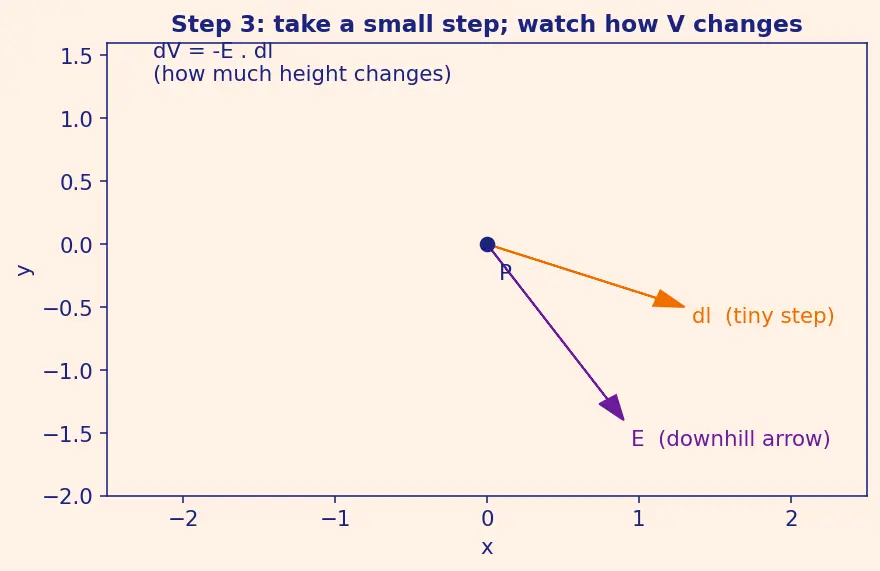

Step 3 — Take a tiny step and watch $V$ change

WHAT. Stand at a point $P$ and take a very small step $d l$ — a tiny arrow showing which way, and how far, you moved. We now link that step to the change in height $V$ , using the dot product we just built.

WHY. Fields and slopes are about change over a small distance. To connect $E$ (an arrow) to $V$ (a height) we need the rule "if I step this way, my height changes by that much." That rule is the definition of potential — and, unlike the parent note, we will earn its minus sign right here.

WHERE THE MINUS SIGN COMES FROM. The electric force on a charge $q$ is $q E$ , and it points along $E$ (downhill). Work is force-times-distance-along-the-push, which is exactly the dot product of Step 2: for the tiny step the force does work $d W = q (E \cdot d l)$ . Now, potential is defined so that the potential energy is the work you'd have to do against the field — so when the field's own force does positive work, the stored potential energy (and hence $V$ , energy per charge) must drop. That single "against" is the minus sign: $d V = - E \cdot d l$ . In words: walk the way the field pushes you and your potential falls. (See Work and Conservative Forces for why this bookkeeping is path-independent.)

PICTURE. The orange arrow $d l$ is your baby step. The violet arrow is $E$ at $P$ . The number $d V$ is how much your "height" $V$ changed because of the step.

Step 4 — Force the step to stay on the surface

WHAT. Now choose $d l$ so that it stays inside the equipotential — a step that never leaves the $V = 5$ curve. Call it $d l_{tan}$ ("tan" for tangent, meaning "runs along the surface").

WHY. This is the whole trick. On the surface $V$ is constant, so for such a step the height cannot change: $d V = 0.$ We deliberately pick the steps that keep $V$ frozen, because those are the ones that pin down $E$ 's direction.

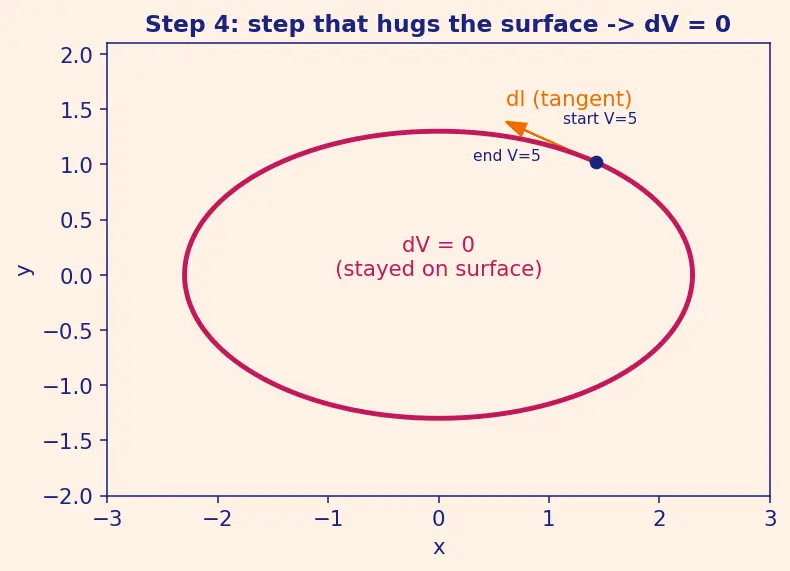

PICTURE. The orange arrow now hugs the magenta curve. Start and end both read $V = 5$ , so $d V = 0$ — labelled right on the arrow.

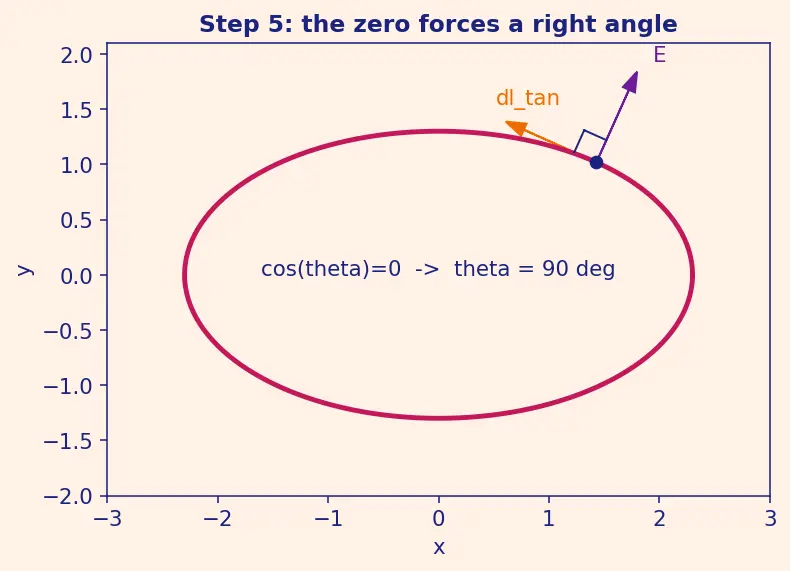

Step 5 — Read the zero: perpendicular is the only escape

WHAT. We have $E \cdot d l_{tan} = 0$ . Using the Step 2 definition, and writing the two lengths with their bars, that means $= E ∥ E ∥ step length ∥ d l_{tan} ∥ cos θ = 0.$

WHY. We ask: what makes this product of three numbers zero? Go through the factors:

$∥ E ∥ = 0$ (i.e. $E = 0$ )? Only in the trivial no-field case (handled in Step 7). Set aside for now.
$∥ d l_{tan} ∥ = 0$ ? No — we genuinely took a step, so its length isn't zero.
$cos θ = 0$ ? Yes — this is the live option, and $cos θ = 0$ means $θ = 9 0^{\circ}$ .

So the angle between $E$ and this tangent step is a right angle.

PICTURE. The violet $E$ and orange $d l_{tan}$ meet with a little square corner marker: $9 0^{\circ}$ .

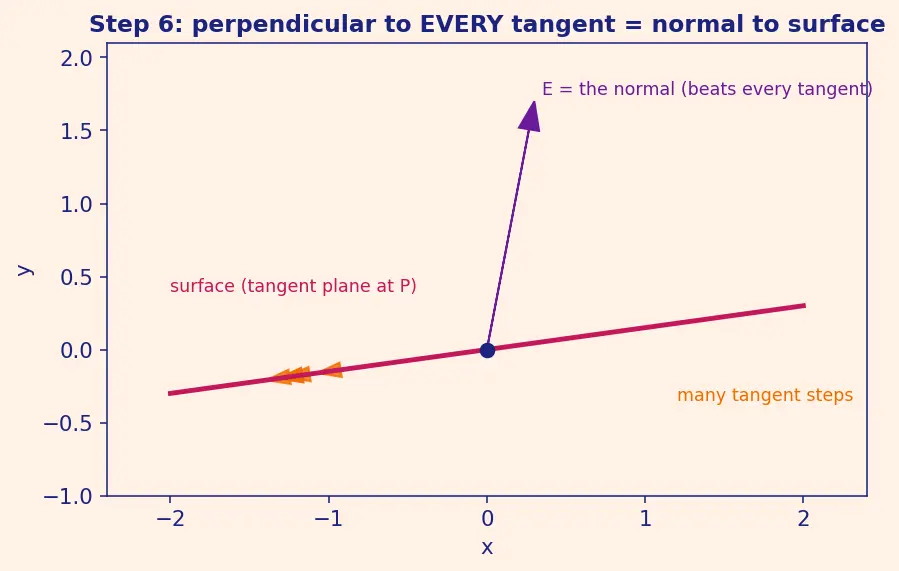

Step 6 — "Perpendicular to every tangent" = normal to the surface

WHAT. Step 5 used one tangent direction. But a surface has many directions you can slide in (left–right, forward–back, and every mix). The argument didn't care which one we chose — $d V = 0$ for all of them. So $E$ is perpendicular to every tangent arrow at $P$ simultaneously.

WHY. Being at right angles to every direction lying in the surface is the exact meaning of the word normal ("sticking straight out of the sheet"). One arrow that beats all tangents can only be the normal.

PICTURE. Several orange tangent arrows fan out across the surface at $P$ ; the single violet $E$ stands perpendicular to the whole fan — the surface's normal.

Definition The gradient

$\nabla V$ — the steepest-uphill arrow of a height field Imagine standing on the potential-hill and asking "which way is uphill fastest, and how steep is it?" The answer is one arrow. We give that arrow a name and a symbol: the gradient of $V$ , written $\nabla V$ (read "grad V"). Two facts define it: (1) it points in the direction of steepest increase of $V$ ; (2) since walking sideways along a contour keeps $V$ flat, the steepest-uphill arrow must be at right angles to the contour — so $\nabla V$ is perpendicular to constant- $V$ surfaces, pointing toward higher $V$ . See Gradient and Directional Derivative. Because our field points downhill (toward lower $V$ ), it is the exact opposite of $\nabla V$ : $E = - \nabla V .$ This is just Step 6 rewritten: " $E$ is normal to the surface" becomes " $E$ is $- \nabla V$ ," and the minus flips uphill into downhill.

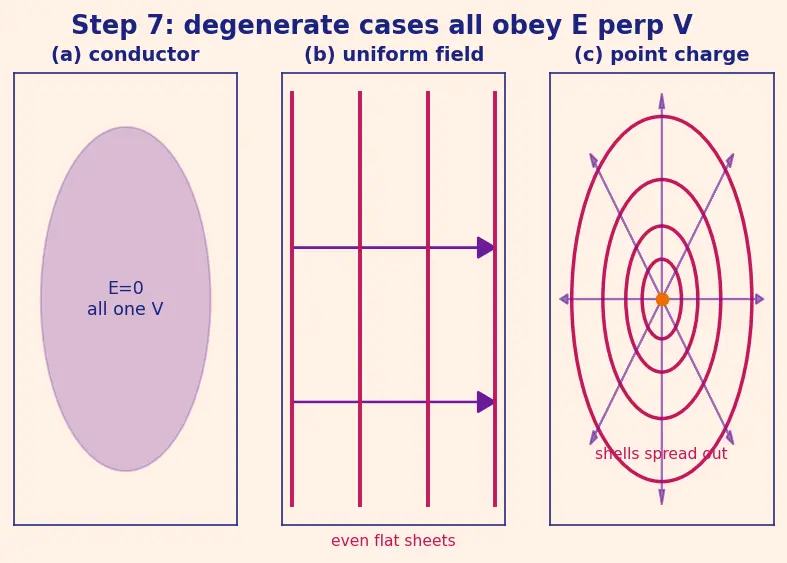

Step 7 — The degenerate cases (never leave a gap)

WHAT / WHY / PICTURE, three edge situations the proof must survive:

(a) $E = 0$ — no field. If $E = 0$ (its length $∥ E ∥ = 0$ , e.g. deep inside a conductor, see Conductors in Electrostatic Equilibrium), then $d V = 0$ for any step, so the entire region is one equipotential blob. There is no arrow to be perpendicular to — "perpendicular" is vacuously fine. The whole conductor is a single equipotential.

(b) Uniform field — flat, evenly spaced sheets. If $E = E \overset{x}{^}$ is the same everywhere (a Parallel Plate Capacitor), then $V = - E x + C$ . Constant $V$ means constant $x$ : the equipotentials are flat parallel planes at right angles to $\overset{x}{^}$ , equally spaced for equal steps in $V$ . The perpendicularity is obvious here, and it's the same rule.

(c) Point charge — nested spheres, uneven spacing. For $+ Q$ , $V \propto 1/ r$ , so constant $V$ means constant $r$ : concentric spheres. The field $E \propto \overset{r}{^} / r^{2}$ is radial, and $\overset{r}{^}$ is each sphere's normal — perpendicular again. Because $V \sim 1/ r$ , equal $Δ V$ shells spread farther apart as $r$ grows, matching the field weakening as $1/ r^{2}$ .

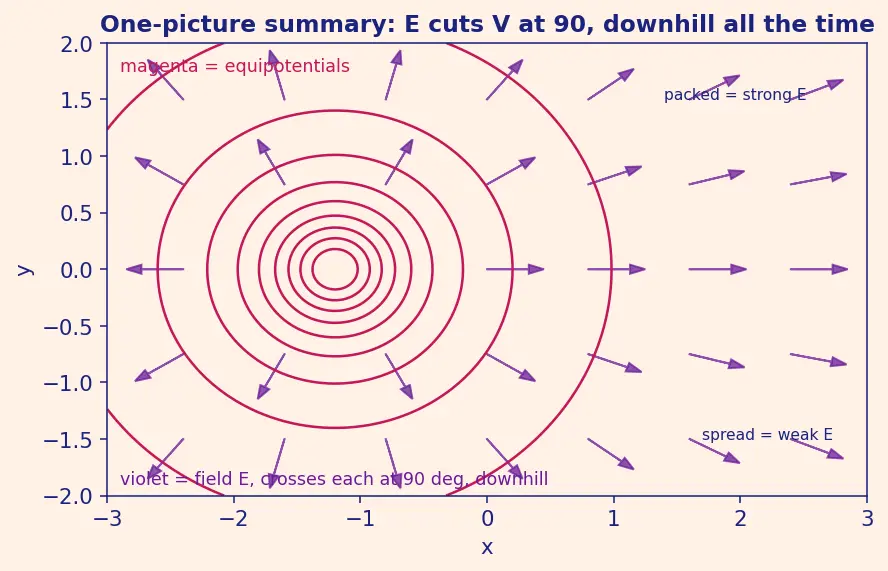

The one-picture summary

This last figure compresses all seven steps: a family of equipotentials (contours of equal $V$ ), the field arrows piercing them at $9 0^{\circ}$ , the sideways step with $d V = 0$ , and the tell-tale spacing (packed = strong field, spread = weak field).

Recall One-line proof skeleton (say it without looking)

$d V = - E \cdot d l$ (minus = "against the push"). On the surface $d V = 0$ , so $E \cdot d l_{tan} = 0$ , i.e. $∥ E ∥ ∥ d l_{tan} ∥ cos θ = 0$ . Since neither length is zero, $cos θ = 0 \Rightarrow θ = 9 0^{\circ}$ — and this holds for every tangent direction, so $E$ is the surface normal. Spacing (per equal $Δ V$ ) reads off $∥ E ∥$ : packed = strong, spread = weak.

Flashcards

What do the bars

∥ a ∥

mean, and how do

E

and

E

differ?

∥ a ∥

is the length of the arrow

a

(a positive number);

E

is the field arrow while

E = ∥ E ∥

is only its length.

What does the dot product

E \cdot d l

equal, and what does it measure?

∥ E ∥ ∥ d l ∥ cos θ

; it measures how much of the step lies along

E

(a projection).

Where does the minus sign in

d V = - E \cdot d l

come from?

The field's force

q E

does positive work stepping downhill, so stored potential energy (and

V

) must fall — the "against the push" bookkeeping is the minus.

Why do we restrict the step

d l

to lie on the equipotential?

Because on the surface

V

is constant, so

d V = 0

for that step — the case that pins down

E

's direction.

E \cdot d l = ∥ E ∥ ∥ d l ∥ cos θ

, which factor must vanish on an equipotential, and why?

cos θ

, giving

θ = 9 0^{\circ}

— because

∥ E ∥ \neq = 0

(non-trivial field) and

∥ d l ∥ \neq = 0

(a real step was taken).

Why does "perpendicular to one tangent" upgrade to "normal to the surface"?

d V = 0

holds for every tangent direction, so

E

is at

9 0^{\circ}

to all of them at once — that is the definition of the surface normal.

What is the gradient

\nabla V

, and how is it related to

E

\nabla V

is the steepest-uphill arrow of

V

, perpendicular to constant-

V

surfaces pointing to higher

V

;

E = - \nabla V

points the opposite way, downhill.

What happens to equipotentials where

E = 0

The whole region becomes a single equipotential (e.g. inside a conductor); there is no field arrow, so perpendicularity holds vacuously.

Why are point-charge equipotential shells unevenly spaced?

V \propto 1/ r

, so equal-

Δ V

shells spread farther apart as

r

grows — matching

E \propto 1/ r^{2}

weakening.
