Equipotential surfaces — perpendicular to field: Question bank

Before you start, a one-line vocabulary refresh so nothing below uses an unearned word:

Look at the picture below before reading a single item — it holds every idea this bank tests.

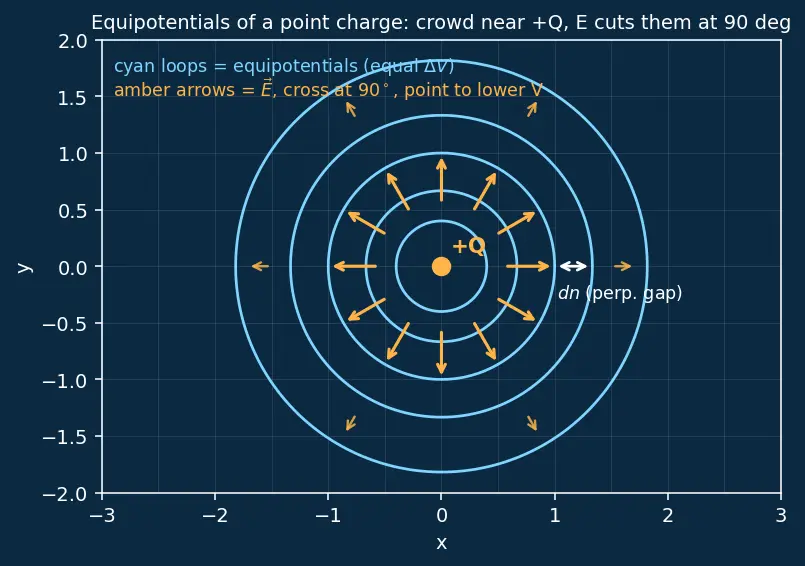

Figure — Equipotential surfaces — perpendicular to field

The cyan loops are equipotentials (equal "electric height"); the amber arrows are $E$ , always crossing them at $9 0^{\circ}$ and pointing toward lower $V$ . Notice where the loops crowd together the arrows are longer — that is $E = - d V / d n$ in a single glance.

True or false — justify

True or false: On a single equipotential surface, moving a charge a longer way round costs more work.

False — the electric force is conservative, so

W = q (V_{A} - V_{B})

; both points share the same

V

, giving

W = 0

for every path regardless of its length. See Work and Conservative Forces.

True or false: The field

E

can be tangent to an equipotential at some special point.

False — a tangential

E

would do work on a charge sliding along the surface, but along an equipotential

d V = 0

means zero work; the tangential component must vanish everywhere.

True or false: Two equipotentials of different

V

can touch at exactly one point.

False — that shared point would have to hold two values of

V

at once, which is impossible since

V

is a single-valued function of position.

True or false: Equipotential surfaces are always spheres.

False — spheres only arise for a single point charge; a uniform field gives flat planes, and a general charge arrangement gives blobby shells whose form matches

V = const

True or false: If two equipotentials are drawn at equal

Δ V

and are equally spaced in perpendicular distance

d n

, the field between them is uniform.

True — equal

Δ V

over equal perpendicular spacing

d n

(the normal gap, not a slanted one) means

E = - d V / d n

is constant, which is exactly the uniform-field case (parallel plates). See Parallel Plate Capacitor.

True or false: Field lines and equipotential surfaces are parallel families.

False — they are perpendicular; field lines cut across equipotentials like the two strokes of a

+

sign, always pointing toward lower

V

True or false: Inside a solid conductor in electrostatic equilibrium the whole volume is one equipotential.

True — with

E = 0

inside,

d V = - E \cdot d l = 0

for every internal displacement step

d l

, so

V

never changes: the entire conductor, surface included, is a single equipotential. See Conductors in Electrostatic Equilibrium.

True or false: An equipotential surface must be a closed surface (like a bubble).

False — closed only for isolated charges; a uniform field gives infinite open planes, so "closed" is not part of the definition.

True or false: The gradient

\nabla V

points along an equipotential.

False — the gradient points along the normal (steepest change), which is exactly why it is perpendicular to constant-

V

surfaces; see Gradient and Directional Derivative.

Spot the error

Error hunt: "

E = - \nabla V

, so

E

points toward higher potential."

The minus sign flips it —

\nabla V

points toward higher

V

, so

- \nabla V = E

points toward lower

V

, i.e. downhill.

Error hunt: "Equipotentials are equally spaced everywhere around a point charge."

Wrong — with

V \propto 1/ r

, surfaces of equal

Δ V

spread farther apart as

r

grows, mirroring the field weakening as

1/ r^{2}

Error hunt: "Because

W = q (V_{A} - V_{B}) = 0

on one surface, the electric force does zero work along any path in space."

Only true when both endpoints lie on the same equipotential; move between surfaces of different

V

and the work is nonzero.

Error hunt: "Field lines can start and end on the same equipotential."

They cannot run within one — a field line always crosses to a different (lower) equipotential, since

E

has no component along the surface it sits on.

Error hunt: "Closely packed equipotentials automatically mean a strong field."

Only if they are drawn at equal

Δ V

increments and you compare the perpendicular gap

d n

; the strength claim reads

E = - d V / d n

, so you must fix

Δ V

before treating spacing as strength.

Error hunt: "Just outside a charged conductor

E

can point at any angle to the surface."

No — the surface is an equipotential, so

E

just outside must be purely normal (perpendicular); any tangential part would push free charges until it self-cancelled.

Error hunt: "

d V = - E \cdot d l

shows

V

rises in the direction of

E

The dot product with the minus sign shows the opposite: stepping a displacement

d l

along

E

makes

d V < 0

, so

V

falls in the field's direction.

Why questions

Why must

E

be perpendicular to an equipotential, in one clean sentence?

Because

E \cdot d l = 0

for every in-surface (tangent) displacement step

d l

, and a nonzero vector that is perpendicular to all tangent directions is by definition normal to the surface.

Why does the "no work along the surface" fact force the perpendicularity?

Zero work along any tangent means

E \cdot d l_{tangent} = 0

; since that must hold for all tangent directions,

E

has no tangential component left and points purely normal.

Why do equipotentials never cross each other?

A crossing point would carry two different values of the single-valued function

V

simultaneously, which is logically impossible.

Why are the equipotentials inside a parallel-plate capacitor flat, evenly spaced planes?

The field is uniform,

E = E \overset{x}{^}

, so

V = - E x + C

is linear in

x

; setting

V = const

fixes

x

, giving parallel planes with equal

Δ V

per equal perpendicular spacing.

Why does a hiking-map contour picture capture this so well?

Height on the map plays the role of

V

; a ball rolls straight down the steepest slope, which is at right angles to the equal-height contours — exactly how

E

crosses equipotentials.

Edge cases

Edge case: What is the "equipotential" of a region where

E = 0

(e.g. deep inside a conductor)?

Since

d V = - E \cdot d l = 0

for all displacement steps

d l

, the whole region collapses into one equipotential volume, not just a surface —

V

is a single constant throughout.

Edge case: At a point where

E = 0

(a field null between two equal charges), can we still say

E ⊥

surface?

The zero vector has no direction, so "perpendicular" is vacuously satisfied; the surface is still well-defined by

V = const

, the field just has no arrow there.

Edge case: Right at a point charge (

r \to 0

), what happens to the equipotentials?

They crowd infinitely close (

V \propto 1/ r \to \infty

), so

E = - d V / d n \to \infty

— a genuine singularity where the surfaces pile up without bound.

Edge case: Far from any charge (

r \to \infty

), how do equal-

Δ V

equipotentials behave?

They spread infinitely far apart because

V \to 0

so gently, matching

E \to 0

— the field fades and the "hill" flattens out.

Edge case: If two conductors are held at the same potential, is the gap between them one equipotential?

Only their surfaces share that value; the region between them generally has other

V

values, so it is not one equipotential unless the whole gap happens to be field-free.

Edge case: Can an equipotential surface have a sharp corner or kink?

Yes — near a sharp conductor tip the surface inherits the conductor's geometric singularity, so the equipotential can develop a corner or kink of its own; the equipotentials also bunch tightly there and

E

spikes (the lightning-rod effect), so smoothness is not guaranteed at such points.

Recall One-line self-test

If you can answer this you own the topic: "Where does $E$ point, and at what angle, relative to a given equipotential — and what does the surface spacing tell you?" Answer ::: $E$ points normal (at $9 0^{\circ}$ ) to the surface, aimed toward lower $V$ ; equipotentials drawn at equal $Δ V$ are close in perpendicular distance $d n$ where $E$ is strong and far where $E$ is weak.

Connections

Electric Potential — the scalar $V$ whose level sets are these surfaces.
Electric Field Lines — cross equipotentials at $9 0^{\circ}$ .
Gradient and Directional Derivative — why $\nabla V$ is normal to level sets.
Conductors in Electrostatic Equilibrium — the killer boundary case.
Work and Conservative Forces — why path length is irrelevant on a surface.
Parallel Plate Capacitor — the uniform-field, flat-plane example.
