Visual walkthrough — Rolling without slipping — v = Rω condition

Before anything else, three plain words we will keep pointing at:

---

Step 1 — What a radian even is (so $s=R\theta$ means something)

WHAT. Before we can say "the wheel spun by angle $\theta$", we must agree how to measure an angle. We use the radian.

WHY this and not degrees? Degrees are arbitrary — someone once chose 360. A radian is chosen so that angle and arc-length are the same measuring system: this is the one choice that makes rolling arithmetic clean. That will matter in one line.

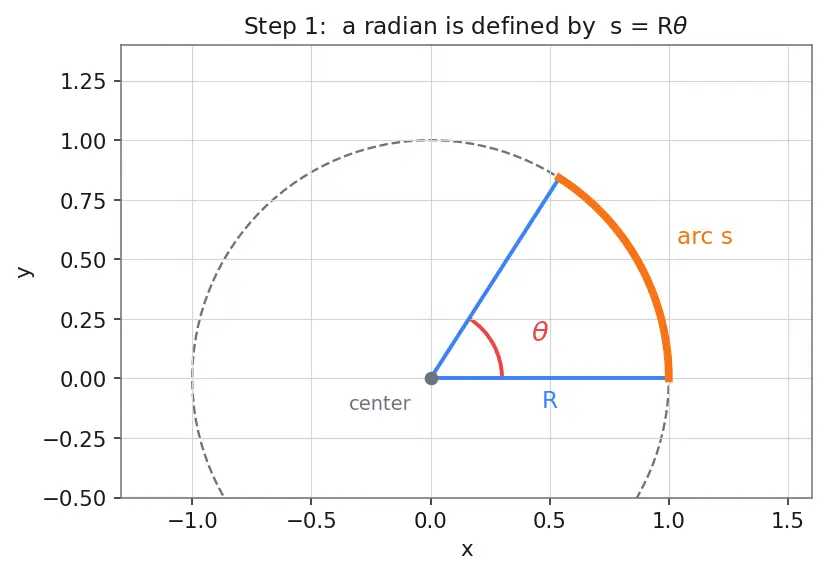

PICTURE. Look at the figure. Take the center of the wheel. Sweep a radius through some opening. The arc it traces along the rim (orange) has a length. A radian is defined by:

$\underset{\text{angle, in radians}}{\underbrace{\theta }}=\frac{\stackrel{\text{arc length along rim}}{\overbrace{s}}}{\underset{\text{radius}}{\underbrace{R}}}$

Rearranged, this is the seed of the whole derivation:

$\underset{\text{length of rim in the sweep}}{\underbrace{s}}=\underset{\text{radius}}{\underbrace{R}}\underset{\text{angle swept}}{\underbrace{\theta }}$

---

Step 2 — Unroll the wheel onto the road

WHAT. Now let the wheel actually roll. As it turns by angle $\theta$, watch the rim peel off and press flat onto the ground, like tape unspooling.

WHY. "Rolling without slipping" has a precise meaning: the rim does not slide on the road. So each little piece of rim gets laid down onto the road, touching it once, and never dragged. No rim is wasted, none is skipped.

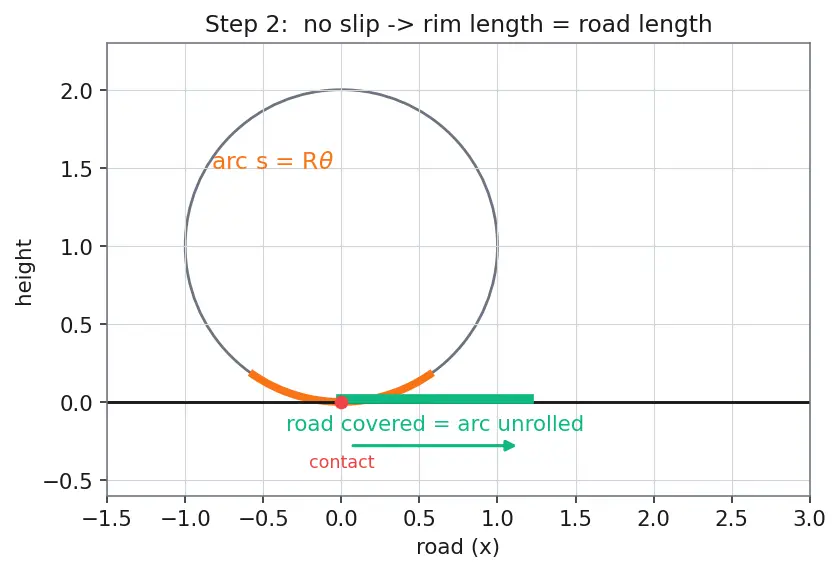

PICTURE. In the figure, the orange arc from Step 1 has been "unrolled" into an orange straight segment on the road. Because nothing slipped, that road segment is the same length as the arc:

$\underset{\text{green segment}}{\underbrace{\text{length of road covered}}}=\underset{\text{arc that unrolled}}{\underbrace{s}}=R\theta$

---

Step 3 — The center travels exactly that far

WHAT. Track the center of the wheel (the axle). Ask: how far forward did the center move while the wheel turned by $\theta$?

WHY. The center sits directly above the contact point and rides along with the body. When the rim lays down a length $R\theta$ of road, the whole wheel — center included — has advanced by that same road length. Nothing was lost to sliding, so nothing separates the center's travel from the road covered.

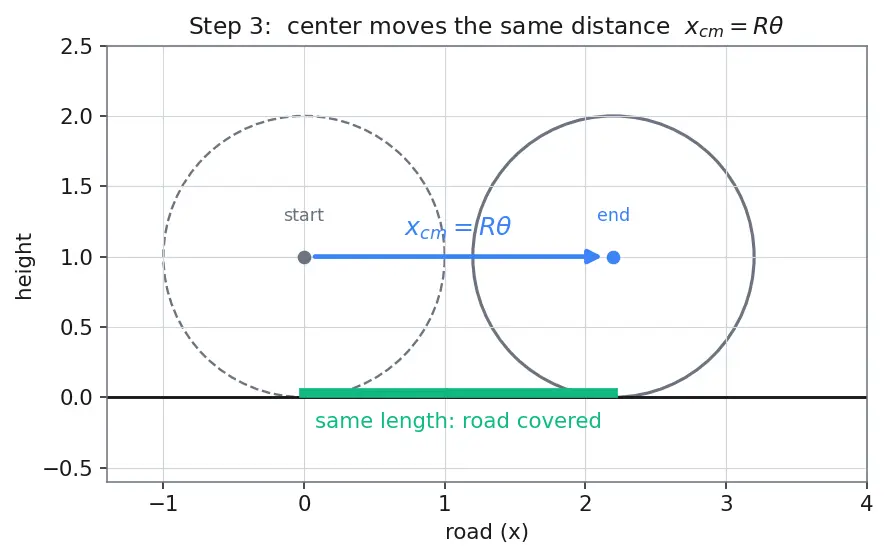

PICTURE. The figure marks the center's start (gray dot) and end (blue dot). The blue horizontal arrow between them, call it $x_{cm}$ ("$x$ of the centre of mass"), lines up tip-to-tail with the green road segment:

$\underset{\begin{array}{c}\text{forward distance}\\ \text{the center moved}\end{array}}{\underbrace{x_{cm}}}=\underset{\text{road covered = arc unrolled}}{\underbrace{R\theta }}$

---

Step 4 — Turn distances into speeds (why we differentiate)

WHAT. We have a relationship between distances ($x_{cm}=R\theta$). We want one between speeds. So we ask how each side changes as time passes — that operation is the derivative.

WHY the derivative and not something else? "Speed" is by definition how fast a distance grows per second. The tool that turns "a distance" into "how fast that distance grows" is the derivative $\frac{d}{dt}$ ("rate of change with respect to time $t$"). No other tool answers "how fast?".

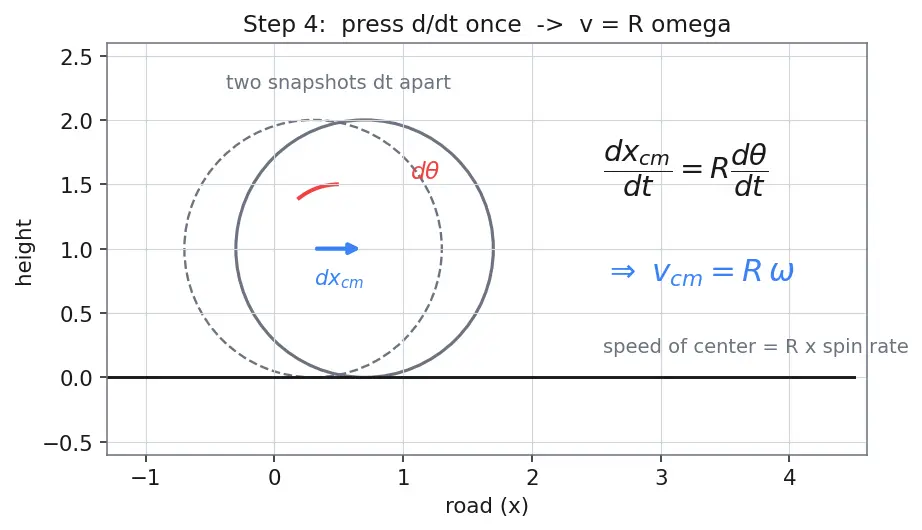

PICTURE. The figure shows two snapshots a tiny time $dt$ apart. In that sliver of time the center advances by a tiny $d{x}_{cm}$ and the wheel turns by a tiny $d\theta$. Applying $\frac{d}{dt}$ to both sides of $x_{cm}=R\theta$ (and $R$ is a constant, so it just sits out front):

$\underset{\text{how fast center moves}}{\underbrace{\frac{d{x}_{cm}}{dt}}}=R\underset{\text{how fast wheel spins}}{\underbrace{\frac{d\theta }{dt}}}$

Now we name these two rates:

• $\frac{d{x}_{cm}}{dt}\equiv v_{cm}$ — the speed of the center, metres per second.
• $\frac{d\theta }{dt}\equiv \omega$ (omega) — the angular speed, radians per second (how many radians of spin per second; see Angular velocity and angular acceleration).

$\boxed{\underset{\text{center’s speed}}{\underbrace{v_{cm}}}=R\underset{\text{spin rate}}{\underbrace{\omega }}}$

---

Step 5 — One more derivative: accelerations

WHAT. Speeds can also change. Ask how fast the speeds grow — differentiate once more.

WHY. Same logic recycled: the rate at which a speed grows is an acceleration. If the wheel is speeding up (Rolling down an incline, an accelerating car), we need the accelerating version of the constraint.

PICTURE. The figure stacks the three linked quantities as a ladder: distance $\to$ speed $\to$ acceleration, each rung obtained by pressing the $\frac{d}{dt}$ button. Differentiate $v_{cm}=R\omega$:

$\underset{\equiv a_{cm}\text{(linear accel.)}}{\underbrace{\frac{d{v}_{cm}}{dt}}}=R\underset{\equiv \alpha \text{(angular accel.)}}{\underbrace{\frac{d\omega }{dt}}}$

$\boxed{a_{cm}=R\alpha }$

Here $\alpha$ (alpha) is the angular acceleration — how fast $\omega$ itself grows, in ${\text{rad/s}}^2$.

---

Step 6 — Cash it out: velocity of the bottom, center, and top

WHAT. Use $v_{cm}=R\omega$ to find the real speed of three special points on the wheel. Every point does two things at once: it rides forward with the center and whirls around the center.

WHY. The velocity of any point is the sum of these two motions:

$\underset{\text{true velocity}}{\underbrace{{\vec{v}}_{\text{point}}}}=\underset{\text{everyone rides forward at }v}{\underbrace{{\vec{v}}_{cm}}}+\underset{\text{spin part, size }R\omega \text{ at the rim}}{\underbrace{\vec{\omega }\times \vec{r}}}$

The spin part has size $R\omega$ at the rim, but its direction flips depending on where you are: at the bottom it points backward, at the top forward.

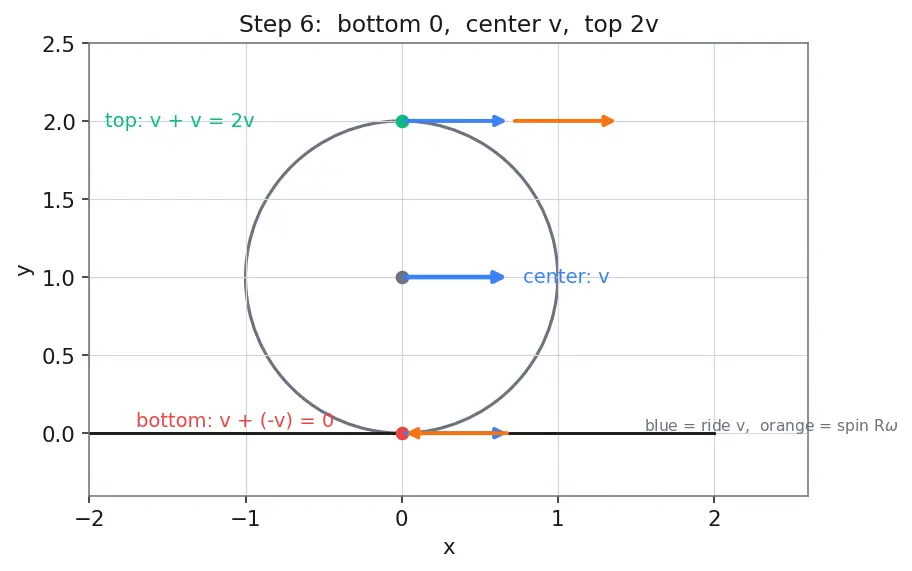

PICTURE. In the figure, blue arrows are the shared forward ride ($v$); orange arrows are the spin contribution ($R\omega =v$). Add them tip-to-tail:

• Bottom (contact): forward $v$ + backward $R\omega$. Since $R\omega =v$, they cancel → speed $=0$.
• Center: forward $v$ + spin $0$ (you're on the axis) → speed $=v$.
• Top: forward $v$ + forward $R\omega =v$ → speed $=2v$.

---

Step 7 — The degenerate cases (what if it does slip?)

WHAT. We must cover the scenarios where $v=R\omega$ breaks, and the two boundary cases. The equation is a constraint, not a law of nature — it holds only in one situation.

WHY. A reader who only sees the tidy case will misapply the formula. Here are all four regimes, each shown in the figure:

Case	What happens	Relationship
Pure rolling	rim lays flat, no slide	$v=R\omega$
Skidding (car on ice, wheels barely turning)	wheel drags forward faster than it spins	$v>R\omega$
Spinning out (burnout, tyre spins in place)	spins fast but body barely moves	$v<R\omega$
$\omega =0$ (sliding block)	not spinning at all, just sliding	$v\ne R\omega$ unless $v=0$ too

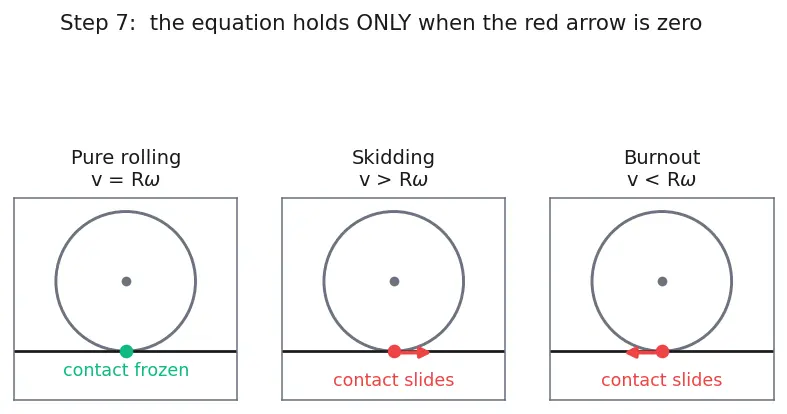

PICTURE. The figure shows the contact point's net velocity arrow (red) in each case. Only in pure rolling is that red arrow zero-length. In skidding it points forward (rim slides forward on road); in a burnout it points backward (rim slides backward under the car).

---

The one-picture summary

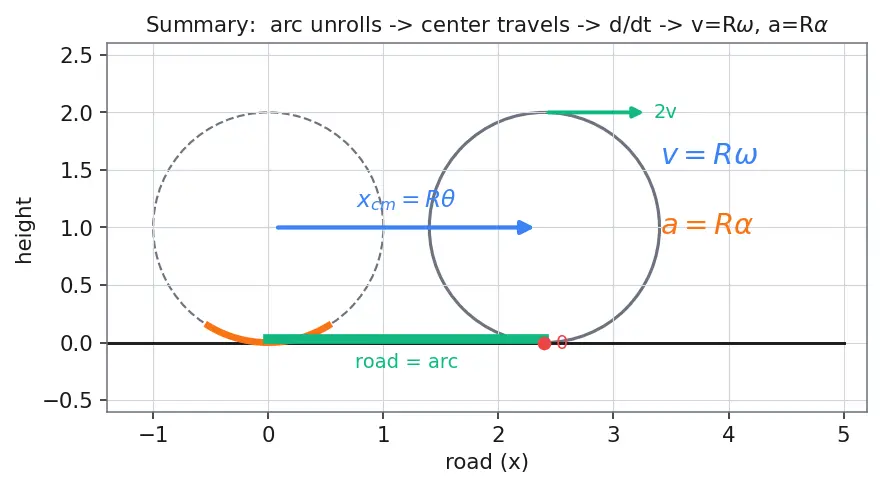

Here is the entire derivation compressed into a single frame: the wheel turns by $\theta$, its orange arc $R\theta$ unrolls into the green road, the center travels the same blue distance $x_{cm}=R\theta$, and pressing $\frac{d}{dt}$ once gives $v=R\omega$, twice gives $a=R\alpha$ — with the contact point frozen and the top racing at $2v$.

Recall Feynman: the whole walkthrough in plain words

Picture unrolling a roll of tape along the floor. You spin the roll a little, and a strip of tape presses flat onto the ground — and because tape doesn't skid, the strip on the floor is exactly as long as the strip that came off the roll. That length is $R\theta$: radius times the angle you turned. Now here's the trick — the center of the roll has moved forward by that very same length, because the whole thing just shuffled ahead by the amount of tape laid down. So "how far the center went" and "how much it spun times the radius" are the same distance. Ask how fast each of those grows per second — that's what a derivative is — and out pops "center's speed = radius times spin rate", $v=R\omega$. Ask again for the accelerations and you get $a=R\alpha$. And the cherry on top: right at the bottom, the tape is stuck to the floor for that instant, so the contact point stands perfectly still, while the top of the roll — riding forward and whirling forward — zooms along at twice the speed of the center. That's the entire story: no sliding forces the arc to equal the road, and everything else is just watching how fast that distance grows.

---

Connections

• Parent topic: the v = Rω condition
• Instantaneous axis of rotation — the frozen contact point from Step 6
• Angular velocity and angular acceleration — where $\omega$ and $\alpha$ come from (Steps 4–5)
• Static vs kinetic friction — why the frozen contact point uses static friction
• Rolling down an incline — where $a_{cm}=R\alpha$ (Step 5) is put to work
• Kinetic energy of rolling bodies — uses $v=R\omega$ to combine translation + rotation
• Moment of inertia — the next ingredient for rolling dynamics
