Rolling without slipping — v = Rω condition

WHAT is rolling without slipping?

Two motions happen at once:

Translation — the center of mass moves forward with speed $v_{cm}$ .
Rotation — the body spins about its center with angular speed $\omega$ .

The no-slip condition is what links these two otherwise independent motions.

WHY does $v = R\omega$ have to be true? (Derivation from scratch)

Step 1 — Geometry of unrolling. Roll the wheel through a small angle $\theta$ (radians). The length of rim laid onto the ground is the arc length: $s = R\theta$

Why this step? Arc length $=$ radius $\times$ angle is the definition of the radian. With no slip, this rim is the road it just covered, so the center moved exactly $s$ forward.

Step 2 — The center moves by that same distance. $x_{cm} = s = R\theta$

Why this step? "No slip" literally means rim length unrolled = ground distance covered — nothing is lost to skidding.

Step 3 — Differentiate with respect to time. $\frac{dx_{cm}}{dt} = R\frac{d\theta}{dt} \;\Rightarrow\; \boxed{v_{cm} = R\omega}$

Why this step? $\dfrac{dx_{cm}}{dt}=v_{cm}$ (speed of center) and $\dfrac{d\theta}{dt}=\omega$ (spin rate). $R$ is constant so it comes out.

Step 4 — Differentiate once more for acceleration. $\frac{dv_{cm}}{dt} = R\frac{d\omega}{dt} \;\Rightarrow\; \boxed{a_{cm} = R\alpha}$

HOW to see it as "translation + rotation"

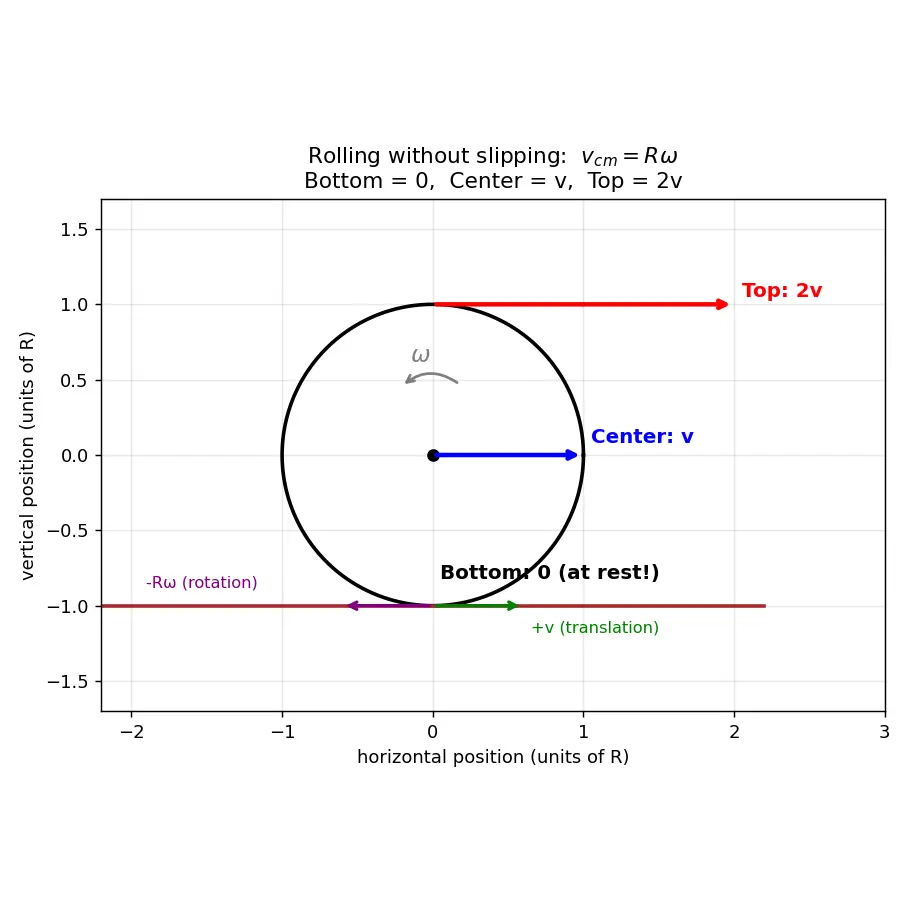

Figure — Rolling without slipping — v = Rω condition

Reading the diagram (with $v_{cm}=R\omega$ ):

Point	Translation	Rotation	Total speed
Bottom (contact)	$+v$ →	$-R\omega$ ←	$v-R\omega = 0$
Center	$+v$ →	$0$	$v$
Top	$+v$ →	$+R\omega$ →	$v+R\omega = 2v$

Worked examples

Common mistakes (Steel-man + fix)

Recall Feynman: explain to a 12-year-old

Imagine a toy car. Mark one dot on the tyre with chalk. As the car rolls, the chalk dot only touches the road for a tiny instant — and during that instant it's standing still, like a foot planted on the ground while you walk. Your foot doesn't slide; it stays put while the rest of you swings forward over it. The tyre does the same: the bottom stays still, the middle moves at normal speed, and the very top zooms forward twice as fast! That "bottom stays still" rule is why the speed of the car ( $v$ ) and the spin of the wheel ( $\omega$ ) must match up perfectly: $v = R\omega$ .

Active recall

What does "rolling without slipping" physically require at the contact point?

The contact point has zero velocity relative to the ground (it does not slide).

State the velocity, acceleration, and displacement forms of the rolling constraint.

v_{cm}=R\omega

a_{cm}=R\alpha

x_{cm}=R\theta

Derive

v=R\omega

from arc length.

No-slip means distance moved = arc unrolled,

x=R\theta

; differentiate:

v=R\omega

Speed of the topmost point of a wheel rolling at

v

2v

(translation

v

+ rotation

R\omega=v

Speed of the bottom (contact) point?

0

(it is the instantaneous axis of rotation).

Why does static friction do no work in pure rolling?

The contact point doesn't move (

d=0

), so

W=\vec F\cdot\vec d=0

When is

v=R\omega

NOT valid?

When the body slips/skids (e.g., spinning tyre on ice): then

v\ne R\omega

A wheel

R=0.5

m spins at

\omega=4

rad/s rolling without slipping. Find

v

v=R\omega=2

m/s.

Connections

Instantaneous axis of rotation — contact point as momentary pivot
Moment of inertia — needed for rolling dynamics
Kinetic energy of rolling bodies — $KE=\tfrac12 mv^2+\tfrac12 I\omega^2$ uses $v=R\omega$
Static vs kinetic friction — why no-slip uses static friction
Angular velocity and angular acceleration — definitions of $\omega,\alpha$
Rolling down an incline — direct application of $a=R\alpha$

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, "rolling without slipping" ka matlab simple hai: jab wheel zameen pe bina phisle (without slipping) roll karti hai, toh jo point neeche zameen ko touch kar raha hai, wo us instant pe bilkul still hota hai — jaise chalte waqt tumhara pair zameen pe tika hota hai, slide nahi karta. Yahi ek baat poori physics decide kar deti hai.

Ab WHY $v=R\omega$ ? Socho wheel ko thoda angle $\theta$ ghumao. Jitna rim ghoomega, utni hi arc length $R\theta$ road pe bicchegi. Agar slip nahi ho raha, toh center exactly utna hi aage badhega — yaani $x = R\theta$ . Ise time ke saath differentiate karo toh $v = R\omega$ aa jaata hai, aur dobara karo toh $a = R\alpha$ . Bas, derivation khatam — koi formula ratne ki zaroorat nahi.

Sabse mast cheez: contact point ki speed zero hoti hai (translation $v$ aur rotation $R\omega$ ek doosre ko cancel kar dete hain), center ki $v$ , aur sabse upar wale point ki $2v$ — double! Isiliye fast-moving car ke tyre ka upar wala hissa blur dikhta hai. Yaad rakho: 0, v, 2v (bottom, center, top).

Ek important point: $v=R\omega$ sirf tabhi valid hai jab slipping nahi ho rahi. Ice pe spinning tyre mein $\omega$ bahut zyada hota hai par $v$ almost zero — wahan ye formula apply mat karna. Aur pure rolling mein static friction zero work karta hai, kyunki contact point hilta hi nahi — isliye energy conserve rehti hai. Exam mein incline aur energy wale questions mein ye constraint baar baar use hoga, toh isko gut-level samajh lo.
