Linear momentum p = mv: Visual walkthrough — Physics deep dive

Step 1 — What are we even measuring? A moving block

WHAT. Picture a single block sliding along a straight track to the right. Nothing else. We want ONE number that captures "how much motion is in that block right now."

WHY. Before any formula, we must agree on the ingredients of motion. Two facts are visible in the picture: the block has some amount of stuff in it, and it is going somewhere at some speed. Those are the only two things we can point at. Everything we build must come from these two.

PICTURE. The red block is our object. The arrow underneath shows it is moving; its length is the speed, its direction is where it goes.

Step 2 — Why "how hard to stop" depends on BOTH ingredients

WHAT. Take two blocks. Left: heavy, moving slow. Right: light, moving fast. Ask: which is harder to bring to a dead stop?

WHY. We need a rule that reacts to both mass and speed, because experience says both matter (a slow truck and a fast pebble both take effort to stop). A rule using mass alone, or speed alone, would ignore half the picture. The simplest combination that grows when either grows is the product $m$ times $v$ — double the mass or double the speed, and the "stopping difficulty" doubles.

PICTURE. Both blocks are drawn so their "motion content" (shown as the shaded bar) comes out equal, even though one is heavy-slow and one is light-fast.

Step 3 — Defining momentum $p = m v$ as an arrow

WHAT. We now name that product. Multiply the mass (a number) by the velocity (an arrow). A positive number times an arrow just stretches or shrinks the arrow without turning it. Call the result $p$ .

WHY. Because $m$ is always positive, $p$ points the exact same way as $v$ — momentum is an arrow too. It carries direction for free, which will do the sign-bookkeeping in collisions automatically.

PICTURE. The thin velocity arrow $v$ is scaled by $m = 3$ into the fat red momentum arrow $p$ — same direction, three times as long.

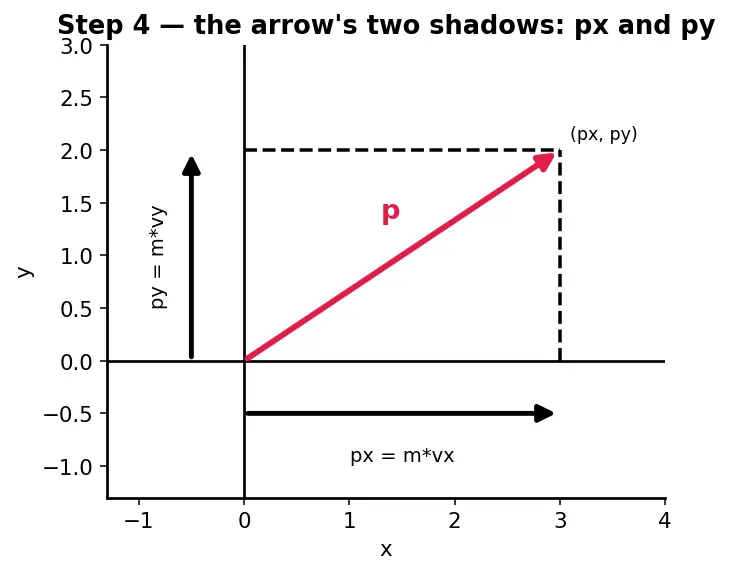

Step 4 — A vector splits into shadows (components)

WHAT. Shine a light straight down and straight across the momentum arrow. The two shadows it casts on the horizontal and vertical axes are $p_{x}$ and $p_{y}$ .

WHY. Real motion is often diagonal. Instead of wrestling with a slanted arrow, we track its two straight shadows separately — each is just an ordinary signed number. Since $p = m v$ and $m$ only scales, each shadow of $p$ is $m$ times the matching shadow of $v$ .

PICTURE. The red arrow and its two black shadow-arrows on the axes, forming a right triangle.

Step 5 — Newton's true law: force is the rate of change of the arrow

WHAT. Give the block a steady push. Watch its momentum arrow grow, tick by tick of a stopwatch. In one second the arrow lengthens by some amount $Δ p$ .

WHY. Newton's original statement is not $F = ma$ — it is "force equals how fast momentum changes." That is the deeper truth. We write "how fast something changes per second" with the symbol $\frac{d}{d t}$ — read it as "tiny change in top, per tiny change in time." We use this tool because we care about the instant rate, not the average over a long clumsy interval.

PICTURE. Two snapshots of the same block a small time $d t$ apart; the extra red bit of arrow is $d p$ , and the push $F$ is what caused it.

See Newton's Second Law for the full statement.

Step 6 — Unwrapping it back to the familiar $F = ma$

WHAT. Put the definition $p = m v$ inside the rate-of-change: $F = \frac{d ( m v )}{d t}$

WHY. We substitute so we can see where the school-formula hides. If the block's mass never changes (a solid block, not a leaking one), the constant $m$ can be pulled outside the "rate of change" — a constant multiplier just rides along. What's left, $\frac{d v}{d t}$ , is the rate of change of velocity, which is the definition of acceleration $a$ .

$F = m \frac{d v}{d t} = m a$

PICTURE. A flow showing $F = d p / d t$ splitting: with constant mass it collapses to $F = ma$ ; with changing mass it does not.

Step 7 — Edge & degenerate cases (never skip these)

WHAT. Push the definition to its extremes and to negative territory.

WHY. A rule you only tested in the easy middle is a rule you don't trust. Check every corner.

PICTURE. Four mini-panels: block at rest, block moving left (negative), two arrows adding head-to-tail, and a massless "object."

The one-picture summary

Everything above collapses into one chain: two ingredients → their product is an arrow → the arrow's rate of change is force → freezing the mass gives $F = ma$ .

Recall Feynman retelling of the whole walkthrough

Start with a moving block. Point at the only two things you can see: how much stuff it has, and how fast (and which way) it's going. Multiply them — that product is the block's oomph arrow, $p = m v$ . Multiplying an arrow by a plain number just stretches it, so the oomph points the same way the block moves; go the other way and the number turns negative — that's the arrow flipping around. A diagonal oomph arrow casts two straight shadows on the walls; those shadows are $p_{x}$ and $p_{y}$ , and Pythagoras stitches them back into the arrow's length. Now push the block for a heartbeat and watch the arrow grow: the growth-per-second is the force — that's Newton's real law, $F = d p / d t$ . Finally, if the block never loses or gains stuff, the mass sits still while you take the rate, so it steps outside and you're left with $F = ma$ — the old school formula, revealed as just the easy special case. That's it: two ingredients, one arrow, one rate of change, and the whole of basic mechanics falls out.
