Centre of mass — definition for system of particles

1. What is the Centre of Mass?

WHAT does "mass-weighted" mean? A heavy particle pulls the average toward itself; a light one barely shifts it. It is just like a class average where each student's score is "weighted" by how many credits the course carries.

2. Deriving it from scratch (WHY this formula and not another)

We want a single point $\vec{r}_{cm}$ such that the system behaves like one particle of mass $M$ sitting there. The cleanest demand is on momentum.

Step 1 — Total momentum of the system. $\vec{P} = \sum_i m_i \vec{v}_i = \sum_i m_i \frac{d\vec{r}_i}{dt}$ Why this step? Momentum is what Newton's laws act on, so we anchor the definition to it.

Step 2 — Demand the system move like one mass $M$ at $\vec{r}_{cm}$ . We require: $\vec{P} \equiv M\,\vec{v}_{cm} = M\frac{d\vec{r}_{cm}}{dt}$ Why this step? This is the whole point: COM is defined to make " $\vec P = M\vec v_{cm}$ " true.

Step 3 — Equate and integrate. $M\frac{d\vec{r}_{cm}}{dt} = \sum_i m_i \frac{d\vec{r}_i}{dt} \;\Rightarrow\; M\vec{r}_{cm} = \sum_i m_i \vec{r}_i$ Why this step? Both sides are derivatives; matching the derivatives means the quantities match (constant of integration is absorbed by fixing the origin).

Step 4 — Solve. $\boxed{\vec{r}_{cm} = \frac{1}{M}\sum_i m_i \vec{r}_i}$

So the formula isn't arbitrary — it is the only choice that lets us write $\vec P = M\vec v_{cm}$ .

3. Component form (HOW you actually compute)

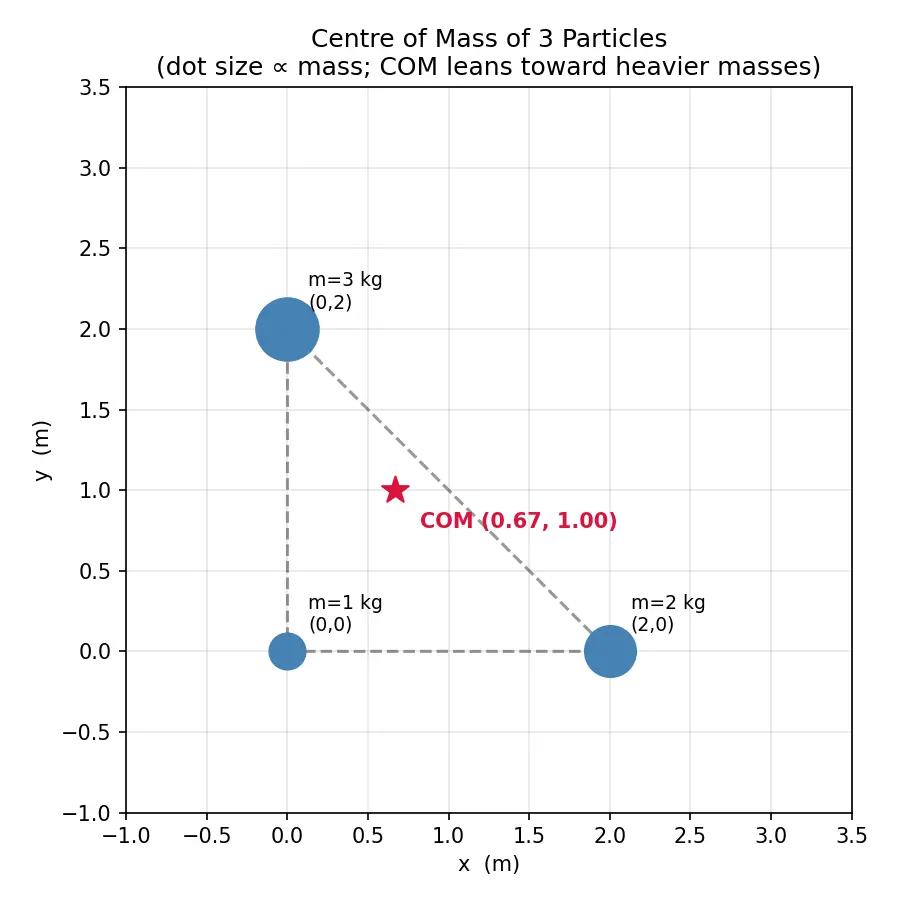

Figure — Centre of mass — definition for system of particles

4. Worked Examples

5. Common Mistakes (Steel-man + fix)

6. Active Recall

Recall Quick self-test (answer before peeking)

Define COM in one sentence. → Mass-weighted average position of all particles.
Why divide by $M$ ? → To convert the moment $\sum m_i x_i$ (kg·m) into a position (m).
Where is COM of two equal masses? → Exactly the midpoint.
Can COM be where there is no mass? → Yes (e.g. centre of a ring).

Recall Feynman: explain to a 12-year-old

Imagine a see-saw with kids of different sizes. The "balance point" where it would sit level is the centre of mass. A big kid pulls the balance point toward themselves, a small kid pulls it only a little. If you push the whole see-saw, it moves as if all the kids were one lump sitting exactly at that balance point. That's the magic point that makes complicated things behave simply.

7. Forecast-then-Verify

What is the centre of mass of a system of particles?

The mass-weighted average position,

\vec r_{cm}=\frac{1}{M}\sum_i m_i\vec r_i

Why do we divide by the total mass

M

in the COM formula?

Because

\sum m_i x_i

has units kg·m (a moment); dividing by

M

(kg) yields a position in metres.

What defining property of COM justifies its formula?

It makes total momentum equal

M\vec v_{cm}

, i.e. the system moves like one mass

M

at the COM.

Where is the COM of two equal masses?

Exactly at their midpoint.

Does the COM toward heavier or lighter masses?

Toward the heavier mass.

Can the COM lie in empty space?

Yes — e.g. the centre of a uniform ring of particles.

Component formula for

x_{cm}

x_{cm}=\dfrac{\sum_i m_i x_i}{\sum_i m_i}

For

m_1=2

kg at

0

and

m_2=3

kg at

5

m, find

x_{cm}

x_{cm}=15/5=3

Connections

Newton's Second Law for a System of Particles — leads to $\vec F_{ext}=M\vec a_{cm}$ .
Conservation of Linear Momentum — COM velocity is constant when $\vec F_{ext}=0$ .
Collisions — Elastic and Inelastic — analysed cleanly in the COM frame.
Centre of Mass of Continuous Bodies — replace $\sum$ by $\int$ .
Weighted Average and Moments — same maths as torque/lever balance.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab bahut saare particles ek saath move kar rahe hote hain, to har ek ko alag-alag track karna mushkil hai. Iska smart solution hai centre of mass (COM) — ek single point jo poore system ko "represent" karta hai. Iski position nikalti hai mass-weighted average se: $x_{cm}=\frac{\sum m_i x_i}{\sum m_i}$ . Matlab har particle ki position ko uske mass se weight karo, sum karo, aur total mass se divide kar do.

Yeh formula random nahi hai. Hum chahte the ki poora system ek hi particle (mass $M$ ) ki tarah behave kare. Jab humne demand kiya ki total momentum $\vec P = M\vec v_{cm}$ ho, to wahin se yeh COM formula automatically nikal aata hai. Isliye COM "magic point" hai jahan saari mass concentrate maan lo to Newton ke laws clean ho jaate hain.

Intuition: COM hamesha bhaari mass ki taraf jhukta hai. Agar do equal masses hain to COM beech mein (midpoint). Lekin unequal masses mein simple midpoint maan lena galti hai — weights lagana zaroori hai. Aur ek important baat: COM zaroori nahi kisi particle pe ho, woh khaali jagah mein bhi ho sakta hai (jaise ring ka centre).

Exam tip: hamesha numerator $\sum m_i x_i$ ko total mass $M$ se divide karna mat bhoolna, warna units kg·m aa jayenge, position metre mein chahiye. Units check karoge to galti pakad jayegi. Yeh chhota concept aage momentum conservation aur collisions mein bahut kaam aata hai.
