Work — definition, dot product F·d, sign convention: Visual walkthrough

Step 1 — What is a "push" and what is a "move"?

WHAT. Two separate things live in this story. First, a force — a push or pull, which has a strength (how hard) and a direction (which way). We draw it as an arrow; the longer the arrow, the harder the push. Second, a displacement — the straight-line trip the object actually made from start to finish, also an arrow: length = how far, direction = which way it ended up.

WHY. Before combining two things we must be certain they are two different things. A common trap is to imagine work is "force" alone, or "how far you walked" alone. It is a marriage of the two, and the marriage depends on their relative direction. So we must keep both arrows on the table at once.

PICTURE. The blue arrow is the force $F$ . The green arrow is the displacement $d$ . Notice they are drawn tail-to-tail (starting from the same dot) — that is the only fair way to read the angle between them.

Figure — Work — definition, dot product F·d, sign convention

Step 2 — Why can't we just multiply $F$ times $d$ ?

WHAT. Let's test the lazy guess "work $= F \times d$ ." Slide a box straight forward while pushing it straight up. It moves 5 m forward; you push with 20 N upward. Did your upward push help it go forward at all?

WHY. The upward push and the forward trip point in completely different directions. Your push is not "in on" the motion — the box never travels upward, so your upward effort was never "cashed in" as forward progress. This kills the lazy guess: raw $F \times d$ ignores direction, and direction is everything.

PICTURE. The blue force points straight up; the green displacement points straight right. They are at right angles ( $θ = 90°$ ). The force does nothing to the forward trip — the object slides out from under it.

Step 3 — Splitting the force into "along" and "across"

WHAT. Take the tilted force $F$ and cut it into two arrows that add back up to it: one lying along the displacement (call it $F_{∥}$ , "F-parallel"), one lying across it, at a right angle ( $F_{⊥}$ , "F-perp"). Together, tip-to-tail, they reproduce $F$ exactly.

WHY. We just learned only the along-part gets spent on the trip. So instead of wrestling the whole tilted arrow, we isolate the useful piece. Splitting into two perpendicular pieces is the cleanest split possible because the two pieces never interfere — the across-part contributes literally zero to forward progress, as Step 2 showed.

PICTURE. The blue $F$ is drawn tilted. Its shadow straight down onto the green line of motion is $F_{∥}$ (yellow). The leftover, standing straight up off the line, is $F_{⊥}$ (red). The three arrows form a right triangle: $F$ is the slanted side, $F_{∥}$ and $F_{⊥}$ are the two legs.

Step 4 — Why cosine? Reading the right triangle

WHAT. We need the length of the yellow arrow $F_{∥}$ . Look at the right triangle from Step 3. The full force $F$ is the hypotenuse (the longest, slanted side). The angle at the tail is $θ$ . The yellow leg $F_{∥}$ sits right next to that angle — it is the adjacent side.

WHY cosine and not sine? Here is the tool choice, stated plainly. In any right triangle, the ratio $\frac{adjacent}{hypotenuse}$ is named $cos θ$ — that is the definition of cosine. It answers exactly the question we are asking: "of the whole slanted arrow, what fraction lies along the base?" We want the along leg, and the along leg is the adjacent leg, so the tool is cosine. (Sine would give the across leg $F_{⊥}$ , which we are throwing away.)

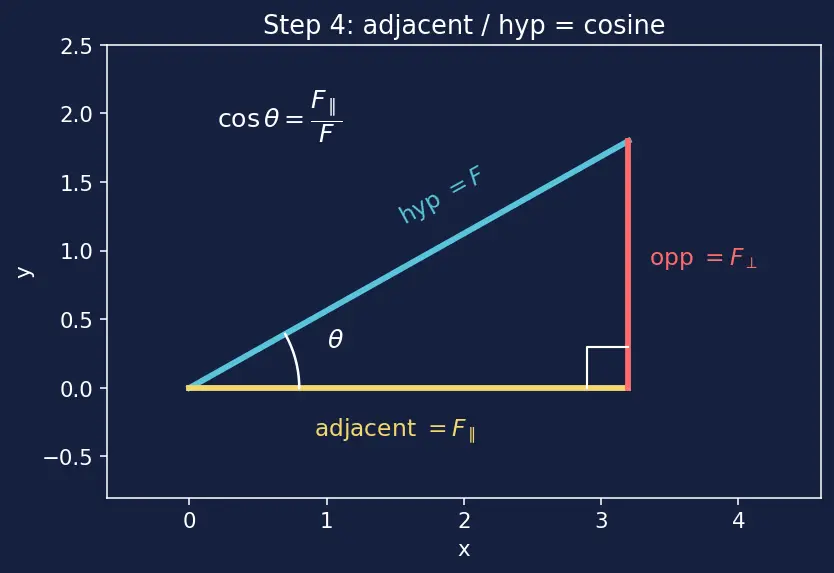

PICTURE. The triangle is labelled: hypotenuse $= F$ , adjacent leg (along motion) $= F_{∥}$ , opposite leg (across) $= F_{⊥}$ , angle $= θ$ . The cosine ratio is written right on the adjacent leg.

Step 5 — Multiply the worker by the trip

WHAT. Work is "the along-motion force, spent over the whole trip." So multiply the worker piece $F_{∥}$ by the trip length $d$ : $W = F_{∥} \cdot d = (F cos θ) d = F d cos θ .$

WHY. Force alone is not energy — a force pinned to a wall that never moves delivers nothing. Energy is delivered only as the object travels under that force. So we take the useful force and stretch it over the distance travelled. Term by term: $F$ (how hard) $\times$ $d$ (how far) $\times$ $cos θ$ (what fraction of the push actually pointed the right way).

PICTURE. A shaded rectangle: its height is the yellow $F_{∥}$ , its width is the green trip $d$ . Its area is the work $W$ . Bigger force, longer trip, or straighter alignment (bigger $cos θ$ ) → bigger rectangle → more work.

Step 6 — The sign lives inside $cos θ$ : all three cases

WHAT. As we swing $F$ around, $cos θ$ changes sign, and so does the work. We must check every direction, not just the friendly forward one.

WHY. A formula you only test in one case is a trap. The cosine is positive for small angles, zero at a right angle, negative past a right angle — and each corresponds to a real physical story (speeding up / just steering / slowing down). Miss a case and you will get a sign wrong on a test.

PICTURE. Three panels sharing the same green displacement.

Left ( $0° \leq θ < 90°$ ): force leans forward, $F_{∥}$ points with the trip, $cos θ > 0$ → $W > 0$ , energy added.
Middle ( $θ = 90°$ ): force straight across, $F_{∥} = 0$ , $cos 90° = 0$ → $W = 0$ , only steering.
Right ( $90° < θ \leq 180°$ ): force leans backward, $F_{∥}$ points against the trip, $cos θ < 0$ → $W < 0$ , energy removed.

Formula Sign summary

Angle $θ$	$cos θ$	$W$	Story
$0° \leq θ < 90°$	$+$	positive	force speeds it up (gains KE)
$θ = 90°$	$0$	zero	force only turns it
$90° < θ \leq 180°$	$-$	negative	force slows it down (friction, heat lost)

Step 7 — The degenerate cases (never skip these)

WHAT. Push the formula to its edges, where an arrow shrinks to nothing.

WHY. A good formula must behave sensibly even when an input is zero. If it gave nonsense there, we would not trust it anywhere.

PICTURE. Two mini-panels:

No trip ( $d = 0$ ): the object never moves (pushing a wall). $W = F \cdot 0 \cdot cos θ = 0$ . The rectangle from Step 5 has zero width → zero area. You may sweat, but you did no physics work.
No force ( $F = 0$ ): a coasting puck drifts freely. $W = 0 \cdot d \cdot cos θ = 0$ . Zero height rectangle → zero area.

Recall

Zero-trip or zero-force ::: both give $W = 0$ — the work rectangle collapses to zero area either way. Which real situation is the "no trip" case? ::: pushing hard on an immovable wall — force is huge, displacement is zero.

The one-picture summary

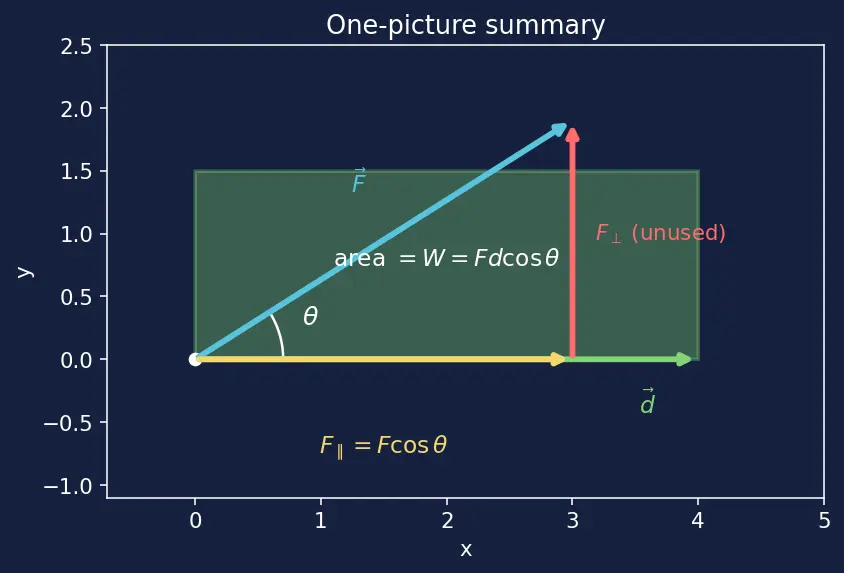

Everything at once: the tilted blue force $F$ , its yellow along-piece $F_{∥} = F cos θ$ sitting on the green road $d$ , the discarded red across-piece $F_{⊥}$ , and the shaded work rectangle whose area = $F d cos θ$ . Swing the blue arrow and watch the shaded area grow, vanish at $90°$ , and go negative (flip below the road) beyond $90°$ .

Recall Feynman: the whole walkthrough in plain words

Draw two arrows: how hard you push (blue) and where the thing went (green). Only the slice of your push that leans the same way as the trip actually helps — call it the yellow slice. To find how long the yellow slice is, look at the right triangle your push makes: the yellow slice is the side snug against the angle, and "snug side over slanted side" is the thing math calls cosine. So the yellow slice is $F cos θ$ . Now spread that helpful slice over the whole distance travelled — multiply by $d$ — and you get the energy you delivered: $W = F d cos θ$ . If your push leans with the trip you add energy (plus); straight sideways adds nothing (zero); leaning against the trip steals energy (minus). And if nothing moves, or you don't push, the rectangle has no area — no work at all.
