Visual walkthrough — Coefficients of friction — measurement, material dependence

We link the parent topic and lean on Free Body Diagrams, Normal Force, Newton's Second Law, Static vs Kinetic Friction, and Inclined Plane Dynamics as we go.

---

Step 1 — Put a block on a flat table (the zero-tilt starting point)

WHAT. Before we tilt anything, look at a block sitting still on a flat table. Two forces act along the vertical: gravity pulls straight down, the table pushes straight up.

WHY start here. Every symbol we will use later must first be earned on the simplest possible picture. On a flat table there is no sideways force at all, so nothing is trying to slide — this is our "friction = 0" baseline.

PICTURE. Look at the figure. The red arrow is weight — the pull of gravity. Its length is $mg$:

• $m$ = the block's mass in kilograms (how much stuff is in it),
• $g$ = the strength of gravity, about $9.8$ metres-per-second-squared (how fast gravity speeds up a free fall).

The blue arrow is the normal force $N$ — the push a surface always gives perpendicular to itself (that is what "normal" means: at a right angle). Here the surface is horizontal, so $N$ points straight up.

On the flat table nothing accelerates, so up-push balances down-pull: $N=mg$. Hold that thought — it is about to change the moment we tilt.

---

Step 2 — Tilt the ramp by an angle θ and watch gravity "lean"

WHAT. Now slowly lift one end of the table until it makes an angle $\theta$ with the horizontal ground.

WHY tilt at all. On a flat table gravity is perfectly perpendicular to the surface, so it can never make the block slide. Tilting is the trick that lets a piece of gravity point along the surface — that piece is what pushes the block downhill and forces friction to fight back.

PICTURE. The weight arrow $mg$ still points straight down — gravity has no idea we tilted anything. But relative to the tilted surface it now leans. The dashed lines show the tilted surface and its perpendicular.

Notice the small angle marked between the ramp and the ground, and the same angle reappearing up near the weight arrow. That repeat is the geometric heart of everything — Step 3 explains why it must be the same angle.

---

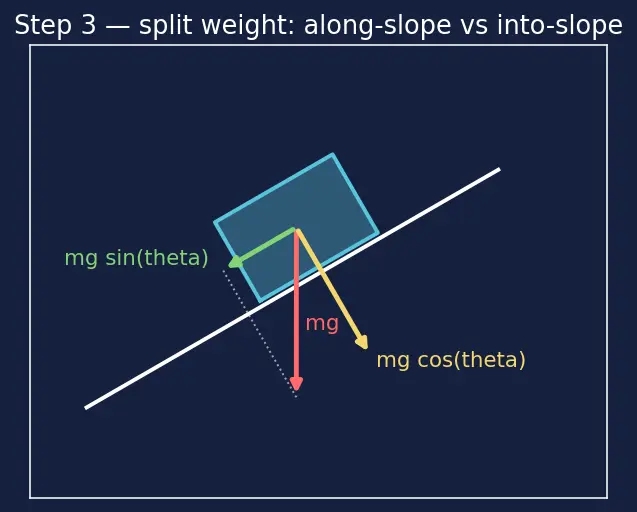

Step 3 — Split gravity into two arrows: along-slope and into-slope

WHAT. We replace the single weight arrow with two arrows that add up to it: one pointing down the slope and one pointing into the slope.

WHY split it. Motion happens along the surface; pressing happens perpendicular to it. These are two independent directions, so Newton's Second Law applies separately to each. Splitting weight into these two directions lets us handle "does it slide?" and "how hard does it press?" as two clean, separate questions.

WHY these are sine and cosine. Look at the right triangle formed by the weight arrow (the long slanted side, the hypotenuse, length $mg$) and its two component arrows. The angle at the top of that triangle equals $\theta$ — here is why:

Now recall from a right triangle what sine and cosine mean:

• $\cos \theta =\frac{\text{adjacent}}{\text{hypotenuse}}$ — the side next to the angle, over the long side.
• $\sin \theta =\frac{\text{opposite}}{\text{hypotenuse}}$ — the side across from the angle, over the long side.

The into-slope arrow sits next to the angle $\theta$ (adjacent), so its length is $mg\cos \theta$. The along-slope arrow sits across from $\theta$ (opposite), so its length is $mg\sin \theta$.

---

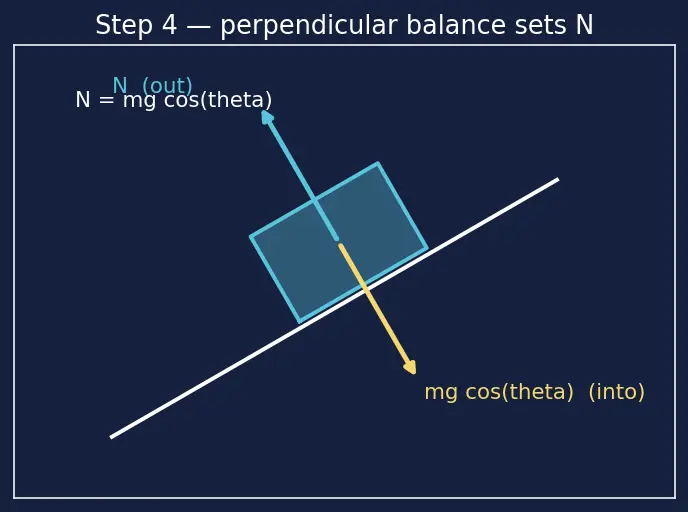

Step 4 — The perpendicular direction: normal force adjusts

WHAT. In the into-slope direction the block does not fly off the ramp and does not sink into it — it stays put. So the forces perpendicular to the ramp must cancel.

WHY. No acceleration perpendicular to the surface $\Rightarrow$ by Newton's Second Law the perpendicular forces sum to zero. The only two perpendicular forces are the Normal Force $N$ (out of the ramp) and the into-slope piece of weight $mg\cos \theta$ (into the ramp).

PICTURE. The blue normal arrow now tilts with the ramp (it is always perpendicular to the surface). It exactly matches the green into-slope arrow in length but points the opposite way.

$N=mg\cos \theta$

• $N$ = normal force, the perpendicular push of the ramp.
• $mg\cos \theta$ = the piece of weight pressing into the ramp.

---

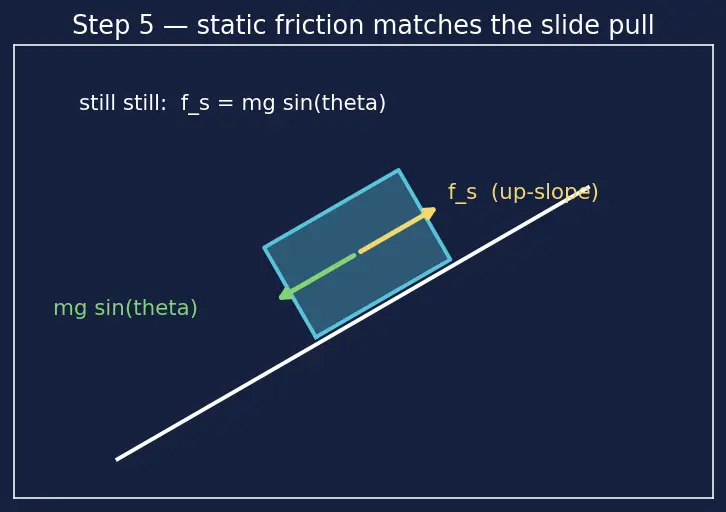

Step 5 — The along-slope direction: friction fights the slide

WHAT. In the along-slope direction, the sliding piece $mg\sin \theta$ tries to drag the block down. Static friction $f_s$ points up the slope to hold it.

WHY friction points uphill. Friction always opposes the tendency to move. The block tends to slide down, so friction pushes up. And crucially — static friction is not a fixed number. It supplies exactly whatever is needed to keep the block still, up to a ceiling.

PICTURE. The yellow friction arrow points up the slope, balancing the along-slope weight piece. At small tilt they are short and equal; as we tilt more, both grow.

While the block sits still: $f_s=mg\sin \theta$

• $f_s$ = the actual static friction right now (self-adjusting).
• $mg\sin \theta$ = the along-slope pull it must cancel.

---

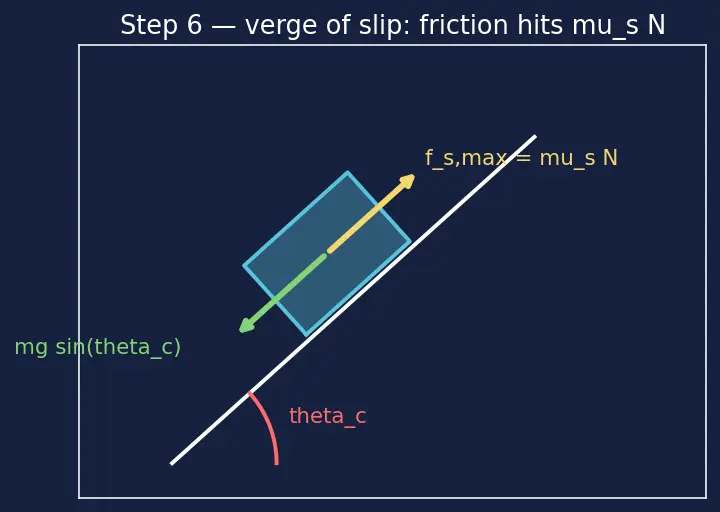

Step 6 — Tilt until it just slips: friction hits its ceiling

WHAT. Keep tilting. The along-slope pull $mg\sin \theta$ grows. Static friction climbs to keep up — until it reaches its absolute maximum. That special tilt is the critical angle ${\theta }_c$, the angle of repose.

WHY this is the magic moment. The maximum static friction is defined as $f_{s,\max }={\mu }_{s}N$ (this is the very definition of ${\mu }_s$ from the parent note). At the verge of slipping, and only then, the actual friction equals this ceiling. So we can finally substitute.

PICTURE. At ${\theta }_c$ the yellow friction arrow is stretched to its limit — one hair more tilt and it snaps, the block slides. The green sliding arrow and the yellow friction arrow are exactly equal in length, both maxed.

Set the along-slope balance at this critical instant, then insert both the friction ceiling and the normal force from Step 4: $\underset{\text{along-slope pull}}{\underbrace{mg\sin {\theta }_c}}=\underset{\text{friction at its limit}}{\underbrace{f_{s,\max }}}=\underset{\text{definition of }{\mu }_s}{\underbrace{{\mu }_{s}N}}={\mu }_s\underset{N\text{ from Step 4}}{\underbrace{mg\cos {\theta }_c}}$

Every symbol: $m$ mass, $g$ gravity, ${\theta }_c$ the slipping angle, ${\mu }_s$ the static coefficient we want.

---

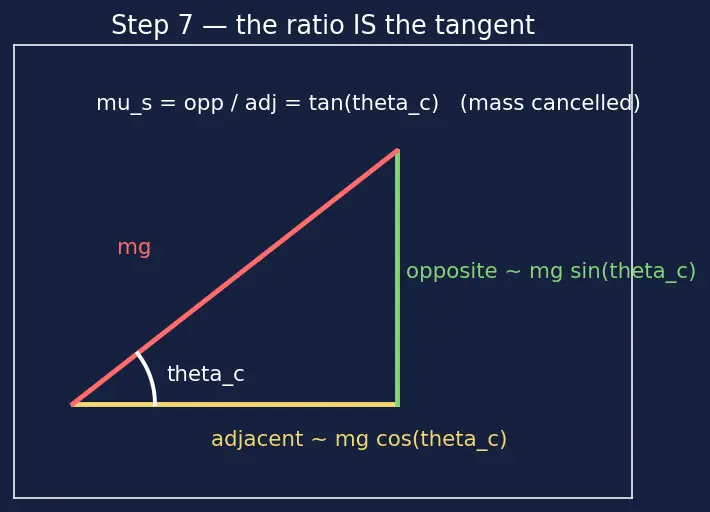

Step 7 — Cancel the mass, meet the tangent

WHAT. Divide both sides by $mg\cos {\theta }_c$.

WHY divide by that. It kills two birds: $mg$ appears on both sides (so mass and gravity vanish), and dividing $\sin$ by $\cos$ produces exactly the tangent — the ratio that is the answer.

WHY the tangent specifically. Recall $\tan \theta =\frac{\sin \theta }{\cos \theta }=\frac{\text{opposite}}{\text{adjacent}}$ = the steepness of the slope: rise over run. We chose tangent because it is precisely the ratio (down-slope pull) ÷ (into-slope press) — and that ratio is what friction must match.

$\frac{mg\sin {\theta }_c}{mg\cos {\theta }_c}={\mu }_s⟹\boxed{{\mu }_s=\tan {\theta }_c}$

PICTURE. The right triangle whose "opposite" is the along-slope arrow and "adjacent" is the into-slope arrow. Their ratio — the tangent — is ${\mu }_s$. Mass has completely disappeared from the picture; only the shape of the triangle (its angle) remains.

---

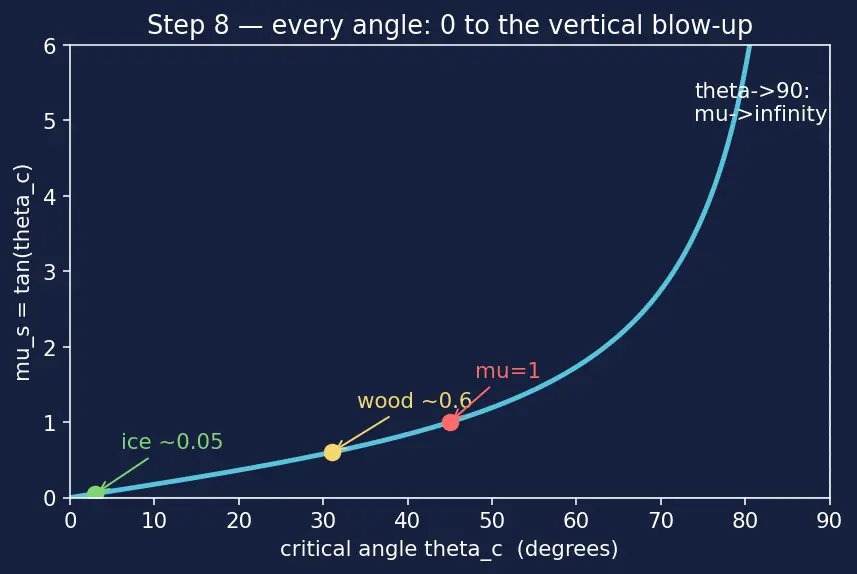

Step 8 — Cover every case: gentle, steep, and the vertical extreme

WHAT. Let us sweep $\theta$ from $0^{\circ }$ to $90^{\circ }$ and check the formula never breaks.

WHY. The contract: the reader must never meet a scenario we skipped. Tangent has its own personality — it starts at $0$, climbs, and blows up at $90^{\circ }$. We must show what each region means physically.

PICTURE. A graph of $\tan \theta$ against $\theta$, with three regions flagged.

• $\theta =0^{\circ }$ (flat table). $\tan 0^{\circ }=0$, so this predicts ${\mu }_s=0$ only if it slips at zero tilt — i.e. a frictionless surface. A block that never slips on the flat needs some tilt, giving ${\mu }_s>0$. Consistent. ✓
• Small $\theta$ (grippy pair). $\tan \theta$ small $\Rightarrow$ small ${\mu }_s$? No — a grippy pair (rubber) needs a big tilt before slipping, so ${\theta }_c$ is large and $\tan {\theta }_c$ is large. Ice needs almost no tilt, tiny ${\theta }_c$, tiny ${\mu }_s$. The formula orders materials correctly. ✓
• $\theta \to 90^{\circ }$ (vertical wall). $\tan \theta \to \infty$. A vertical surface would need infinite friction to hold a block by contact alone — indeed you cannot hold a block on a frictionless vertical wall, and even with friction ${\mu }_{s}N={\mu }_s\cdot 0=0$ (since $N=mg\cos 90^{\circ }=0$). Both the graph and the physics agree: no ordinary pair reaches ${\theta }_c=90^{\circ }$. ✓

---

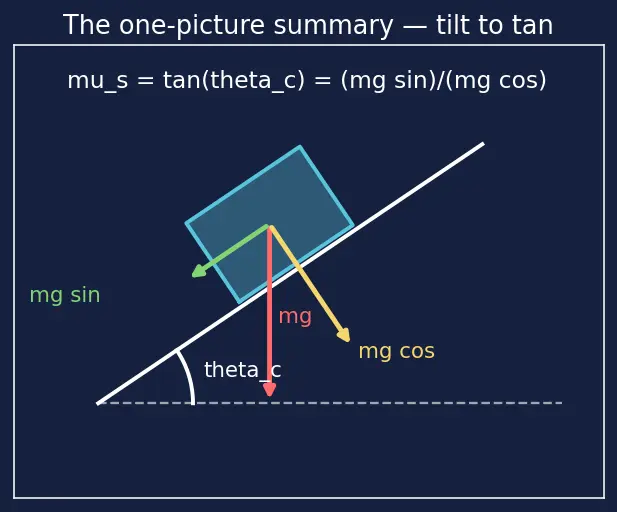

The one-picture summary

Everything above lives in a single right triangle sitting on the ramp: weight is the hypotenuse, its two legs are the pressing force $mg\cos \theta$ and the sliding force $mg\sin \theta$, and their ratio — the slope's steepness, the tangent — is the friction coefficient the moment friction maxes out.

Recall Feynman: the whole walk in plain words

Put a block on a board and lift one end. Gravity always pulls straight down, but on a slanted board that pull splits into two feelings: one piece slides the block downhill, another piece squishes it onto the board. As you tilt more, the sliding piece grows and the squishing piece shrinks. Friction pushes back uphill and quietly matches the sliding piece — until it can't. There's a maximum grip, and that maximum is grippiness-number times squish. Right at the tilt where the block breaks loose, "sliding piece" equals "grippiness × squish." Both pieces carry the block's weight, so the weight divides out — heavy or light, same tilt! What's left is (sliding piece ÷ squishing piece), which is just how steep the board is: rise over run, the tangent. So the tangent of the break-loose angle is the grippiness number. Tilt a ramp, read the angle, take its tangent — you measured friction with a protractor.

---

Connections

• Newton's Second Law — the balance equations in each direction.
• Normal Force — why $N=mg\cos \theta$ on a tilt, not $mg$.
• Static vs Kinetic Friction — the ceiling ${\mu }_{s}N$ and the switch to ${\mu }_k$ past ${\theta }_c$.
• Inclined Plane Dynamics — the same along/perpendicular split.
• Free Body Diagrams — the arrow bookkeeping used throughout.
• Lubrication & Tribology — how films shrink ${\mu }_s$ and thus ${\theta }_c$.
