Foundations — Coefficients of friction — measurement, material dependence

Before you can read the parent note, you must be able to see every letter it writes. This page introduces each one from absolute zero — plain words first, then a picture, then the reason the topic can't live without it. Read top to bottom; each idea is used by the next.

---

1. Force — the arrow that pushes or pulls

Look at the figure: the same block, three different arrows. A longer arrow = a stronger force. An arrow pointing right pushes the block right. This is the whole vocabulary of a force — a direction and a size.

Why the topic needs it: friction, weight, and the normal force are all forces. If you can't picture an arrow, none of the balance equations later will mean anything.

---

2. Weight — the arrow gravity always draws

The letter $g$ is just a fixed number: on Earth every kilogram feels a $9.8\text{N}$ downward tug. So a $4\text{kg}$ box has weight $mg=4\times 9.8=39.2\text{N}$, drawn as a downward arrow.

---

3. The two surfaces and their contact

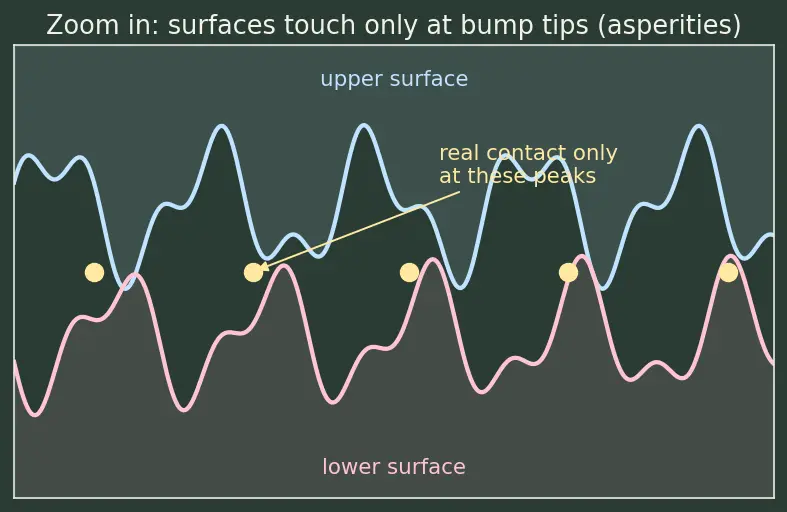

The figure shows the zoom-in: two jagged edges, touching only at a few peaks. This picture explains three things the parent note claims:

• Why friction resists sliding (you must climb bumps out of their slots).
• Why $\mu$ belongs to the pair of materials (both sets of bumps matter).
• Why apparent area doesn't matter (only the tiny peaks actually touch).

---

4. Normal force $N$ — the push straight out of the surface

Press a book onto a table: the table pushes back up with an arrow $N$ perpendicular to its top. Tilt the table and the arrow tilts with it — $N$ always leaves the surface at a right angle, not straight up.

Why the topic needs it: $\mu$ is defined as friction ÷ $N$. Without knowing $N$, the number $\mu$ has nothing to multiply. $N$ is the "how hard are they squeezed" that friction is proportional to.

See Normal Force for more; the parent uses this in both measurement methods.

---

5. Friction force $f$ — the drag along the surface

Notice $f$ and $N$ are perpendicular partners: $N$ pushes out of the surface, $f$ drags along it. Every friction problem is bookkeeping between these two directions.

---

6. The ratio and the symbol $\mu$

Now we can finally read the star of the topic.

Why ${\mu }_s\ge {\mu }_k$: at rest the bumps have time to settle and cold-weld into each other's valleys, so the maximum static grip is bigger; while sliding the bumps just skim the tops, so it takes less to keep going.

---

7. Splitting weight on a ramp — meet $\sin$ and $\cos$

On a flat table, weight points straight into the surface, so all of it becomes $N$. On a tilted ramp the weight arrow no longer lines up with the surface — part of it presses into the ramp, and part of it slides the block down the ramp. We need a tool to split one arrow into these two perpendicular pieces.

Follow the figure. The full weight $mg$ (pink, straight down) is the hypotenuse. Its shadow into the ramp is $mg\cos \theta$ (blue) — this is what the surface must cancel, so $N=mg\cos \theta$. Its shadow along the ramp is $mg\sin \theta$ (yellow) — this is what tries to make it slide.

See Inclined Plane Dynamics for the full coordinate setup.

---

8. $\tan \theta$ — why the tilt angle is the answer

Here is the payoff that the whole incline method rests on.

At the verge of slipping, the down-slope pull equals the maximum grip: $mg\sin {\theta }_c={\mu }_s(mg\cos {\theta }_c).$ Divide both sides by $mg\cos {\theta }_c$. The $mg$ cancels (that's why we kept it symbolic in step 2!), and $\sin /\cos$ becomes $\tan$: ${\mu }_s=\frac{\sin {\theta }_c}{\cos {\theta }_c}=\tan {\theta }_c.$

---

9. Newton's balance rule — why "the forces cancel"

Every equation in the topic ("perpendicular balance", "along-slope balance", "constant velocity") uses one rule.

When is $a=0$? When the object is (a) sitting still, or (b) moving at constant velocity (steady speed, straight line). Both mean "no leftover push", so the arrows balance.

That is why the parent measures ${\mu }_k$ at constant velocity: with $a=0$, your pull exactly equals kinetic friction — no leftover force to muddy the reading. And why "perpendicular to the ramp" always balances: the block never flies off the surface, so $a=0$ there and $N=mg\cos \theta$. See Newton's Second Law and Free Body Diagrams.

---

Prerequisite map

---

Equipment checklist

Test yourself — cover the right side and answer before revealing.

---

Connections

• Parent topic (Hinglish) — the note these foundations feed into.
• Normal Force — the $N$ built in step 4.
• Static vs Kinetic Friction — the two flavours of $f$ from step 5.
• Newton's Second Law — the $a=0$ balance rule of step 9.
• Inclined Plane Dynamics — full ramp coordinate setup from steps 7–8.
• Free Body Diagrams — the arrow-drawing tool used throughout.
• Lubrication & Tribology — how films at the asperities lower $\mu$.
