1.2.5Newton's Laws & Dynamics

Normal force — reaction force, not always = mg

1,805 words8 min readdifficulty · medium6 backlinks

WHAT is the Normal Force?

WHY does it exist? Solid surfaces are made of atoms held by electromagnetic bonds. When you press an object onto a surface, the surface deforms microscopically (like a stiff spring), and the bonds push back. The harder you push, the harder it pushes — so NN adjusts itself to the situation.

WHY "not always mgmg"? Because NN is found by applying Newton's second law in the direction normal to the surface, not by a formula. Anything that changes the net normal-direction requirement changes NN.


HOW to find NN — the universal method

Derivation: the flat-ground case (where N=mgN=mg does hold)

Object of mass mm rests on a horizontal floor. Forces: gravity mgmg down, normal NN up. No vertical acceleration (a=0a=0). Fy=Nmg=may=0    ==N=mg==\sum F_y = N - mg = m a_y = 0 \;\Rightarrow\; ==N = mg==

Why this step? We set ay=0a_y=0 because the object isn't accelerating vertically. Only under these assumptions does N=mgN=mg.

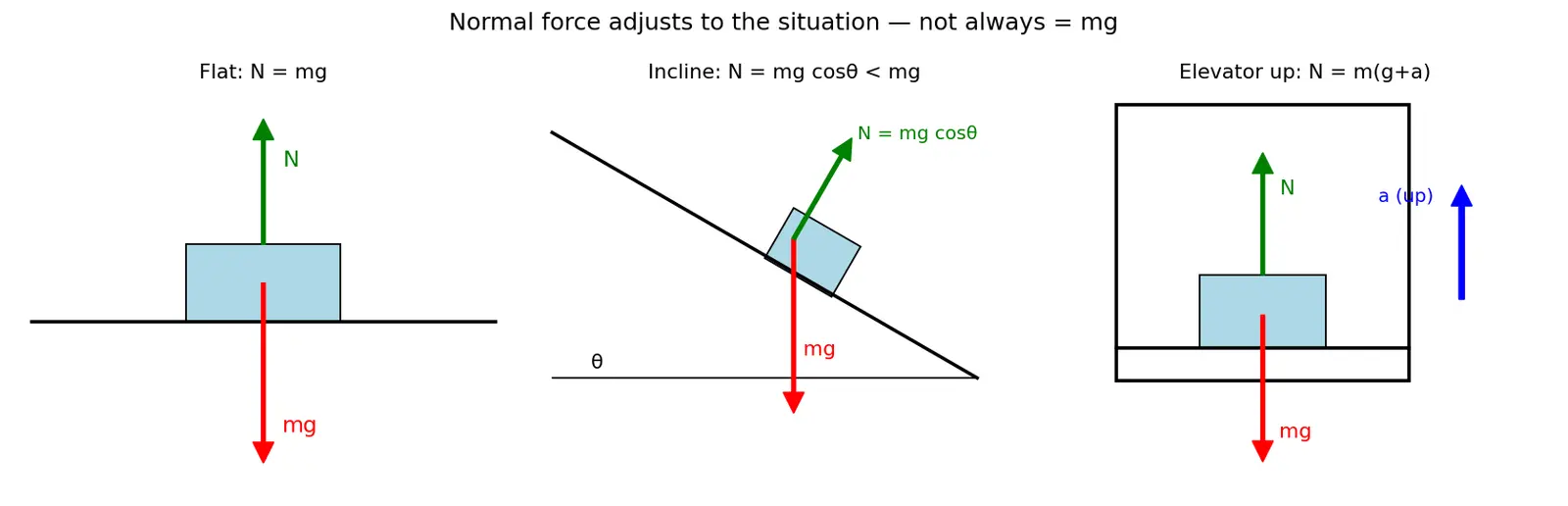

Figure — Normal force — reaction force, not always = mg

Cases where NmgN \neq mg

1. Extra vertical push or pull

Push down with force FF on a block on the floor: Fy=NmgF=0    N=mg+F\sum F_y = N - mg - F = 0 \;\Rightarrow\; N = mg + F Pull up with FF: N=mgFN = mg - F Why? NN supplies whatever is left over to keep ay=0a_y=0.

2. Elevator / vertical acceleration

Person of mass mm in an elevator accelerating up with aa: Fy=Nmg=ma    ==N=m(g+a)==\sum F_y = N - mg = ma \;\Rightarrow\; ==N = m(g+a)== Accelerating down with aa:   N=m(ga)\;N = m(g-a). Free fall (a=ga=g):   N=0\;N=0 (weightlessness!). Why? The "weight you feel" is actually NN, the floor's push — not gravity.

3. Inclined plane

Block on a frictionless incline at angle θ\theta. Resolve gravity into components \perp and \parallel to surface. Along the normal there's no acceleration (block slides along the slope, not into it): F=Nmgcosθ=0    ==N=mgcosθ==\sum F_{\perp} = N - mg\cos\theta = 0 \;\Rightarrow\; ==N = mg\cos\theta== Why cosθ\cos\theta? Only the component of gravity perpendicular to the surface must be balanced by NN. Since θ<90\theta<90^\circ, cosθ<1\cos\theta<1, so N<mgN<mg.

4. Inclined plane being accelerated (steel-man trap)

If the incline itself accelerates horizontally, a0a_\perp\neq0 and NN changes again — always go back to F=ma\sum F_\perp = m a_\perp.




Recall Feynman: explain to a 12-year-old

Imagine standing on a trampoline. The trampoline pushes up on your feet so you don't fall through — that push is the normal force. If a friend pushes down on your shoulders, the trampoline pushes back harder to hold both of you. If the trampoline floor were suddenly dropped (free fall), it stops pushing and you feel weightless. And on a slide (a slope), the floor only pushes straight out of the slide, not straight up — so it doesn't have to push as hard as your full weight. The push is never a fixed number; it's always exactly enough to keep you from sinking in.


Active Recall

What is the normal force?
The perpendicular contact force a surface exerts on an object, pushing it away from the surface; a constraint/reaction force whose value adjusts to prevent interpenetration.
Is normal force always equal to mg?
No — only on a horizontal surface with no extra vertical forces and no vertical acceleration. Otherwise solve F=ma\sum F_\perp = ma_\perp.
General method to find N?
Apply Newton's 2nd law along the surface-normal direction: F=ma\sum F_\perp = m a_\perp, then solve for N.
N for a block on a frictionless incline of angle θ?
N=mgcosθN = mg\cos\theta, because only the perpendicular component of gravity must be balanced.
N for mass m in an elevator with upward acceleration a?
N=m(g+a)N = m(g+a).
N in free fall?
N=0N=0 — weightlessness; the surface no longer needs to push.
Push down with extra force F on a block on the floor — what is N?
N=mg+FN = mg + F.
Are N (floor on box) and mg (Earth on box) a Newton's-3rd-law pair?
No — they act on the same body. The reaction to N is the box pushing down on the floor.
Why does N exist physically?
Electromagnetic repulsion between atoms as the surface microscopically compresses, like a stiff spring pushing back.

Connections

  • Newton's Second Law — the engine that determines NN
  • Newton's Third Law — clarifies what NN's true reaction is
  • Friction — kinetic/static friction is proportional to NN (f=μNf=\mu N)
  • Inclined Plane Problems — where N=mgcosθN=mg\cos\theta
  • Apparent Weight & ElevatorsN=m(g±a)N=m(g\pm a)
  • Free Body Diagrams — the tool to set up F\sum F_\perp

Concept Map

is a

origin

direction

found by

solve

flat ground, a=0

extra push/pull F

elevator accel a

free fall a=g

incline angle theta

special case only

Normal force N

Reaction/constraint force

EM atomic bonds push back

Perpendicular to surface

Apply Newton 2nd law along normal

sum F_perp = m a_perp

N = mg

N = mg +/- F

N = m of g+a

N = 0 weightless

N = mg cos theta

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, normal force ka matlab hai woh push jo koi surface aapke object par deti hai, hamesha surface ke perpendicular (90 degree) direction me. Ye ek reaction force hai — matlab surface utni hi zor se push karti hai jitni zaroorat hoti hai object ko andar ghusne se rokne ke liye. Isiliye iska value fix nahi hota. Bahut log soch lete hain ki "NN hamesha mgmg ke barabar hoti hai" — galat! Ye sirf tab true hai jab object flat zameen par ho, koi extra vertical force na ho, aur vertical acceleration zero ho.

NN nikalne ka asli tarika ek hi hai: surface ke perpendicular direction me Newton's second law lagao — F=ma\sum F_\perp = m a_\perp — aur NN solve kar lo. Jaise lift me agar upar acceleration aa hai, to N=m(g+a)N = m(g+a), isiliye aapko bhaari mehsoos hota hai. Niche jaate waqt N=m(ga)N = m(g-a), halka lagta hai. Aur free fall me N=0N=0 — bilkul weightless! Incline (dhalan) par sirf gravity ka perpendicular component balance karna padta hai, isiliye N=mgcosθN = mg\cos\theta, jo mgmg se kam hota hai.

Ek important point: NN aur gravity (mgmg) Newton ke third law ke action-reaction pair NAHI hain, kyunki dono ek hi body par lag rahe hain. Real reaction to NN ka ye hai ki box neeche floor par push karta hai. Isko yaad rakho exam me — ye trap bahut aata hai. Toh hamesha free body diagram banao, perpendicular axis choose karo, aur NN ko situation se nikalo — ratto mat.
