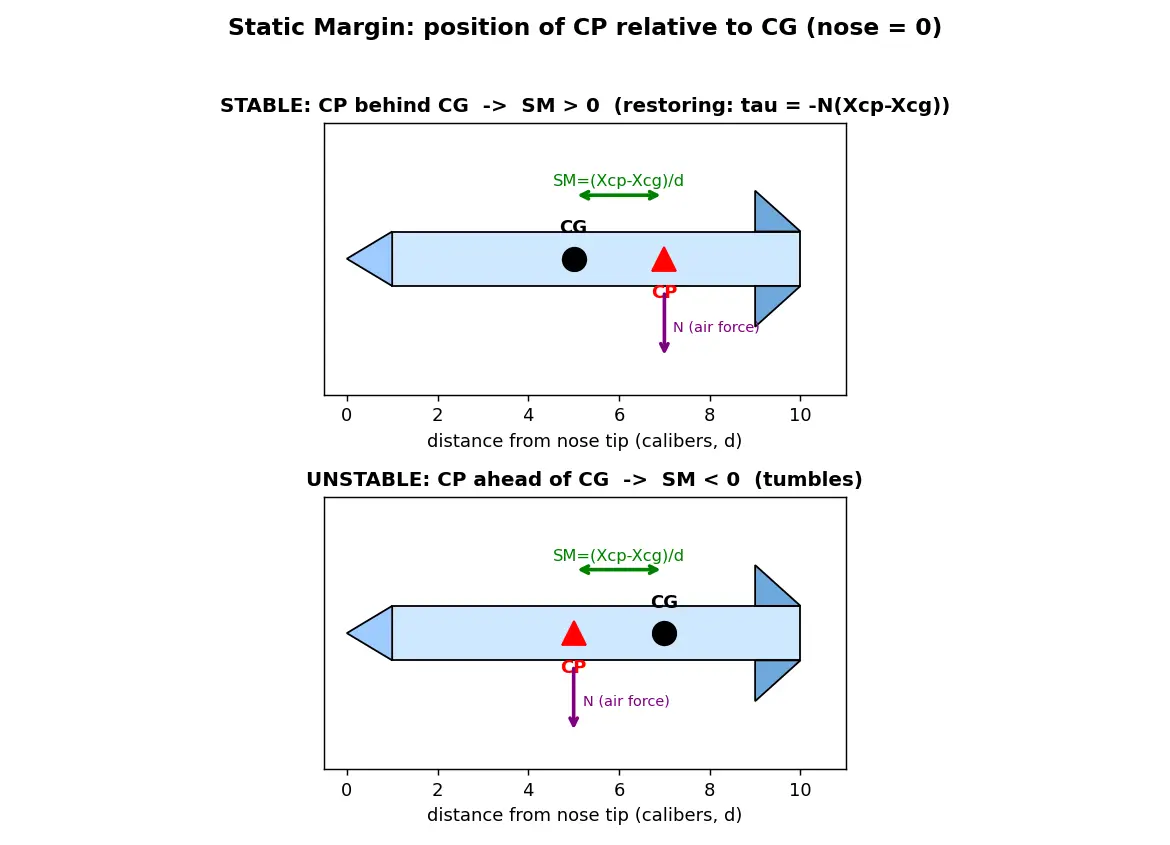

Static margin = (XCP − XCG) - d — must be positive (at least 1 caliber)

WHAT is static margin?

• $X_{CP}$ = distance from nose tip to the centre of pressure.
• $X_{CG}$ = distance from nose tip to the centre of gravity.
• $d$ = maximum body tube diameter (the "caliber").

WHY must it be positive? (Derivation from first principles)

Setup. In steady flight the rocket points along some direction. A gust (or launch wobble) tilts it by a small angle of attack $\alpha$ — the angle between the body axis and the oncoming air (relative wind).

Step 1 — Aerodynamic force appears. Air hitting the tilted body produces a normal force $N$ (perpendicular to the body axis, pointing to reduce the tilt for a body behind its CP). By definition this total force acts at the centre of pressure $X_{CP}$.

Why this step? By construction, $X_{CP}$ is the single point where the entire distributed pressure load can be replaced by one equivalent force — that's what "centre of pressure" means.

Step 2 — The force creates a torque about the CG. (Fix the sign!) The rocket rotates about its centre of gravity (it's a free body in flight — nothing holds the nose). Take nose-up (increasing $\alpha$) as the positive rotation sense. The aerodynamic normal force acts to push the tail around, so the moment it produces about the CG is: $\boxed{\tau = -\,N \cdot (X_{CP} - X_{CG})}$

Why the minus sign? If $X_{CP}-X_{CG}>0$ (CP behind CG) and $N>0$ (force grows with a positive tilt), the resulting moment must oppose the tilt — i.e. be negative in our positive-$\alpha$ convention. The explicit "$-$" encodes exactly this restoring behaviour; without it the equation would (wrongly) read as amplifying the tilt. This is the correct linearized pitching-moment relation.

Why this step at all? Torque = force × perpendicular lever arm, and the pivot of a free-flying body is always its CG.

Step 3 — For small $\alpha$, the force grows with the tilt. $N = \tfrac{1}{2}\rho v^2 A\, C_{N\alpha}\, \alpha$ where $C_{N\alpha}>0$ is the normal-force slope. So $N \propto \alpha$: bigger tilt → bigger force.

Why this step? This linear relation is the standard small-angle aerodynamic result; the key fact is simply $N > 0$ and grows with $\alpha$.

Step 4 — Sign decides stability. Combine: $\tau = -\underbrace{\tfrac{1}{2}\rho v^2 A\, C_{N\alpha}}_{>0}\;\alpha\;(X_{CP}-X_{CG})$

• If $X_{CP} - X_{CG} > 0$ (CP behind CG): $\tau$ has the opposite sign to $\alpha$ → torque pushes $\alpha$ back toward zero → restoring → stable. ✅
• If $X_{CP} - X_{CG} < 0$ (CP ahead of CG): $\tau$ has the same sign as $\alpha$ → torque increases $\alpha$ → tumbling. ❌
• If $=0$: neutral, drifts randomly. ⚠️

Why this is the whole story: a positive static margin is exactly the condition $X_{CP}-X_{CG}>0$, and the "$\ge 1$ caliber" rule adds a safety cushion because $X_{CP}$ can migrate (especially through the transonic/supersonic regime) and the CG shifts as propellant burns.

HOW to compute it — worked examples

Active recall

Flashcards

Connections

• Center of Pressure — how $X_{CP}$ is estimated (Barrowman equations) and its Mach-dependent migration.
• Center of Gravity — mass-weighted balance point and how ballast / burn shifts it.
• Angle of Attack — the $\alpha$ that the restoring torque nulls out.
• Weathercocking — over-stability turning into the wind.
• Fin Design — enlarging fins to push CP aft.
• Rocket Stability Criterion — the parent stability framework.
• Transonic Aerodynamics — why CP shifts near Mach 1.
• Normal Force Coefficient — origin of $C_{N\alpha}$.
