Static margin = (XCP − XCG) - d — must be positive (at least 1 caliber): Foundations

Before you can read the parent topic you must own every letter and picture it uses. We build them one at a time, each resting on the one before.

1. The rocket as a rigid line

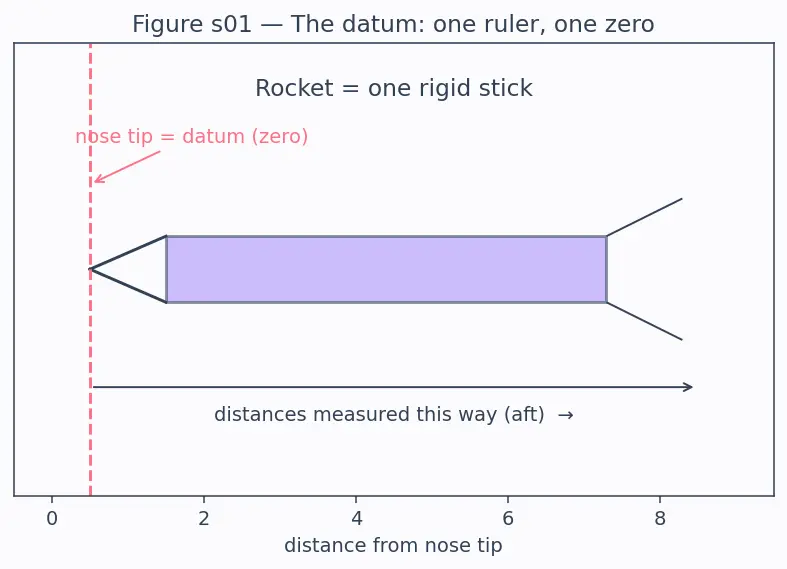

Forget the fins and the flames for a moment. Picture the rocket as one stiff stick pointing through the air. Look at figure s01: it shows the rocket reduced to that stick, with our measuring ruler starting at the nose. Two things will live on this stick, and everything else is about where they sit.

Figure — Static margin = (XCP − XCG) - d — must be positive (at least 1 caliber)

Why we need a datum: a distance means nothing until you say "distance from where?" If we measured the balance point from the nose but the air-push point from the tail, subtracting them would give nonsense. One ruler, one zero, for both.

2. $X_{C G}$ — the balance point

The picture: lay the rocket across your finger and slide it until it doesn't tip either way. Your finger is under the CG. If the nose is heavier, the balance point sits closer to the nose (small $X_{C G}$ ); if the tail is heavier, it sits further back (large $X_{C G}$ ).

Why the topic needs it: a free-flying rocket has nothing holding it — it spins about its own balance point, its CG. So the CG is the pivot of every rotation. You cannot talk about "which way it turns" without first knowing where it turns.

See Center of Gravity for the full mass-averaging idea.

3. $X_{C P}$ — the air-push point

When air flows past a tilted rocket, it doesn't push at one neat spot — it presses all along the body and fins. But all those little pushes add up to the same effect as one push at one point.

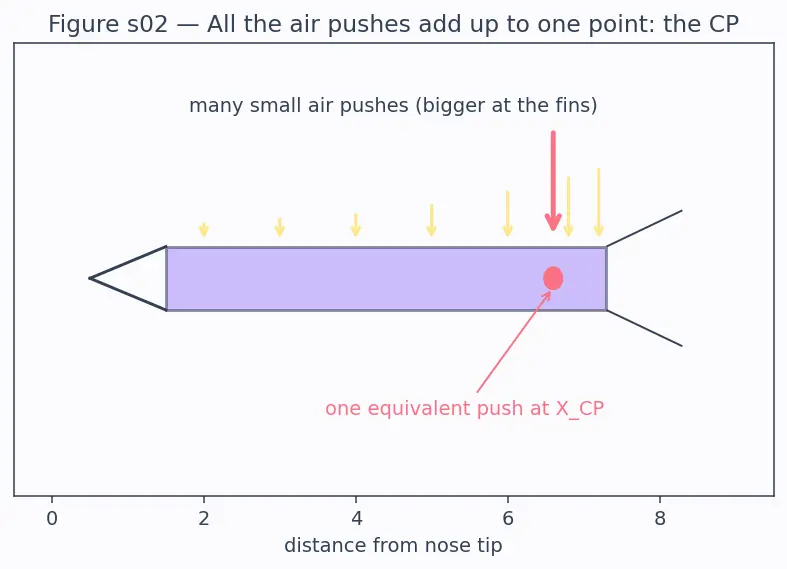

The picture: the fins at the back have big area, so the air shoves them hard; the thin nose gets shoved gently. The "average" push point therefore sits toward the back — behind the fins' pull. Look at figure s02: the many small arrows all along the body collapse into one fat arrow at the red dot.

Why the topic needs it: to find whether air turns the rocket straight or crooked, we need to know where that turning push acts. That is exactly $X_{C P}$ .

See Center of Pressure and Normal Force Coefficient for how it's computed.

4. $d$ — the caliber (a built-in ruler)

The picture: imagine stamping the body's circle-width along the length of the rocket, like footprints. "The CP is 2 calibers behind the CG" means "2 body-widths behind." A fat rocket's caliber is big; a thin one's is small.

Why the topic needs it: a 3 cm gap means a lot on a pencil-thin rocket and almost nothing on a fat one. Measuring the gap in its own diameters makes the number fair across every rocket size — that's why the final answer is dimensionless.

5. The subtraction $X_{C P} - X_{C G}$ — the real gap

Now that both points are measured from the same nose-tip datum, subtracting them gives a genuine physical distance.

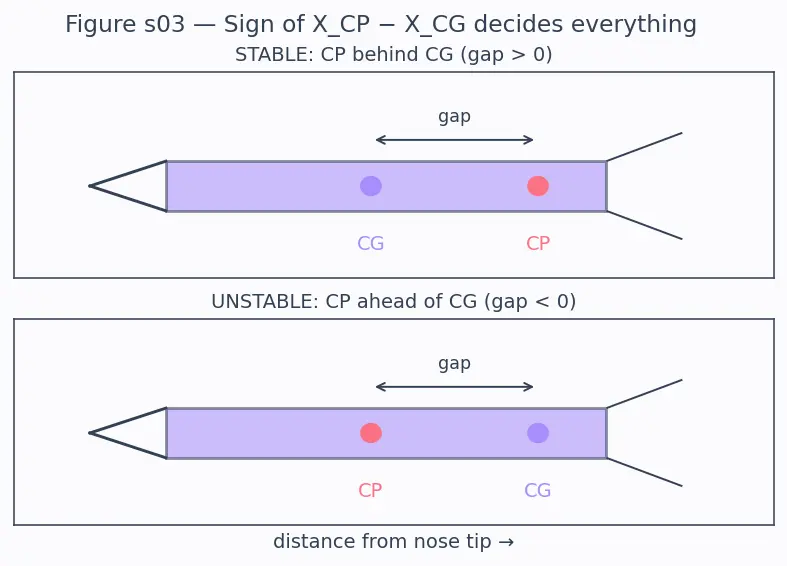

The picture: on the stick, mark the CG (blue) and the CP (red). If red is to the right of blue (further from nose), the gap is positive — the good case. Figure s03 shows both orderings side by side.

Why the sign matters: "behind" versus "ahead" is the entire difference between a rocket that flies like a dart and one that spins like a badly thrown stick. The subtraction, with its sign, encodes that.

6. $α$ — the angle of attack (why anything happens at all)

If the rocket flew perfectly along its own axis, the air would hit it dead-on and produce no sideways push. Turning must be triggered by a tilt.

The picture: point a straw straight into a stream of water — no side-push. Now tilt the straw nose-up a little: water slams the underside. That upward tilt is positive $α$ . Bigger tilt, bigger side-push.

Why the topic needs it: the whole stability story is about what happens when a gust tilts the rocket — i.e. when $α$ is briefly non-zero. Stability means the resulting push shrinks $α$ back to zero. See Angle of Attack.

7. $N$ — the normal force, and why it grows with $α$

The picture: the tilted straw from before — the sideways slap of water is $N$ . Straighten the straw ( $α = 0$ ) and the slap vanishes ( $N = 0$ ). The formula the parent uses, $N = \frac{1}{2} ρ v^{2} A C_{N α} α,$ just says this in symbols. Let's name each piece so nothing is a mystery:

Definition The pieces of the normal-force formula

$ρ$ (Greek "rho") = air density — how thick/heavy the air is. Thicker air pushes harder.
$v$ = the rocket's speed through the air. Faster flight → much harder push (it's squared, so double the speed = four times the push).
$A$ = the reference area. It is a bookkeeping area you choose once and stick to; the standard rocket choice is the body-tube cross-section, $A = \frac{π}{4} d^{2}$ (the circle of diameter $d$ ). It is not the fin or wetted area — those live inside $C_{N α}$ instead. The rule is only: whatever area you pick for $A$ , the same area must have been used when $C_{N α}$ was measured, so the product $A C_{N α}$ gives the true force. The parent topic uses this body cross-section throughout, which is why $A$ and $d$ share the same $d$ .
$C_{N α}$ = the normal-force slope, a positive number saying how strongly push grows per unit of tilt, for that chosen $A$ . Its units are "per radian" (force-coefficient gained for each radian of tilt), which is why $α$ must be fed in as radians below. See Normal Force Coefficient.
$α$ = the tilt from section 6, measured in radians.

Common mistake This formula only works for a

small tilt The clean relation $N = \frac{1}{2} ρ v^{2} A C_{N α} α$ is a small-angle (linear) approximation — valid only while $α$ is small (roughly $α ≲ 1 0^{\circ}$ , i.e. about $0.17$ radians). It says " $N$ grows in straight proportion to $α$ ," which is only true near $α = 0$ ; at large tilts the real force curves over and eventually falls (the flow separates). Two conditions must both hold for the formula as written:

Small $α$ — so the straight-line proportionality is a good fit.
$α$ in radians — because $C_{N α}$ is defined "per radian." Plug in degrees and your force is wrong by the factor $180/ π \approx 57$ . If you must use degrees, use the per-degree slope $C_{N α} \cdot π /180$ instead.

For the stability story this is fine: gusts and launch wobble give exactly the small tilts where the linear law holds. The only facts we truly lean on are $N > 0$ and $N$ grows with $α$ .

Why the topic needs it: the only fact that truly matters for the stability argument is $N > 0$ and $N$ grows with $α$ (for the small tilts a gust produces). That's what lets a tilt create a correcting push. Everything else in the formula is just "how big."

8. $τ$ — torque, the turning effect

A sideways push at a distance from the pivot doesn't just shove — it turns. That turning strength is torque.

Formula How the minus sign and the signed gap work together

There are two separate things here — do not confuse them:

The lever arm $(X_{C P} - X_{C G})$ is used as a signed quantity, straight from the subtraction in section 5. In the stable case (CP behind CG) it is a positive number; in the unstable case (CP ahead of CG) it is negative. You never flip its sign by hand — you just plug in the signed value.
The explicit " $-$ " is a fixed part of the formula, put there once to record our sign conventions (nose-up positive for both $α$ and $τ$ ). It does not change from case to case.

Together they give the right physics automatically. Stable case: positive $N$ , positive gap → $τ = - (+) (+) < 0$ → restoring. Unstable case: positive $N$ , negative gap → $τ = - (+) (-) > 0$ → amplifying. The single formula, with its permanent minus sign and the signed gap, covers every case with no manual sign-juggling.

The picture: a door. Push near the hinge (small lever) and it barely moves; push at the handle (big lever) and it swings easily. The rocket's "hinge" is the CG; the air pushes at the CP; the further apart they are, the stronger the turn.

Why the minus sign — anchored in our axes? We chose nose-up as positive for both $α$ and $τ$ (section 6). A positive tilt (nose-up) makes a positive $N$ pressing the underside behind the CG (gap $> 0$ ), which swings the nose back down — that is a nose-down, i.e. negative, rotation. So a positive $α$ must give a negative $τ$ : the equation needs the explicit " $-$ " to record that the torque opposes the tilt. Flip any one convention and the sign flips with it — the physics (restoring) is unchanged; the minus is just how it reads in these axes. See Rocket Stability Criterion and Weathercocking.

9. Putting it together — the static margin

Now every symbol is earned, the parent's headline formula reads cleanly:

Intuition Why

1 caliber, and not zero? Positive is the bare minimum for stability right now, but $X_{C P}$ and $X_{C G}$ both move during flight — the CP creeps forward as the rocket goes supersonic, and the CG shifts as propellant burns. A margin of exactly $0.1$ caliber can vanish (go negative → tumbling) after a small forward CP shift. So we need a buffer. Why size that buffer at one caliber? Because the CP's own position is itself only pinned down to roughly ±half a body-diameter by wind-tunnel and prediction uncertainty, and a fin's effect scales with the body width $d$ ; one full caliber comfortably swallows both the in-flight migration and the measurement uncertainty. It is a rule-of-thumb safety cushion — big enough to stay stable through the worst of the flight, small enough to avoid the over-stable problem the parent note calls weathercocking (too much margin makes the rocket point so aggressively into a crosswind that it arcs into the wind and loses altitude). Anything less than one caliber risks the margin flickering negative somewhere in the envelope; hence "at least 1 caliber."

The fins in Fin Design and the fast-flight surprises in Transonic Aerodynamics are just ways this gap changes — but the meaning of every letter is now fixed.

Prerequisite map

Equipment checklist

Hide the right side and test yourself — you're ready when every one is instant.

What is the datum, and why one datum for both points?

The nose tip; both

X_{C P}

and

X_{C G}

must use the same zero or their subtraction is meaningless.

What does

X_{C G}

physically mark?

The balance point — the pivot a free-flying rocket rotates about.

What does

X_{C P}

physically mark?

The single point where all the air's push effectively acts.

What is one caliber?

One body diameter

d

— the rocket's own unit of length.

What does

X_{C P} - X_{C G} > 0

mean in words?

The air-push point sits behind the balance point (the stable ordering).

What sign convention do we use for

α

and

τ

Nose-up is positive for both, so the minus sign in

τ = - N (X_{C P} - X_{C G})

literally reads "torque opposes the tilt."

What is

α

and why does the story need it?

The tilt (angle of attack) between body axis and oncoming air; without a tilt there is no correcting push.

When is

N = \frac{1}{2} ρ v^{2} A C_{N α} α

valid, and what units must

α

be in?

Only for small tilts (linear regime,

α ≲ 1 0^{\circ}

), and

α

must be in radians because

C_{N α}

is defined per radian.

Why does

N

grow with

α

More tilt exposes more body to the airflow, so the sideways push increases (linearly for small

α

Which area is

A

, and what pins it down?

The body-tube cross-section

\frac{π}{4} d^{2}

; whatever area you pick must be the same one used to measure

C_{N α}

Is the lever arm signed or unsigned, and is the minus sign fixed?

The lever arm

X_{C P} - X_{C G}

is used as a signed value (positive when CP is behind CG); the explicit minus sign in

τ

is permanent, encoding the nose-up conventions.

What does

τ

measure, and what does its minus sign mean?

Turning effect = push × lever arm; the minus sign means the torque opposes (restores) the tilt when CP is behind CG.

Why divide by

d

at the end?

To make the margin a fair, dimensionless number that compares across rocket sizes.

Why require at least 1 caliber, not just positive?

Because CP and CG move in flight and CP position is uncertain to about ±half a diameter; one full caliber is a buffer that keeps the margin positive across the whole envelope.
