Normal force — reaction force, not always = mg: Question bank

Before you attempt the traps, we must pin down notation and conventions — most of these traps come from skipping exactly this step.

Look at the figure below: it shows the three geometries these traps live in — flat floor, incline, and elevator — each with its positive $⊥$ axis drawn, so you always know what "positive" means.

Figure — Normal force — reaction force, not always = mg

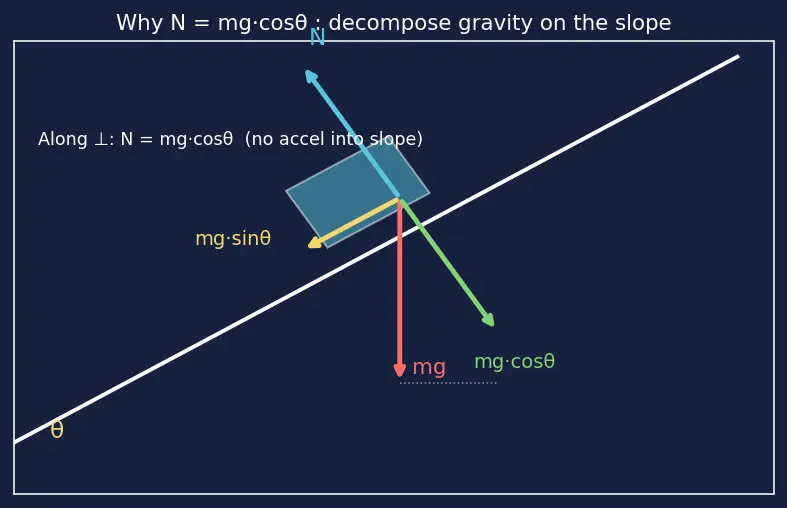

The next figure derives the one result students most often assert without showing — $N = m g cos θ$ on an incline — by decomposing gravity into its perpendicular and along-slope parts. Keep it in view for the incline traps.

And this figure shows the elevator case with all three sign scenarios ( $a$ up, $a = 0$ , $a$ down), so you can see why $a$ enters with its sign in $\sum F_{⊥} = m a_{⊥}$ .

Three anchors to hold:

Direction: $N$ is always perpendicular to the surface, pointing away from it into the object.
Value: found by resolving forces along the surface-normal axis and applying Newton's Second Law.
Reaction pairing: the true partner of $N$ acts on a different body — see Newton's Third Law.

Throughout the "push down" items below, $F$ means an externally applied push of magnitude $F$ directed vertically downward on the top of a block that rests on a horizontal floor.

True or false — justify

Every item: decide true/false, then give the physics.

TF — On any surface, the normal force equals the object's weight.

False.

N = m g

only on a horizontal surface with no other vertical forces and no vertical acceleration; the general rule is

\sum F_{⊥} = m a_{⊥}

TF — Normal force is always directed straight up.

False.

N

is perpendicular to the surface, not to the ground — on an incline it tilts, and on a ceiling it points down.

TF — A heavier object always feels a larger normal force from the same surface.

False in general. On an incline

N = m g cos θ

, and if the geometry or acceleration changes, mass alone doesn't decide

N

; only

\sum F_{⊥} = m a_{⊥}

does.

TF —

N

and the weight

m g

form a Newton's-third-law action–reaction pair on a flat floor.

False. Both act on the same body (the box); a 3rd-law pair must act on different bodies. See Newton's Third Law.

TF — The reaction to the floor's normal force on the box is the box pushing down on the floor.

True. Same magnitude, opposite direction, acting on the other body (the floor) — that is the genuine 3rd-law partner.

TF — In free fall an object still presses on the floor beneath it.

False. With positive

⊥

up and

a_{⊥} = - g

\sum F_{⊥} = N - m g = - m g

gives

N = 0

— nothing is pressed, hence weightlessness (see Apparent Weight & Elevators).

TF — Pushing down harder (extra downward force

F

) on a resting block increases the normal force.

True. With positive

⊥

up,

N - m g - F = 0

gives

N = m g + F

; the surface supplies more upward push to keep

a_{⊥} = 0

TF — On a frictionless incline, the normal force provides the acceleration down the slope.

False.

N

is perpendicular to the slope; the down-slope acceleration comes from

m g sin θ

, a force along the surface.

TF — If a block sits on an incline without sliding,

N

must be larger than on the flat to hold it.

False.

N = m g cos θ < m g

; friction (not a bigger

N

) is what holds it. See Friction.

TF — Doubling the incline angle from

3 0^{\circ}

6 0^{\circ}

halves the normal force.

False.

N = m g cos θ

;

cos 6 0^{\circ} / cos 3 0^{\circ} = 0.5/0.866 \approx 0.577

, not

0.5

—

cos

is not linear in

θ

TF — On a vertical wall, the normal force on a leaning object can be zero even though gravity acts.

True. A perfectly vertical wall pushes only horizontally; if nothing pushes the object into the wall,

N = 0

regardless of weight.

Spot the error

Each item states a wrong line of reasoning. Say what's broken.

"The elevator is moving up, so

N = m (g + a)

The error is confusing velocity with acceleration. What sets

N

is the sign of

a_{⊥}

, not the direction of motion — an elevator moving up but decelerating has

N = m (g - a)

"Gravity pushes the block onto the incline with force

m g

, so

N = m g

Only the component of gravity perpendicular to the surface presses into it:

m g cos θ

. The rest,

m g sin θ

, acts along the slope and

N

never has to balance it.

"On a slope,

N = m g sin θ

because the slope makes an angle

θ

Wrong component. The perpendicular projection of

m g

uses the adjacent side of the angle at the block, giving

cos θ

;

sin θ

is the along-slope part.

"Since

N

balances

m g

, the net force on a resting box is

N + m g

Balancing means they oppose: with positive

⊥

up, net force is

N - m g = 0

, not

N + m g

. Adding magnitudes ignores direction.

"The box on the elevator floor has

N = m g

because the box isn't sliding."

Not sliding is about horizontal/along-surface motion;

N

is set by vertical acceleration

a_{⊥}

. If the elevator accelerates,

N = m (g \pm a) \neq = m g

even with no sliding.

"An object placed against a ceiling has upward normal force since

N

points up."

N

points away from the surface into the object, so a ceiling pushes the object down. It is never fixed to "up".

"In free fall

N = 0

, so gravity also becomes zero."

Gravity

m g

is unchanged in free fall; only the contact force

N

vanishes. The felt weightlessness is the absence of

N

, not of gravity.

Why questions

Why does the normal force point perpendicular to the surface and not some other direction?

A smooth solid surface can only resist being penetrated, which is the perpendicular direction; any along-surface resistance is a separate force (friction), so

N

is purely perpendicular.

Why is

N

called a "constraint force" rather than being given by a fixed formula?

It takes exactly the value needed to enforce the constraint "don't sink into the surface," so its magnitude is solved for from Newton's Second Law, not looked up.

Why does the floor push harder when you accelerate upward in an elevator?

To produce upward acceleration the net upward force must be positive, so along the

⊥

axis

N

must exceed

m g

N = m (g + a)

— the extra push is what accelerates you.

Why does

N = m g cos θ

shrink as the incline gets steeper?

θ \to 9 0^{\circ}

, less of gravity points into the surface and more points along it, so

cos θ \to 0

and the surface has almost nothing perpendicular to resist. See Inclined Plane Problems.

Why isn't

N

the third-law reaction to gravity even though they look equal and opposite?

Third-law pairs act on different bodies; both

N

and

m g

act on the same box, so they're merely two forces that happen to balance, coincidentally equal only in the flat, non-accelerating case.

Why does the "feeling" of weight change in an elevator if your actual weight

m g

doesn't?

What you feel is the floor's push

N

on your feet, not gravity; since

N = m (g \pm a)

varies with acceleration, your apparent weight changes while

m g

stays fixed.

Why does drawing a free body diagram before writing

\sum F_{⊥}

prevent most

N

mistakes?

It forces you to list every contact and field force, pick the surface-normal axis, and fix a positive direction, so you can't accidentally assume

N = m g

or drop an extra push.

Edge cases

An object rests on a surface but nothing presses it down (e.g. floating just touching). What is

N

N = 0

. The normal force only appears when the constraint is active; touching without pressing needs no push.

A block accelerates downward at exactly

a = g

(free fall) on an elevator floor. What is

N

N = 0

: with positive

⊥

up,

\sum F_{⊥} = N - m g = m (- g)

gives

N = 0

— the classic weightless case in Apparent Weight & Elevators.

An elevator accelerates downward at

a > g

(cable pulls it down faster than gravity). What must happen to keep the box on the floor?

A plain floor can't pull, so

N

can't go negative — the box would lift off the floor unless something clamps it;

N = 0

and the box separates.

On a vertical wall (

θ = 9 0^{\circ}

), what does

N = m g cos θ

give and does it make sense?

cos 9 0^{\circ} = 0

N = 0

— correct, since a vertical wall exerts no vertical support; any

N

there must come from a horizontal push into the wall, a different setup.

On perfectly flat ground (

θ = 0

), does

N = m g cos θ

reduce correctly?

Yes:

cos 0^{\circ} = 1

N = m g

, recovering the flat-ground result as the special case it always was.

Can the normal force ever pull an object toward the surface (be negative)?

No. A surface can only push, so

N \geq 0

; a "negative

N

" in your algebra means the object has already left the surface and the equation no longer applies.

On a curved or bumpy (non-planar) surface, where a single tilt angle

θ

doesn't describe the whole surface, how do we still find

N

At each contact point

N

is perpendicular to the local tangent plane (the flat surface that just kisses the curve there); you apply

\sum F_{⊥} = m a_{⊥}

using that local normal, so the single-angle formula is just the flat-tangent special case.

Two identical boxes are stacked on the floor. What normal force does the floor exert on the bottom box?

N_{floor} = 2 m g

(it supports both weights), while the bottom box exerts

N = m g

up on the top box — each surface solves its own

\sum F_{⊥}

Connections

Newton's Second Law — the equation that produces $N$
Newton's Third Law — untangles $N$ 's true reaction partner
Friction — depends on $N$ via $f = μ N$ , so these traps propagate
Inclined Plane Problems — home of the $cos θ$ trap
Apparent Weight & Elevators — home of the $m (g \pm a)$ traps
Free Body Diagrams — the tool that defuses every trap here
