Visual walkthrough — Average acceleration vs instantaneous acceleration

---

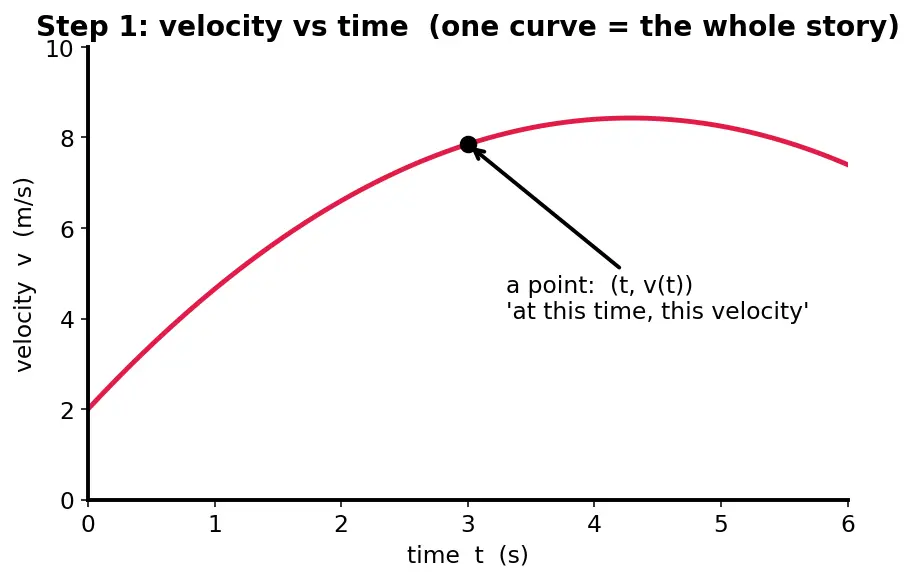

Step 1 — Draw the thing that changes

WHAT. We put velocity on the vertical axis and time on the horizontal axis, and draw the curve of how velocity behaves for one moving object. This drawing is a velocity–time graph.

WHY. Acceleration means "how fast velocity changes." To see a change you need a picture where velocity is a height you can watch rise and fall. Time runs left-to-right like a story; velocity is the height at each moment of that story.

PICTURE. Look at the red curve below.

• The horizontal axis is $t$ (time, in seconds) — how far into the story we are.
• The vertical axis is $v$ (velocity, in metres per second) — how fast the object moves at that moment.
• Each single point on the red curve is a pair: "at this time, the object had this velocity."

---

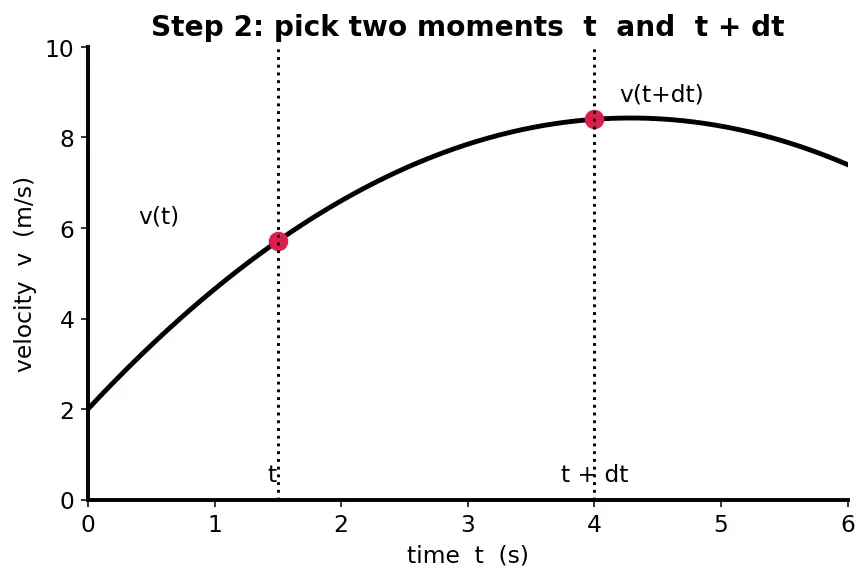

Step 2 — Pick two moments and mark their velocities

WHAT. Choose a starting time $t$ and a slightly later time $t+\Delta t$. Read off the two velocities the curve gives at those moments.

WHY. We cannot measure "a change" from one number — a change needs a before and an after. Two points are the minimum needed to say "velocity went from this to that."

PICTURE. Two black dots sit on the red curve.

$\underset{\text{start clock}}{\underbrace{t}}\underset{\text{later clock}}{\underbrace{t+\Delta t}}$

Here $\Delta t$ (read "delta-t") is the gap between the two clock readings — the small step forward in time.

• $\Delta t$ is the horizontal distance between the two dots.
• $v(t)$ is the height of the left dot.
• $v(t+\Delta t)$ is the height of the right dot.

---

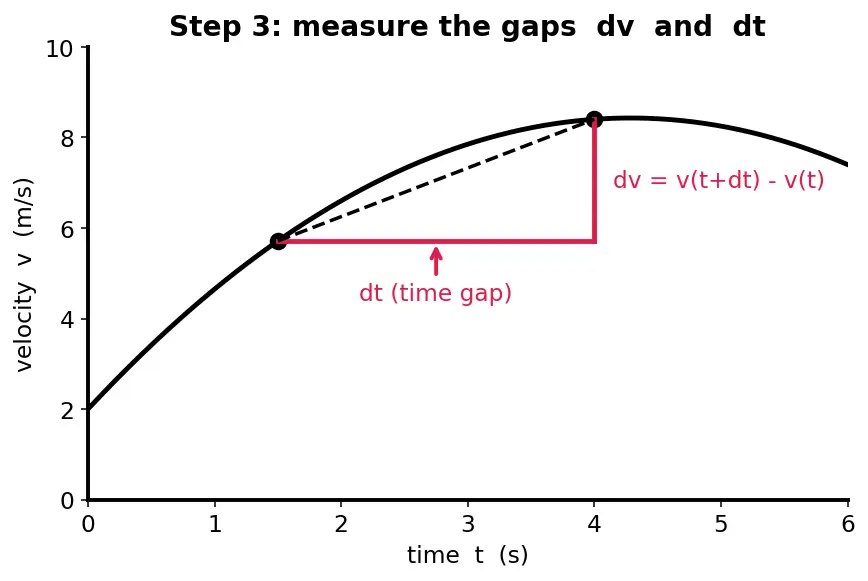

Step 3 — Measure the two gaps: $\Delta v$ and $\Delta t$

WHAT. Take the vertical gap between the dots (the velocity change) and the horizontal gap (the time change).

WHY. These two gaps are the only raw measurements we ever need. Acceleration will be built purely out of "how much did velocity change" divided by "how long did that take."

PICTURE. A vertical black bar shows $\Delta v$; a horizontal black bar shows $\Delta t$. They form the two legs of a right triangle whose slanted top edge connects the dots.

$\Delta v=\underset{\text{later height}}{\underbrace{v(t+\Delta t)}}-\underset{\text{earlier height}}{\underbrace{v(t)}}$

• If the curve rose between the dots, $\Delta v$ is positive (velocity increased).
• If the curve fell, $\Delta v$ is negative (velocity decreased — slowing down, or reversing).
• $\Delta t$ is always positive here, because the right dot is later in the story.

---

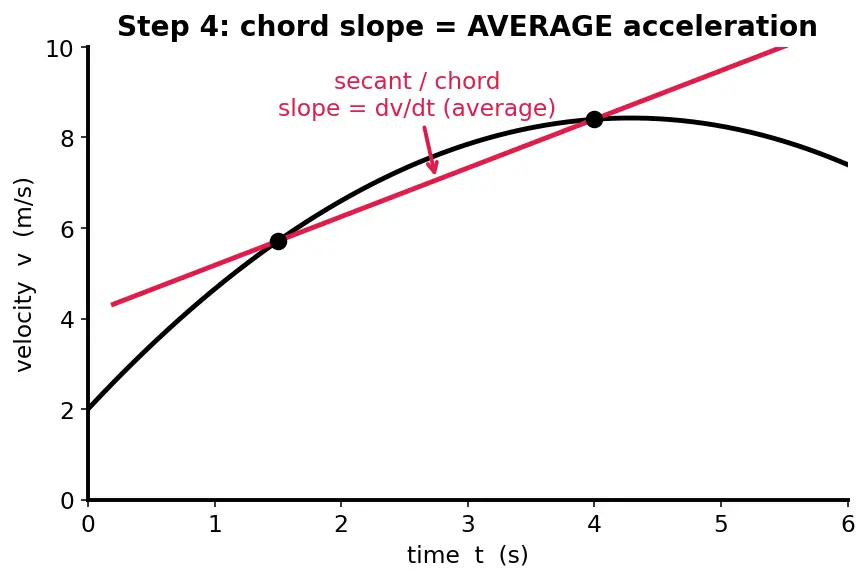

Step 4 — The chord and its slope: average acceleration

WHAT. Draw the straight line joining the two dots. This straight connector is called a secant (or chord). Its steepness — rise over run — is the average acceleration.

WHY steepness = acceleration? Steepness on a $v$–$t$ graph literally means "how many m/s of velocity gained per second of time." That is acceleration. And why divide rise by run? Because we want a rate: change per unit of time, so that a big change over a long time can be compared fairly to a small change over a short time.

PICTURE. The red line is the chord. Its slope is the vertical gap divided by the horizontal gap.

${\vec{a}}_{avg}=\frac{\Delta \vec{v}}{\Delta t}=\frac{\stackrel{\text{rise: velocity gained}}{\overbrace{v(t+\Delta t)-v(t)}}}{\underset{\text{run: time taken}}{\underbrace{\Delta t}}}$

• Numerator (top): how much velocity changed — the vertical leg of the triangle.
• Denominator (bottom): how long that took — the horizontal leg.
• The whole fraction: the tilt of the red chord. A steep chord = big average acceleration; a flat chord = tiny one.

---

Step 5 — Shrink the gap: slide the second dot inward

WHAT. Keep the left dot fixed. Slide the right dot closer and closer toward it, making $\Delta t$ smaller and smaller.

WHY. The chord answers "on average across the gap." But we want "right now, at this one instant." The only way to squeeze a whole interval down to a single instant is to shrink the interval until the two dots almost touch.

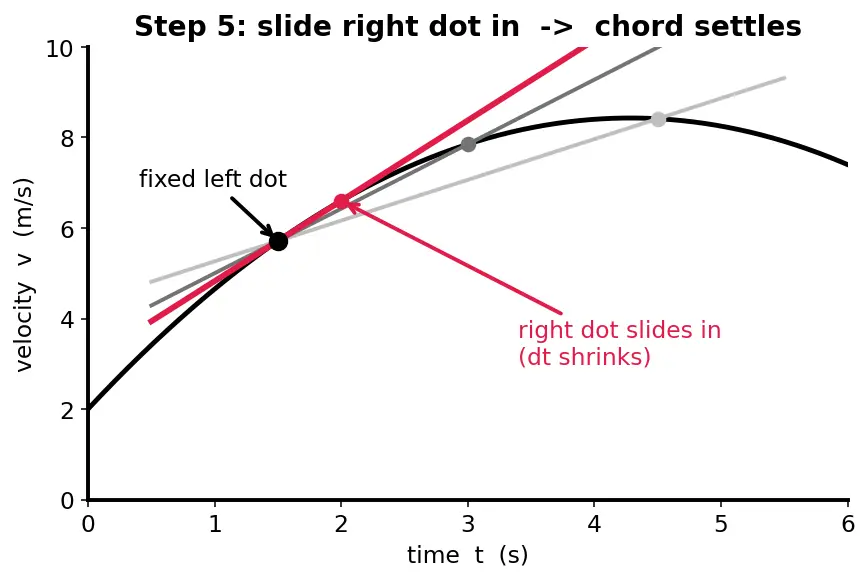

PICTURE. Three chords are drawn: a long-gap chord (light), a medium-gap chord, and a tiny-gap chord (red, boldest). Watch how the red chord hugs the curve tighter as the right dot slides left.

$\Delta t:3\to 1\to 0.3\to \dots \to \text{almost }0$

Notice: as $\Delta t$ shrinks, the chord's tilt settles toward one fixed steepness — it stops wobbling and converges.

---

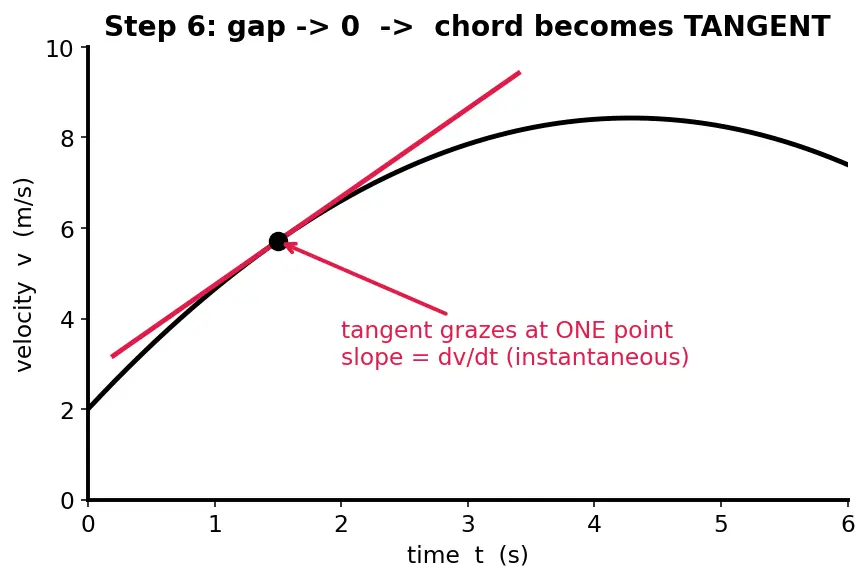

Step 6 — The gap hits zero: the chord becomes the tangent

WHAT. In the limit, the two dots merge into one. The chord no longer cuts across two points — it just grazes the curve at that single point. This grazing line is the tangent. Its slope is the instantaneous acceleration.

WHY. Once the window has collapsed to a single instant, "average over the window" and "value at the instant" are the same thing — there is nothing left to average over. The slope we get is the acceleration at that exact moment.

PICTURE. The red line now touches the curve at one point only, matching its lean perfectly.

$\vec{a}(t)={\lim }_{\Delta t\to 0}\underset{\text{chord slope}}{\underbrace{\frac{v(t+\Delta t)-v(t)}{\Delta t}}}=\underset{\text{tangent slope}}{\underbrace{\frac{d\vec{v}}{dt}}}$

• ${\lim }_{\Delta t\to 0}$: "drive the gap to zero" (from Step 5).
• The fraction inside: the chord slope from Step 4.
• $\frac{d\vec{v}}{dt}$: shorthand invented for exactly this limit — the derivative of velocity. The little $d$'s are "infinitely shrunk" $\Delta$'s.

---

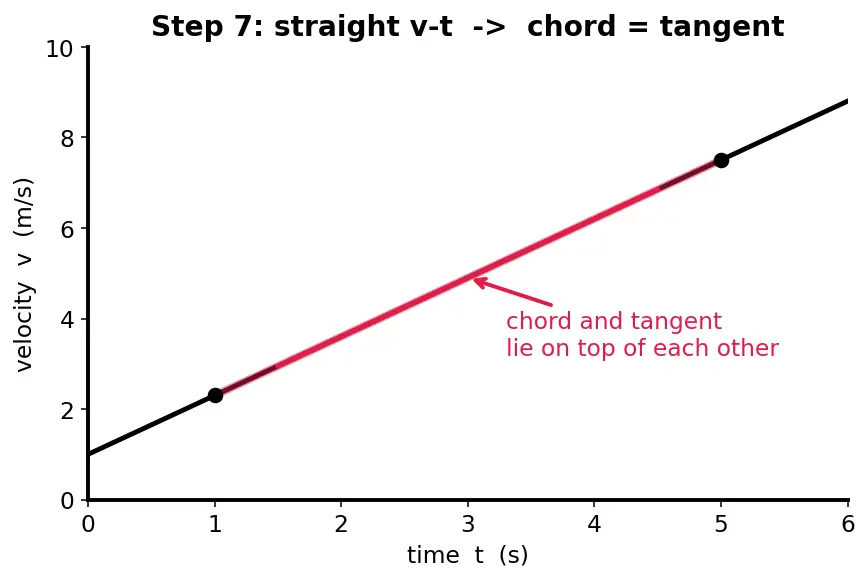

Step 7 — Edge case A: constant acceleration (chord already equals tangent)

WHAT. Suppose the $v$–$t$ graph is a straight line to begin with (velocity climbs at a steady rate). Then every chord and every tangent have the same slope.

WHY it matters. This is the one situation where you never had to shrink anything: the average over any gap already equals the instantaneous value. This is the case behind the constant-acceleration equations.

PICTURE. A straight red velocity line. A chord across a wide gap and a tangent at a point lie on top of each other — same tilt.

${\vec{a}}_{avg}=\vec{a}⟺v\text{–}t\text{ graph is a straight line}$

---

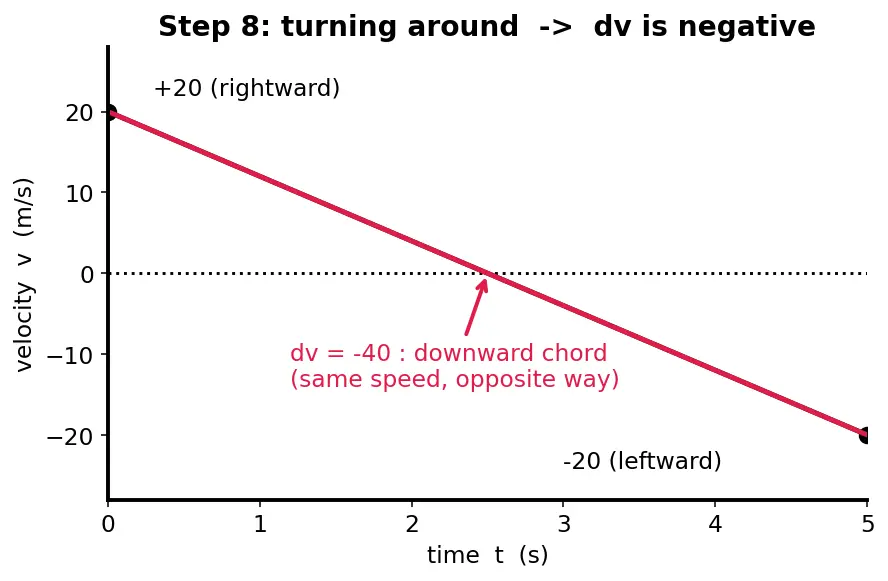

Step 8 — Edge case B: turning around (the sign of $\Delta v$)

WHAT. Now let velocity be positive (moving right), fall to zero, then go negative (moving left). What happens to the chord and the slope?

WHY it matters. Acceleration is a vector — it lives on the same number line as velocity, with a sign. When the object reverses, $\Delta v$ can be large and negative even though the speeds at the two ends look equal. Speed hides the sign; the graph does not.

PICTURE. The curve crosses the $v=0$ axis. Between a positive-height dot and a negative-height dot, the chord slopes downward — a negative average acceleration — even where the object is "just as fast" at both ends but pointing opposite ways.

$\Delta v=\underset{\text{final, leftward}}{\underbrace{(-20)}}-\underset{\text{initial, rightward}}{\underbrace{(+20)}}=-40\text{m/s}\ne 0$

Same speed ($20$ either end), yet a big velocity change — because direction flipped. (This is why constant-speed circular motion still accelerates: direction changes even when the height "speed" is steady. To subtract velocities that point different ways you need vector subtraction.)

---

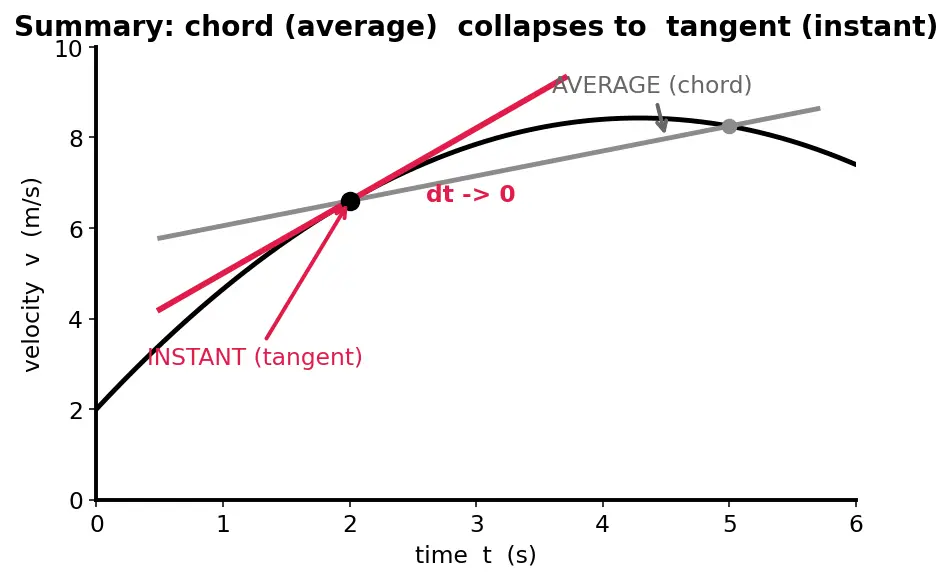

The one-picture summary

WHAT. One frame holds the whole story: a curved $v$–$t$ graph, a fat chord (average) between two dots, and the razor-thin tangent (instantaneous) at one dot, with an arrow showing the chord collapsing onto the tangent as $\Delta t\to 0$.

$\underset{\begin{array}{c}\text{secant slope}\\ \text{AVERAGE}\end{array}}{\underbrace{\frac{\Delta \vec{v}}{\Delta t}}}\underset{\Delta t\to 0}{\overset{\text{shrink the gap}}{\to }}\underset{\begin{array}{c}\text{tangent slope}\\ \text{INSTANTANEOUS}\end{array}}{\underbrace{\frac{d\vec{v}}{dt}}}$

Recall Feynman retelling — the whole walkthrough in plain words

Draw how fast something moves against time — a wiggly line. Poke two dots on it: where you started, where you ended a moment later. The straight ruler-line joining those two dots leans by some amount, and that lean is the average acceleration — how much speed you picked up per second, on average, ignoring the wiggles in between. Now slide the second dot back toward the first. The ruler swings a little, then settles. When the two dots finally kiss and become one, the ruler no longer cuts through the curve — it just grazes it, leaning exactly the way the curve leans right there. That grazing lean is the instantaneous acceleration: how hard your speed is changing at this very tick of the clock. If the wiggly line was actually straight all along, the ruler never had to swing — average and instant were equal from the start. And if the line dives below zero (you turned around), the lean goes negative — because velocity has a direction, and flipping direction is a real change even when your speed number looks the same.

---
