Distance from a point to a plane: Worked examples

This deep dive takes the one formula from the parent note and runs it through every situation an exam or a real problem can throw at you. We never assume you remember the derivation — we restate the tool, then hammer it against edge cases.

Every symbol here was earned in the parent note; here we only use it, carefully, on hard cases.

The scenario matrix

Before working anything, let's list every distinct case this formula can meet. Each worked example below is tagged with the cell it fills.

#	Case class	What is tricky about it	Example
C1	Positive signed value	Point on the normal's side	Ex 1
C2	Negative signed value	Point on the opposite side; bars matter	Ex 2
C3	Point on the plane	Numerator $= 0$ , distance $= 0$	Ex 3
C4	Origin as the point	Numerator collapses to $	d
C5	Two parallel planes	Reuse formula via a borrowed point	Ex 5
C6	Same-side / opposite-side test	Only the sign is read, not the length	Ex 6
C7	Plane not in $a x + b y + cz + d = 0$ form	Must rearrange first (degenerate-looking input)	Ex 7
C8	Real-world word problem (with units)	Translate words → coordinates	Ex 8
C9	Exam twist: unknown coefficient	Solve backwards from a given distance	Ex 9

The goal: after reading all nine, no plane-distance question can surprise you — you will always recognise which cell you are in.

Setting the geometry straight

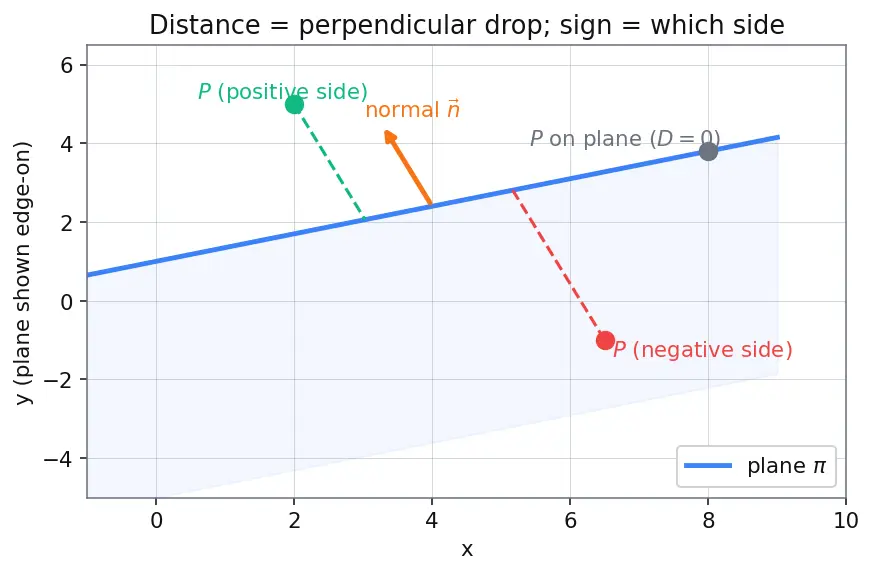

Figure — Distance from a point to a plane

Look at the figure. The blue slab is the plane $π$ . The orange arrow is the normal $n$ . A point $P$ can sit:

on the positive side (where $n$ points) — green dot,
on the negative side — red dot,
exactly on the plane — gray dot.

The perpendicular drop (dashed) is always the shortest path; the sign of $a x_{1} + b y_{1} + c z_{1} + d$ just records which of the two half-spaces $P$ is in. Keep this picture in mind for every example.

Worked examples

Worked example Example 1 — positive signed value (cell C1)

Distance from $P = (3, 1, 1)$ to $π : x + 2 y + 2 z - 3 = 0$ .

Forecast: guess whether the signed value is $+$ or $-$ , and roughly the size, before computing.

Numerator (signed): $1 (3) + 2 (1) + 2 (1) - 3 = 3 + 2 + 2 - 3 = 4$ . Why this step? Plugging $P$ into the plane's left side measures how far "off zero" $P$ is, in scaled units. It's positive — so $P$ sits on the side the normal $n = (1, 2, 2)$ points toward. This is exactly cell C1.
Denominator: $1^{2} + 2^{2} + 2^{2} = 9 = 3$ . Why this step? This is $∣ n ∣$ ; it converts the raw scaled number into a length (the projection onto the unit normal — see Projection of a vector).
Distance: $D = \frac{∣4∣}{3} = \frac{4}{3}$ . Why this step? Distance is never negative, so we take the magnitude.

Verify: the unit normal is $\overset{n}{^} = \frac{1}{3} (1, 2, 2)$ . Since the signed value was positive, $P$ is ahead of the plane, so we step a distance $\frac{4}{3}$ against $\overset{n}{^}$ to land on $π$ : $P - \frac{4}{3} \overset{n}{^} = (3 - \frac{4}{9}, 1 - \frac{8}{9}, 1 - \frac{8}{9})$ . Plug in: $\frac{23}{9} + 2 \cdot \frac{1}{9} + 2 \cdot \frac{1}{9} - 3 = \frac{23 + 2 + 2}{9} - 3 = \frac{27}{9} - 3 = 0.$ ✓ Lands exactly on the plane.

Worked example Example 3 — the point lies ON the plane (cell C3)

Distance from $P = (1, 0, 1)$ to $π : x - y - z = 0$ .

Forecast: is $P$ maybe on the plane? If so, what should $D$ be?

Numerator: $1 - 0 - 1 = 0$ . Why? A zero numerator means $P$ satisfies the plane equation exactly.
Denominator: $1 + 1 + 1 = 3$ (never zero for a real plane, so no division problem). Why divide at all? The numerator is a scaled signed quantity; dividing by $∣ n ∣ = a^{2} + b^{2} + c^{2}$ converts it into a true geometric distance. Here the numerator is $0$ , so the distance is $0$ regardless — but the division is still the step that would give the correct length in any non-zero case.
Distance: $D = \frac{0}{3} = 0$ .

Verify: $D = 0$ is the degenerate case — $P$ is on the plane, so the perpendicular drop has length zero. This confirms the formula behaves correctly at the boundary between the two half-spaces. ✓

Worked example Example 8 — real-world word problem, with units (cell C8)

A drone hovers at position $P = (10, 5, 8)$ metres in a warehouse. A tilted solar panel is the plane $π : 3 x + 4 z - 30 = 0$ (coordinates in metres). How far is the drone from the panel, and which side of it is the drone on?

Forecast: estimate whether the answer is "a few metres" or "tens of metres."

Signed numerator: $3 (10) + 0 (5) + 4 (8) - 30 = 30 + 32 - 30 = 32$ . Why the $0 (5)$ ? The panel equation has no $y$ -term ( $b = 0$ ), so the drone's $y = 5$ does not affect the distance — the panel is "vertical" along $y$ .
Denominator: $3^{2} + 0^{2} + 4^{2} = 25 = 5$ .
Distance: $D = \frac{∣32∣}{5} = 6.4$ metres. Why units survive: coordinates are metres and the formula is a ratio of (metres)/(dimensionless direction), so $D$ comes out in metres.
Side: signed value $= + 32 > 0$ ⇒ the drone is on the side the normal $(3, 0, 4)$ points toward.

Verify: $6.4 \times 5 = 32 = ∣ numerator ∣$ ; consistent. A distance of $6.4$ m for a drone tens of metres out in $x, z$ is physically sensible. ✓

Worked example Example 9 — exam twist: solve for an unknown coefficient (cell C9)

The distance from $P = (1, 2, 2)$ to the plane $π : x + 2 y + 2 z + k = 0$ is $2$ . Find all values of $k$ .

Forecast: because a distance uses absolute value, expect two answers for $k$ .

Set up the equation: $\frac{∣1 + 2 ( 2 ) + 2 ( 2 ) + k ∣}{1 + 4 + 4} = 2.$ Why? We know the output distance and want the input $k$ — run the formula backwards.
Simplify: numerator inside bars $= 1 + 4 + 4 + k = 9 + k$ ; denominator $= 3$ . So $\frac{∣9 + k ∣}{3} = 2$ .
Clear the fraction: $∣9 + k ∣ = 6$ . Why the bars split into two cases? $∣9 + k ∣ = 6$ means $9 + k = 6$ or $9 + k = - 6$ .
Solve both: $k = 6 - 9 = - 3$ , or $k = - 6 - 9 = - 15$ .

Verify: for $k = - 3$ : numerator $= 9 - 3 = 6$ , $D = 6/3 = 2$ ✓. For $k = - 15$ : numerator $= 9 - 15 = - 6$ , $D = ∣ - 6∣/3 = 2$ ✓. Both give distance $2$ — the two planes are the two parallel positions at distance $2$ from $P$ , one on each side.

Which cell am I in? — decision map

The flowchart below (also described in words) routes any question to its cell: first, is the plane already in $a x + b y + cz + d = 0$ form? If not, rearrange (C7). Then ask what is required: the distance of a point → plug and compute (C1–C4); which side → read only the sign (C6); two parallel planes → borrow a point or use $∣ d_{1} - d_{2} ∣/∣ n ∣$ (C5); find an unknown coefficient → set the formula equal to the given distance and solve backwards (C9); a word problem → translate to coordinates keeping units (C8).

Active recall

Recall Match each example to its edge-case lesson

Which example proves the formula gives $0$ exactly on the plane?
Which example needs you to rearrange before reading coefficients?
Which example uses the sign but never the distance?
Why does the unknown- $k$ example have two answers?

Answers: 1) Ex 3 (and Ex 7). 2) Ex 7 — disguised as $2 x + 3 y = z + 4$ . 3) Ex 6 — same/opposite side. 4) Because $∣9 + k ∣ = 6$ splits into $9 + k = \pm 6$ , one plane on each side of $P$ .
