Reference angles

WHAT is a reference angle?

WHY the x-axis and not the y-axis? Because the trig functions $\cos$ and $\sin$ are literally the $x$- and $y$-coordinates of the point where the terminal side meets the unit circle. Distances are measured horizontally along the x-axis, so the reference angle is the "leftover" angle to the x-axis.

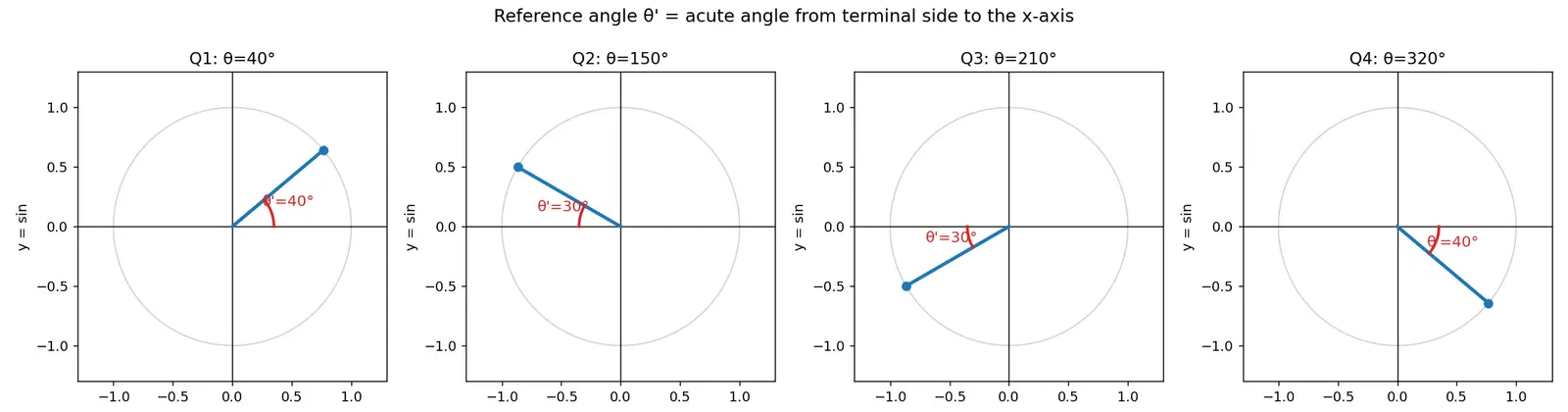

HOW to find it (derive the rules from the picture)

First put $\theta$ into standard position and, if needed, reduce it to a coterminal angle in $[0°, 360°)$ by adding/subtracting $360°$ (or $2\pi$). Then look at the quadrant of the terminal side.

Let $\theta \in [0°,360°)$. The reference angle $\theta'$ is the distance to the nearest x-axis direction ($0°$ or $180°$ or $360°$):

Deriving Q2: In quadrant 2 the terminal side is past $90°$ but before $180°$. The nearest x-axis direction is the negative x-axis at $180°$. The gap between the terminal side and $180°$ is $180° - \theta$. That gap is acute, so it is $\theta'$. ✔

Deriving Q3: The terminal side is between $180°$ and $270°$. Nearest x-axis direction is again $180°$. Gap $= \theta - 180°$ (we subtract because $\theta>180°$). ✔

Deriving Q4: The terminal side is between $270°$ and $360°$. Nearest direction is the positive x-axis at $360°$ (= $0°$). Gap $= 360° - \theta$. ✔

HOW reference angles give trig values (the sign step)

$\boxed{\;\text{trig}(\theta) = (\pm)\,\text{trig}(\theta')\;}$ where the $\pm$ comes from the quadrant:

Worked examples

Common mistakes

Active recall

Connections

• Unit Circle — reference angles are the coordinates' magnitudes on it.
• Coterminal Angles — used to reduce before applying rules.
• Trigonometric Ratios of Standard Angles — the acute values you plug in.
• Signs of Trig Functions (ASTC) — supplies the ± step.
• Radian and Degree Measure — switching $180°\leftrightarrow\pi$.
