Reference angles: Question bank — Maths deep dive

First, the ground rules these traps attack

Before you attempt the bank, keep these three definitions in view — every trap below is a distortion of one of them.

True or false — justify

A reference angle can be negative if the original angle is negative.

False — a reference angle is always positive, with

0° \leq θ^{'} \leq 90°

; the negativity of

θ

is handled first by making it coterminal, and the ± sign is handled separately by the quadrant.

A reference angle can equal

90°

Only in the degenerate case: for a genuine quadrant angle

θ^{'}

is strictly acute (

0° < θ^{'} < 90°

). Exactly on an axis (like

90°

180°

) the terminal side is an axis, so there is no acute tilt; those are quadrantal cases handled directly, not by the reference rule.

Two different angles can share the same reference angle.

True — for example

30°

150°

210°

330°

all have reference angle

30°

; the reference angle throws away which quadrant you're in, keeping only the tilt to the x-axis.

θ

and

ϕ

have the same reference angle, then

sin θ = sin ϕ

False — same reference angle means same magnitude

∣ sin ∣

, but the sign depends on quadrant. E.g.

sin 30° = + \frac{1}{2}

while

sin 210° = - \frac{1}{2}

Coterminal angles always share the same reference angle.

True — coterminal angles have the identical terminal side (they differ by whole turns of

360°

), and the reference angle only depends on that terminal side's direction. See Coterminal Angles.

The reference angle of

θ

equals the reference angle of

- θ

True — reflecting across the x-axis (which is what negating does) keeps the tilt to the x-axis unchanged; only the quadrant (and thus signs) flips.

cos θ

and

cos θ^{'}

are always equal.

False — only their magnitudes match:

∣ cos θ ∣ = cos θ^{'}

. In Q2 and Q3,

cos θ

is negative while

cos θ^{'}

(an acute cosine) is positive.

For any angle in Q1, the reference angle equals the angle itself.

True — in Q1 the terminal side is already the acute tilt above the positive x-axis, so the Q1 rule gives

θ^{'} = θ

with nothing to subtract.

Spot the error

"For

150°

(Q2), the reference angle is

150° - 90° = 60°

because

90°

is the nearest axis."

Wrong axis. Reference angles are measured to the x-axis only. The Q2 rule gives

θ^{'} = 180° - 150° = 30°

. We use the x-axis because

cos, sin

are the

x, y

coordinates.

sin 760°

: it's in Q1 near-ish, so

sin 760° = sin 760°

, done."

You must reduce first:

760° - 720° = 40°

, which is Q1. Skipping the coterminal reduction risks mislabeling the quadrant entirely. So

sin 760° = sin 40°

sin 210° = sin 30° = \frac{1}{2}

since the reference angle is

30°

The reference angle gives only the magnitude.

210°

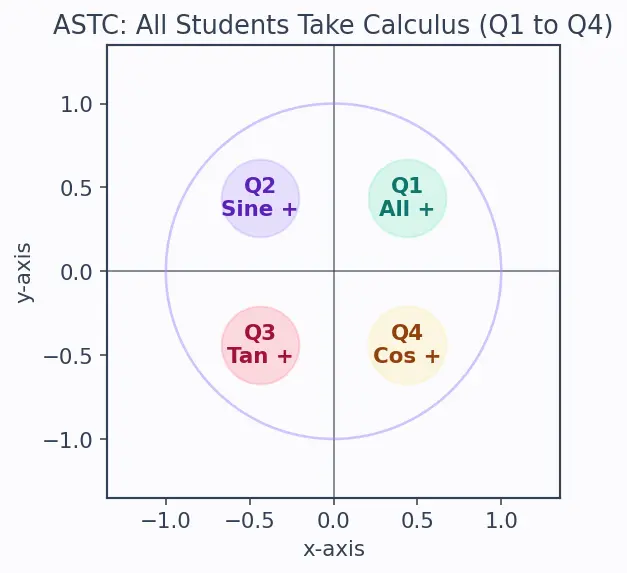

is Q3 where sine is negative (ASTC — only Tan is positive), so

sin 210° = - \frac{1}{2}

. The sign step was dropped.

"For

- 40°

, apply the Q4 rule directly:

θ^{'} = 360° - (- 40°) = 400°

First make it coterminal in

[0°, 360°)

- 40° + 360° = 320°

. Then the Q4 rule gives

θ^{'} = 360° - 320° = 40°

. Feeding a negative angle straight into the rule produces nonsense.

"In Q3, tangent is negative because both

sin

and

cos

are negative."

Backwards — in Q3 both

sin

and

cos

are negative, so

tan = \frac{s i n}{c o s} = \frac{-}{-}

is positive. Q3 is the "T" in All-Students-Take-Calculus. See Signs of Trig Functions (ASTC).

cos 405°

405°

is in Q1 (it's less than

450°

), so it's fine as is."

A single turn is

360°

, so any angle over

360°

must be reduced:

405° - 360° = 45°

. Only after reducing can you read the quadrant — here Q1, sign positive.

"The reference angle of

270°

270° - 180° = 90°

270°

lies on the negative y-axis — it's quadrantal, not inside Q3. Its trig values (

cos = 0, sin = - 1

) are read directly; a

90°

"reference" isn't acute, signalling a degenerate case.

Why questions

Why is the reference angle measured from the x-axis and not the y-axis?

Because on the Unit Circle,

cos θ

and

sin θ

are literally the

x

- and

y

-coordinates; distances are measured horizontally, so the leftover tilt is naturally taken to the horizontal axis.

Why do we reduce to a coterminal angle in

[0°, 360°)

before applying the quadrant rules?

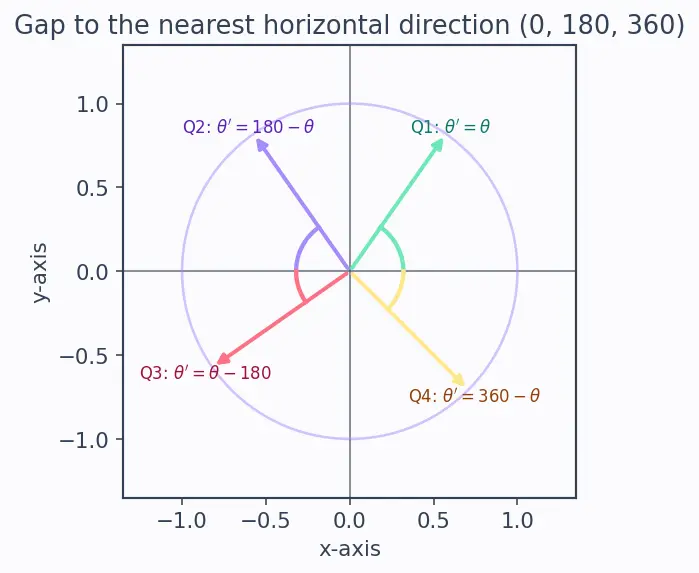

The four quadrant formulas assume

θ

sits once around the circle. Reducing by whole turns puts the terminal side in a known quadrant without changing its direction, so the rules apply cleanly.

Why is

∣ cos θ ∣ = cos θ^{'}

guaranteed for every quadrant?

The reference triangle in any quadrant is congruent to the Q1 triangle (same side lengths, right angle at the axis), so the ratios have equal magnitude; only the signs of the

x, y

legs differ.

Why does the reference-angle method only need the acute values

30°, 45°, 60°

(and

0

Every angle collapses to an acute reference angle plus a sign. If you know the acute standard values and the ASTC signs, you can rebuild the trig value of any angle.

Why doesn't the reference angle alone tell you the sign of a trig function?

It records only the tilt (magnitude), deliberately discarding quadrant information. The quadrant — supplied separately by ASTC (All Students Take Calculus) — is what fixes whether

x

and

y

are

+

-

Why can the same reference angle

30°

produce four different exact values of

sin

and

cos

Because four angles (

30°, 150°, 210°, 330°

) share that tilt, one per quadrant, and each quadrant assigns its own sign pattern to

x

and

y

Edge cases

What is the reference angle of exactly

0°

It is

0°

— the terminal side lies on the positive x-axis, so there is zero tilt. This is a boundary (quadrantal) case, not inside any quadrant.

What is the reference angle of

180°

0°

— the terminal side is the negative x-axis itself, so there is no leftover angle. Trig values are read directly:

cos 180° = - 1, sin 180° = 0

What is the reference angle of

90°

, and why does neither the Q1 rule (

θ^{'} = θ

) nor the Q2 rule (

θ^{'} = 180° - θ

) fit?

The Q1 rule would give

θ^{'} = 90°

and the Q2 rule would give

θ^{'} = 180° - 90° = 90°

— both hand back

90°

, which is not acute, the signal that

90°

isn't inside any quadrant. Geometrically the terminal side is the positive y-axis, so its "tilt to the x-axis" is a full

90°

with no acute wedge left over. It is a quadrantal case, read directly:

cos 90° = 0, sin 90° = 1

How do you find the reference angle of a huge angle like

1000°

Reduce by

360°

repeatedly:

1000° - 720° = 280°

(Q4), then the Q4 rule gives

θ^{'} = 360° - 280° = 80°

. The coterminal step must come first. See Coterminal Angles.

Does the reference-angle method work in radians without converting to degrees?

Yes — replace

180° \to π

and

360° \to 2 π

in the quadrant rules; the geometry is identical. See Radian and Degree Measure.

What is the reference angle of a full turn,

360°

0°

— it's coterminal with

0°

(positive x-axis), so zero tilt. Same as

0°

in every trig value.

For

θ

exactly on a quadrant boundary like

270°

, why can't you always assign a single "quadrant sign"?

Because the terminal side lies on an axis, one coordinate is exactly

0

, so signs like

tan

may be undefined (

cos 270° = 0

) rather than simply

+

-

; read these values directly.

Connections

Reference angles — the parent this bank interrogates.
Signs of Trig Functions (ASTC) — the ± step behind most sign traps.
Coterminal Angles — the reduction step in the "reduce first" traps.
Unit Circle — why we measure to the x-axis.
Trigonometric Ratios of Standard Angles — the acute values recycled everywhere.
Radian and Degree Measure — the $180° \leftrightarrow π$ swap.
