Visual walkthrough — Reference angles

We assume nothing. If you have never drawn an angle before, start here at line one.

---

Step 1 — What an angle even looks like (standard position)

WHAT. Draw two lines crossing: a horizontal one (the x-axis) and a vertical one (the y-axis). They split the flat page into four corners. We call each corner a quadrant and number them Q1, Q2, Q3, Q4 going anticlockwise starting from the top-right.

WHY. Every angle we study is drawn the same standard way so we can compare them: one arm pinned along the positive x-axis (pointing right), and the other arm — the terminal side — swung open by the angle. "Standard position" just means "always start from the right-pointing line."

PICTURE. The red arrow is the terminal side. The angle $\theta$ (theta, just a name for "the angle") is the opening between the right-pointing line and the red arrow, swept anticlockwise.

The four x-axis directions we will keep pointing at: $\underset{\text{right}}{\underbrace{0°}}\underset{\text{left}}{\underbrace{180°}}\underset{\text{right again}}{\underbrace{360°}}$ Each number is the angle you have swept to reach that x-axis direction. Notice $360°$ lands back on the same line as $0°$ — a full turn.

---

Step 2 — The reference angle is the "tilt off the flat line"

WHAT. Pick any angle. Ask one simple question: "How far is the red arrow from the nearest horizontal direction (left or right)?" That little gap is the reference angle, written ${\theta }^{\prime }$ (read "theta prime" — the prime mark just means "the helper version of theta").

WHY the x-axis and not the y-axis? Because on the Unit Circle the horizontal coordinate is $\cos$ and the vertical coordinate is $\sin$. Distances are read horizontally, so the natural "leftover" angle is the one measured to the horizontal line. Measuring to the y-axis would answer a different question.

PICTURE. Same red arrow as Step 1, now in Q1. The green wedge is ${\theta }^{\prime }$, hugging the flat x-axis. Here the arrow is already close to the right-hand axis, so ${\theta }^{\prime }$ is $\theta$.

${\theta }^{\prime }=\underset{\begin{array}{c}\text{the whole}\\ \text{opening}\end{array}}{\underbrace{\theta }}\text{(only true in Q1)}$

• ${\theta }^{\prime }$ — the small acute helper angle (always between $0°$ and $90°$).
• In Q1 the terminal side hasn't passed $90°$ yet, so the whole angle is already the tilt off the right-hand x-axis. Nothing to subtract.

---

Step 3 — Quadrant 2: measuring back to the left x-axis

WHAT. Now swing the arrow past $90°$ — say to $\theta =150°$. It sits in Q2 (top-left). The nearest horizontal direction is no longer the right-hand axis; it is the left-hand x-axis, at $180°$. The tilt off that line is the reference angle.

WHY subtract from $180°$? The arrow has swept $\theta$. To reach the left axis it would need to sweep all the way to $180°$. So the gap still to go is ${\theta }^{\prime }=180°-\theta .$

PICTURE. The red arrow in Q2. The green wedge ${\theta }^{\prime }$ sits between the arrow and the left x-axis. Watch that the full sweep $\theta$ plus the little gap ${\theta }^{\prime }$ add up to a straight $180°$ line.

$\underset{\text{left x-axis}}{\underbrace{180°}}-\underset{\text{swept so far}}{\underbrace{\theta }}=\underset{\text{gap = ref angle}}{\underbrace{{\theta }^{\prime }}}$

Check with $\theta =150°$: ${\theta }^{\prime }=180°-150°=30°$. A friendly angle we know from Trigonometric Ratios of Standard Angles. ✔

---

Step 4 — Quadrant 3: below the left x-axis

WHAT. Swing further, to $\theta =210°$ (bottom-left, Q3). The nearest horizontal direction is still the left x-axis at $180°$ — but now the arrow is past it.

WHY subtract $180°$ (the other way)? The arrow has swept $\theta =210°$, which is more than $180°$. The extra bit beyond the left axis is the tilt: ${\theta }^{\prime }=\theta -180°.$ We flip the subtraction because now $\theta$ is the bigger number.

PICTURE. Red arrow in Q3. Green wedge ${\theta }^{\prime }$ opens downward from the left x-axis to the arrow.

$\underset{\text{swept (bigger)}}{\underbrace{\theta }}-\underset{\text{left x-axis}}{\underbrace{180°}}=\underset{\text{gap below axis}}{\underbrace{{\theta }^{\prime }}}$

Check: $\theta =210°\Rightarrow {\theta }^{\prime }=210°-180°=30°$. ✔

---

Step 5 — Quadrant 4: back up to the right x-axis

WHAT. Swing almost all the way round, to $\theta =300°$ (bottom-right, Q4). The nearest horizontal direction is the right x-axis — reached at a full turn, $360°$.

WHY $360°-\theta$? The arrow needs to sweep up to $360°$ to hit the right axis. The gap remaining is ${\theta }^{\prime }=360°-\theta .$

PICTURE. Red arrow in Q4. Green wedge ${\theta }^{\prime }$ between the arrow and the right x-axis (measured to $360°$).

$\underset{\text{full turn = right axis}}{\underbrace{360°}}-\underset{\text{swept so far}}{\underbrace{\theta }}=\underset{\text{gap to finish}}{\underbrace{{\theta }^{\prime }}}$

Check: $\theta =300°\Rightarrow {\theta }^{\prime }=360°-300°=60°$. ✔

---

Step 6 — Same triangle, four positions (why the magnitude is identical)

WHAT. Drop a straight line from the tip of the red arrow down (or up) to the x-axis. You get a right triangle. Do this in all four quadrants using the same ${\theta }^{\prime }$ (say $30°$). All four triangles are the exact same shape and size — just flipped like mirror images.

WHY this matters. On the Unit Circle the horizontal leg is $\cos$ and the vertical leg is $\sin$. Since the triangles are congruent, the lengths never change: $|\cos \theta |=\cos {\theta }^{\prime },|\sin \theta |=\sin {\theta }^{\prime }.$ The only thing that changes between quadrants is whether $x$ and $y$ point in the positive or negative direction — i.e. the sign.

PICTURE. The identical grey triangle drawn in all four corners; the reference angle ${\theta }^{\prime }$ (green) is the same acute angle in each. The red highlighted leg shows how only its direction flips.

The sign per quadrant comes straight from Signs of Trig Functions (ASTC):

Quadrant	$\sin$ (is $y$)	$\cos$ (is $x$)	$\tan$ ($y/x$)
Q1	$+$	$+$	$+$
Q2	$+$	$-$	$-$
Q3	$-$	$-$	$+$
Q4	$-$	$+$	$-$

$\boxed{\mathrm{trig}(\theta )=(\pm )\mathrm{trig}({\theta }^{\prime })}$

• $\mathrm{trig}({\theta }^{\prime })$ — the size, from your known acute value.
• $(\pm )$ — the sign, from the quadrant table.

---

Step 7 — Edge & degenerate cases (the ones textbooks skip)

WHAT. Reference angles are only defined for arms inside a quadrant. What about arms lying flat on an axis, or angles bigger than $360°$, or negative?

WHY cover them. These are exactly where students crash. Let's not leave a gap.

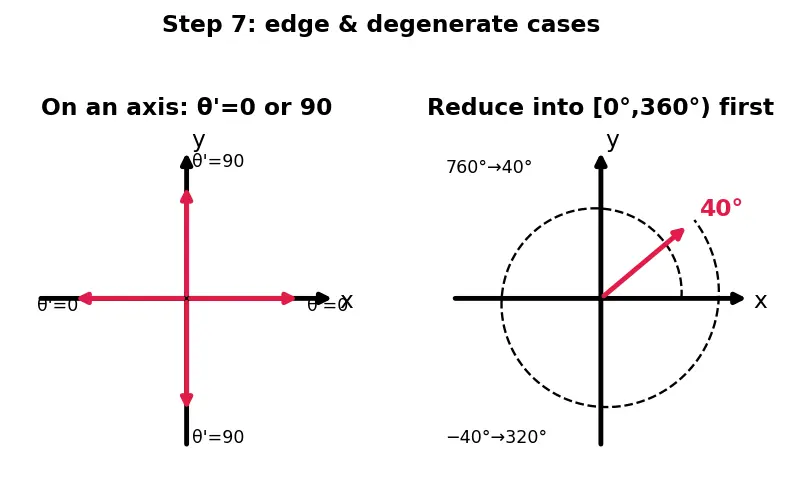

PICTURE. Left: the four axis (quadrantal) arms with ${\theta }^{\prime }=0°$ or $90°$. Right: a giant angle $760°$ and a negative angle $-40°$ being reeled back into $[0°,360°)$ using Coterminal Angles.

On an axis (quadrantal angles).

• $\theta =0°$ or $180°$ or $360°$: the arm is the x-axis, so ${\theta }^{\prime }=0°$.
• $\theta =90°$ or $270°$: the arm points straight up/down. Its gap to the nearest x-axis is a full $90°$, so ${\theta }^{\prime }=90°$ (the largest a reference angle can ever be).

Too big or negative — reduce first. Add or subtract $360°$ until you land in $[0°,360°)$, because all four rules assume a positive standard angle. $760°-360°=400°,400°-360°=40°(\text{Q1})$ $-40°+360°=320°(\text{Q4},{\theta }^{\prime }=360°-320°=40°)$

---

Worked examples (each is one full trip through Steps 3–6)

---

The one-picture summary

Everything on one clock face: the same green reference wedge shown pressed against its nearest x-axis in each of the four quadrants, with its formula floating beside it, and the ASTC signs marked in each corner. Read it clockwise or anticlockwise — the tilt is always to the horizontal line.

Recall Feynman retelling

Picture a spinning arrow. Wherever it stops, ignore the fancy number and ask the toddler-simple question: "how far are you from a flat left-or-right line?" That tiny tilt is a friendly angle you already know — 30, 45, 60. In Q1 it's the angle itself. In Q2 you measure back to the left line ($180°-\theta$). In Q3 you go a bit past that left line ($\theta -180°$). In Q4 you climb back to the right line ($360°-\theta$). The size of any trig value equals the trig of that friendly tilt, because the little triangle is the same in every corner. All that's left is a plus-or-minus, and "All Students Take Calculus" hands you the sign. If the arrow spun more than once or went backwards, wind it back into one lap first. That's the whole trick.

---

Connections

• Reference angles — the parent rules this page derives.
• Unit Circle — where $x=\cos$, $y=\sin$ live.
• Coterminal Angles — Step 7's reduction.
• Trigonometric Ratios of Standard Angles — the friendly values plugged in.
• Signs of Trig Functions (ASTC) — the $\pm$ step.
• Radian and Degree Measure — swapping $180°\leftrightarrow \pi$.
