Foundations — Reference angles

This page assumes nothing. We name and picture every symbol the parent note uses before it is ever used again. Read top to bottom — each block leans only on the ones above it.

---

1. An angle, and what "measuring" it means

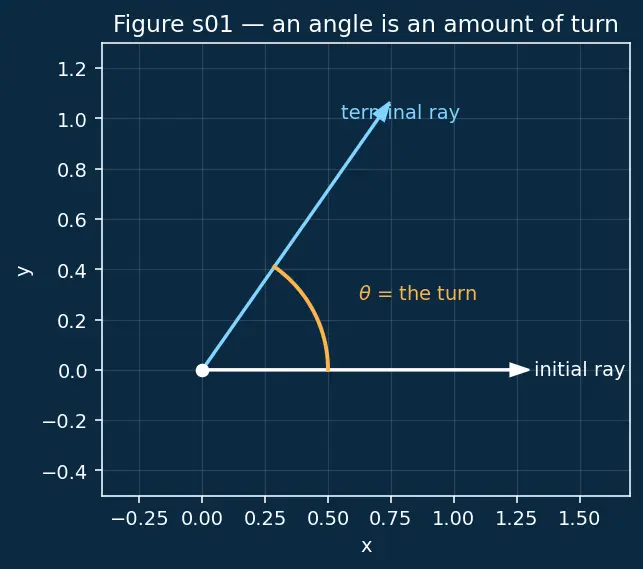

Picture a single arrow pinned at the centre of a page. Rotate it. The size of that spin is the angle $\theta$. Nothing about triangles yet — just rotation.

Why the topic needs this: reference angles are about where an arrow ends up pointing after turning. If "angle = turn" is not solid, none of the pictures below mean anything.

Recall Which is the correct mental model of an angle?

A turn/rotation between two rays sharing a vertex ::: yes — not a shape, a rotation.

---

2. Two ways to measure turn: degrees and radians

The symbol $\pi$ (pi) is just the number $\approx 3.14159$ — the distance around a circle whose distance across is $1$. So half a turn is $\pi$, a quarter turn is $\frac{\pi }{2}$.

Why the topic needs this: the parent's quadrant rules appear twice — once with $180°,360°$ and once with $\pi ,2\pi$. They are the same rule in two languages. See Radian and Degree Measure.

---

3. Interval notation — how we write "a range of angles"

Before we spin arrows around, we need one tiny piece of shorthand for a stretch of numbers, because the parent note constantly says things like "reduce $\theta$ into the range from $0°$ up to $360°$."

---

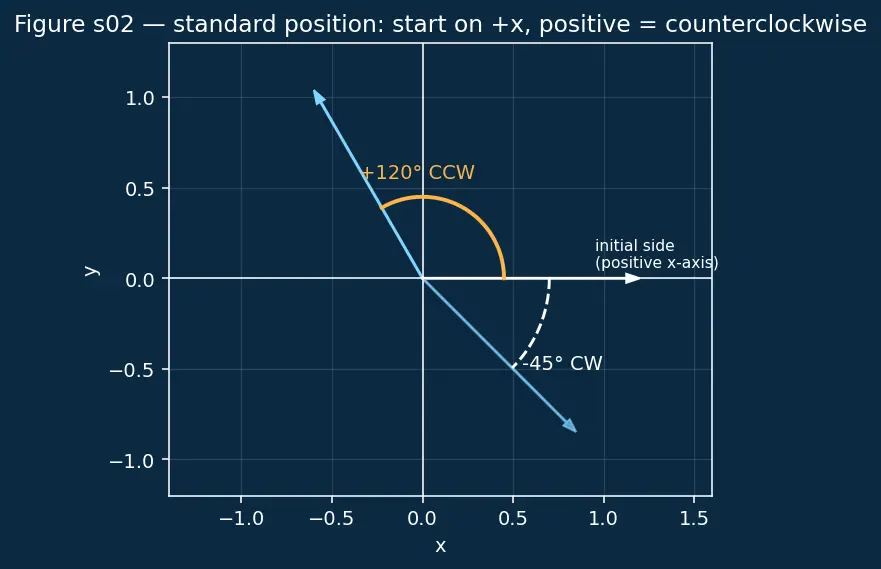

4. Standard position — where we always start the arrow

• The ray you start from (pointing right) is the initial side.
• The ray you end on is the terminal side — this word is everywhere in the parent note. It simply means "the arrow's final direction."

Why the topic needs this: "reference angle = angle between the terminal side and the x-axis." Without a fixed starting line, "the angle" is ambiguous. Standard position pins it down.

---

5. The x-axis, y-axis, origin, and the four quadrants

The pair of numbers $(x,y)$ names a point: $x$ = how far right (negative = left), $y$ = how far up (negative = down). The little arrow of an angle $\theta$ in standard position lands in one quadrant, and that quadrant is what fixes the ± sign later.

Why the topic needs this: the parent's whole sign table is organised by quadrant. You must be able to say instantly "$210°$ is in Q3" — see Signs of Trig Functions (ASTC).

Recall Which quadrant is

$210°$ in? Between $180°$ and $270°$, bottom-left ::: Q3.

---

6. Edge case — when the arrow lands on an axis

This matters because the parent's quadrant rules and sign table assume the arrow is inside a corner. On an axis, treat these specially:

$\theta$	lands on	reference angle ${\theta }^{\prime }$	note
$0°$ / $360°$	+x-axis	$0°$	on the axis itself
$90°$	+y-axis	$90°$	the "reference" is a right angle
$180°$	−x-axis	$0°$	on the axis itself
$270°$	−y-axis	$90°$	the "reference" is a right angle

At these angles one coordinate is $0$: at $90°$ and $270°$ the point sits on the y-axis, so $x=0$. We will need that fact in the very next section.

---

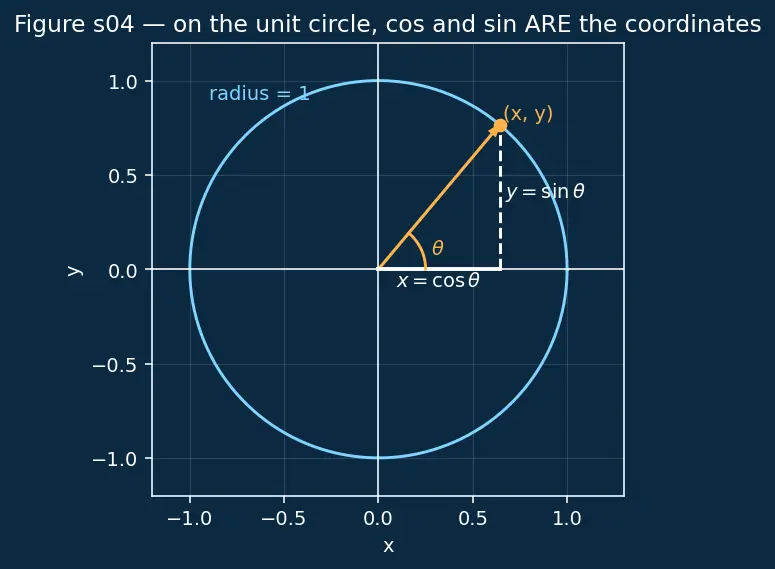

7. The unit circle — turning an angle into a point

The magic: because the radius is exactly $1$, that crossing point's coordinates are the trig values. Read the next section to see why.

Why the topic needs this: the parent says "$\cos$ and $\sin$ are literally the $x$- and $y$-coordinates on the unit circle." That sentence only makes sense once this picture exists. See Unit Circle.

---

8. Right triangle, "opposite / adjacent / hypotenuse", and the trig ratios

Drop a straight line from the unit-circle point $(x,y)$ down to the x-axis. You get a right triangle whose horizontal leg has length $x$ and vertical leg has length $y$, with hypotenuse $1$. Here $\theta$ is the angle at the origin.

Why the topic needs this: the reference angle's whole power is "same triangle shape ⇒ same ratio magnitude, only the signs of $x,y$ flip." You cannot see that without the triangle. The specific values ($\sin 30°=\frac{1}{2}$, etc.) come from Trigonometric Ratios of Standard Angles.

---

9. Coterminal angles — the same terminal side, different number

Spin an arrow all the way round once and it points where it started: $370°$ points like $10°$; $-40°$ points like $320°$.

Why the topic needs this: the parent's very first step is "reduce a big/negative angle into $[0°,360°)$" — and you now know exactly what that bracket means (Section 3). That reduction is finding a coterminal angle. See Coterminal Angles.

---

10. The reference-angle rule itself — one formula per quadrant

Now that "terminal side," "quadrant," "$\theta$," and "$[0°,360°)$" all mean something, here is the actual recipe the topic is built on. First reduce $\theta$ to a coterminal angle in $[0°,360°)$ (Section 9), then read off:

The parent note (Reference angles) derives why each branch looks the way it does; this page just makes sure every symbol in it is already familiar.

---

11. The symbols you'll literally see, decoded

---

Prerequisite map

---

Equipment checklist

Self-test: cover the right side, answer, then reveal.

---

Connections
