Trig functions for angles beyond 90° — ASTC rule (All, Sin, Tan, Cos)

WHY do we even need this?

The original definitions ("opposite/hypotenuse") only make sense for acute angles inside a right triangle. But we constantly meet $120°$ , $210°$ , $-45°$ , $750°$ . So we upgrade the definition using the unit circle, where every angle is allowed.

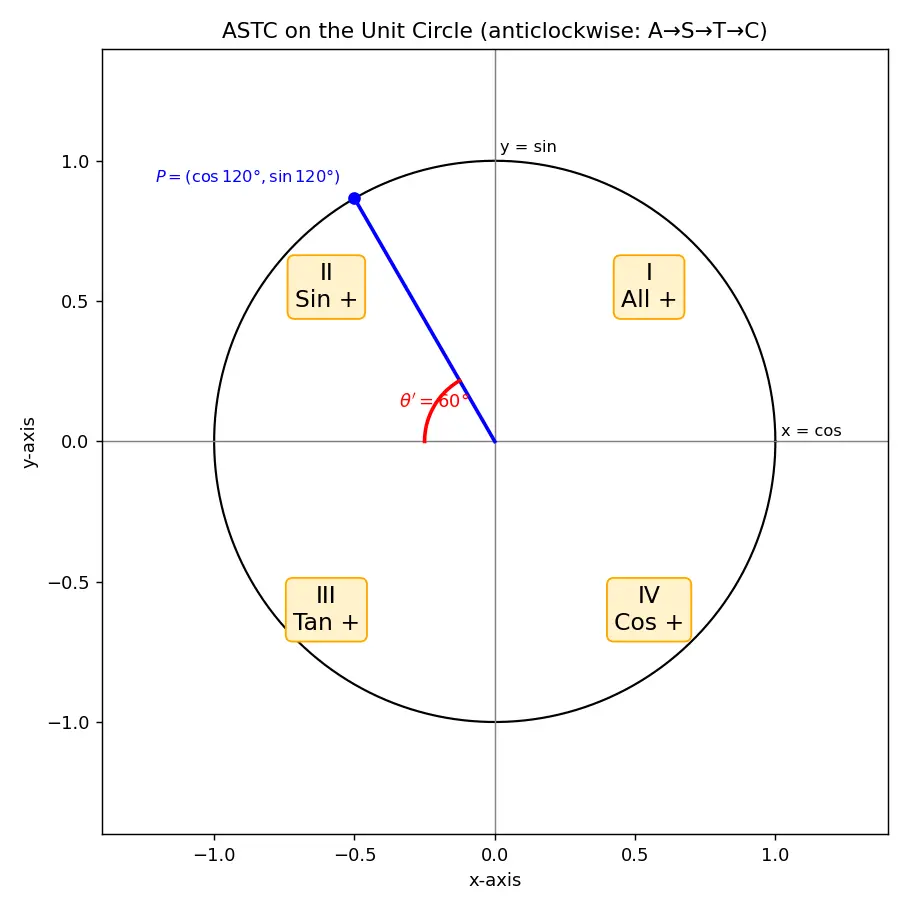

Figure — Trig functions for angles beyond 90° — ASTC rule (All, Sin, Tan, Cos)

WHAT is a reference angle?

Definition Reference angle

The reference angle $\theta'$ is the acute angle between the terminal ray and the $x$ -axis (never the $y$ -axis). It is always $0\le\theta'\le 90°$ .

Quadrant	$\theta$ range	reference $\theta'$
I	$0$ – $90°$	$\theta$
II	$90$ – $180°$	$180°-\theta$
III	$180$ – $270°$	$\theta-180°$
IV	$270$ – $360°$	$360°-\theta$

WHY these formulas? In each quadrant the terminal ray makes an angle with the nearest half of the $x$ -axis. E.g. in QII the ray sits between $90°$ and $180°$ , and its gap from the negative $x$ -axis ( $180°$ ) is $180°-\theta$ .

HOW the signs come out — deriving ASTC from scratch

The sign of each ratio is just the sign of $x$ and $y$ in that quadrant. Draw the $(x,y)$ signs:

Quadrant	$x=\cos$	$y=\sin$	$\tan=y/x$	Positive ones
I	$+$	$+$	$+$	All
II	$-$	$+$	$-$	Sin
III	$-$	$-$	$+$	Tan
IV	$+$	$-$	$-$	Cos

Read the "positive" column going anticlockwise from QI: A, S, T, C. That's the whole rule — it is derived, not memorised blindly.

Worked examples

Common mistake Steel-manning the classic errors

Mistake 1: measuring the reference angle from the $y$ -axis. Why it feels right: in QII you "start" from the top. The fix: reference angle is ALWAYS to the nearest $x$ -axis. $\sin 120°$ uses $60°$ ( $=180°-120°$ ), not $30°$ .

Mistake 2: thinking ASTC tells you the magnitude. Why it feels right: it's the only rule you memorised. The fix: ASTC gives only the sign. Magnitude always comes from the reference angle's ratio.

Mistake 3: forgetting cofunction shifts flip the ratio. With a $90°$ shift like $\sin(90°+\theta)$ , the function changes to $\cos$ . ASTC's clean "same ratio" only applies to $180°$ / $360°$ shifts. Use $90°$ / $270°$ ⇒ co-function swap; $180°$ / $360°$ ⇒ same function.

Recall Feynman: explain to a 12-year-old

Imagine spinning a clock hand from 3 o'clock, going anticlockwise. Its tip has a left-right position ( $x$ ) and an up-down position ( $y$ ). Cos is the left-right, sin is the up-down. When the hand points up-left, left-right is negative but up-down is positive — that's why in that region only sin stays positive. The size of the number is the same as if the hand were in the friendly bottom-right corner; only the plus/minus changes. "All Students Take Coffee" just reminds us which one stays positive as we spin.

Active recall

In which quadrant are ALL trig ratios positive?

Quadrant I (0°–90°).

Which single ratio is positive in Quadrant II?

Sine (and its reciprocal cosec).

Which is positive in Quadrant III?

Tangent (and cot).

Which is positive in Quadrant IV?

Cosine (and sec).

Reference angle formula in QII?

180°-\theta

Reference angle formula in QIII?

\theta-180°

Reference angle formula in QIV?

360°-\theta

The reference angle is measured from which axis?

Always the

x

-axis (never the

y

-axis).

Unit-circle definition of

\cos\theta

and

\sin\theta

\cos\theta=x

\sin\theta=y

of the point

P

on the unit circle.

Why is

\tan

positive in QIII?

Both

x

and

y

are negative, so

y/x>0

Evaluate

\sin 120°

+\sin 60° = \frac{\sqrt3}{2}

Evaluate

\cos 210°

-\cos 30° = -\frac{\sqrt3}{2}

Evaluate

\tan 315°

-\tan 45° = -1

Does ASTC give sign or magnitude?

Only the sign; magnitude comes from the reference angle.

How to handle angles above 360°?

Subtract multiples of 360° (periodicity) to land in

[0°,360°)

Connections

Unit Circle — the definition ASTC is built on.
Reference Angles — supplies the magnitude.
Trigonometric Identities — $90°$ shifts and co-function rules.
Radians and Degrees — same rule with $\pi$ replacing $180°$ .
Graphs of Sin Cos Tan — signs per quadrant = above/below the axis on the graph.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab angle 90° se bada ho jaata hai, tab purani "opposite/hypotenuse" wali triangle definition kaam nahi karti. Isliye hum unit circle use karte hain: origin se ek ray anticlockwise ghumaao, jahan wo circle ko touch kare us point ka $x$ = $\cos\theta$ aur $y$ = $\sin\theta$ . Bas itni si baat hai. Har quadrant mein $x$ aur $y$ ke sign alag hote hain, aur wahi sign trig ratio ka sign ban jaata hai.

ASTC rule ("All Students Take Coffee") sirf yeh yaad dilata hai ki kis quadrant mein kaunsa ratio positive hai — QI mein sab positive, QII mein sirf sin, QIII mein sirf tan, QIV mein sirf cos. Yaad rakho: ASTC sirf sign batata hai, value nahi. Value nikalne ke liye reference angle (x-axis se banaya hua acute angle) ka ratio lo.

Method simple hai: pehle quadrant pehchaano, phir reference angle nikaalo (QII: $180-\theta$ , QIII: $\theta-180$ , QIV: $360-\theta$ ), phir ASTC se sign lagao. Jaise $\cos 210°$ : QIII, reference $30°$ , aur QIII mein cos negative, toh answer $-\cos30° = -\frac{\sqrt3}{2}$ . Bahut common galti — reference angle ko y-axis se naapna. Hamesha x-axis se naapo, warna pura answer galat.

Yeh chapter isliye important hai kyunki aage integration, waves, phasors, complex numbers — sabme angles 90° se bahar jaate hain. Ek baar ASTC + reference angle solid ho gaya, toh koi bhi angle 30 second mein solve ho jaayega.
