6.5.17Advanced & Emerging Architectures

Wafer-scale engines (Cerebras-style)

2,371 words11 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHY does this exist? (The problem)

Key numbers to anchor intuition (Cerebras WSE-2/3 class, order-of-magnitude):

  • One wafer ≈ 215 mm × 215 mm of active silicon (~46,000 mm²).
  • ~850,000 cores, ~40 GB of on-chip SRAM (all fast, distributed).
  • On-chip fabric bandwidth in the petabytes/second range — orders of magnitude above off-chip.

WHAT is a wafer-scale engine?

Three defining design choices:

  1. Dataflow / weight-stationary compute — cores process sparse tensor operations; zeros are skipped in hardware (sparsity harvesting).
  2. Distributed SRAM, no DRAM — memory is spread across cores so each core reaches its memory in ~1 cycle. Bandwidth = (cores) × (per-core BW), which is astronomically high.
  3. 2-D mesh NoC (network-on-chip) — nearest-neighbor links; messages hop core-to-core.

HOW do you build a chip the size of a dinner plate? (First-principles obstacles)

Normal wafers are diced into chips because three things scale badly:

1. Deriving the yield killer

Model a wafer with defect density DD (defects per mm²) and die area AA. Under the classic Poisson yield model, a die is good only if it has zero killing defects.

Expected defects in one die =D⋅A= D \cdot A. Probability of zero (Poisson):

Y=e−DAY = e^{-DA}

The fix (steel-manned): WSEs give up on "zero defects" and instead build in redundancy. Extra spare cores and reroutable mesh links let the fabric route around dead cores. Effective yield becomes "enough good cores," not "a perfect wafer."

If a fraction ff of cores may fail and we need NN working cores from MM built, we simply require:

M(1−f)≥N⇒M≥N1−fM(1-f) \ge N \quad\Rightarrow\quad M \ge \frac{N}{1-f}

So you over-provision cores by the factor 11−f\frac{1}{1-f}.

2. Crossing the scribe lines

Cerebras adds extra metal wiring across the dicing streets during fabrication so the normally-separate reticle fields become one connected mesh. This is the crucial trick that turns "many chips on a wafer" into "one chip."

3. Power delivery & cooling

Power is delivered vertically from the back (current perpendicular to the wafer) and cooled by direct water/liquid through a cold plate, avoiding long in-plane resistive drops and handling thermal expansion with a special connector material.

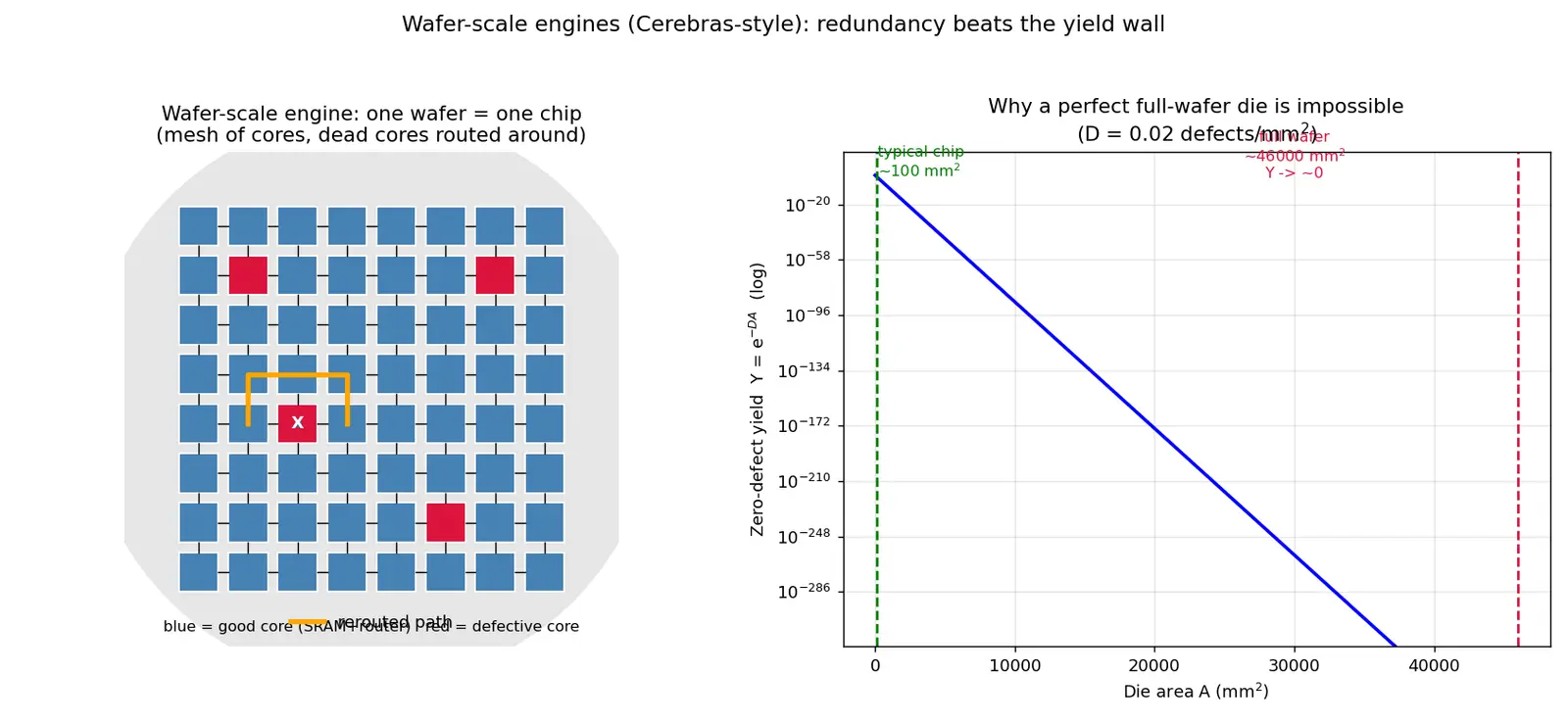

Figure — Wafer-scale engines (Cerebras-style)

WHY it wins: a bandwidth back-of-envelope

Weight-stationary sparse dataflow (HOW compute happens)

Common mistakes

Steel-man: when is wafer-scale the wrong choice?

If your workload has poor locality (all-to-all traffic, tiny models, or needs huge datasets that don't fit in on-wafer SRAM), the mesh's nearest-neighbor advantage evaporates and off-chip DRAM would help. WSEs shine when the model + working set fit on-wafer and traffic is mostly local/streaming.

Recall Feynman: explain to a 12-year-old

Imagine a city where every house is a tiny worker with its own notebook (memory). Normally we build the city as separate towns and send letters between them by slow post — that's a lot of waiting. A wafer-scale engine builds the whole city as one block with roads between every house already connected, so workers pass notes to their neighbors instantly. Some houses will be broken (the wafer always has flaws), so we build extra houses and just draw the roads around the broken ones. Because nobody has to mail letters far away, the whole city solves giant homework problems (training AI) super fast.

Connections

  • Dennard Scaling & the Memory Wall — why off-chip bandwidth became the bottleneck WSEs attack.
  • Network-on-Chip (NoC) & Mesh Topologies — the fabric that links WSE cores.
  • Systolic Arrays & TPUs — an alternative dataflow accelerator; contrast dense vs sparse.
  • Chiplets & 2.5D/3D Integration — the opposite philosophy: many small dies vs one huge die.
  • Yield & Defect Density Models — the Y=e−DAY=e^{-DA} theory used here.
  • Sparsity in Neural Networks — why zero-skipping matters for WSE speedups.
  • Liquid Cooling & Power Delivery Networks — enabling technology for ~15 kW on one wafer.

Flashcards

What is a wafer-scale engine?
A processor built from an entire silicon wafer as one die, a 2-D mesh of many small cores each with local SRAM and a router, with no external DRAM.
Why can't you just fabricate a defect-free full-wafer die?
Yield Y=e−DAY=e^{-DA} goes to ~0 as area AA approaches the whole wafer; random defects make a perfect large die essentially impossible.
Derive the zero-defect yield formula.
Defects are Poisson with mean λ=DA\lambda=DA; probability of 0 defects is P(0)=e−DAP(0)=e^{-DA}.
How do WSEs cope with the near-zero monolithic yield?
Redundant/spare cores plus a reroutable mesh route around dead cores; over-provision cores by factor 1/(1−f)1/(1-f).
Given need NN cores and failure fraction ff, how many to build?
M≥N/(1−f)M \ge N/(1-f).
What special fabrication trick connects the reticle fields?
Extra metal wiring laid across the scribe (dicing) lines so separate fields become one mesh.
Why is aggregate on-wafer bandwidth so huge?
All mesh links run in parallel, so Btotal=M⋅BcoreB_{total}=M\cdot B_{core} — hundreds of TB/s to PB/s.
Where does model state live in a WSE (no DRAM)?
Sharded across the distributed on-chip SRAM of all cores; total capacity is the sum over cores.
What memory model does a WSE use vs a GPU?
WSE = distributed-memory mesh (SRAM only); GPU = shared-memory SIMT with external HBM DRAM.
How is power delivered and heat removed in a WSE?
Power fed vertically through the wafer's back face; cooling by direct liquid/water cold plate.
Why does sparsity help a WSE more than a GPU?
WSE hardware skips multiply-by-zero (unstructured sparsity), while GPUs need dense/structured math.
When is wafer-scale the wrong choice?
Workloads with poor locality/all-to-all traffic or working sets too big for on-wafer SRAM.
What is "weight-stationary" dataflow?
Each core keeps its slice of weights locally while activations stream through, avoiding repeated weight movement.

Concept Map

motivates

uses

contains

each has

linked by

gives

gives

run

worsens

modeled by

fixed by

creates

Memory + interconnect walls

Wafer-scale engine

Whole wafer as one die

850k identical cores

Distributed on-chip SRAM

2-D mesh network on chip

Petabyte/s on-chip bandwidth

Sparsity harvesting

Yield problem

Poisson yield Y = e^-DA

Redundant cores + rerouting

15-20 kW power and cooling

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, normal chip banane mein ek badi silicon wafer ko chhote-chhote tukdon (dies) mein kaat dete hain, aur phir un chips ko aapas mein baat karne ke liye slow wires aur packages use karne padte hain. AI training mein sabse bada problem compute nahi, balki data ko idhar-udhar move karna hai — weights, activations, gradients. Har baar jab data ek chip se dusre chip tak jaata hai, woh slow aur power-hungry ho jaata hai. Isko kehte hain memory wall aur interconnect wall.

Cerebras-style wafer-scale engine ka idea simple hai: wafer ko kaato hi mat, poori wafer ko hi ek single chip bana do. Isme lakhon chhote cores hote hain, har core ke paas apni local SRAM aur ek router hota hai, aur sab ek 2-D mesh se juda hota hai. Koi external DRAM nahi — pura model in cores ki SRAM mein shard karke rakha jaata hai. Kyunki data mostly on-chip hi rehta hai, aggregate bandwidth petabytes/second tak pahunch jaati hai, jo GPU se hazaaron guna zyada hai.

Ab sawaal aata hai: itni badi wafer toh defects ki wajah se kabhi perfect banegi hi nahi. Yield formula Y=e−DAY=e^{-DA} dekho — jaise-jaise area AA badhta hai, yield zero ki taraf jaata hai. Toh Cerebras perfect wafer maangta hi nahi. Woh extra spare cores rakhta hai aur mesh ko reroutable banata hai, taaki jo cores kharab ho unke aas-paas se raasta ghumaya ja sake. Bas itna chahiye ki enough working cores ho. Power neeche se vertically diya jaata hai aur liquid cooling se ~15 kW garmi nikaali jaati hai.

Yaad rakhna: yeh "ek bada GPU" nahi hai — yeh ek distributed-memory on-chip supercomputer hai. Yeh tab best kaam karta hai jab traffic local ho aur model on-wafer SRAM mein fit ho jaaye. Agar all-to-all communication ya bahut bada dataset ho jo fit na ho, tab GPU+DRAM better rehta hai. Core mantra: "One wafer, one chip, no DRAM, route around death."
