RISC-V base ISA (RV32I - RV64I): Worked examples — Hardware deep dive

The scenario matrix

Before we compute anything, let's map the territory. Instruction encoding has a small number of independent "axes" that can each flip. A worked example is only useful if, together with the others, it visits every cell.

Axis (what can vary)	Cell A	Cell B	Cell C
Immediate sign	positive imm	negative imm	zero / edge (`-2048`, `+2047`)
Format & field layout	I-type (contiguous imm)	S-type (imm split in two)	B/J-type (imm split and scaled ×2)
Fits in one instr?	yes (≤12 bits)	no → needs `lui`+`addi` pair	huge → 64-bit `RV64I`
Branch direction	forward (imm > 0)	backward (imm < 0)	not-taken (fall through)
Degenerate / `x0`	uses `x0`=0	`nop` (all-zero effect)	overflow wrap-around
RV32I vs RV64I	32-bit sign-extend	64-bit sign-extend	`addw` 32-bit wrap on 64-bit reg

Below, each example is tagged with the cells it covers. By example 9 every cell above has been visited at least once.

Example 1 — Positive I-type immediate (cells: positive imm · I-type · fits · RV32I)

Worked example Encode

addi x5, x6, 100 Forecast: Guess the 32-bit hex before reading on. Is 100 going to sign-extend to something negative? (Hint: is bit 11 of 100 set?)

Step 1 — Pick the format & fixed fields. addi is I-type: opcode = 0010011, funct3 = 000. Why this step? Every derivation begins by locking the constant fields; they never depend on the operands, so getting them first means we can't misplace the movable ones.

Step 2 — Encode the register numbers. rd = 5 = 00101, rs1 = 6 = 00110. Why this step? Registers are plain 5-bit unsigned numbers ( $2^{5} = 32$ registers, exactly x0–x31). No sign games here.

Step 3 — Encode the immediate. $100$ in binary is 0000 0110 0100. Bit 11 (the leftmost of the 12) is 0, so this value is non-negative; sign-extension will pad with zeros → stays $+ 100$ . Why this step? We must check bit 11 before trusting the number, because a 12-bit field is signed.

Step 4 — Pack the 32 bits. Layout is imm[11:0] | rs1 | funct3 | rd | opcode: $imm 000001100100 r s 1 00110 f u n c t 3 000 r d 00101 o p co d e 0010011$ Grouping into 8-bit bytes gives 0x06430293.

Verify: Decode back — top 12 bits 0x064 = 100, positive, so $x 5 = x 6 + 100$ . Sign-extended value is exactly $100$ . ✓

Example 2 — Negative I-type immediate (cells: negative imm · I-type · sign-extend RV32I)

Worked example Encode

addi x5, x6, -1 and predict the stored value. Forecast: What 12 bits represent $- 1$ ? What does that sign-extend to in 32 bits?

Step 1 — Represent $- 1$ in 12-bit two's complement. $- 1 =$ 1111 1111 1111 (all ones). See Two's Complement: all-ones is always $- 1$ regardless of width. Why this step? The processor never "knows" you meant subtract — it just sign-extends the bits. So we must produce the bit pattern of $- 1$ , not the decimal.

Step 2 — Sign-extend to XLEN = 32. Bit 11 is 1 → copy it leftward: the immediate becomes 0xFFFFFFFF. Why this step? Sign-extension is why addi ..., -1 really subtracts one. The 12-bit -1 and the 32-bit -1 are the same number, just wider.

Step 3 — Result. $x 5 = x 6 + (- 1) = x 6 - 1$ . RISC-V needs no subi opcode: a negative immediate is subtraction.

Verify: If $x 6 = 10$ , then $x 5 = 9$ . The immediate field 0xFFF sign-extended = $- 1$ ; $10 + (- 1) = 9$ . ✓

Example 3 — The immediate boundaries (cells: edge imm `-2048`/`+2047` · degenerate)

Worked example What are the largest and smallest immediates

addi accepts, and what happens at +2048? Forecast: A 12-bit signed field — what's its range? Try to place 2048.

Step 1 — Compute the signed range of 12 bits. A signed $n$ -bit field spans $[- 2^{n - 1}, 2^{n - 1} - 1]$ . With $n = 12$ : $[- 2048, + 2047]$ . Why this step? One negative "slot" is spent on $0$ , which is why the positive top ( $2047$ ) is one less than the negative bottom's magnitude ( $2048$ ).

Step 2 — Encode the extremes. +2047 = 0111 1111 1111, -2048 = 1000 0000 0000. Why this step? These are the "walls." +2047 has bit 11 = 0 (still positive); -2048 has bit 11 = 1 with all-zero magnitude — the most negative pattern.

Step 3 — What about addi x5, x6, 2048? $2048$ needs bit 11 set, but a set bit 11 means negative. So 2048 does not fit. The assembler must instead emit lui+addi (see Example 5) or use a temp register. Why this step? This is the exact frontier where "one instruction" stops working — the reason the two-instruction constant-load pattern exists.

Verify: $2^{11} - 1 = 2047$ ✓ and $- 2^{11} = - 2048$ ✓; the bit pattern 1000 0000 0000 interpreted signed = $- 2048$ , confirming 2048 overflows. ✓

Example 4 — S-type: the split immediate (cells: negative imm · S-type split)

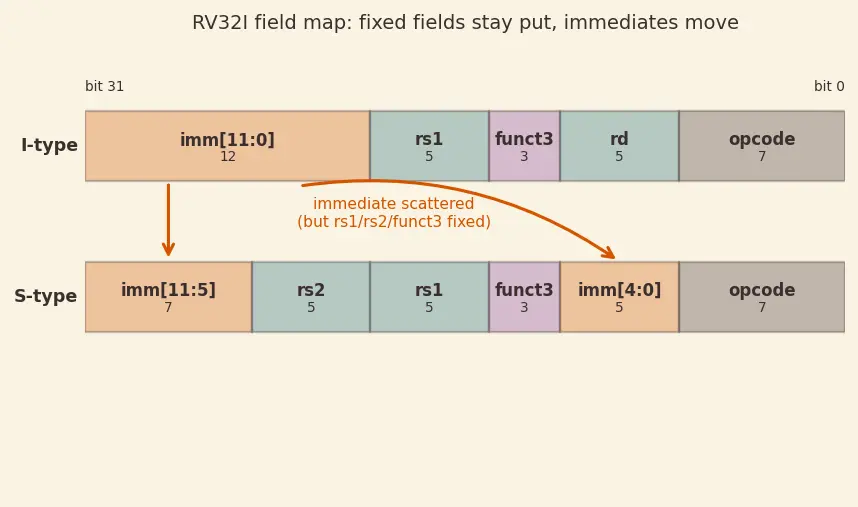

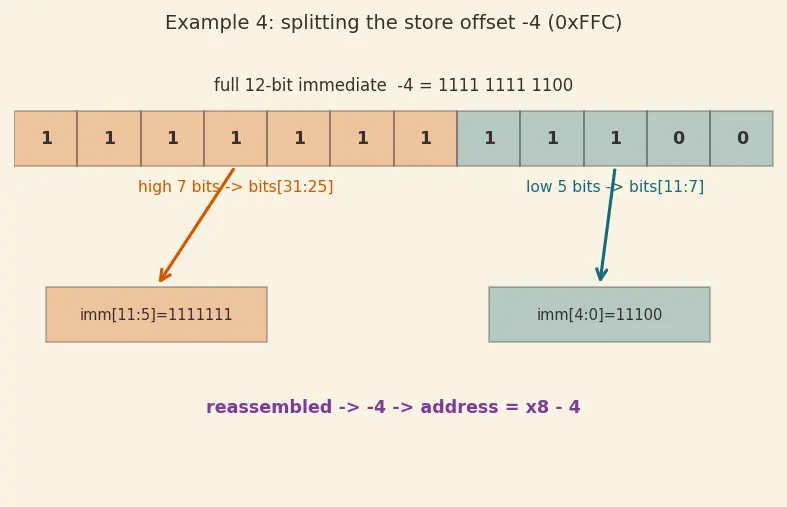

Look at

Figure — RISC-V base ISA (RV32I - RV64I)

: the store immediate is torn into a high piece imm[11:5] (7 bits, top of the word) and a low piece imm[4:0] (5 bits, where rd sits in other formats). The teal brackets show which bits go where.

Worked example Encode

sw x7, -4(x8) (store word x7 at address x8 - 4). Forecast: The offset is -4. Which bits land in the high piece, which in the low piece?

Step 1 — Fixed fields. sw is S-type: opcode = 0100011, funct3 = 010.

Step 2 — Registers. In stores, rs1 = x8 (base address) = 01000, rs2 = x7 (value to store) = 00111. Why this step? Note there is no rd — a store produces no register result. That freed 5-bit slot is exactly where the low immediate piece hides.

Step 3 — Build the full 12-bit immediate for $- 4$ . $- 4$ = 1111 1111 1100 (12 bits, two's complement). Why this step? We form the whole number first, then cut it — never the reverse, or we'd mis-slice.

Step 4 — Split it. imm[11:5] = 1111111 (top 7 bits) → placed at bits [31:25]. imm[4:0] = 11100 (bottom 5 bits) → placed at bits [11:7]. Why this step? The split is deliberate: rs1,rs2,funct3 stay in their I/R-type homes so the decoder reads them without knowing the format yet.

Step 5 — Effective address. $x 8 + sext (- 4) = x 8 - 4$ .

Verify: Reassemble 1111111 · 11100 = 1111 1111 1100 = $- 4$ ✓. If $x 8 = 0 x 1000$ , address = 0x0FFC. ✓

Example 5 — Loading a big constant (cells: doesn't fit · lui+addi · signed-low correction)

Worked example Load

0xDEADBEEF into x10 (the classic li expansion). Forecast: 0xBEEF's low 12 bits are 0xEEF. Is 0xEEF positive or negative as a signed 12-bit? That decides whether we must "round up" the upper part.

Step 1 — Split the constant into upper 20 + lower 12. 0xDEADBEEF = upper 0xDEADB (bits 31:12) and lower 0xEEF (bits 11:0). Why this step? lui fills bits 31:12 (shifting a 20-bit immediate left by 12); addi adds a signed 12-bit low part. Together they cover 32 bits.

Step 2 — Check the sign of the low part. 0xEEF = 1110 1111 1111; bit 11 = 1 → negative: 0xEEF as signed 12-bit = $- 273$ . Why this step? This is the subtlety. addi will sign-extend 0xEEF to 0xFFFFFEEF and add it — which subtracts $273$ , corrupting the upper bits unless we compensate.

Step 3 — Round the upper part up by 1. Because the low add is really " $- 273$ ", pre-add $1$ to the upper immediate: 0xDEADB → 0xDEADC. $lui x 10, 0xDEADC \Rightarrow x 10 = 0xDEADC000$ $addi x 10, x 10, - 273 \Rightarrow x 10 = 0xDEADC000 + (0xFFFFFEEF)$ Why this step? Adding a sign-extended $- 273$ to 0xDEADC000 gives back the "missing" 0xBEEF low bits and undoes the +1 we added upstairs.

Verify: 0xDEADC000 + 0xFFFFFEEF = 0xDEADBEEF (mod $2^{32}$ ) ✓ — the carry from the wrap cancels the extra 1.

Example 6 — When the low part is positive (no rounding) (cells: positive imm · lui+addi)

Example 7 — Backward branch (a loop) (cells: negative imm · B-type split+scaled · backward)

See

: two instructions on an address line. The bne sits at 0x104; the arrow curves backward to loop at 0x100, so the offset is negative and small.

Worked example

bne x1, x0, loop where loop is 4 bytes before the branch. Forecast: offset = target − pc = 0x100 − 0x104 = -4. B-type immediates are in units of 2 bytes — so what's the "scaled" number stored?

Step 1 — Compute the byte offset. $target - p c = - 4$ bytes. Why this step? Branch targets are always relative to the branch's own address pc; PC-relative addressing (see Addressing Modes) is why loops are position-independent.

Step 2 — Enforce the implicit bit 0 = 0. The B-type immediate does not store bit 0 (instructions are ≥2-byte aligned). $- 4$ is even ✓, so the low bit being dropped loses nothing. Why this step? Dropping the always-zero bit is what lets a 12-bit field reach $\pm 4$ KiB instead of $\pm 2$ KiB — free doubling of range.

Step 3 — Compare against x0. bne x1, x0, ... branches iff $x 1 \neq = 0$ . No dedicated "branch-if-nonzero" opcode is needed; the zero register is the constant $0$ .

Verify: From 0x104, offset $- 4$ lands on 0x100 = loop ✓, and $- 4$ is even so bit 0 = 0 is satisfied ✓.

Example 8 — Forward jump range & the `±1 MiB` limit (cells: positive imm · J-type · limiting value · exam twist)

Worked example Exam twist: "A

jal has a 20-bit immediate, so it reaches $\pm 2^{19}$ bytes." True or false — and what's the real reach? Forecast: Remember the store-the-bit-0 trick. Does J-type scale by 2 like B-type?

Step 1 — Recall J-type stores a scaled offset. Like B-type, bit 0 is implicit (0). So the 20 stored bits represent a half-count of bytes. Why this step? The claim confuses "20 bits" with "20 bits of bytes." The units are 2-byte steps.

Step 2 — Compute the true range. Signed 20-bit half-steps: $[- 2^{19}, 2^{19} - 1]$ half-steps $\times 2$ bytes $= [- 2^{20}, + 2^{20} - 2]$ bytes $= \pm 1 MiB$ . Why this step? Multiplying the count by 2 doubles the byte reach — exactly the same mechanism as Example 7, one bit wider.

Step 3 — Verdict. False. The reach is $\pm 2^{20}$ bytes ( $\pm 1$ MiB), not $\pm 2^{19}$ .

Verify: $2^{20} = 1, 048, 576$ bytes $= 1$ MiB ✓; the naive $2^{19}$ is exactly half of that. ✓

Example 9 — Degenerate & RV64I wrap (cells: `nop` · overflow wrap · RV64I `addw`)

Worked example Two edge cases at once:

(a) What does addi x0, x0, 0 do? (b) On RV64I, if x1 = 0xFFFFFFFF (largest 32-bit unsigned), what is addw x2, x1, x1?

Forecast (a): Where does the result go? Forecast (b): Does the 64-bit result matter, or only the low 32 bits (then sign-extended)?

Step 1 — Case (a): the canonical nop. addi x0, x0, 0 computes $0 + 0 = 0$ and writes it to x0 — but x0 discards all writes. Net effect: nothing changes. That is the official nop. Why this step? This is the ultimate degenerate instruction: a real 32-bit encoding whose semantics are "do nothing," useful for pipeline stalls (see Pipelining) and alignment padding.

Step 2 — Case (b): compute the 32-bit sum with wrap. 0xFFFFFFFF + 0xFFFFFFFF = 0x1FFFFFFFE. addw keeps only the low 32 bits → 0xFFFFFFFE. Why this step? *w instructions exist precisely so 32-bit C arithmetic wraps correctly on a 64-bit machine — the top carry bit is thrown away.

Step 3 — Sign-extend the 32-bit result to 64 bits. Low-32 result 0xFFFFFFFE has bit 31 = 1 → negative → sign-extend to 0xFFFFFFFFFFFFFFFE. Why this step? Every *w result is defined to sign-extend, so a 32-bit value sits "naturally" in a 64-bit register.

Verify (a): result in x0 = $0$ regardless — nop ✓. Verify (b): low 32 bits of $0 x 1 F F F F F F F E$ = 0xFFFFFFFE; sign-extended = 0xFFFFFFFFFFFFFFFE ✓.

Active recall

Recall Which cells are still uncovered after Example 9? (answer)

None — every row of the matrix (sign, format layout, fit, direction, degenerate, RV32I/RV64I) was hit. ✓

Recall Reveal

Why does 0xEEF force a +1 on the lui part but 0x678 does not? ::: 0xEEF has bit 11 set → signed-negative → the addi subtracts, so the upper part is pre-incremented to compensate. 0x678's bit 11 is clear → positive → no correction. A 12-bit signed immediate's range? ::: $[- 2048, + 2047]$ . Real reach of a jal (J-type)? ::: $\pm 2^{20}$ bytes = $\pm 1$ MiB (offsets scale by 2). What is addi x0, x0, 0? ::: The canonical nop — the write to x0 is discarded.

Related: RISC vs CISC · Assembler & Pseudo-instructions (the li and nop expansions live there).
