Before anything, let us re-anchor the three words this whole page rests on, in plain language:

Two prerequisites we lean on and where to revise them: Registers and the Register File (why a register number is just a small integer) and Two's Complement and Sign Extension (how negative numbers live in bits).

The scenario matrix

Every encoding question you will ever see is one of these cells. The worked examples below are tagged with the cell they cover, and together they hit all of them.

#	Cell (case class)	What makes it tricky	Example
A	Simple positive R-type	just pack registers	Ex 1
B	Positive immediate (I-type)	immediate sits in one block	Ex 2
C	Negative immediate	top bit = sign, must sign-extend	Ex 3
D	Zero / degenerate input	register 0, immediate 0	Ex 4
E	Maximum / limiting value	biggest immediate a field holds	Ex 5
F	Split immediate (S-type)	bits scattered across two holes	Ex 6
G	Reordered + scaled (B-type)	immediate in units of 2 bytes	Ex 7
H	Decode direction (bits → meaning)	reverse the whole process	Ex 8
I	Field-width word problem	choose bit counts from requirements	Ex 9
J	Exam twist (opcode-budget trap)	more opcode ≠ more room	Ex 10

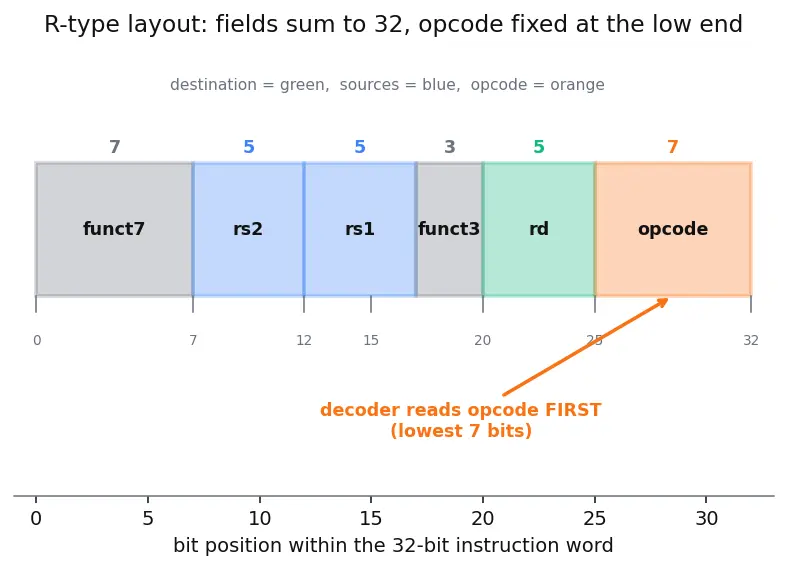

The R-type field order we will reuse (from the parent note) is the "phone number" 7-5-5-3-5-7 — read the figure below for the picture; the math line just names the same fences:

$7 f u n c t 7 5 r s 2 5 r s 1 3 f u n c t 3 5 r d 7 o p co d e$

Figure — Instruction formats and encoding

The worked examples

Cell A — simple positive R-type

Worked example Example 1 — Encode

add x5, x6, x7 Forecast first: the opcode for add is 0110011, funct3 = 000, funct7 = 0000000. Before reading on, guess: what 5-bit patterns do registers 5, 6, 7 become, and in what left-to-right order do they sit?

Step 1 — turn each register number into 5 bits. $5 = 4 + 1 \to 00101$ , $6 = 4 + 2 \to 00110$ , $7 = 4 + 2 + 1 \to 00111$ . Why this step? Each register field is exactly 5 bits wide (32 registers need $⌈ lo g_{2} 32 ⌉ = 5$ bits), so we must write each number in 5 columns, padding with leading zeros.

Step 2 — identify which register is which. In add rd, rs1, rs2: destination rd = x5, first source rs1 = x6, second source rs2 = x7. Why this step? The assembly writes destination first, but the bits store rs2 far left and rd near the opcode — mixing these up is the #1 error. Look at the figure above: destination lives near the opcode (green), sources further left (blue).

Step 3 — drop each field into its 7-5-5-3-5-7 slot. $f u n c t 7 0000000 r s 2 = 7 00111 r s 1 = 6 00110 f u n c t 3 000 r d = 5 00101 o p co d e 0110011$ Why this step? The Instruction Decode Stage always reads the lowest 7 bits as opcode, so we place fields exactly where decode looks.

Verify: count the bits: $7 + 5 + 5 + 3 + 5 + 7 = 32$ . ✓ Full word as one 32-bit binary equals hex 0x007302B3 — checked in VERIFY.

Cell B — positive immediate (I-type)

Cell C — negative immediate (the sign-extension case)

Worked example Example 3 — Encode

addi x1, x2, -8, then sign-extend Forecast: in 12-bit two's complement, will $- 8$ start with a 1 or a 0? Guess how the 32-bit widened value looks.

Step 1 — find $- 8$ in 12-bit two's complement. Take $+ 8 = 000000001000$ , flip every bit $\to 111111110111$ , add 1 $\to 111111111000$ . Why? Two's complement is defined as "invert and add one"; that gives the pattern whose value is $- 8$ .

Step 2 — read the sign bit. Bit 11 (leftmost) is 1 $\Rightarrow$ negative. ✓ Forecast confirmed. Why? In two's complement the top bit alone tells the sign — 1 means negative.

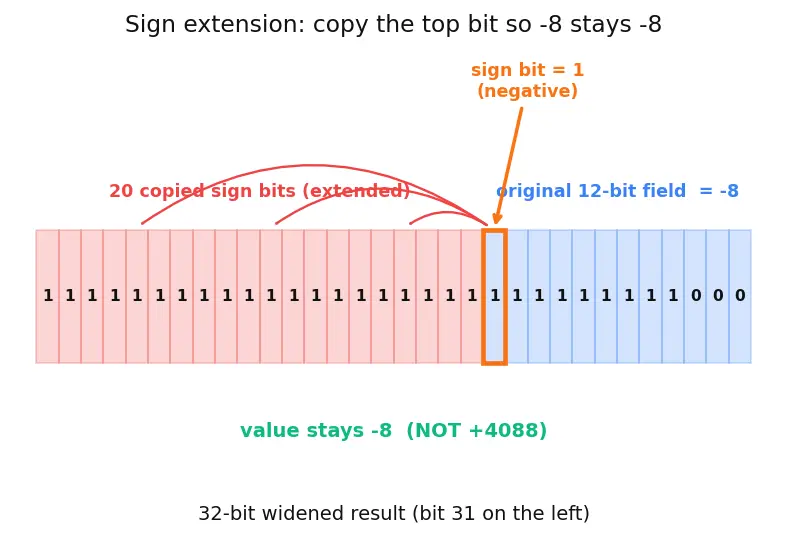

Step 3 — sign-extend to 32 bits. Copy the top bit (1) into the extra 20 bits: $20 copied ones 11111111111111111111 - 8 in 12 bits 111111111000$ Why? Copying the sign bit keeps the value $- 8$ instead of turning it into $+ 4088$ . The figure shows the top bit fanning out to the left.

Verify: interpret the 32-bit result as signed: it equals $- 8$ . And $+ 4088$ would be the wrong zero-extended answer — both checked in VERIFY.

Cell D — zero / degenerate input

Worked example Example 4 — Encode

add x0, x0, x0 Forecast: register 0 is special in RISC-V (it is hard-wired to always read 0). Guess what the whole instruction word looks like when everything is zero.

Step 1 — encode register 0. $0 = 00000$ (five zeros). All three register fields are 00000. Why? Zero is a valid register index; it just happens to be all zeros. Degenerate inputs still follow the normal rule.

Step 2 — assemble. add keeps opcode 0110011, funct3 000, funct7 0000000: $00000000000000000000000000110011$ Why? Nothing changes about the layout; only the values are zero.

Verify: as a 32-bit integer this is 0x00000033, not all-zero — because the opcode bits are still set. The lesson: a "do nothing on zeros" instruction is not the all-zero word. Checked in VERIFY. (The truly all-zero word 0x00000000 is an illegal instruction in RISC-V — a nice degenerate edge to remember.)

Cell E — maximum / limiting value

Worked example Example 5 — What is the largest and smallest immediate an I-type can hold?

Forecast: a 12-bit signed field — guess the two extremes.

Step 1 — split the range. With 12 bits, one bit is the sign, leaving 11 magnitude bits. Why? In two's complement the range is asymmetric: negatives get one extra slot because $0$ counts as a non-negative.

Step 2 — compute the extremes. $max = 2^{11} - 1 = 2047, min = - 2^{11} = - 2048.$ Why? The largest positive is all-ones-except-sign ( $011 \dots 1$ ); the most negative is sign-bit only ( $100 \dots 0$ ). The " $- 1$ " on the positive side is because we spent one pattern on zero.

Step 3 — pattern check. $2047 = 011111111111$ , $- 2048 = 100000000000$ . Why this step? We confirm the extremes are legal bit-patterns and not off by one: $011111111111$ is every magnitude bit set with a 0 sign bit (biggest positive), and $100000000000$ is the sign bit alone (most negative). Seeing the actual bits guards against the classic $\pm 1$ range error.

Verify: $2^{11} - 1 = 2047$ and $- 2^{11} = - 2048$ , and decoding 100000000000 as two's complement gives $- 2048$ — all checked in VERIFY. Limiting behaviour: ask for addi x1,x2,2048 and the assembler rejects it — it does not fit.

Cell F — split immediate (S-type store)

Worked example Example 6 — Encode the offset of

sw x7, 12(x2) Forecast: the offset is 12. How do its bits divide into the top-7 and bottom-5 pieces?

Step 1 — write 12 in 12 bits. $12 = 8 + 4 = 000000001100$ . Why? We need all 12 bits before we cut them.

Step 2 — cut into imm[11:5] and imm[4:0].

$imm [4 : 0]$ = lowest 5 bits = 01100
$imm [11 : 5]$ = next 7 bits = 0000000 Why? Using the bracket notation from the top: we slice the same number 12 into two pieces that live in different fields.

Step 3 — place them. sw opcode 0100011, funct3 010, rs1 x2 = 00010, rs2 x7 = 00111: $imm [11 : 5] 0000000 r s 2 00111 r s 1 00010 f u n c t 3 010 imm [4 : 0] 01100 o p co d e 0100011$

Verify: reassemble $imm [11 : 5] ∥ imm [4 : 0]$ = 0000000 01100 = $12$ ✓ (checked in VERIFY). The register fields rs1, rs2 sit in the same positions as R-type — that is the whole point.

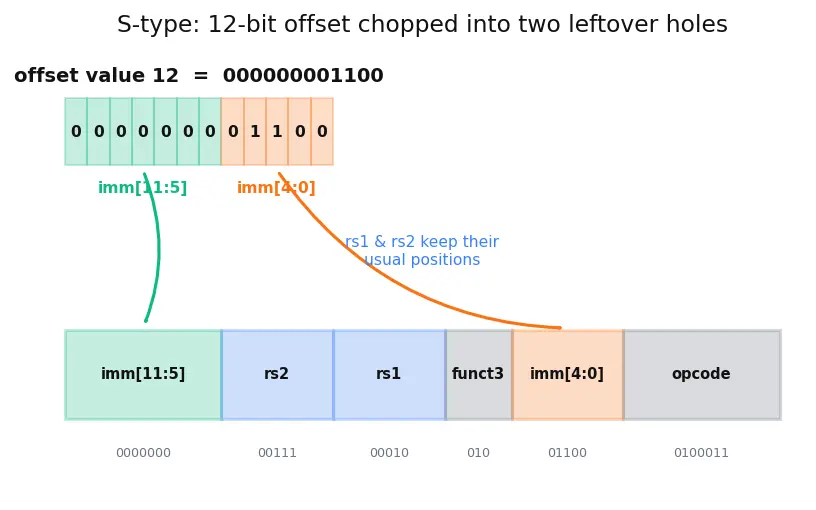

Look at the figure below. The top row shows the plain 12-bit value 12; the coloured arrows carry its two slices down into the S-type template. Notice the green slice ( $imm [11 : 5]$ ) and the orange slice ( $imm [4 : 0]$ ) land in non-adjacent holes, while rs1 and rs2 (blue) stay exactly where R-type put them — that unchanged register wiring is the reason for the whole split.

Cell G — reordered + scaled (B-type branch)

Worked example Example 7 — Encode the branch offset of

beq x1, x2, +12 and confirm the distance Forecast: guess before computing — does a stored value that means "12 bytes" put a 1 in the sign bit? Is the branch forward or backward?

Step 1 — write the byte offset as a 13-bit signed value. $+ 12 = 0000000001100$ as $imm [12 : 0]$ (thirteen bits, bit 0 on the right). Why? Branch offsets are 13-bit signed byte distances; we need every bit before we can pick slices out of it.

Step 2 — read the always-zero bottom bit. $imm [0] = 0$ . ✓ Why? Instructions are 2-byte aligned, so the byte offset is always even — bit 0 is guaranteed 0 and is therefore not stored (this is the "scaled by 2" trick). The stored halfword-count is $12/2 = 6$ .

Step 3 — pull out each named slice. From $imm [12 : 0] = 0000000001100$ :

$imm [12]$ (sign) $= 0$
$imm [11] = 0$
$imm [10 : 5] = 000000$
$imm [4 : 1] = 0110$ (bits 4,3,2,1 = 0,1,1,0) Why? These are exactly the four slices the B-type template asks for; we cut the 13-bit ruler into the pieces named in the breakdown callout above.

Step 4 — place slices into the 7-5-5-3-5-7 template. beq opcode 1100011, funct3 000, rs1 x1 = 00001, rs2 x2 = 00010: $imm [12] ∥ imm [10 : 5] 0000000 r s 2 00010 r s 1 00001 f u n c t 3 000 imm [4 : 1] ∥ imm [11] 01100 o p co d e 1100011$ Why? Each slice drops into its assigned hole so the sign bit $imm [12]$ lands at the very top position, shared with every other format's sign bit.

Verify: the stored halfword count is $6$ , so the effective jump is $6 \times 2 = 12$ bytes forward; the sign bit $imm [12] = 0$ confirms forward. Reassembling the four slices back into $imm [12 : 0]$ gives $12$ — all checked in VERIFY. This is exactly the parent-note mistake: the raw field ≠ the effective value. Ask "is it scaled or sign-extended?" — for B-type, both.

Cell H — decode direction (bits → meaning)

Worked example Example 8 — Decode the 32-bit word

0x00C58533 Forecast: we go backwards now. Guess: which field do we read first?

Step 1 — write the hex as 32 bits. 0x00C58533 = 0000 0000 1100 0101 1000 0101 0011 0011. Why? Every hex digit is 4 bits; we expand to see individual fields.

Step 2 — peel the lowest 7 bits (opcode). Lowest 7 = 0110011 → R-type add class. Why? Decode always reads the opcode first, from the low end — it tells us which format the rest follows.

Step 3 — slice the remaining fields by 7-5-5-3-5-7. Reading up from the opcode:

rd (next 5) = 01010 = x10
funct3 (3) = 000
rs1 (5) = 01011 = x11
rs2 (5) = 01100 = x12
funct7 (7) = 0000000 Why? We reverse the packing: same fences, read values out instead of in.

Verify: the instruction is add x10, x11, x12. Re-encoding those fields gives back 0x00C58533 — checked in VERIFY.

Cell I — field-width word problem

Worked example Example 9 — Design a tiny ISA

Problem: A toy CPU has 16 registers and needs 40 distinct operations. Every instruction is [opcode][rd][rs1] (two registers). What is the minimum instruction width?

Forecast: guess whether it fits in one byte (8 bits).

Step 1 — opcode bits. $⌈ lo g_{2} 40 ⌉$ : $2^{5} = 32 < 40$ , $2^{6} = 64 \geq 40$ → 6 bits. Why? A field of $b$ bits encodes $2^{b}$ patterns; we need at least 40, so 6.

Step 2 — register bits. 16 registers → $⌈ lo g_{2} 16 ⌉ = 4$ bits each, and there are two register fields (rd and rs1), so $4 + 4 = 8$ bits. Why? $2^{4} = 16$ exactly covers 16 registers, and the problem states two register operands.

Step 3 — total and round up. $6 + 4 + 4 = 14$ bits. Real hardware fetches whole bytes, so round up to a byte boundary → 16 bits (2 bytes). Why? A 14-bit word wastes 2 bits but is padded to 16 for clean byte-aligned fetching. This is the RISC vs CISC fixed-width philosophy in miniature.

Verify: $⌈ lo g_{2} 40 ⌉ = 6$ , $⌈ lo g_{2} 16 ⌉ = 4$ , sum $= 14$ , rounded to 16 — all checked in VERIFY. So the answer to the forecast is no, one byte is not enough.

Cell J — exam twist (the opcode-budget trap)

Worked example Example 10 — The tempting wrong answer

Problem: "A student widens the primary opcode from 7 to 12 bits in a 32-bit fixed-width R-type to support more operations, keeping three 5-bit registers and a 3-bit funct3 and the 7-bit funct7. Does it still fit? What broke?"

Forecast: guess yes or no before adding.

Step 1 — sum the demanded bits. $12 (opcode) + 5 + 5 + 5 (regs) + 3 (f u n c t 3) + 7 (f u n c t 7) = 37$ bits. Why? The word is a fixed 32-bit budget; every bit added to the opcode is stolen from somewhere else. We total what the design demands and compare to what we have.

Step 2 — compare to budget. $37 > 32$ . It does not fit. Something must be dropped — likely funct7, losing the ability to distinguish add from sub. Why? This is the parent-note mistake steel-manned: more opcode bits ≠ more usable instructions if they crowd out required fields.

Step 3 — the right fix. Keep the 7-bit opcode and expand operations through funct3/funct7 sub-fields, exactly as real RISC-V does — no budget overflow. Why? Sub-fields multiply the operation count within the existing opcode class without spending scarce primary-opcode bits.

Verify: $12 + 5 + 5 + 5 + 3 + 7 = 37 > 32$ ✓ (VERIFY). The trap answer "yes it fits" is provably wrong.

Recall Quick self-test on the whole matrix

Which cell involves multiplying the stored value by 2 before use? ::: Cell G (B-type branch, scaled by 2 bytes). Why does S-type split its immediate? ::: So rs1 and rs2 stay in their normal positions and the register-read wiring never changes. Largest value a 12-bit signed immediate holds? ::: $+ 2047$ ; smallest is $- 2048$ . Which bit of a B-type immediate is the sign bit? ::: $imm [12]$ , the top bit, placed at the very top of the word so one sign-extend wire serves all formats. Encoding add x0,x0,x0 — is the word all zeros? ::: No — the opcode bits 0110011 are still set (0x00000033). First field the decoder reads? ::: The opcode, in the lowest 7 bits.

See also: Addressing Modes (how the immediate becomes a memory address) and Pipelining (why fixed-width fields make decode fast enough to overlap).
