4.1.10 · D5Memory Technologies
Question bank — Multi-level cell (MLC - TLC - QLC) flash
The three symbols every trap below depends on
Before any question, we must earn the notation, so nothing surprises you mid-answer.

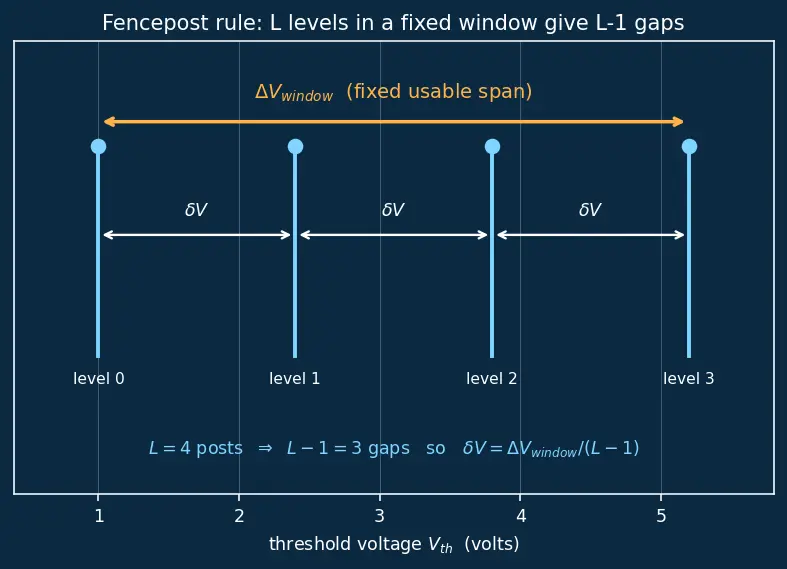

Now picture the geometry. Look at the figure below: the horizontal axis is , the whole ruler from left edge to right edge is , and we must drop marks inside it.

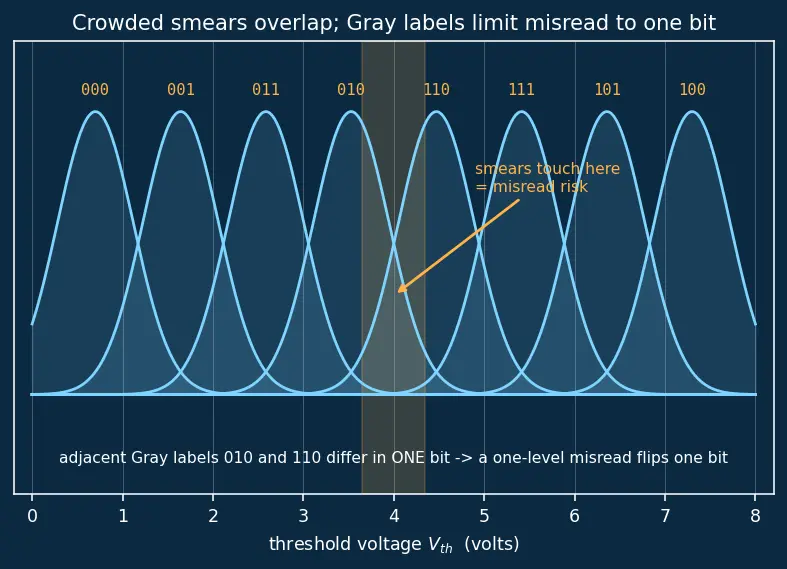

One more picture we need everywhere: a voltage smear. Each level is not a crisp but a ==bell-curve spread of across many cells== (from programming variation, charge leakage, neighbour interference). When two neighbouring smears touch, a read misclassifies. The next figure shows why shrinking forces overlap, and how Gray coding limits the damage.
True or false — justify
Answer with T/F and one sentence of reasoning. A bare "true/false" scores zero here.
MLC is a general category that includes TLC and QLC.
False — in industry jargon MLC is a proper noun meaning exactly bits/cell ( levels); TLC and QLC are named separately.
Doubling the bits per cell from to roughly doubles the storage but only slightly cuts the voltage margin.
False — capacity scales linearly with (2→4 is ×2), but margin falls from to , a ~5× collapse, not slight.
A larger voltage window would let QLC keep the same per-level margin as SLC.
True in principle — since , a 15× wider window would restore SLC-like spacing; in practice is capped by oxide physics and read-circuit limits.
Gray coding changes how much data a cell stores.
False — it only re-labels which bit pattern sits on each of the levels; and capacity are unchanged, it just minimises bit-flips on a misread.
QLC is slower to write mainly because it needs more read reference voltages.
False — the dominant write cost is ISPP (pulse-verify-repeat) needed to hit tight target distributions; read references are a read-time concern, not a write-time one.
SLC has the highest endurance because its oxide is physically tougher.
False — the oxide is similar; SLC survives longer because its huge tolerates the smear-widening that P/E wear causes before overlap occurs.
An idle QLC drive can lose data over time even with no reads or writes.
True — charge slowly leaks off the floating gate, drifting ; with QLC's tiny even small drift crosses a read reference and flips bits (data retention limit).
Spot the error
Each statement contains one wrong claim. Name it and correct it.
"To distinguish 8 TLC levels you need 8 read reference voltages."
Wrong count — levels need references in the worst case (fenceposts: 8 posts, 7 gaps between them).
"Level spacing is , so TLC gives ."
Wrong divisor — it is ; the level centres form intervals, not .
"QLC levels are 4× more crowded than SLC because it stores 4× the bits."
Wrong factor — crowding is the margin ratio , so QLC is ~15× more crowded, not 4×; crowding is exponential in , not linear.
"Gray coding guarantees ECC can always correct a misread."
Overstated — Gray coding only limits an adjacent-level misread to a single bit-flip; ECC (LDPC/BCH) still does the correcting, and a jump of two levels can flip more than one bit.
"Since PLC stores 5 bits it must have 25 levels."
Wrong rule — levels are , not ; the relation is exponential, .
"Reads on QLC are always proportionally slower than SLC because there are more comparisons."
The comparison count is a minor factor — the real read slowdown comes from ECC retries and re-reads at shifted references when tight margins cause raw errors.
Why questions
Explain the mechanism, and point at the exact formula or claim you are justifying.
Why do we divide by instead of in ?
Because level centres create gaps between neighbouring centres (fencepost rule), so the span is shared across intervals, not .
Why does the denominator in make reliability collapse exponentially rather than linearly?
Because , so each extra bit doubles and roughly doubles the denominator; the gap between smears shrinks geometrically while only rises by 1.
Why does erasing (not just writing) wear the cell out, contradicting "only writes cause wear"?
Erase tunnels electrons back through the oxide, and each tunnelling event slightly damages it, widening the smear until neighbouring levels overlap.
Why does QLC benefit from an SLC cache, given ISPP is the write bottleneck?
Writing in SLC mode uses only levels with huge , so ISPP needs few verify pulses and is fast; data is later migrated to dense QLC in the background, hiding the slow write.
Why is Gray coding the smart labelling, tied to the "adjacent smears touch first" claim?
Adjacent levels are the most confusable (their smears meet first as shrinks), and Gray code makes adjacent levels differ in exactly one bit, so the most likely misread causes the smallest, ECC-friendliest damage.
Why does the same leakage harmless in SLC destroy a QLC value, per ?
SLC's single gap () is ~15× wider than QLC's (), so a given drift stays inside the SLC level but is a large fraction of the tiny QLC gap and crosses into a neighbour.
Why does needing tighter target distributions slow programming, linking back to ISPP?
ISPP raises voltage in small steps and verifies after each; a tighter target (smaller ) needs more pulse-verify iterations to land inside the narrow window without overshooting.
Edge cases
The scenarios the smooth density story tends to skip.
What are and for SLC, and is SLC a "multi-level" cell?
, levels — SLC is single-level (charged / not), the degenerate case that is not a multi-level cell.
With (only one level), how many bits and how many read references?
bits and references — a cell that can only be one state stores no information.
As (ever more bits), what happens to ?
It — the levels collapse together and the smears fully overlap, so at some the raw error rate exceeds what any ECC can fix, capping practical bits/cell.
If two smears just barely touch at their tails, is the data still safe?
Marginally — a few tail cells will misread, producing a low raw bit-error rate that ECC absorbs; the design target keeps overlap small enough that ECC has spare capacity.
A fresh QLC drive and a heavily-cycled QLC drive: same ?
The nominal is unchanged, but cycling widens each smear via oxide wear, so the effective gap between smear edges shrinks, raising errors even though and are fixed.
Does raising freely solve crowding?
No — is bounded by how much charge the tiny floating gate holds and the read voltage the periphery tolerates, so you cannot simply widen it to rescue QLC.
For a fixed die of cells, does moving SLC→QLC change the number of physical cells?
No — cells stay cells; only rises (1→4), so data capacity is 4× while silicon area is fixed, which is the whole commercial motive.
Recall One-line self-test before you close the page
Say aloud: "More bits per cell means levels crammed into a fixed , so shrinks exponentially, which means more smear overlap, which means more raw errors, weaker endurance, slower ISPP writes." If you can justify each arrow, you've mastered the trade.
