Intuition The one-sentence pictureIn a doped semiconductor, one type of carrier is overwhelmingly abundant (the majority carrier ) and the other type is rare but never zero (the minority carrier ). Almost all device physics that matters — diodes, transistors, solar cells — is secretly controlled by the tiny minority population, because the majority is "boring and plentiful."
A carrier is a mobile charge that can carry current in a semiconductor:
Electrons (n n n − q -q − q Holes (p p p + q +q + q
Majority carrier = the carrier type present in large concentration due to doping.
Minority carrier = the other type, present in small concentration.
Doping
Majority
Minority
n-type (donors, e.g. P in Si)electrons n n n
holes p p p
p-type (acceptors, e.g. B in Si)holes p p p
electrons n n n
Intuition WHY doesn't the minority carrier just vanish?Even in a perfect n-type crystal, thermal energy keeps breaking covalent bonds, creating electron–hole pairs. This generation never stops, so there is always a trickle of holes. They just get outnumbered.
We need two facts, both derivable from first principles.
product is constant
In thermal equilibrium, electrons and holes are continuously generated (rate G G G R ∝ n ⋅ p R \propto n\cdot p R ∝ n ⋅ p one electron AND one hole to meet ). At equilibrium G = R G = R G = R G = r n p G = r\, n p G = r n p G G G n p np n p not on doping.
Start from the intrinsic (undoped) crystal where n = p = n i n = p = n_i n = p = n i G = r n i 2 G = r\, n_i^2 G = r n i 2 same temperature , G G G r n p = r n i 2 ⇒ n p = n i 2 r\, n\, p = r\, n_i^2 \;\Rightarrow\; \boxed{np = n_i^2} r n p = r n i 2 ⇒ n p = n i 2
Why this step? We cancelled r r r T T T G G G
Intuition WHY the crystal is neutralA doped crystal isn't electrically charged overall — it just sits on the shelf. So all positive charges must balance all negative charges.
Positive: holes p p p N D + N_D^+ N D + n n n N A − N_A^- N A − p + N D + = n + N A − p + N_D^+ = n + N_A^- p + N D + = n + N A −
Assume full ionization at room temperature (N D + ≈ N D N_D^+ \approx N_D N D + ≈ N D N A − ≈ N A N_A^- \approx N_A N A − ≈ N A
Case n-type (N D ≫ N A N_D \gg N_A N D ≫ N A N A = 0 N_A = 0 N A = 0 p + N D = n p + N_D = n p + N D = n N D ≫ n i N_D \gg n_i N D ≫ n i ≈ \approx ≈ n n ≈ N D p n = n i 2 N D \boxed{n_n \approx N_D} \qquad \boxed{p_n = \frac{n_i^2}{N_D}} n n ≈ N D p n = N D n i 2
Why this step? If N D ≫ n i N_D \gg n_i N D ≫ n i p p p n ≈ N D n \approx N_D n ≈ N D forces p = n i 2 / n = n i 2 / N D p = n_i^2/n = n_i^2/N_D p = n i 2 / n = n i 2 / N D
Case p-type (N A ≫ N D N_A \gg N_D N A ≫ N D p p ≈ N A n p = n i 2 N A \boxed{p_p \approx N_A} \qquad \boxed{n_p = \frac{n_i^2}{N_A}} p p ≈ N A n p = N A n i 2

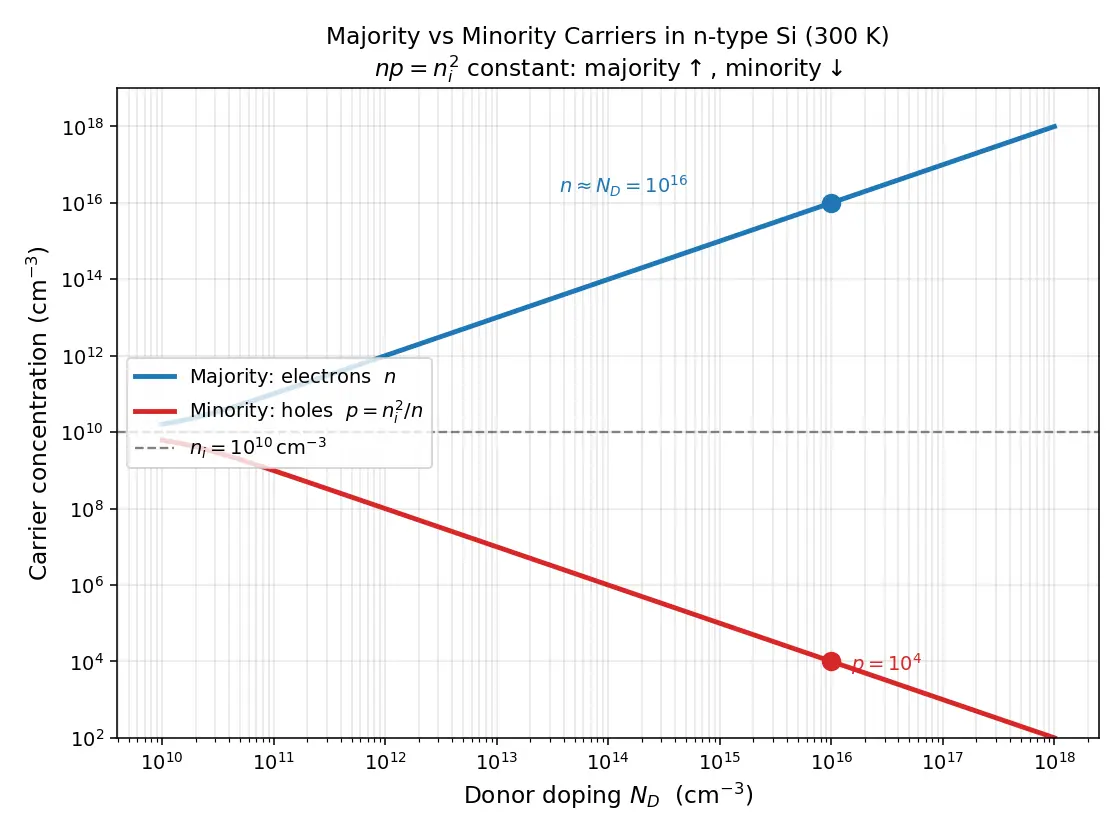

Notice: doping up the majority pushes the minority down (inverse relationship). Same product n i 2 n_i^2 n i 2
n i = 1.0 × 10 10 cm − 3 n_i = 1.0\times10^{10}\,\text{cm}^{-3} n i = 1.0 × 1 0 10 cm − 3 N D = 1.0 × 10 16 cm − 3 N_D = 1.0\times10^{16}\,\text{cm}^{-3} N D = 1.0 × 1 0 16 cm − 3
Majority (electrons): n n ≈ N D = 1.0 × 10 16 cm − 3 n_n \approx N_D = 1.0\times10^{16}\,\text{cm}^{-3} n n ≈ N D = 1.0 × 1 0 16 cm − 3 Why? N D ≫ n i N_D \gg n_i N D ≫ n i
Minority (holes): p n = n i 2 N D = ( 10 10 ) 2 10 16 = 10 4 cm − 3 p_n = \dfrac{n_i^2}{N_D} = \dfrac{(10^{10})^2}{10^{16}} = 10^{4}\,\text{cm}^{-3} p n = N D n i 2 = 1 0 16 ( 1 0 10 ) 2 = 1 0 4 cm − 3 Why? Mass action: knowing n n n n i 2 n_i^2 n i 2
Ratio: majority/minority = 10 16 / 10 4 = 10 12 = 10^{16}/10^{4} = 10^{12} = 1 0 16 /1 0 4 = 1 0 12
Worked example Compensation: both dopants presentp-type wafer with N A = 5 × 10 16 N_A = 5\times10^{16} N A = 5 × 1 0 16 N D = 1 × 10 16 cm − 3 N_D = 1\times10^{16}\,\text{cm}^{-3} N D = 1 × 1 0 16 cm − 3 = N A − N D = 4 × 10 16 = N_A - N_D = 4\times10^{16} = N A − N D = 4 × 1 0 16
Majority (holes): p ≈ N A − N D = 4 × 10 16 cm − 3 p \approx N_A - N_D = 4\times10^{16}\,\text{cm}^{-3} p ≈ N A − N D = 4 × 1 0 16 cm − 3 Why? Donors "cancel" some acceptors; only the net dopant sets the majority level.
Minority (electrons): n = n i 2 / p = 10 20 / ( 4 × 10 16 ) = 2.5 × 10 3 cm − 3 n = n_i^2/p = 10^{20}/(4\times10^{16}) = 2.5\times10^{3}\,\text{cm}^{-3} n = n i 2 / p = 1 0 20 / ( 4 × 1 0 16 ) = 2.5 × 1 0 3 cm − 3
Worked example Lightly doped: check the approximationN D = 5 × 10 10 cm − 3 N_D = 5\times10^{10}\,\text{cm}^{-3} N D = 5 × 1 0 10 cm − 3 n i = 1 × 10 10 n_i = 1\times10^{10} n i = 1 × 1 0 10 N D N_D N D not ≫ n i \gg n_i ≫ n i n = p + N D n = p + N_D n = p + N D n p = n i 2 np = n_i^2 n p = n i 2 n = N D 2 + ( N D 2 ) 2 + n i 2 n = \frac{N_D}{2} + \sqrt{\left(\frac{N_D}{2}\right)^2 + n_i^2} n = 2 N D + ( 2 N D ) 2 + n i 2 = 2.5 × 10 10 + 6.25 × 10 20 + 10 20 = 2.5 × 10 10 + 2.9 × 10 10 = 5.4 × 10 10 = 2.5\times10^{10} + \sqrt{6.25\times10^{20}+10^{20}} = 2.5\times10^{10} + 2.9\times10^{10} = 5.4\times10^{10} = 2.5 × 1 0 10 + 6.25 × 1 0 20 + 1 0 20 = 2.5 × 1 0 10 + 2.9 × 1 0 10 = 5.4 × 1 0 10 Why? This is just the quadratic solution of the two coupled equations; use it whenever doping is comparable to n i n_i n i
Common mistake "The minority carrier concentration is zero."Why it feels right: You doped n-type to make electrons; where would holes come from?
The fix: Thermal generation never switches off. p n = n i 2 / N D > 0 p_n = n_i^2/N_D > 0 p n = n i 2 / N D > 0
Common mistake "More doping = more of BOTH carriers."Why it feels right: Adding dopants adds carriers, so surely everything goes up.
The fix: More majority means faster recombination , so the minority is suppressed : p n = n i 2 / N D p_n = n_i^2/N_D p n = n i 2 / N D down as N D N_D N D product stays constant.
n ≈ N D n \approx N_D n ≈ N D Why it feels right: It worked in every textbook example.
The fix: Only valid when N D ≫ n i N_D \gg n_i N D ≫ n i n i n_i n i
Common mistake "Majority carriers dominate ALL device behaviour."Why it feels right: They carry most of the current in a resistor.
The fix: In junction devices (diode/BJT), it's the minority-carrier injection and diffusion that sets the current. The plentiful majority is almost a spectator across a junction.
Recall The 20% that gives 80%
n p = n i 2 np = n_i^2 n p = n i 2 T T T Charge neutrality ⇒ \Rightarrow ⇒ ≈ \approx ≈
Minority = n i 2 / ( majority ) =n_i^2 / (\text{majority}) = n i 2 / ( majority )
Minority carriers, though tiny, control junction devices.
In n-type Si, name the majority and minority carrier. Majority = electrons; minority = holes.
State the law of mass action and when it holds. n p = n i 2 np = n_i^2 n p = n i 2 ; only in thermal equilibrium at fixed temperature.
Why is the minority concentration never zero? Thermal generation of electron–hole pairs never stops, so a small equilibrium population always exists.
Formula for minority holes in n-type with donor density N D N_D N D p n = n i 2 / N D p_n = n_i^2 / N_D p n = n i 2 / N D (assuming
N D ≫ n i N_D \gg n_i N D ≫ n i ).
If you increase doping, what happens to majority and minority concentrations? Majority rises (
≈ N D \approx N_D ≈ N D ); minority falls (
∝ 1 / N D \propto 1/N_D ∝ 1/ N D ); product
n i 2 n_i^2 n i 2 stays fixed.
When is n ≈ N D n \approx N_D n ≈ N D When
N D N_D N D is not
≫ n i \gg n_i ≫ n i (light doping / small band gap); then solve the quadratic.
For compensated material (N A , N D N_A, N_D N A , N D The NET dopant,
∣ N A − N D ∣ |N_A - N_D| ∣ N A − N D ∣ .
Exact electron conc. from neutrality + mass action (n-type). n = N D / 2 + ( N D / 2 ) 2 + n i 2 n = N_D/2 + \sqrt{(N_D/2)^2 + n_i^2} n = N D /2 + ( N D /2 ) 2 + n i 2 .
Why do minority carriers matter for diodes? Junction current is set by minority-carrier injection and diffusion across the depletion region.
Recall Feynman: explain to a 12-year-oldImagine a huge crowd at a stadium (n-type) full of blue fans. There are also a tiny handful of red fans who wandered in. Blue fans are the "majority," red are the "minority." Even if you pack in more and more blue fans, there stay only a few red — and the product of red-count times blue-count is a fixed number set by how warm the stadium is (temperature). The funny thing: at the exit gates (the junction of a diode) the game is decided by those few red fans, not the enormous blue crowd. Small but mighty.
"MAJ = whatever you ADD; MINOR = n i 2 n_i^2 n i 2
And: "Push majority UP, push minority DOWN, but their PRODUCT stays the same crown (n i 2 n_i^2 n i 2
Intrinsic carrier concentration $n_i$ — sets the fixed product.Doping — donors and acceptors — decides which carrier is majority.Law of mass action — the equilibrium constraint used here.Charge neutrality condition — second equation to solve for n , p n,p n , p pn junction diode — where minority injection produces current.Diffusion and drift currents — minority carriers move mostly by diffusion.Fermi level position vs doping — majority type sets E F E_F E F
Law of mass action np = ni^2
Device physics: diodes, transistors, solar cells
Intuition Hinglish mein samjhoDekho, jab hum semiconductor ko dope karte hain (jaise Silicon me Phosphorus daal ke n-type banate hain), to ek carrier bahut zyada ho jata hai — usko majority carrier bolte hain (n-type me electrons). Doosra carrier bahut kam bachta hai — usko minority carrier bolte hain (n-type me holes). Important baat: minority carrier kabhi zero nahi hota, kyunki temperature ki wajah se thermal generation chalta rehta hai, bond toot-te rehte hain, aur electron-hole pairs bante rehte hain.
Do simple rules se sab kuch nikal jata hai. Pehla: law of mass action , n p = n i 2 np = n_i^2 n p = n i 2 charge neutrality , kyunki crystal overall neutral hai. Inko milaao to n-type me majority n ≈ N D n \approx N_D n ≈ N D p = n i 2 / N D p = n_i^2/N_D p = n i 2 / N D
Example: N D = 10 16 N_D = 10^{16} N D = 1 0 16 n i = 10 10 n_i = 10^{10} n i = 1 0 10 = 10 16 = 10^{16} = 1 0 16 = 10 4 = 10^{4} = 1 0 4 chhote minority carriers se decide hota hai, na ki bade majority crowd se. Isliye "chhota par powerful" wala concept yaad rakhna. Aur ek galti mat karna — n ≈ N D n \approx N_D n ≈ N D N D ≫ n i N_D \gg n_i N D ≫ n i
