Before we start, one shared vocabulary reminder so no symbol appears un-earned:
The two visuals below are worth internalising before the questions, because half the traps come from not picturing them.

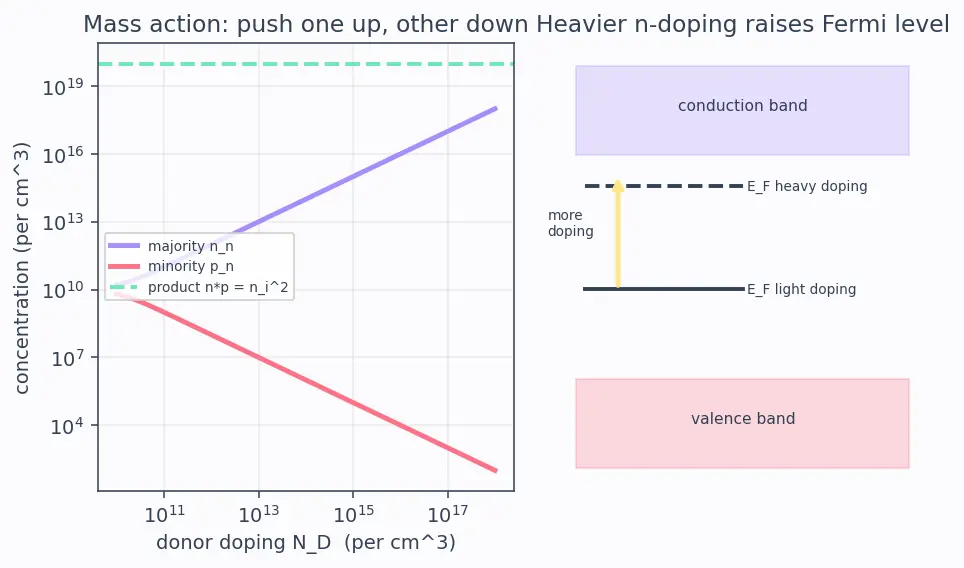

How to read the left panel: both axes are logarithmic (each gridline is a factor of ten). The horizontal axis is donor doping ND sweeping from 1010 to 1018cm−3; the vertical axis is carrier concentration on the same scale. The lavender line (majority electrons nn) climbs almost straight up along nn≈ND; the coral line (minority holes pn) slopes downward as pn=ni2/ND; and the flat dashed mint line marks their constant product ni2=1020cm−6. The point: the two coloured lines are mirror images about the mint line. The right panel is a band diagram: the lavender strip is the conduction band, the coral strip the valence band, and the slate lines mark the Fermi level EF — solid for light doping, dashed for heavy doping. The butter arrow shows EF climbing toward the conduction band as doping increases.

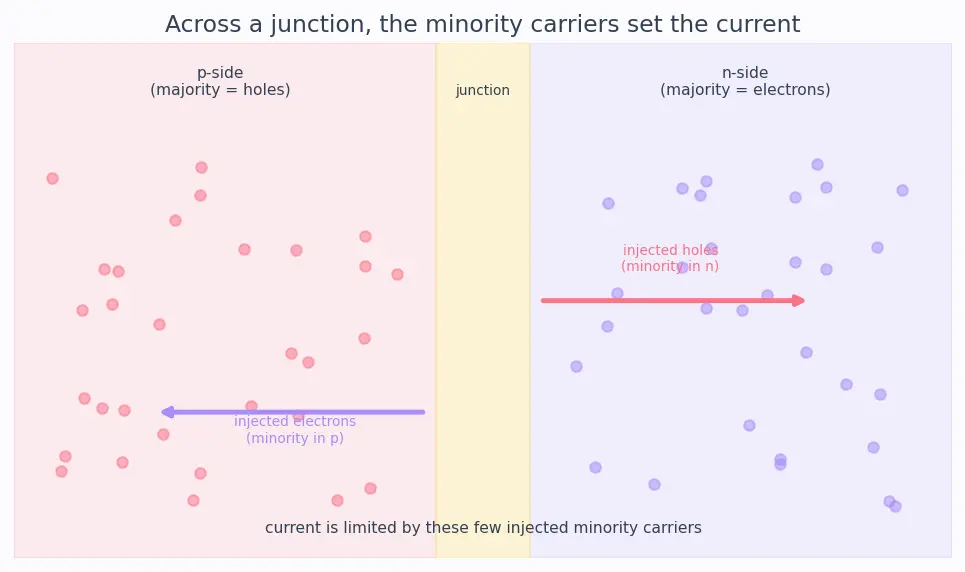

How to read this figure: the coral-tinted block on the left is the p-side (dense coral dots = majority holes), the lavender block on the right is the n-side (dense lavender dots = majority electrons), and the butter strip in the middle is the junction. The two thick coloured arrows are the injected minority carriers crossing the junction — holes injected into the n-side, electrons injected into the p-side. There are only a handful of these arrows versus the crowd of spectator majority dots: that visual imbalance is the whole message — the sparse injected minority carriers set the current.
Thermal equilibrium in a doped crystal means the minority carrier concentration is exactly zero.
False — thermal generation of electron–hole pairs never stops, so the minority population is small but strictly positive: pn=ni2/ND>0. See Law of mass action.
The law of mass action np=ni2 holds no matter how heavily you dope.
True as long as you stay in thermal equilibrium at fixed Tand the doping isn't degenerate (Fermi level still inside the gap); if the Fermi level is pushed into a band you must switch to Fermi–Dirac statistics and np=ni2 no longer applies.
np=ni2 still holds while a diode is passing forward current.
False — forward bias lowers the junction barrier so majority carriers pour across and pile up as excess minority carriers; those extra carriers drive np>ni2 near the junction, and mass action only holds at equilibrium. See pn junction diode.
Doubling the donor density ND doubles both the majority and the minority concentration.
False — majority roughly doubles (nn≈ND), but minority halves (pn=ni2/ND), because the fixed product ni2 must be preserved.
In n-type silicon, electrons outnumber holes, so electrons alone determine diode current.
False — inside a resistor the majority dominates, but across a junction the current is set by minority-carrier injection and diffusion; the majority is nearly a spectator there. See Diffusion and drift currents.
A p-type and an n-type wafer with equal doping magnitude have the same ni2.
True if they're the same material at the same T — ni depends only on band gap and temperature, not on doping type.
The majority carrier concentration always equals the dopant concentration exactly.
False — it equals dopant only approximately, and only when ND≫ni; for light doping you must solve the quadratic from neutrality plus mass action.
Charge neutrality means there are equal numbers of electrons and holes.
False — neutrality means total charge balances: p+ND+=n+NA−, where ND+ and NA− are the ionized dopant concentrations carrying fixed charge, so mobile n and p can differ enormously. See Charge neutrality condition.
Adding dopants makes a semiconductor electrically charged.
False — each ionized donor's extra electron stays in the crystal, so it remains overall neutral; the dopant merely shifts which carrier is abundant.
"Doped n-type, so p=0 because there are no acceptors to make holes."
Holes don't come only from acceptors — thermal bond-breaking generates electron–hole pairs continuously, giving pn=ni2/ND.
"n=ND+ni, because you add the doped electrons to the intrinsic ones."
You can't simply add: intrinsic ni was for the undoped crystal. The correct relation comes from neutrality and mass action; when ND≫ni it reduces to nn≈ND, not ND+ni.
"Compensated wafer with NA=5×1016, ND=1×1016: majority holes =NA=5×1016."
Only the net dopant sets the majority: pp≈NA−ND=4×1016, because donor electrons fill (cancel) some acceptor holes.
"Heavier doping raises minority carriers because there's more material generating pairs."
Backwards — heavier majority means faster recombination, so minority is suppressed: pn=ni2/ND falls as ND rises.
"Since np=ni2 always, majority and minority are always equal."
A constant product does not mean equal factors — one can be 1016 while the other is 104; the product stays ni2 but they are wildly unequal.
"In lightly doped Si with ND=5×1010, just take n≈ND."
Invalid — here ND is only comparable to ni, not ≫ni, so the minority isn't negligible in neutrality; solve n=ND/2+(ND/2)2+ni2.
"Germanium and silicon behave identically for the n≈ND approximation."
Not identical — Ge has a smaller band gap and thus much larger ni, so the "ND≫ni" condition fails at doping levels where it would hold for Si.
Why is the productnp, rather than n or p alone, the quantity fixed by temperature?
Recombination needs one electron and one hole to meet, so its rate goes as n⋅p; balancing that against a temperature-fixed generation rate pins the product, not either factor. See Law of mass action.
Why does raising the majority carrier drive the minority carrier down?
More majority carriers means the rare minority carrier meets a partner and recombines faster, lowering its steady-state count until np returns to ni2.
Why can we usually ignore the minority carrier in the charge-neutrality equation for heavy doping?
When ND≫ni, the hole term p=ni2/ND is minuscule compared with n and ND, so dropping it changes the balance negligibly.
Why do junction devices care about the tiny minority carriers instead of the huge majority?
Across a junction the current is limited by carriers injected into the other side, where they arrive as minority carriers and diffuse; their small numbers make them the rate-limiting bottleneck. See pn junction diode.
Why does forward bias push n⋅p above ni2?
Forward bias lowers the built-in barrier so majority carriers flood across and accumulate as excess minority carriers; with extra carriers of both kinds present near the junction, the product exceeds its equilibrium value ni2.
Why must a doped semiconductor stay electrically neutral if it's just sitting on a shelf?
Any net charge would create an internal field that pushes carriers until the charge is neutralised; equilibrium on the shelf therefore requires balanced positive and negative charge.
Why does the Fermi level move toward the conduction band when we dope n-type?
Adding electrons raises the energy up to which states are filled; the more electrons (majority), the higher the Fermi level sits — a direct consequence of majority abundance. See Fermi level position vs doping.
Why doesn't ni appear in the majority-carrier formula but dominates the minority one?
Majority is set by doping (an external count), while minority is what's left to satisfy np=ni2, so it inherits ni2 directly divided by the majority.
Both equal ni (majority and minority lose their meaning — neither carrier is favoured). This is the reference point mass action is built from.
What happens to majority/minority labels in a perfectly compensated wafer, NA=ND?
Net doping is zero, so it behaves intrinsic-like: n=p=ni and there is no genuine majority — even though many dopant atoms are present.
As temperature rises toward the intrinsic regime, what happens to the minority carrier?
ni grows fast, so pn=ni2/ND climbs; eventually ni≳ND and the doping distinction washes out — the crystal reverts to intrinsic behaviour.
As temperature drops very low (carrier freeze-out), does nn≈ND still hold?
No — donors stop fully ionising, so ND+<ND and the majority falls below the doping level; the full-ionisation assumption breaks.
What is the "high-injection" edge case, and why does it break the usual minority formula?
When so many carriers are injected (e.g. strong forward bias or bright light) that the excess minority density becomes comparable to the majority doping, the injected carriers themselves start dominating; you can no longer treat the majority as fixed at ND, so pn=ni2/ND and nn≈ND both fail and you must track both carriers self-consistently.
For a semiconductor with ni larger than the doping, which formula do you use?
The exact quadratic n=ND/2+(ND/2)2+ni2, since neither n≈ND nor negligible minority is justified.
In the exact solution n=ND/2+(ND/2)2+ni2, what does it reduce to when ND≫ni?
The square root ≈ND/2, so n≈ND/2+ND/2=ND — recovering the familiar approximation as a limiting case.
In the same exact solution, what does it reduce to when ND→0?
The root becomes ni2=ni, giving n→ni — correctly recovering the undoped crystal.
When doping is pushed so high the Fermi level enters the band (degenerate), does np=ni2 still hold?
No — the dilute-gas assumption behind mass action fails, so you must use full Fermi–Dirac statistics; the simple product law is only for the non-degenerate case.
Recall One-line survival kit for this bank
Minority is never zero, product is fixed not the factors, majority is net doping, junctions live off the minority, always check ND≫ni before approximating, and drop mass action once doping goes degenerate or injection goes high.
